YSK-2500B

2500 tons four-column hydraulic press
Availability:
Quantity:
YSK-2500B
YSK-2500B
  • YSK-2500B

  • 八达

Product Description

YSK A/B series four-column hydraulic press

Product Description

The four models of YSK A/B series are suitable for the rolling, embossing, forming of metal sheets and the shallow drawing process of plastic sheets.

For example: the pressing of watch cases, watch bottom covers, watch straps, various gold and silver jewelry, badges, and commemorative coins. It is also suitable for the molding of various tableware and lighting and the correction and pressing of parts.

<

YSK  A/B series four-column hydraulic press parameters    YSK  A/B  Series  Four  Column  Hydraulic  Press  Technical  Parameters  (Bottom  Type)
project  Item unit
Units
Specification  Specification
YSK-60 YSK-100 YSK-150 YSK-200 YSK-300 YSK-500 YSK-600 YSK-800 YSK-1000 YSK-1500 YSK-2000 YSK-2500
Nominal pressure  Nominal  Force Tonf 60 100 150 200 300 500 600 800 1000 1500 2000 2500
Maximum stroke of working slide  Slider  Stroke mm 90 120 150 150 150 160 160 200 200 200 200 200
Working area opening height  Opening  Height mm 280 350 360 360 400 500 600 600 600 800 800 800
Working slider speed
Slider  Speed
fast forward  Fast  Upward mm/s 120 120 100 120 120 100 110 85 75 80 200 60
Return trip  Return mm/s 180 150 120 120 110 80 110 85 80 80 140 50
Effective dimensions of work surface
Worktable  Size
about  LR mm 280 340 400 440 580 685 750 880 900 1060 1270 1460
before and after  FB mm 400 435 500 540 600 700 750 880 960 1300 1300 1510
Workbench height from ground  Worktable  Height  from  Ground mm 770 880 920 920 920 1210 1320 1660 1720 1190 1880 1930
Maximum ejection force of return cylinder  Ejector  Force kg/f 2 5 5 5 5 10 10 20 20 20 20 20
Maximum ejection stroke of return cylinder  Ejector  Stroke mm 15 20 20 20 20 20 20 20 20 20 20 20
Hydraulic system pressure  System  Pressure MPa 20 20 20 21 22 23 23 23 23 23 23 23
Motor Power  Motor  Power KW 5.5 5.5 7.5 7.5 7.5 11 22 22 22 22 334 45.5
Machine dimensions
Overall  Dimension
about  LR mm 1110 1150 1150 1310 1450 1510 1768 1915 1976 3940
4178
before and after  FB mm 960 960 960 1100 1060 1500 1350 1495 1680 1880
2710
high  Height mm 1340 1340 1450 1490 1620 2100 2120 2095 3080 2650
2815
Machine weight  Weight KG 1400 1800 2800 3700 5000 10000 12000 16500 18000 46000 59000 70000

Remarks: 1. Technical parameters are subject to change without prior notice; 2. YSK-A does not have a material return device, and YSK-B does.

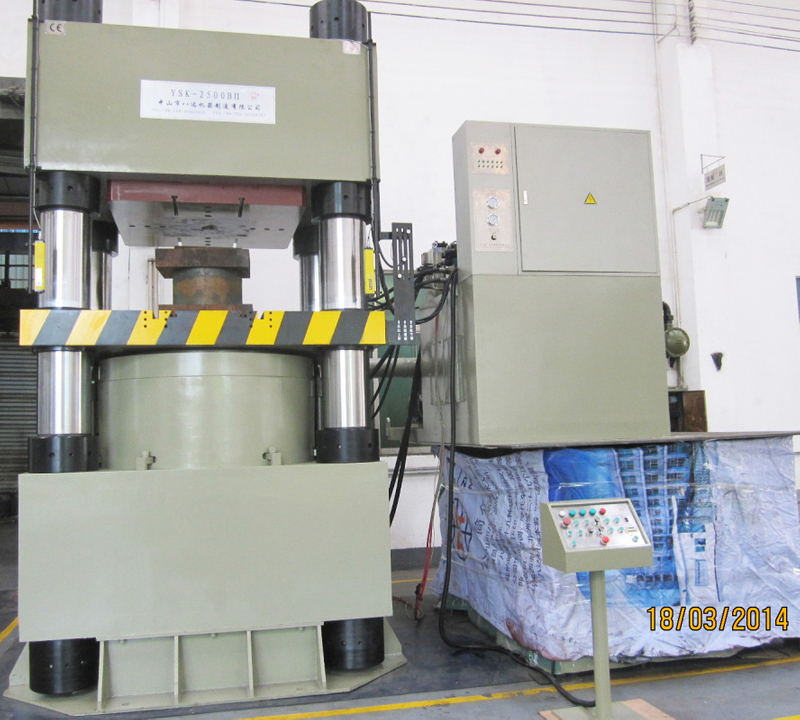

Machine picture 002
