YSK- 300C

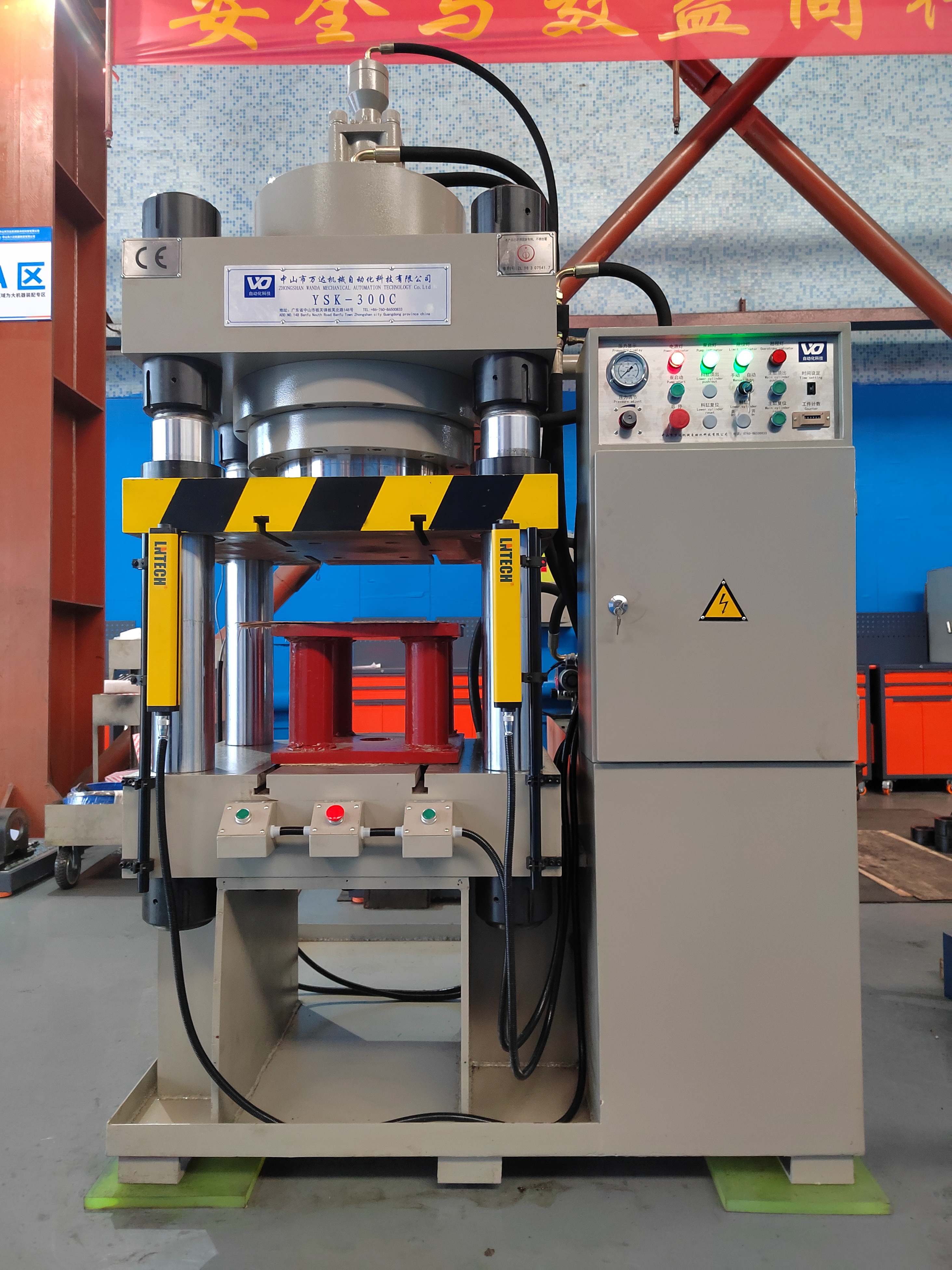

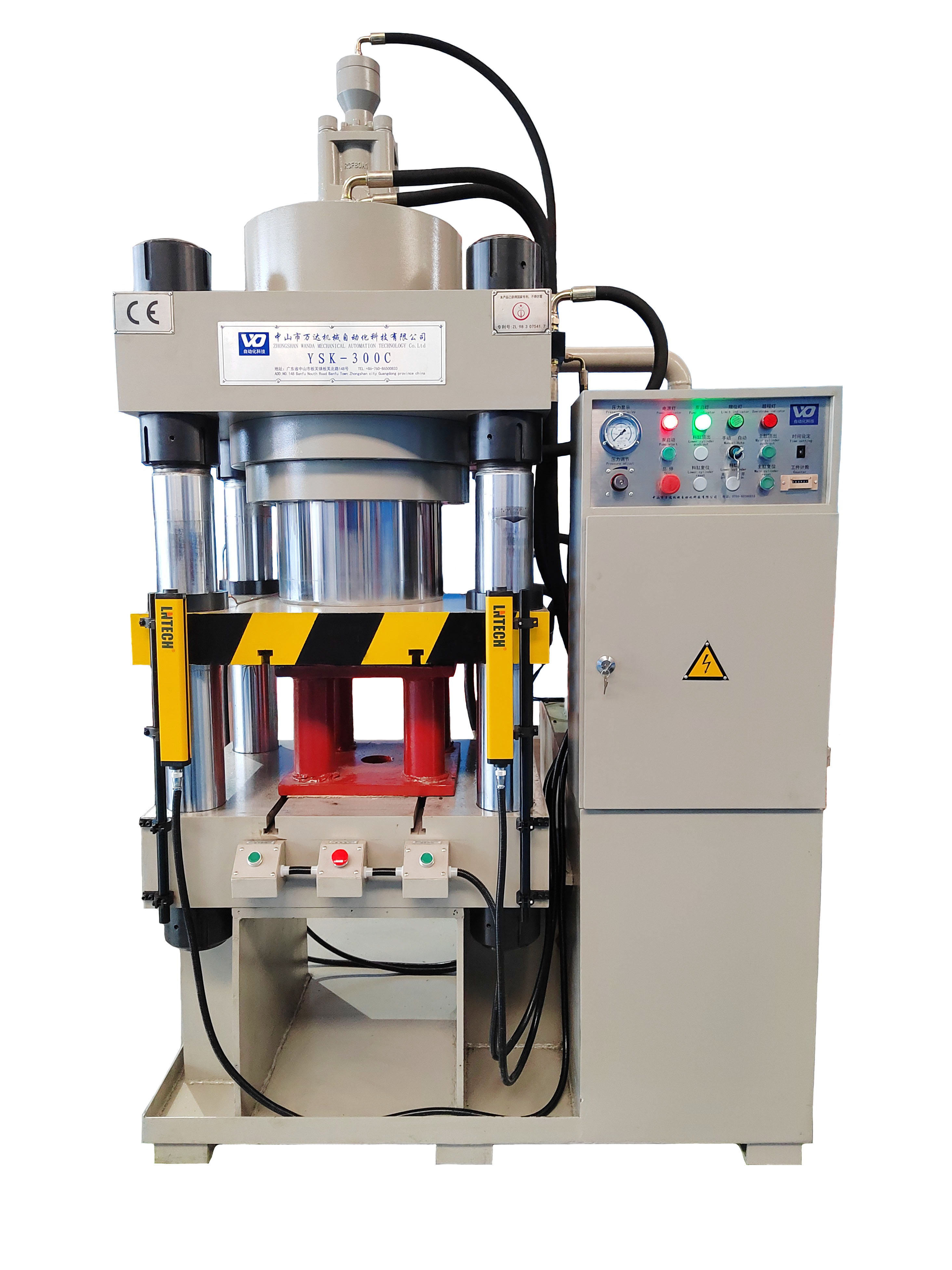

300 tons four-column hydraulic press
Availability:
Quantity:
Inquire Add to Basket

YSK- 300C
YSK- 300C
YSK- 300C
YSK- 300C
YSK- 300C
YSK- 300C

  • YSK-300C

  • 万达

Product Description


Serial number NO.

Project item

Unit

YSK-300C

Specifications Spec.

1

Nominal force of master cylinder

KN

3000

2

Maximum working pressure of liquid

Maximum working pressure of liquid

KN

25

3

Slider stroke

mm

200

4

Maximum opening height of the work area

Max. opening height in the workspace

mm

500

5

Slider stroke

No load down

No-load down

Mm/s

120

Return

Mm/s

120

6

Table size

Left and right (inside the column)

LR(inside column)

mm

560

Front and back (edge) FB(edge)

mm

680

7

Motor power

KW

7.5

21

6

16
