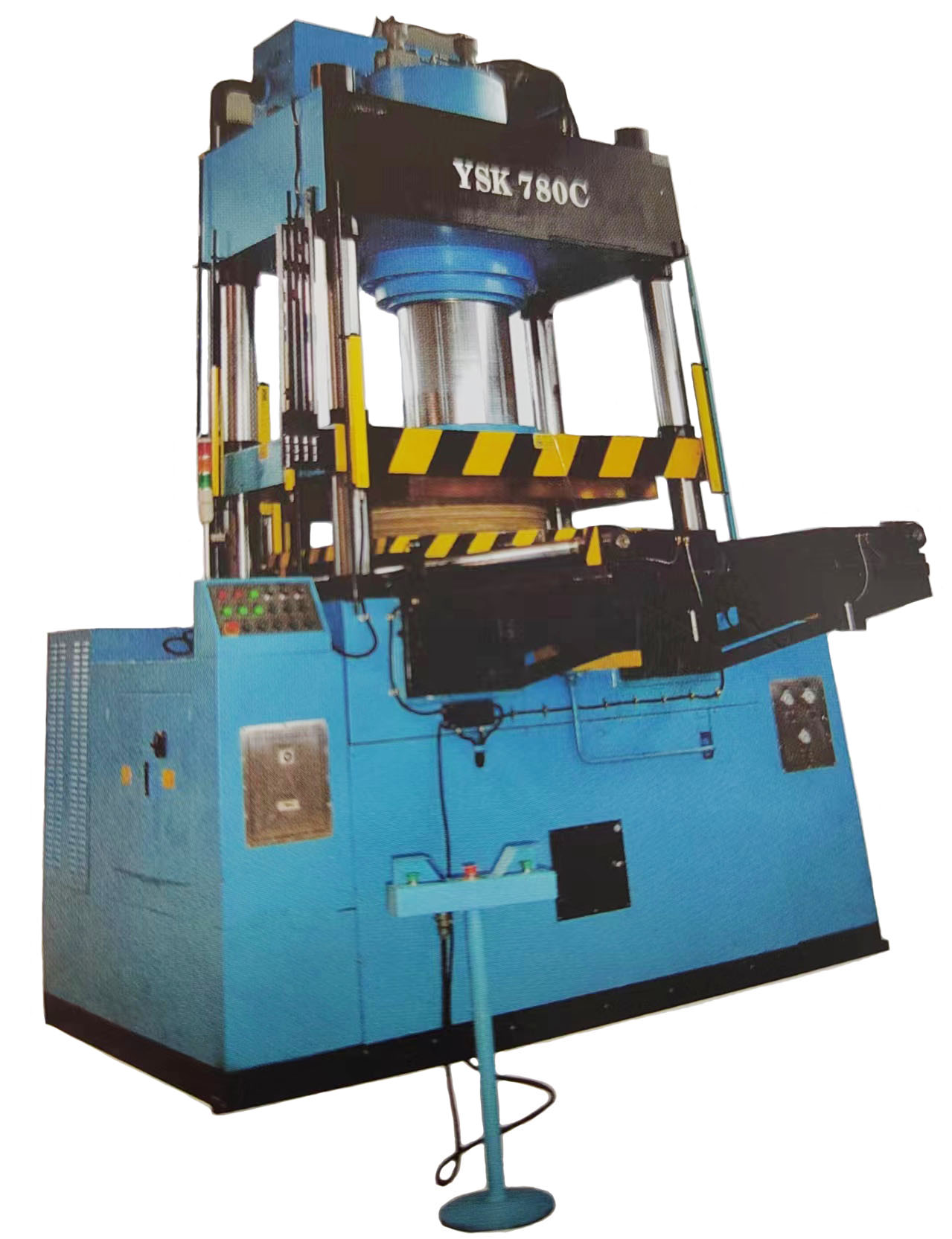

YSK-780C
万达
Product Description
YSK-780C Automatic mold shift (Export model) YSK-780C Automatic mold shift (Export model) | ||||
serial numberNO. | projectItem | unitunits | Specification specification | |
1 | Nominal pressurenominal force | KN | 7800 | |
2 | Master cylinder maximum strokeslider stroke | mm | 750 | |
3 | Maximum liquid working pressure of master cylinder Max.system pressure | MPa | 24.5 | |
4 | master cylinder speed Slider speed | Get off quickly fast downward | mm/s | 100 |
Slow down and suppress pressing | mm/s | 2-4 | ||
Return tripreturn | mm/s | 100 | ||
5 | Maximum ejection force of bottom cylinderbottom cylinder force | KN | 800 | |
6 | Maximum stroke of bottom cylinderbottom cylinder stoke | mm | 350 | |
7 | Maximum liquid working pressure of sumpbottom cylinder pressure | MPa | 25 | |
8 | Bottom cylinder operating speed Bottom cylinder speed | Push outpush out | mm/s | 60 |
Return tripreturn | mm/s | 60 | ||
9 | Maximum stroke of mold transfer cylindermove mold cylinder stroke | mm | 1500 | |
10 | Effective size of workbench pad Bolster size | aboutLR | mm | 1280 |
before and afterFB | mm | 1280 | ||
11 | Effective dimensions of work surface Worktable size | Left and right (within the column)LR(inside column) | mm | 1350 |
Front and back (edge)FB(edge) | mm | 1400 | ||
