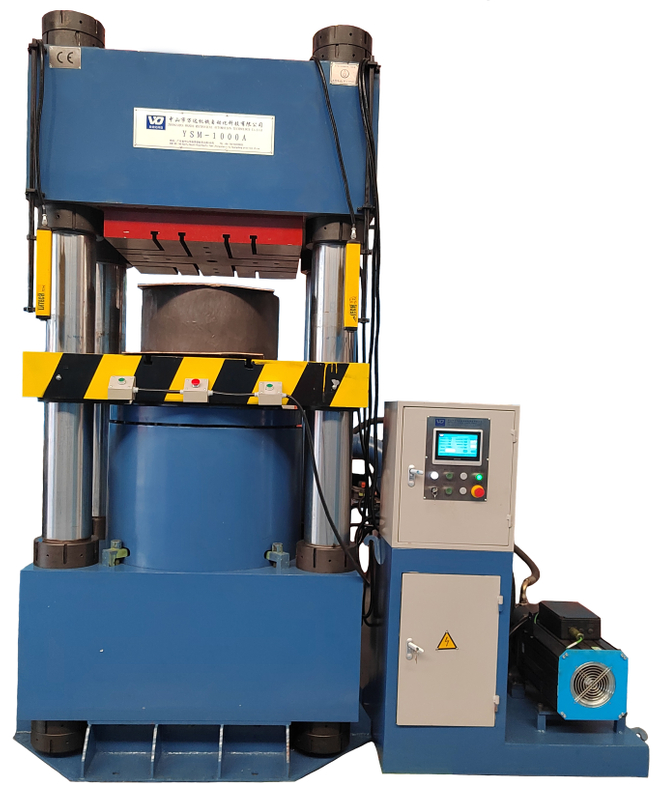

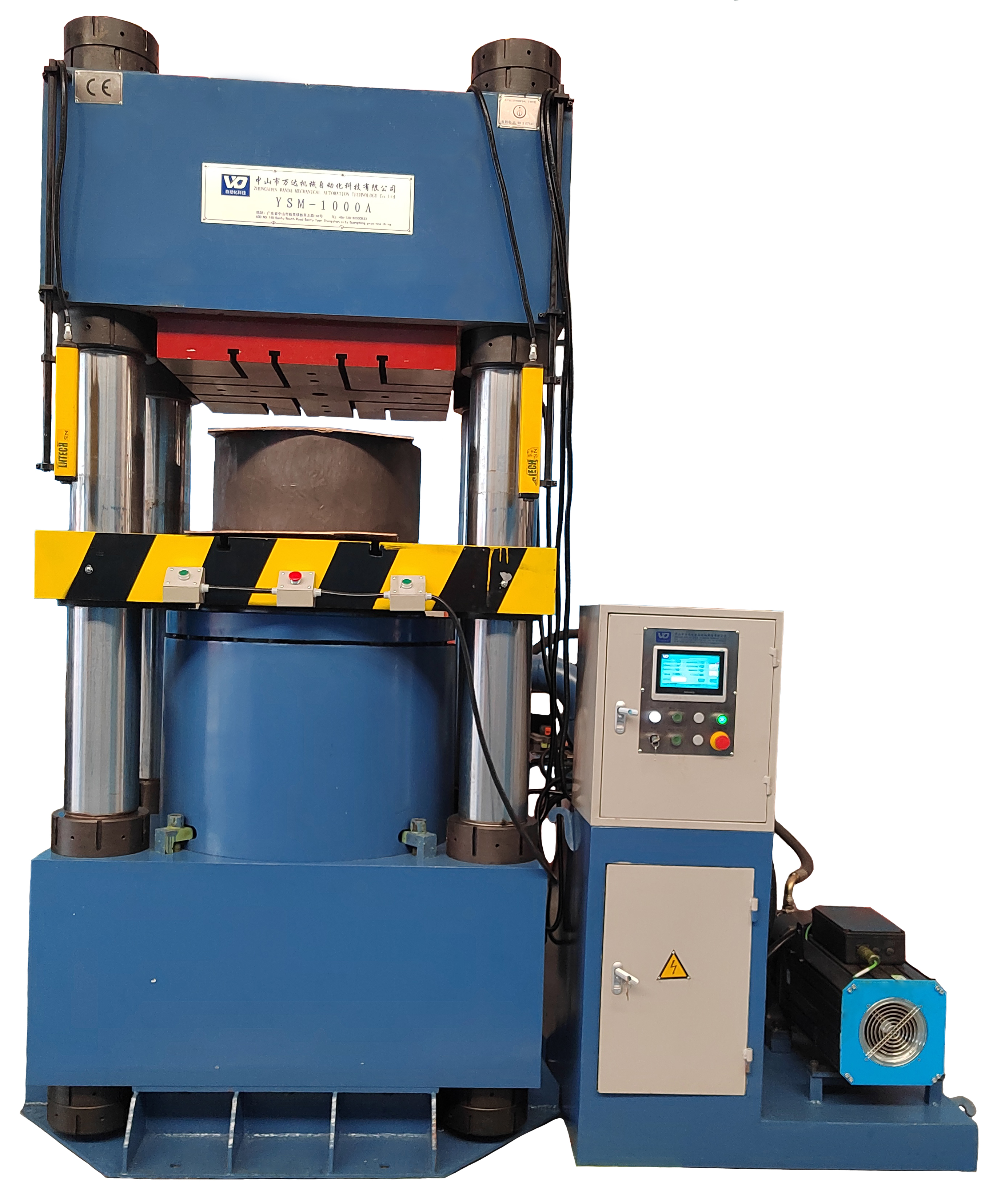

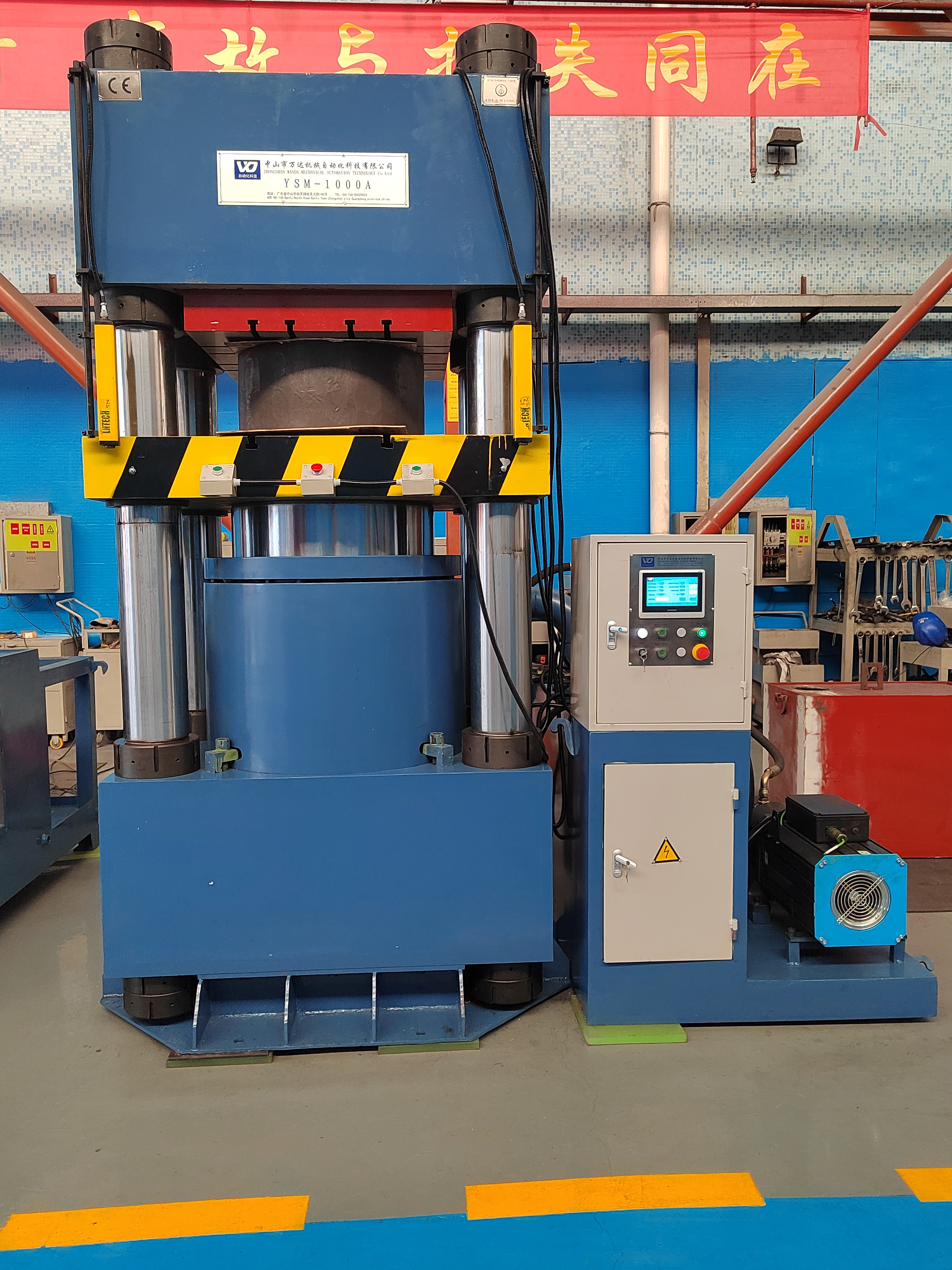

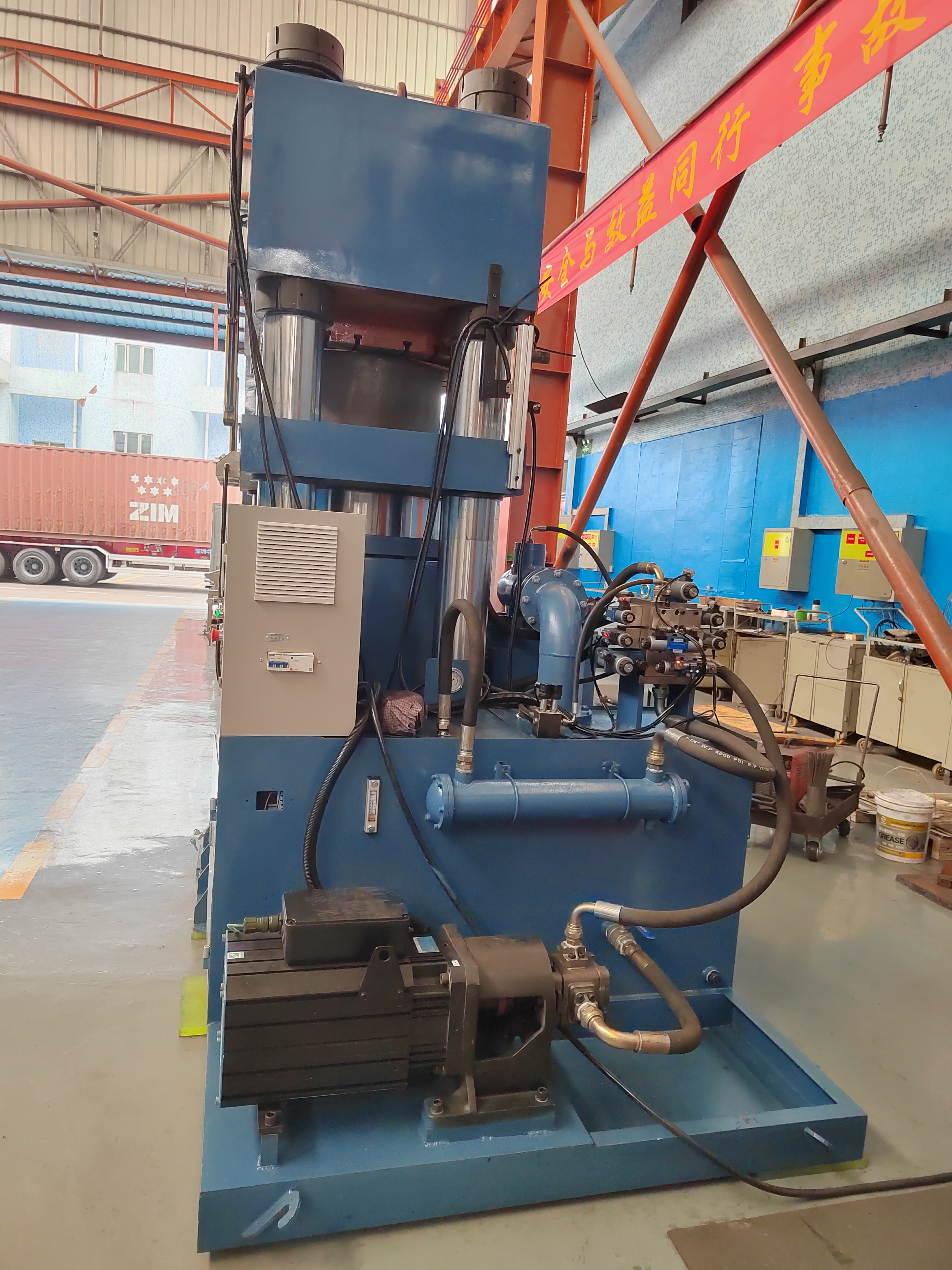

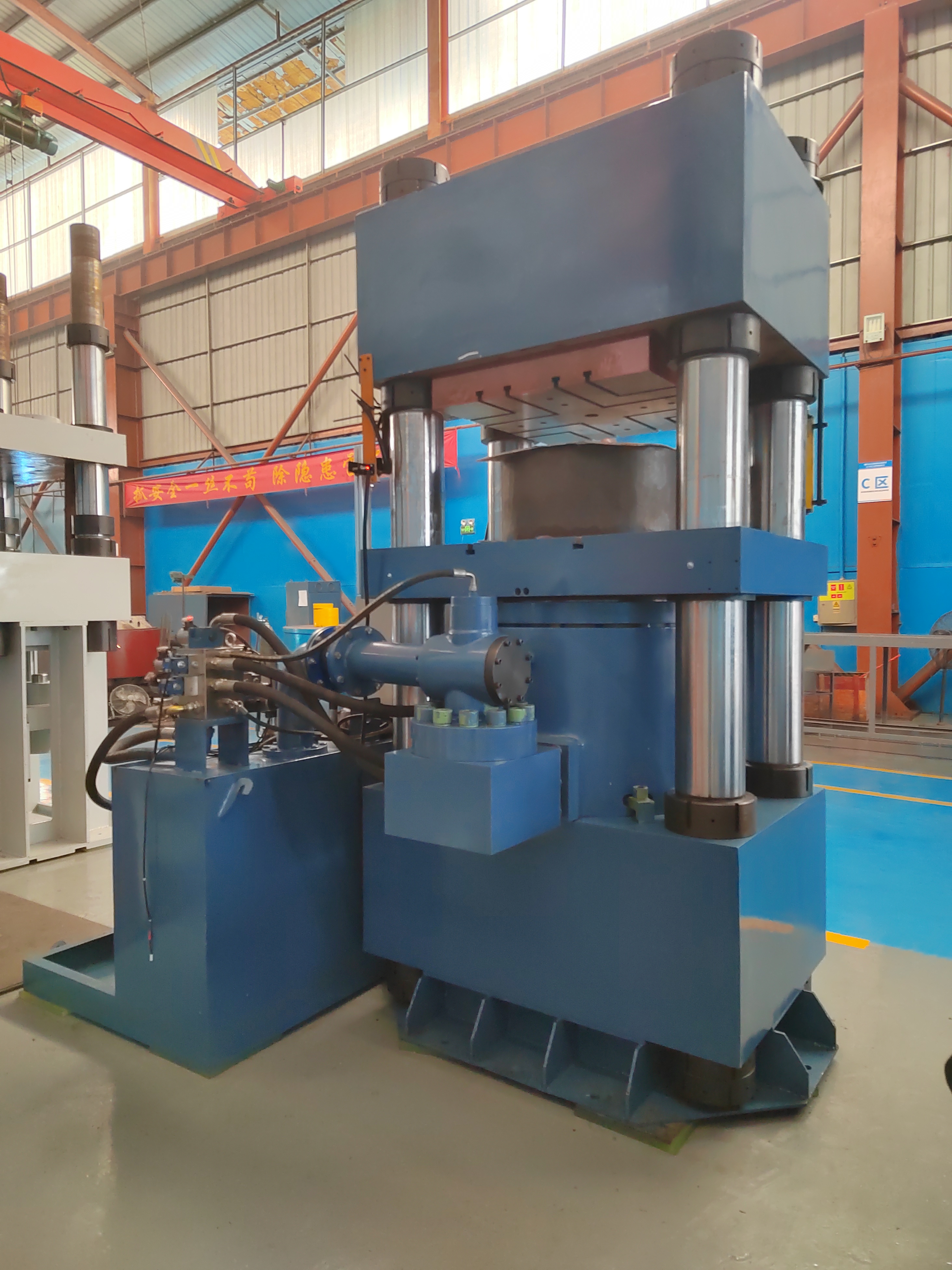

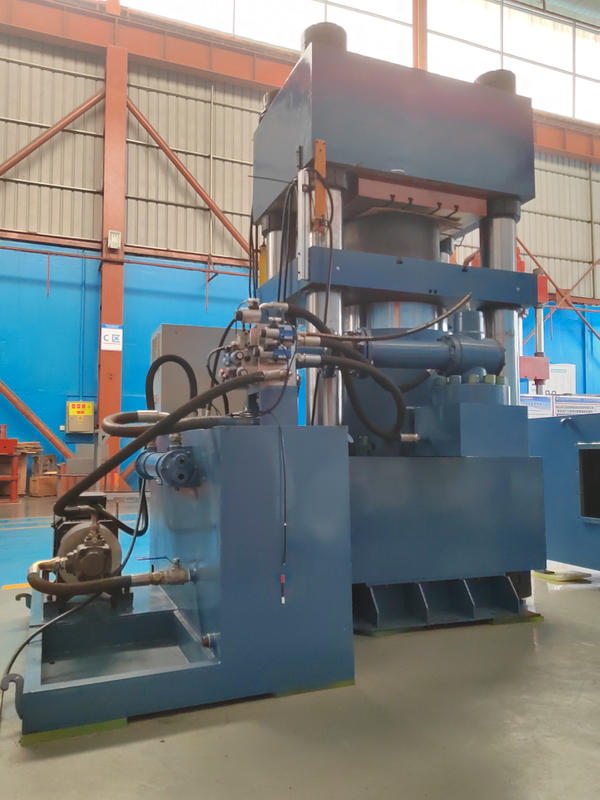

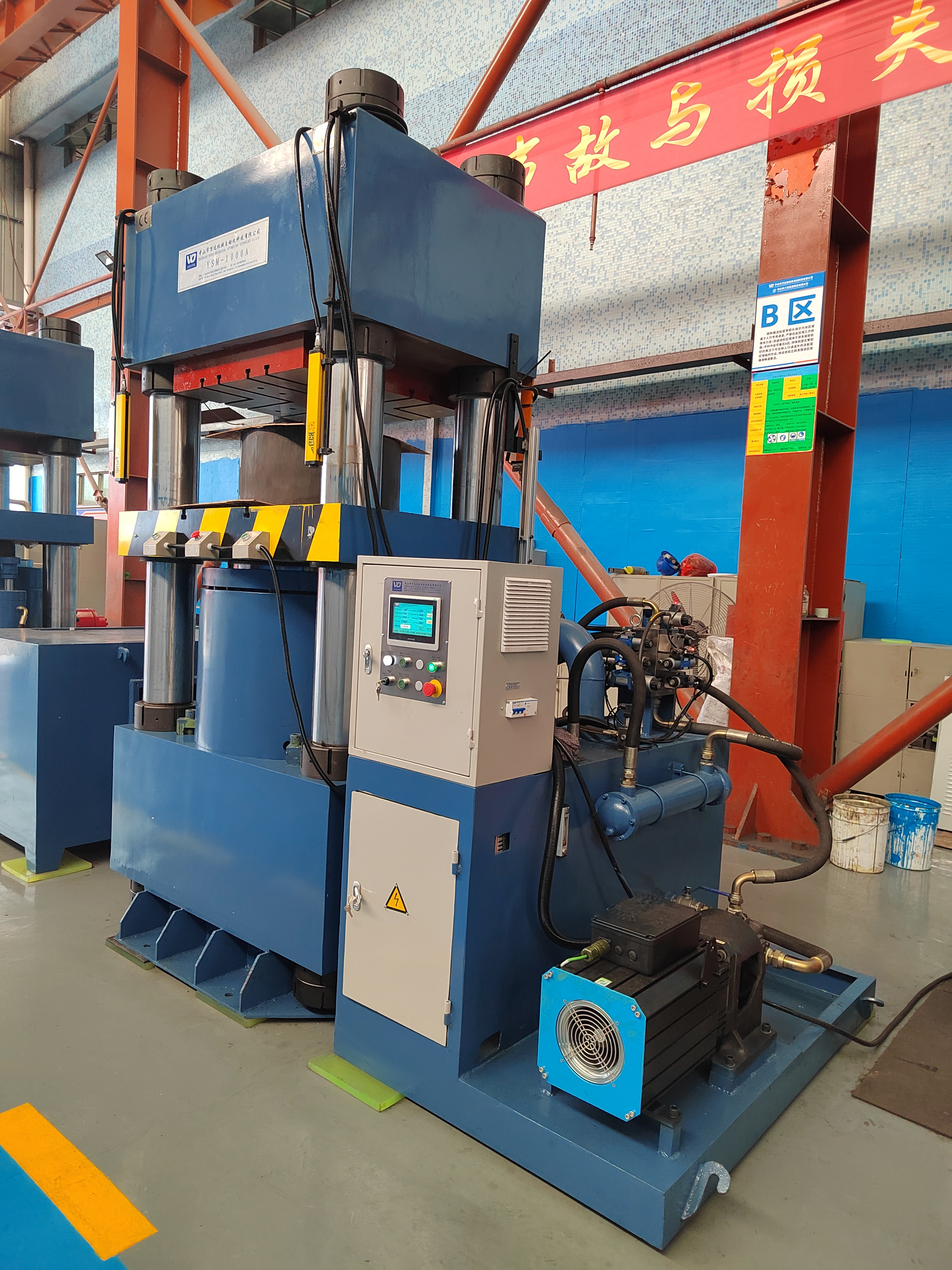

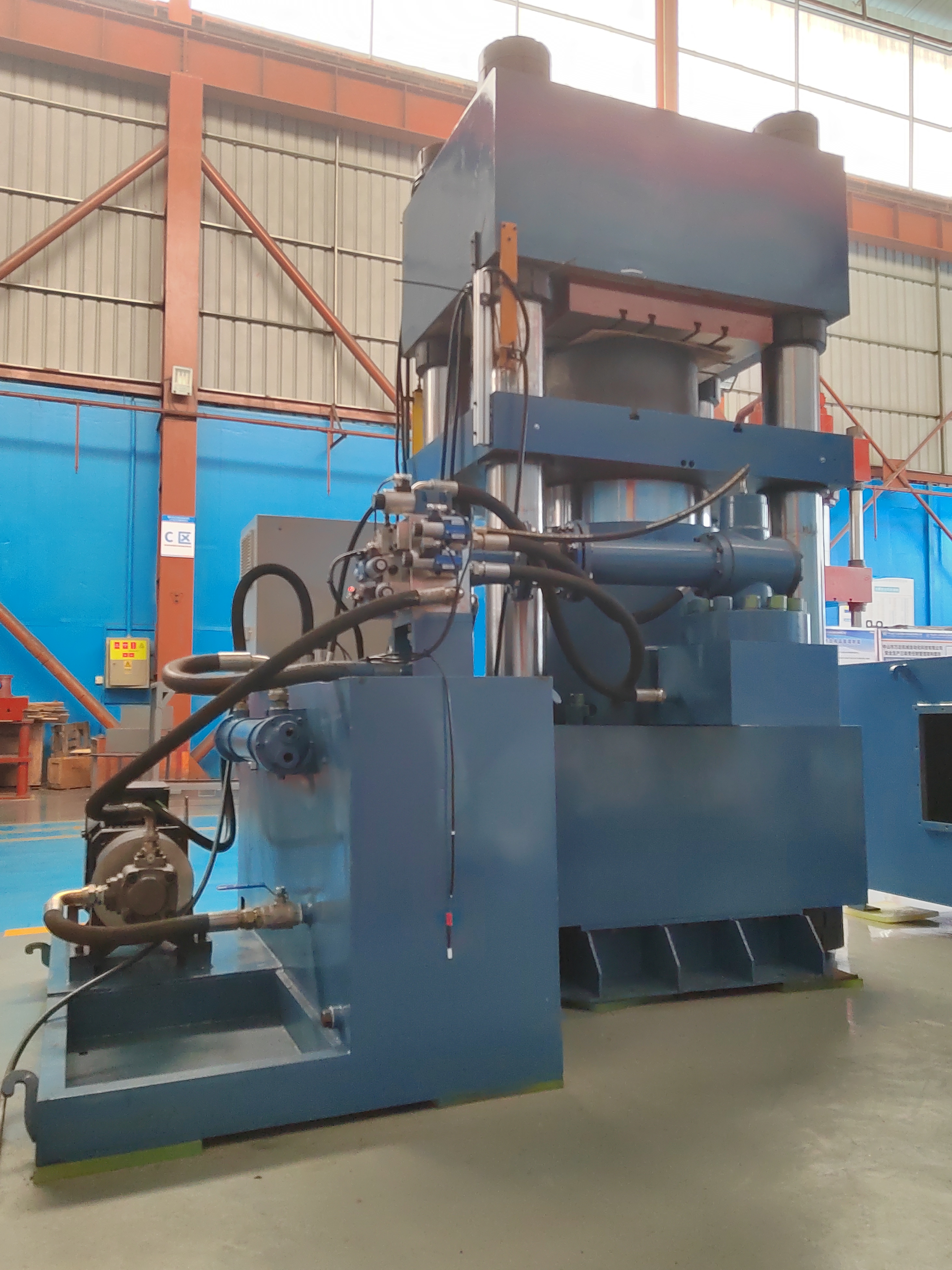

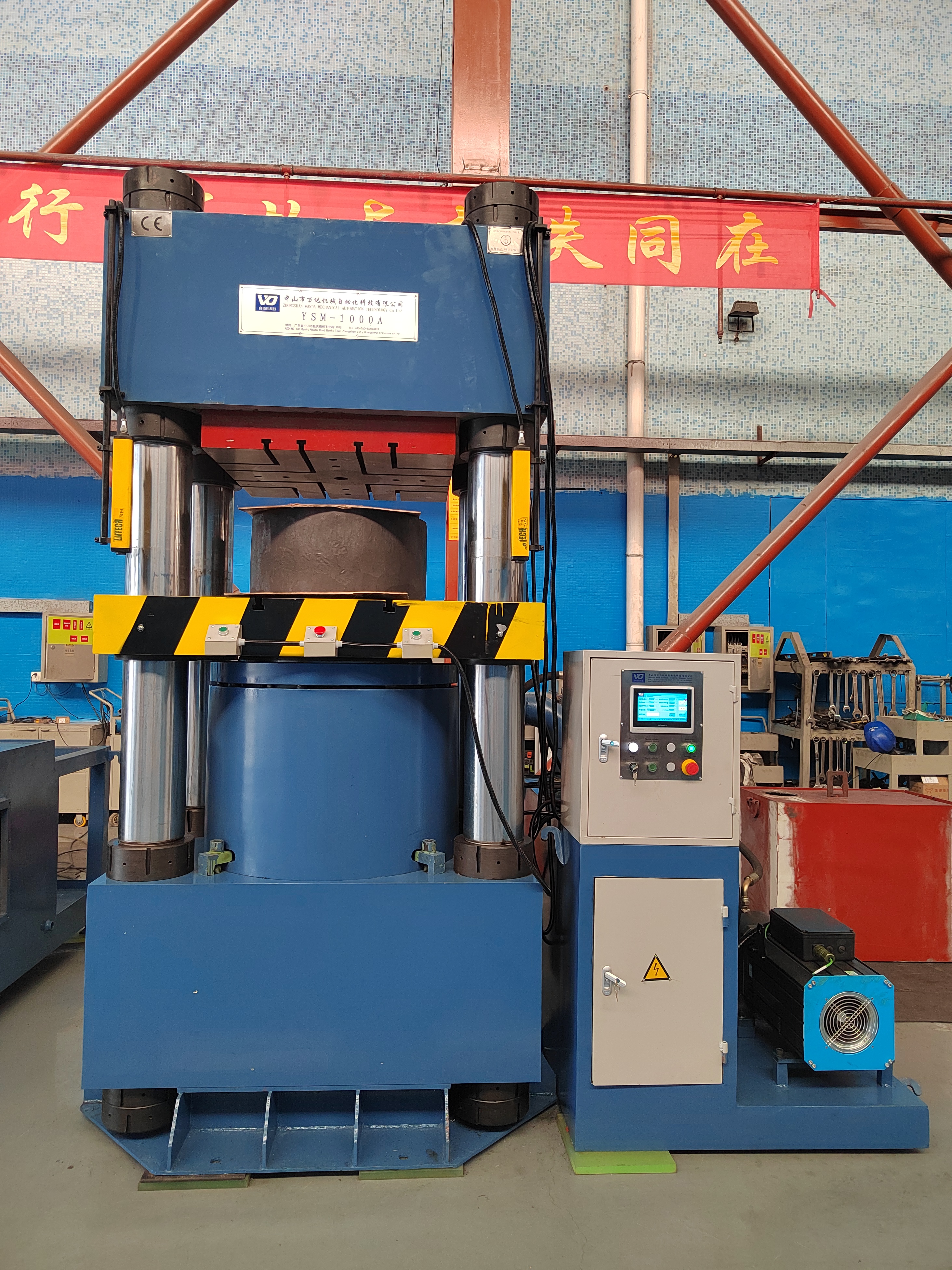

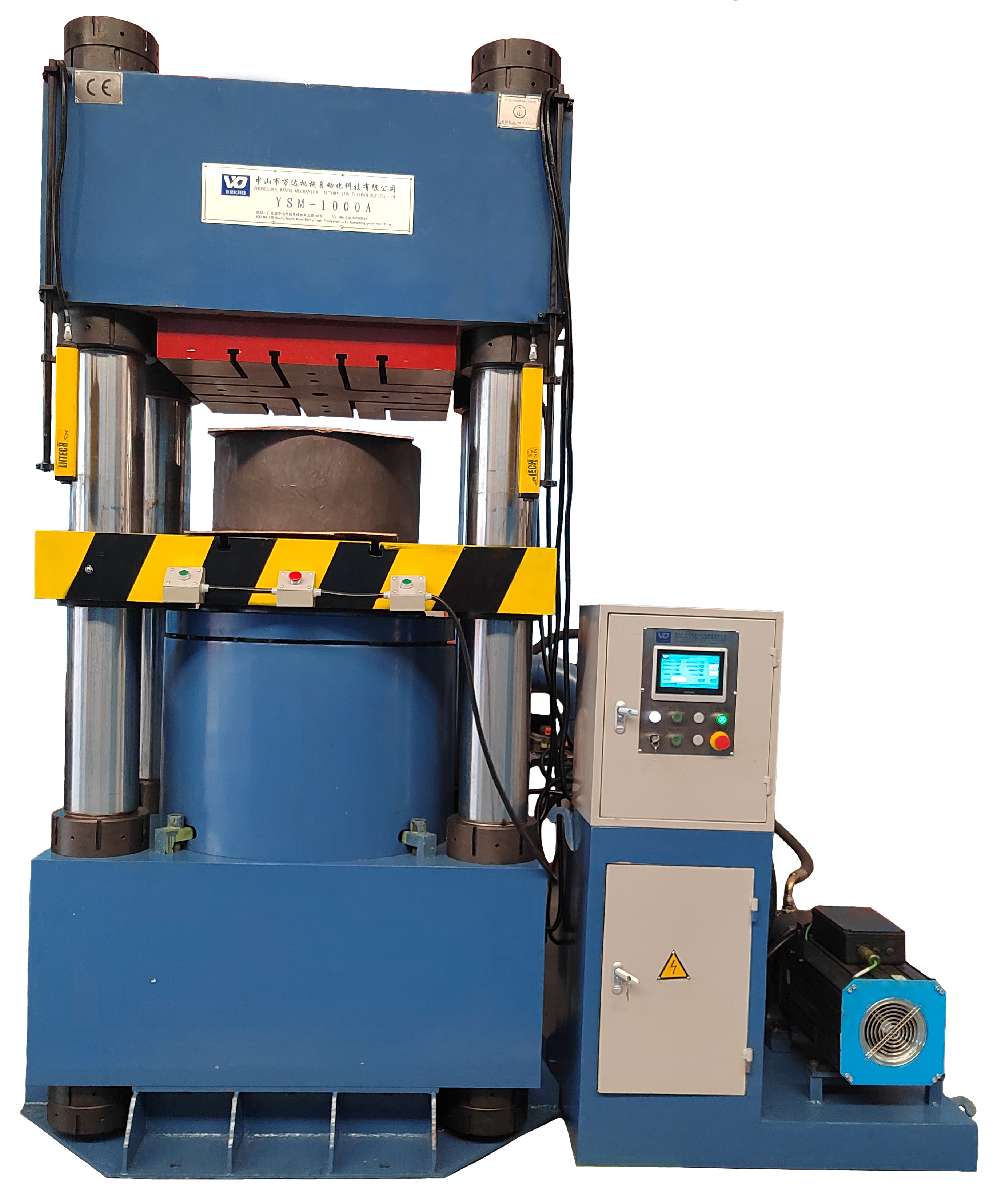

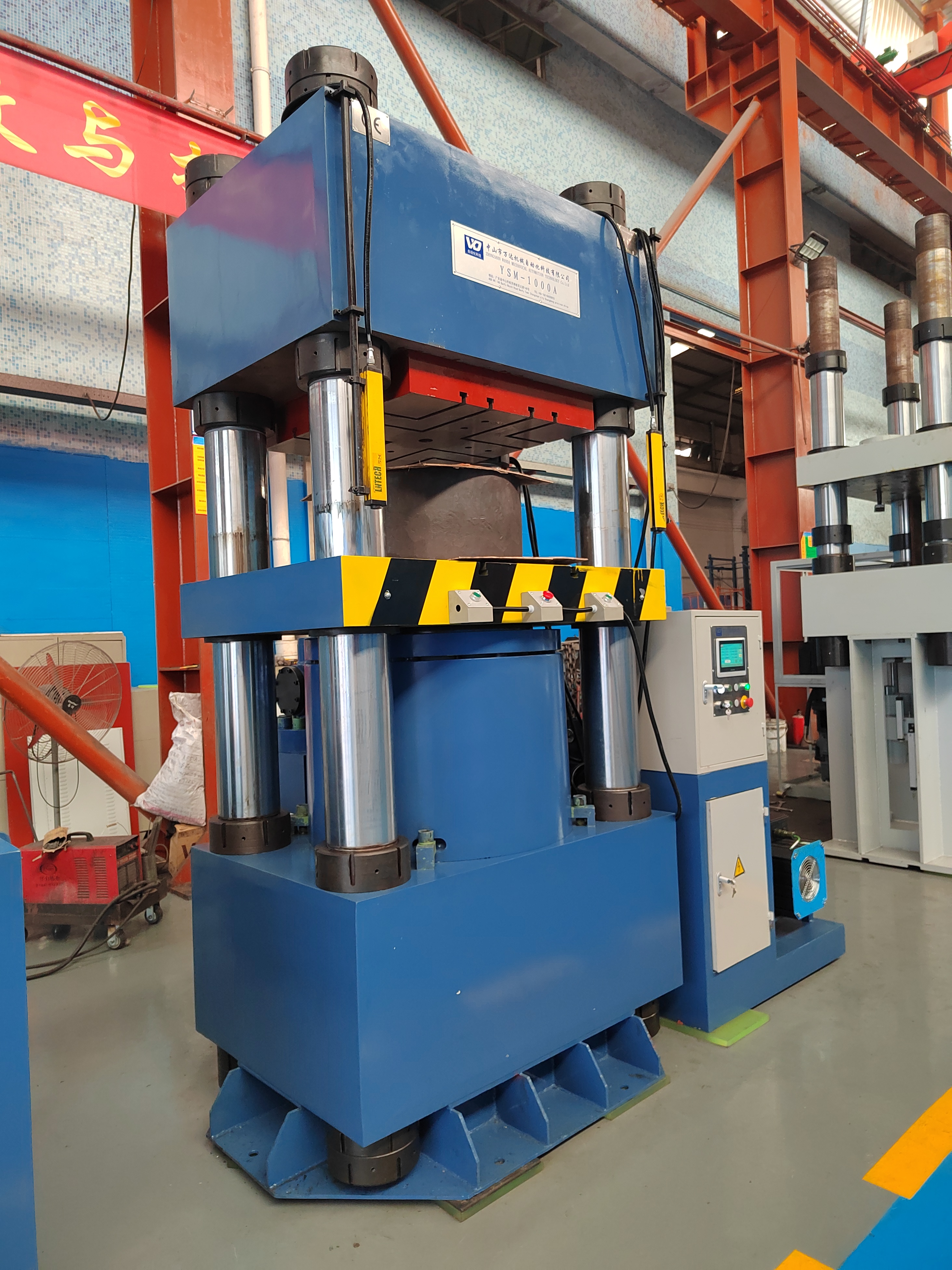

YSM-1000A (lower cylinder type hydraulic press)

YSM series servo four-column hydraulic press
Features:
1. The repeat positioning accuracy is high, up to ±0.01mm;
2. Compared with traditional similar models, energy saving is up to 30%;
3. In fully automatic production mode, the production cycle can be shortened by about 20% compared with traditional production cycles;
4. The servo hydraulic system is used to control it, which can meet the requirements of different processes for speed pressure changes and the movement is stable;
5. The main hydraulic components adopt famous brand products to ensure the stability of the performance of the hydraulic system.
Standard configuration:
Omron computer control system
Semi-closed shield
Pressure sensor
Grating scale
Servo motor oil pump set

Availability:

Quantity:



Inquire Add to Basket

Model:
YSM-1000A
Brand:
万达

Product Description

Product Description

Main technical parameters:

Specification			YSM-A/B series four-column hydraulic press (lower cylinder type) YSM-A/B Series four-column hydroulic press (lower cylinder type)				YSM-C series four-column hydraulic press (top cylinder type) YSM-C Series four-column hydroulic press (Upper cylinder type)
Project item		Unit	YSM-200A/B	YSM-300A/B	YSM-500A/B	YSM-1000A/B	YSM-200C	YSM-300C	YSM-500C	YSM-1000C
Nominal force		KN	2000	3000	5000	10000	2000	3000	5000	10000
Max. system pressure		MPa	24	24.5	25	25	25	25	25	25
Maximum itinerary for movable workbench (adjustable) Max. travel of movable table (adjustable)		mm	150	150	150	150	200	250	250	250
Height of workbench from floor		mm	890	960	1115	1357	800	800	1000	1000
Opening height Opening height		mm	400	400	450	600	500	525	700	800
Activities Workbench Travel speed of movable table	Fast upward	mm/s	180	180	160	140	190	180	170	135
	Work progress	mm/s	5	3.4	3.4	1.7	1.5-6	1-5	1-4	0.5-3
	Returning	mm/s	240	240	200	200	180	170	160	135
Effective area of countertop	Left and left (inside column) LR (inside column)	mm	455	550	650	900	500	550	650	900
Effective area of countertop	Front and back (edge) FB (edge)	mm	550	650	750	950	600	650	750	950
Machine dimensions	Left and right LR	mm	940	1070	1380	1780	1880	1930	2200	2950
	Front and rear FB	mm	1415	1535	1640	1600	1450	1450	1450	1750
	Height	mm	1610	1715	2080	2720	2600	2685	3220	3520
Motor power		KW	12	12	16	16	12	12	16	22
Machine weight Machine weight		KG	2200	3120	5520	13000	3200	3800	9000	18000
Nominal force of ejector cylinder		KN	50	50	100	100	50	50	100	100
Extrusion cylinder stroke Ejector cylinder stroke		mm	30	30	30	30	30	30	30	30

Note: 1. If there are any changes in the above technical parameters, the actual situation or agreement between the parties shall prevail without notice.

2. YSK-A does not have a material withdrawal device, YSK-B does not have a material withdrawal device.
