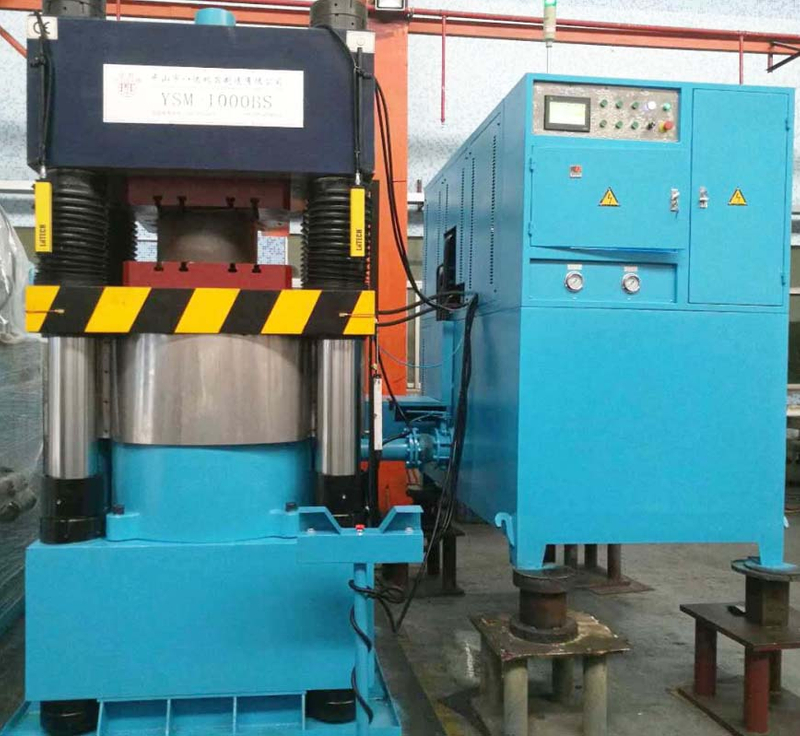

YSM-1000BS

1000 tons servo four-column hydraulic press

Product Description

YSM series servo four-column hydraulic press

Features:

High repeatability positioning accuracy, up to ±0.01mm;
Compared with traditional similar models, energy saving reaches 30%;
In fully automatic production mode, the traditional production cycle can be shortened by about 20%;
Using servo hydraulic system control, it can meet the changing requirements of speed and pressure in different processes, and the movement is smooth;
The main hydraulic components adopt famous brand products to ensure the stable performance of the hydraulic system.

Standard configuration:

Specifications			YSM-A/B series four-column hydraulic press (lower cylinder type)				YSM-C series four-column hydraulic press (upper cylinder type)
project		unit	YSM-200A/B	YSM-300A/B	YSM-500A/B	YSM-1000A/B	YSM-200C	YSM-300C	YSM-500C	YSM-1000C
Nominal force		KN	2000	3000	5000	10000	2000	3000	5000	10000
maximum system pressure		MPa	24	24.5	25	25	25	25	25	25
Maximum travel of movable workbench (adjustable)		mm	150	150	150	150	200	250	250	250
Workbench height from ground		mm	890	960	1115	1357	800	800	1000	1000
Opening height		mm	400	400	450	600	500	525	700	800
Travel speed of movable workbench	Come on quickly	mm/s	180	180	160	140	190	180	170	135
	Work progresses	mm/s	5	3.4	3.4	1.7	1.5-6	1-5	1-4	0.5-3
	Return trip	mm/s	240	240	200	200	180	170	160	135
Effective area of work surface	Left and right (within the column)	mm	455	550	650	900	500	550	650	900
Effective area of work surface	Front and back (edge)	mm	550	650	750	950	600	650	750	950
Machine dimensions	about	mm	940	1070	1380	1780	1880	1930	2200	2950
	before and after	mm	1415	1535	1640	1600	1450	1450	1450	1750
	high	mm	1610	1715	2080	2720	2600	2685	3220	3520
Motor Power		KW	12	12	16	16	12	12	16	22
Machine weight		KG	2200	3120	5520	13000	3200	3800	9000	18000
Ejection cylinder nominal force		KN	50	50	100	100	50	50	100	100
Ejection cylinder stroke		mm	30	30	30	30	30	30	30	30

Remark:

1. If the above technical parameters are subject to change, actual conditions or mutual agreement shall prevail without prior notice.

2. YSK-A does not have a material return device, and YSK-B does.
