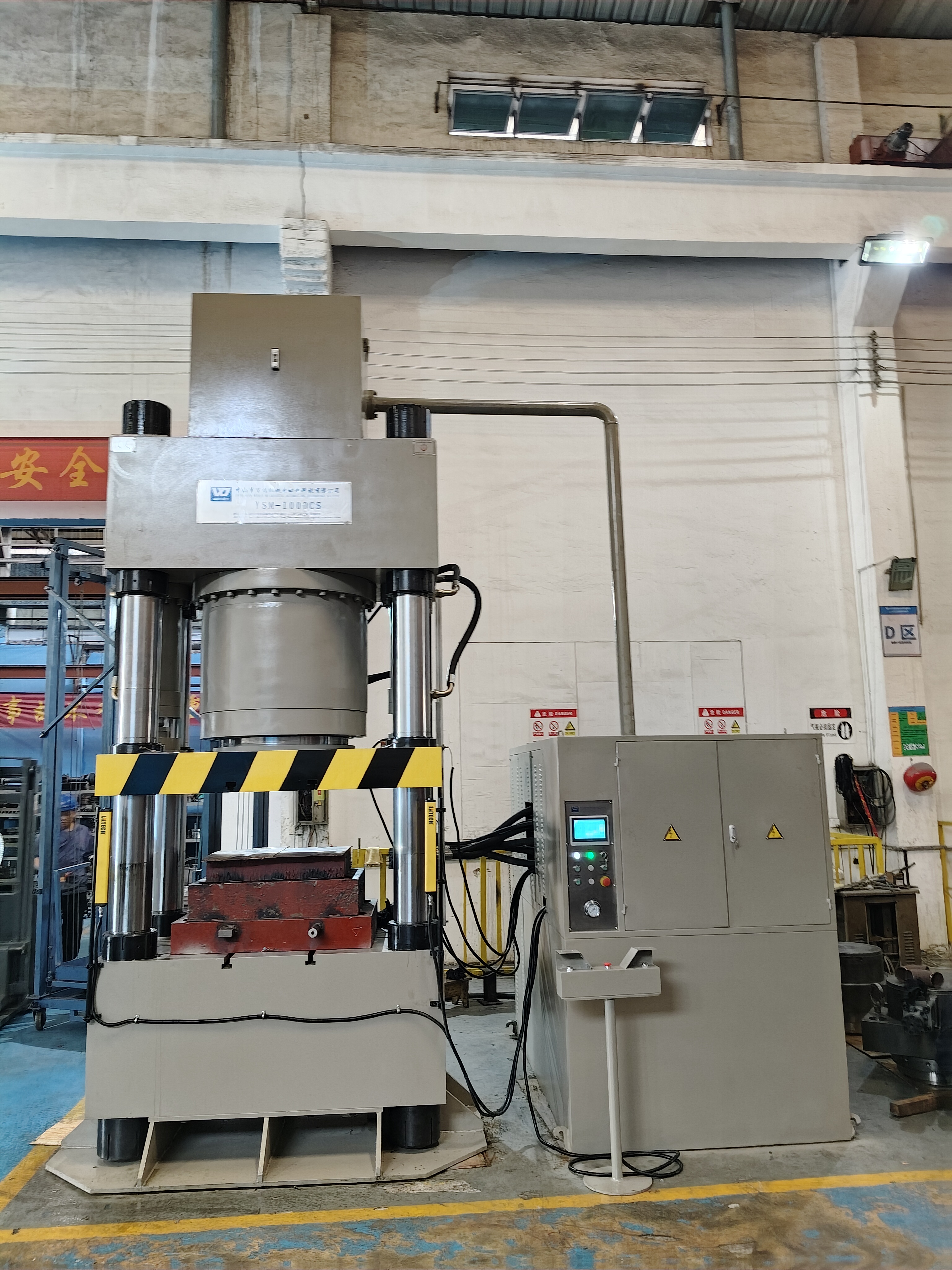

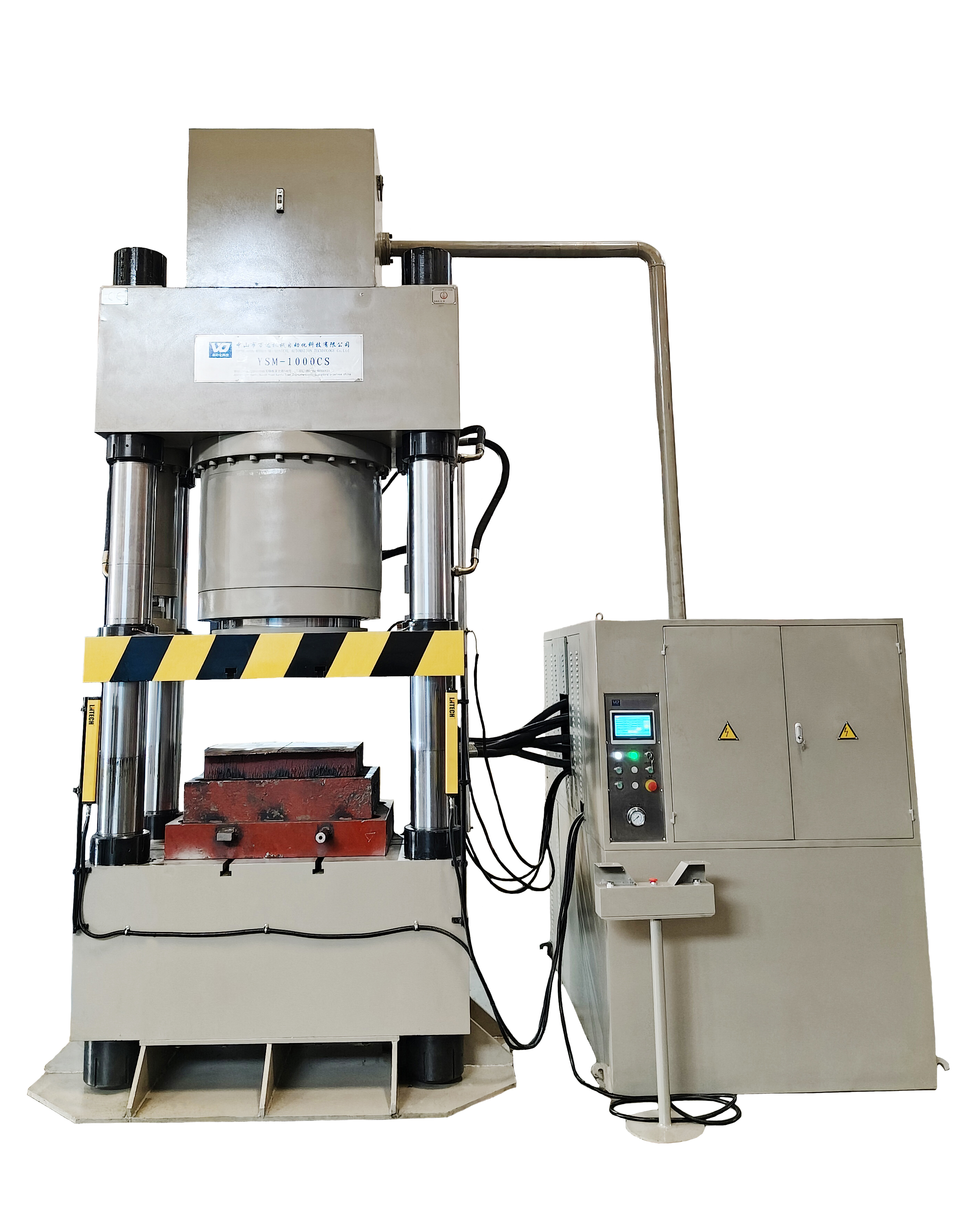

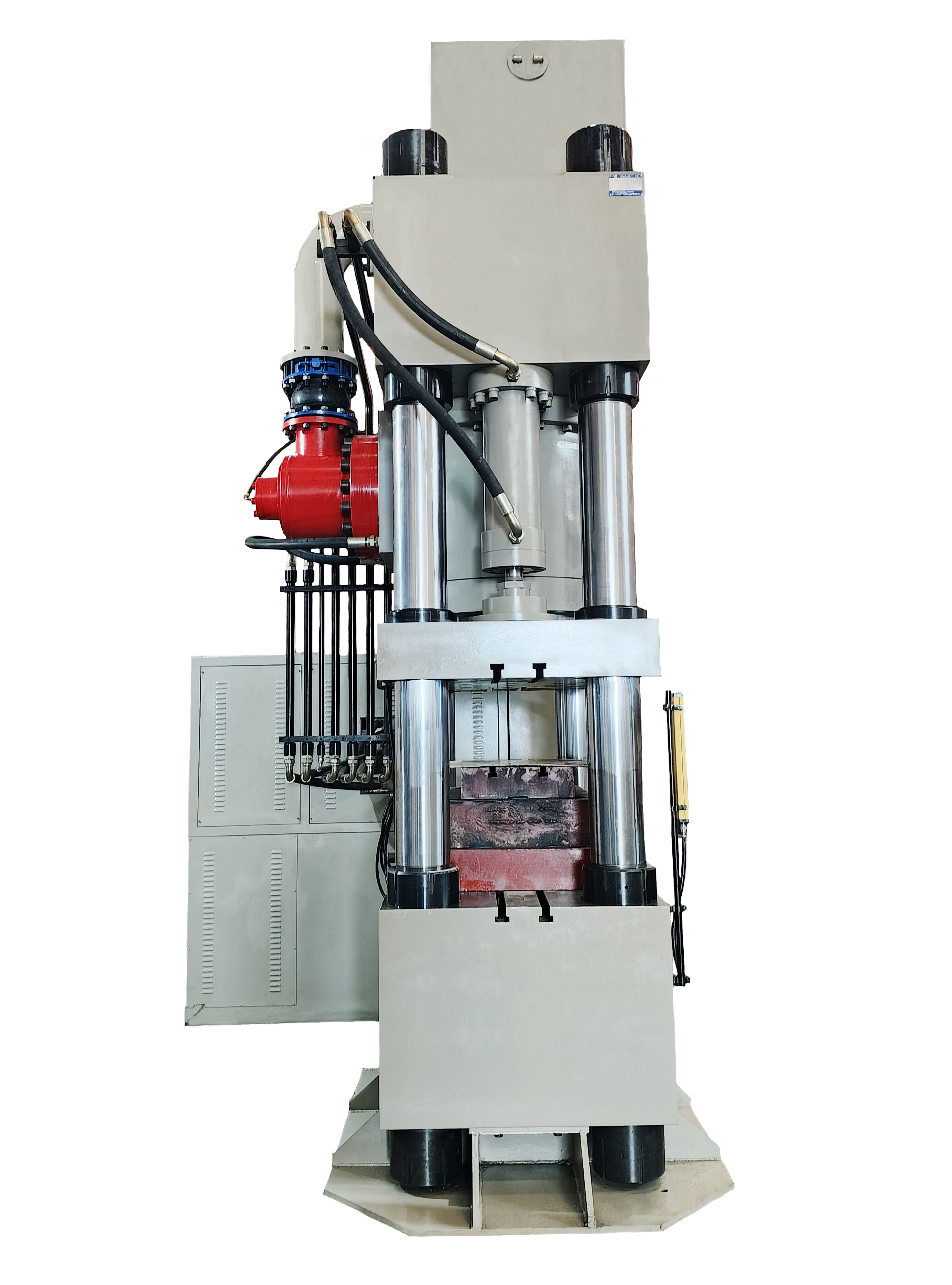

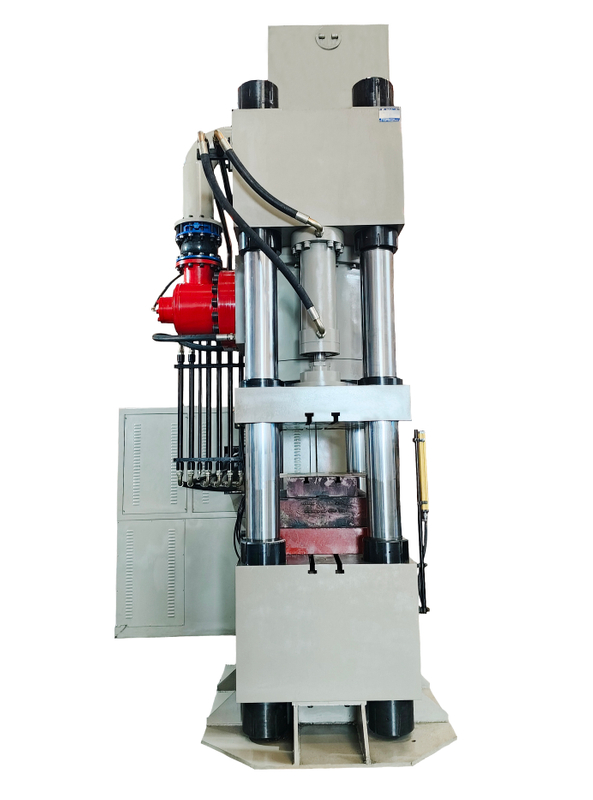

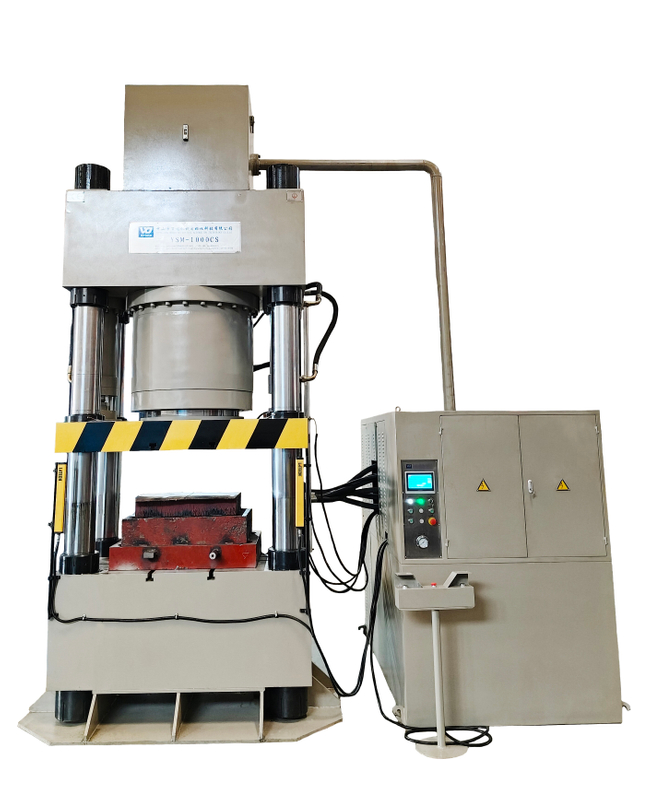

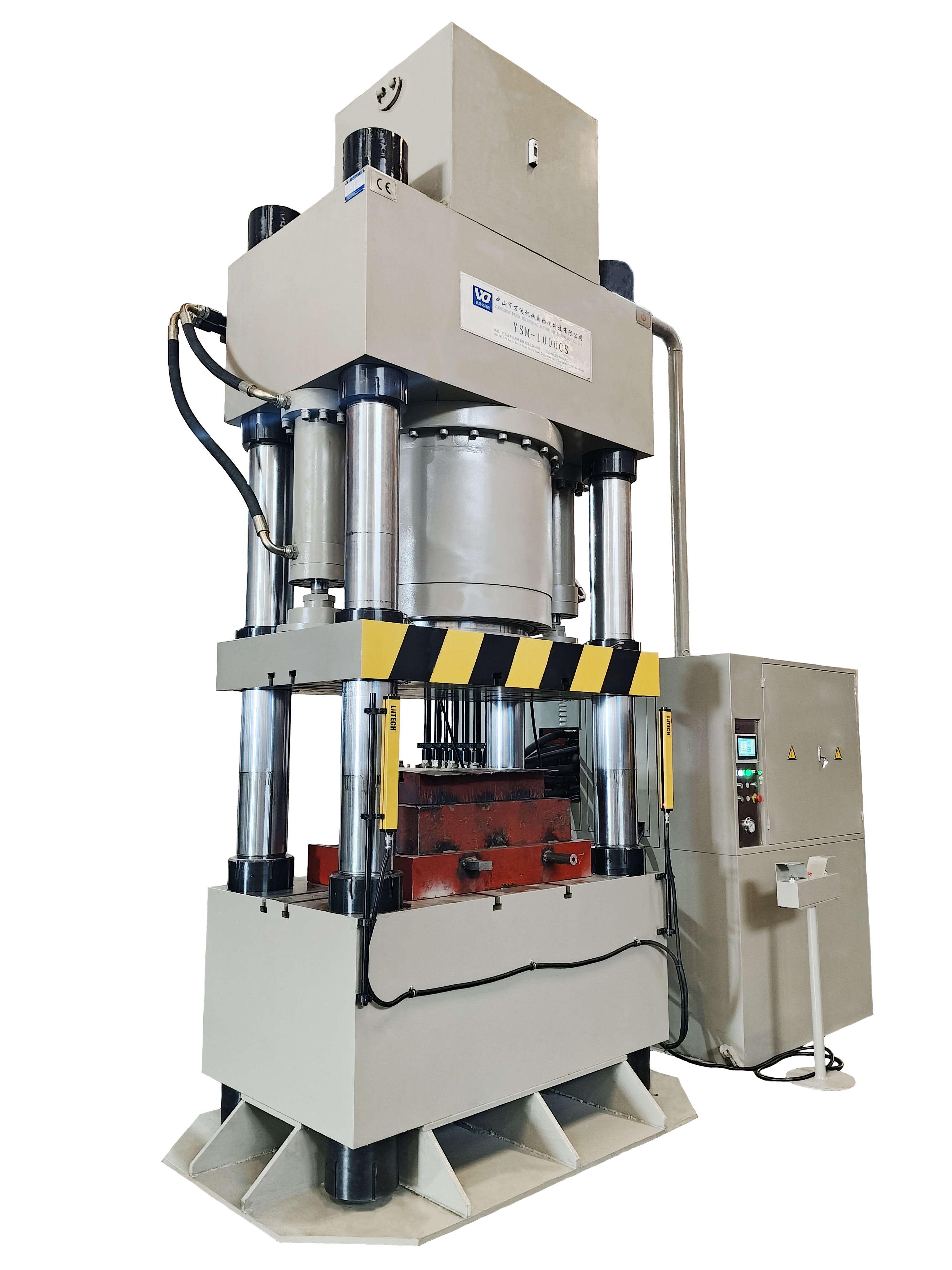

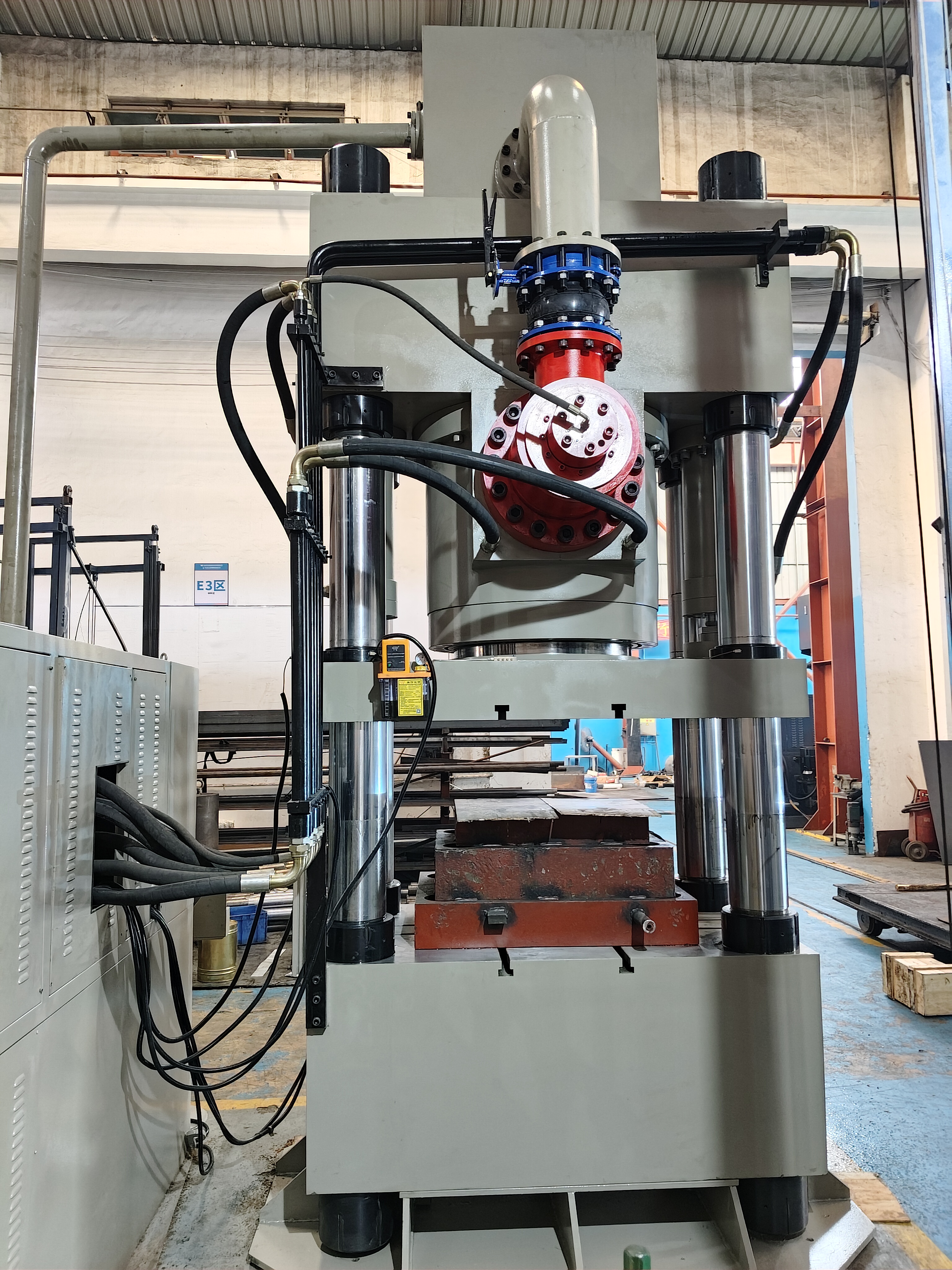

YSM-1000CS servo precision CNC cold forging hydraulic press

1. Machine usage and working conditions:

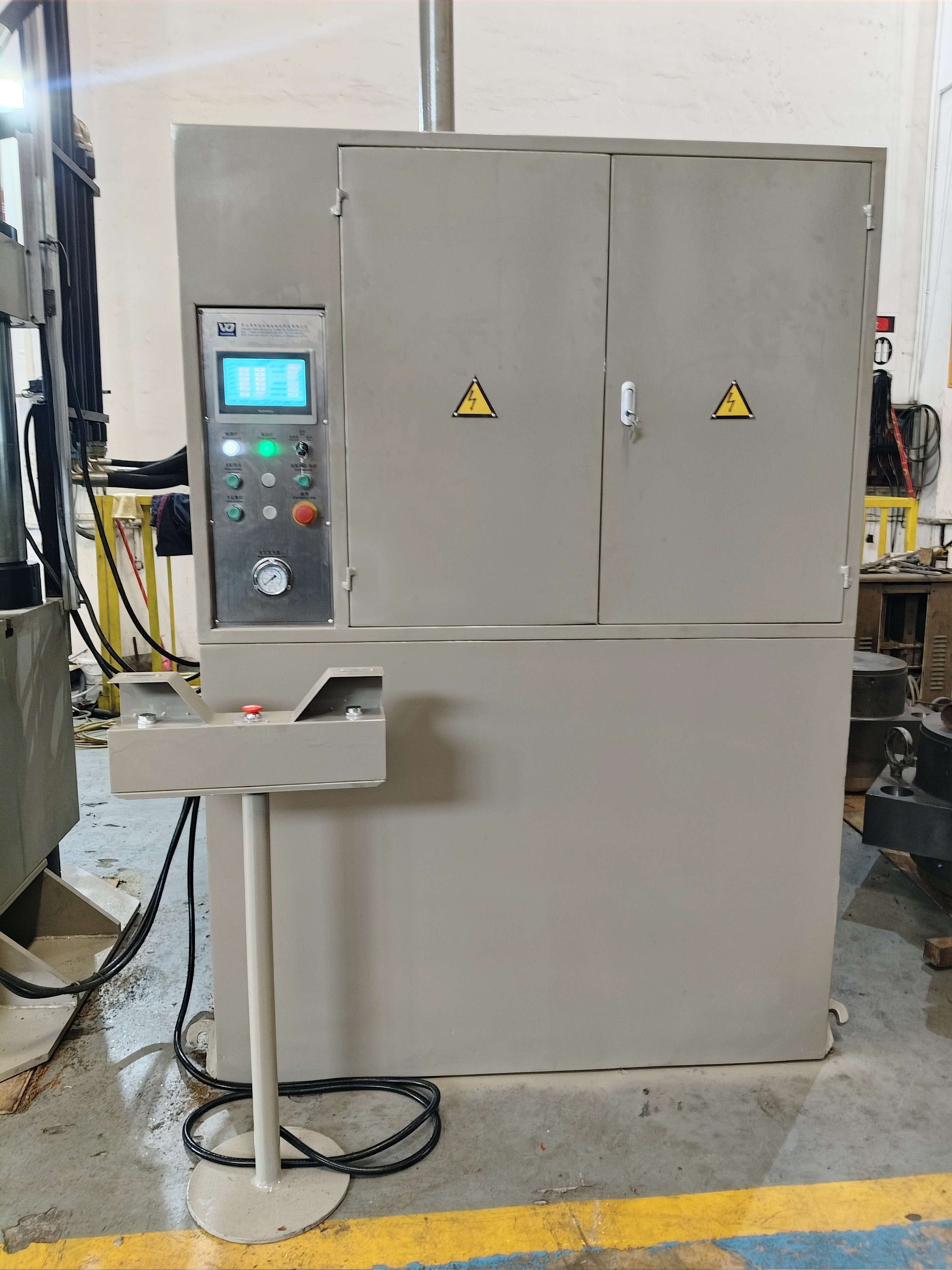

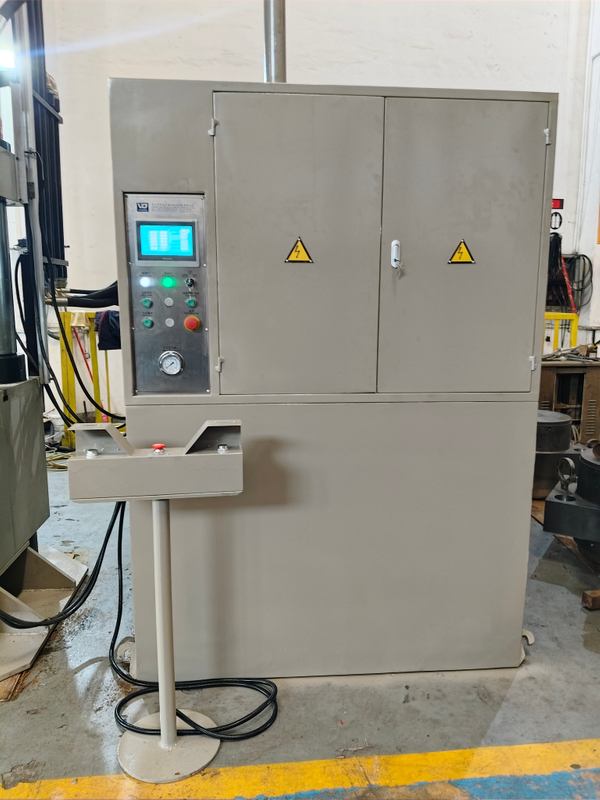

This machine is suitable for the cold extrusion, hot extrusion, punching, blanking, calendering, embossing, forming and structural correction processes of steel and plastic materials. The machine has an independent hydraulic system and electrical system, and uses a touch screen to display displacement and product counting, and a touch screen + PLC + grating ruler combination, which is convenient for setting and controlling the upper limit of the slider, fast rotation, lower limit and pressure holding time. It can realize two working methods: adjustment and automatic. Each working state can realize two types of pressing methods: fixed pressure and fixed stroke.

1.1. Machine usage conditions:
Working environment temperature: 0-55°C
Relative humidity: no more than 85%
Power supply voltage: 380V±5%50HZ
Hydraulic oil temperature 5 to 50°C
Altitude: no more than 1000m
Hydraulic system medium: 46# anti-wear hydraulic oil
1.2. Process actions:
Start the motor, one master moves down quickly, one master red presses slowly, one master cylinder maintains pressure (pressure holding time is adjustable from 1 to 60 seconds), one master cylinder returns, and the parts are picked up (to complete a working cycle). Each action can be controlled manually.

Availability:

Quantity:



Inquire Add to Basket

Model:
YSM-1000CS
Brand:
万达

Product Description

Product Description

Main technical parameters:

Serial number NO.	project Item		unit Unit	Specification Spec.
1	Nominal force		KN	10000 (Adjustable)
2	Maximum strokeMaximum stroke		mm	400 (Adjustable)
3	Maximum opening height		mm	800
4	Master cylinder speed Main cylinder speed	fast upward fast upward	mm/s	250(adjustable)(Adjustable)
		slow pressing	mm/s	9-18(adjustable)(Adjustable)
		Return	mm/s	250(adjustable)(Adjustable)
5	Workbench effective size Effective table size	Left and left (inside the column) LR(inside the column)	mm	1200
5	Workbench effective size Effective table size	Front and back (edge) FB(edge)	mm	1000
6	Maximum working pressure of liquid Maximum working pressure of the liquid		MPa	26
7	Oil pump servo motor powerOil pump servo motor power		KW	78.3
8	Height of the workbench from the ground Height of the worktable surface from the ground		mm	700
9	Slider no-load repeat displacement accuracy Accuracy of the slider"s no-load repeatable displacement		mm	±0.02mm
10	Parallelism between the workbench and the slider Parallelism between the worktable and the slider		mm	Less than 0.30mm Less than 0.30mm

YSM-1000CS servo precision CNC cold forging hydraulic press
