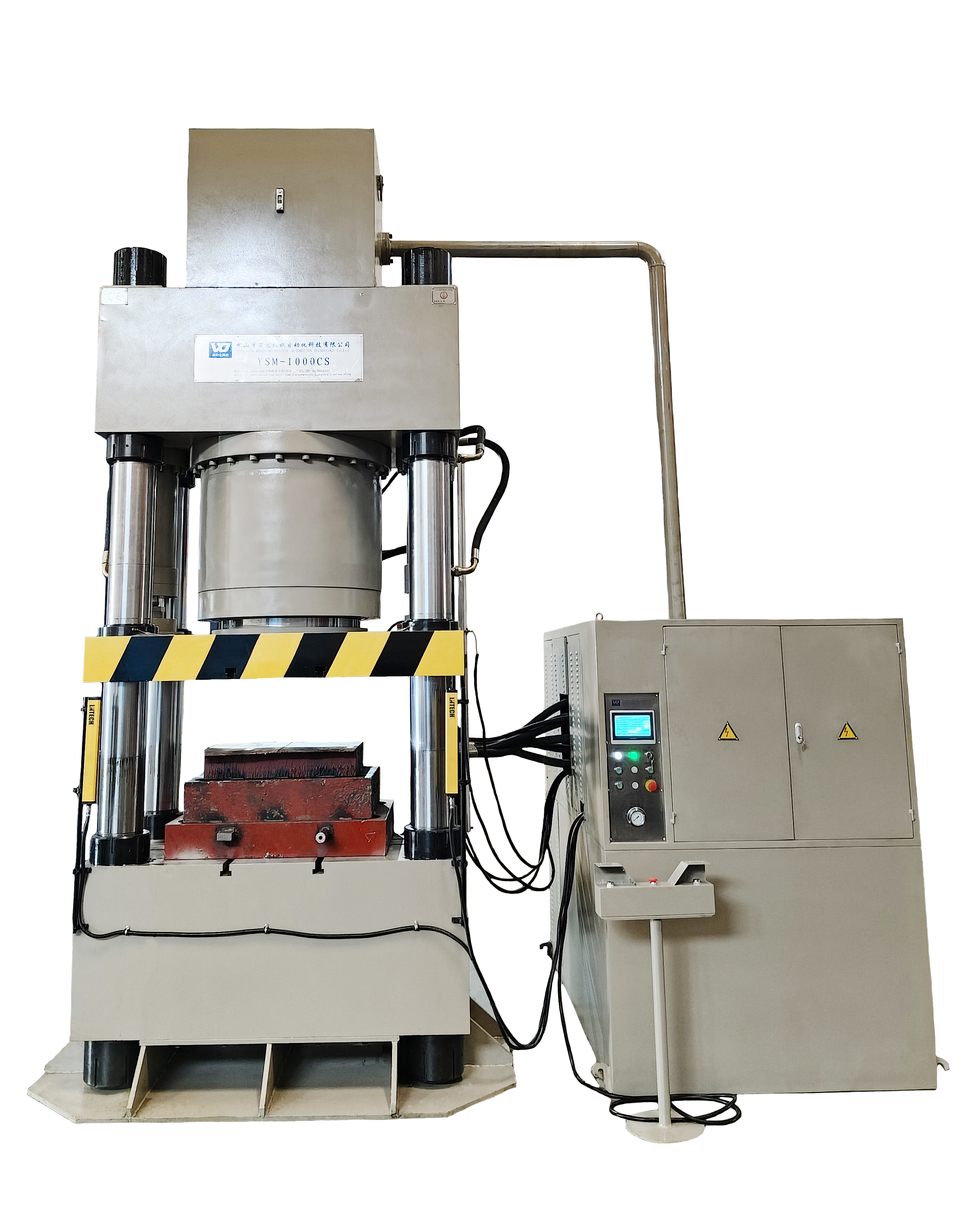

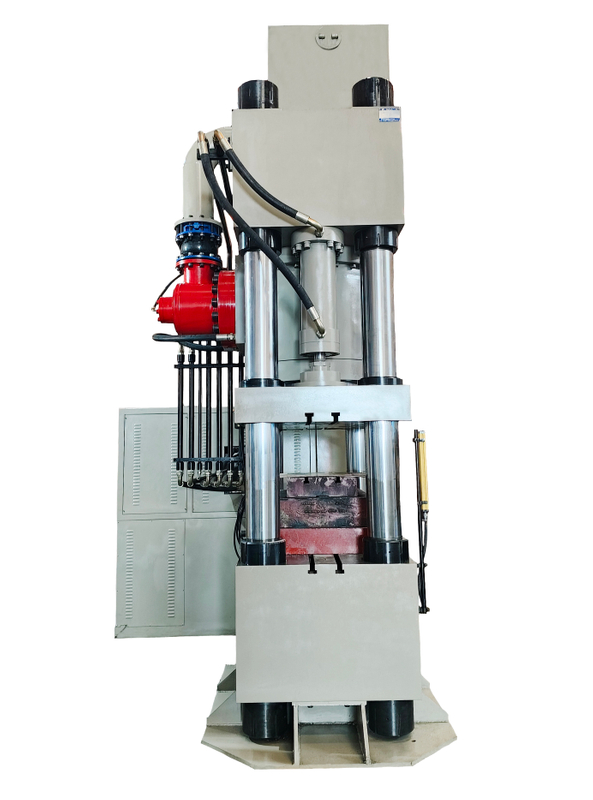

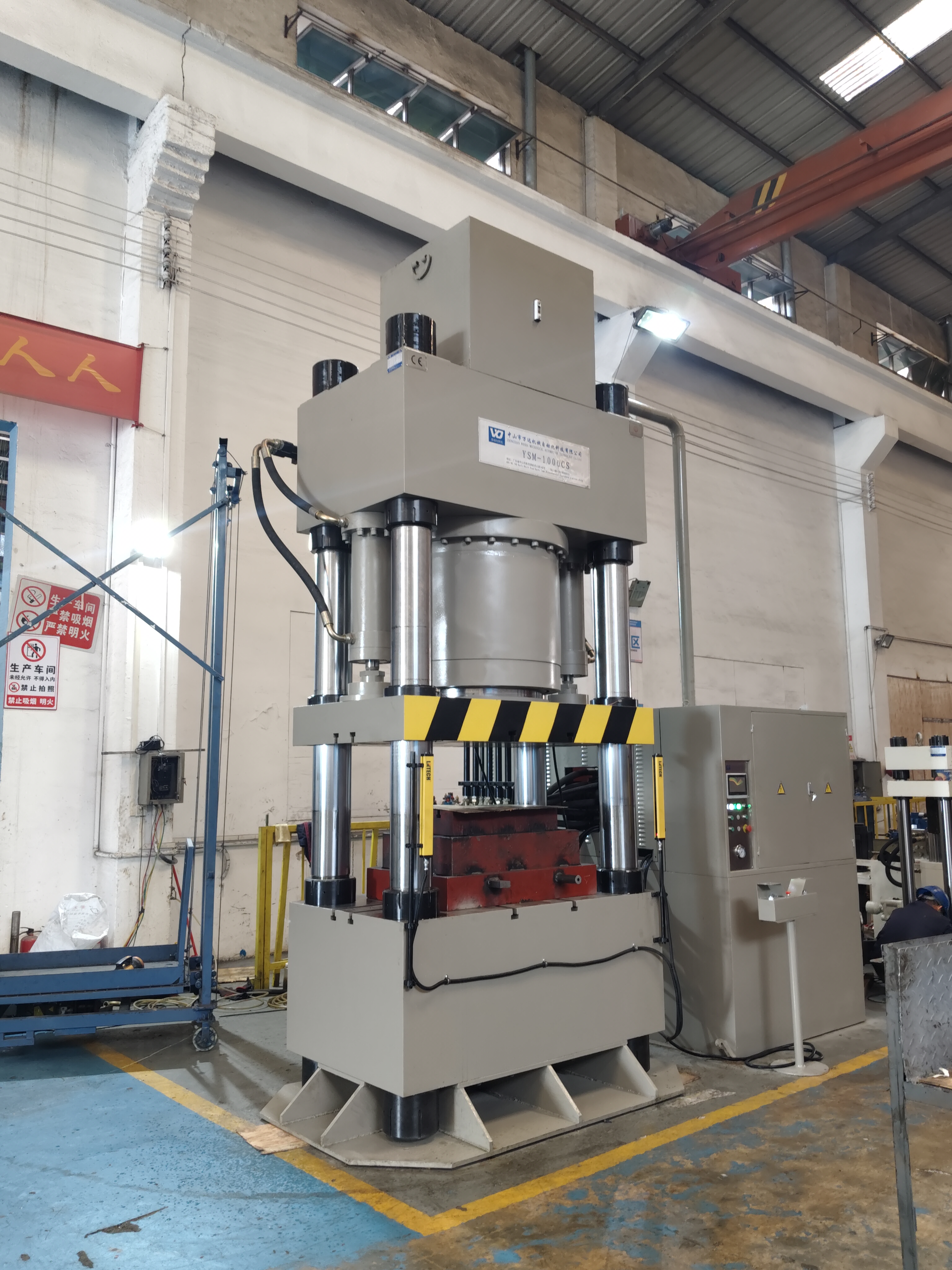

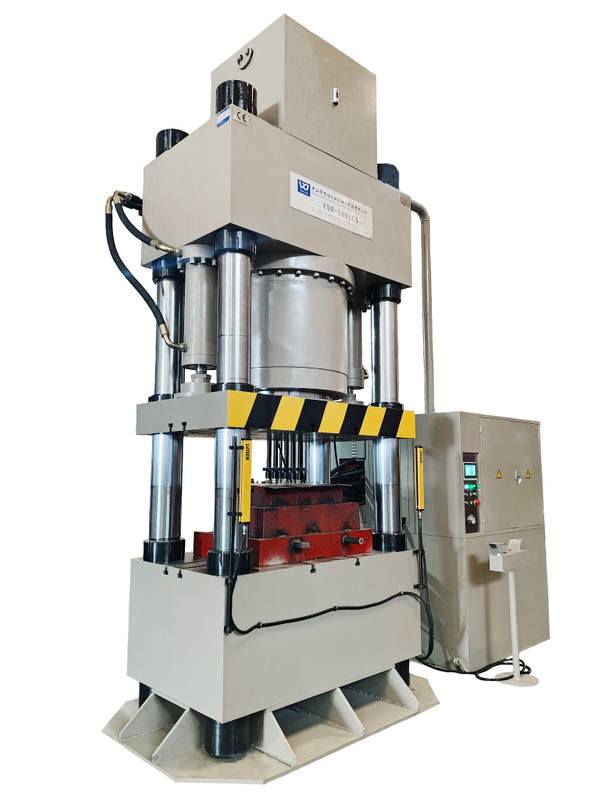

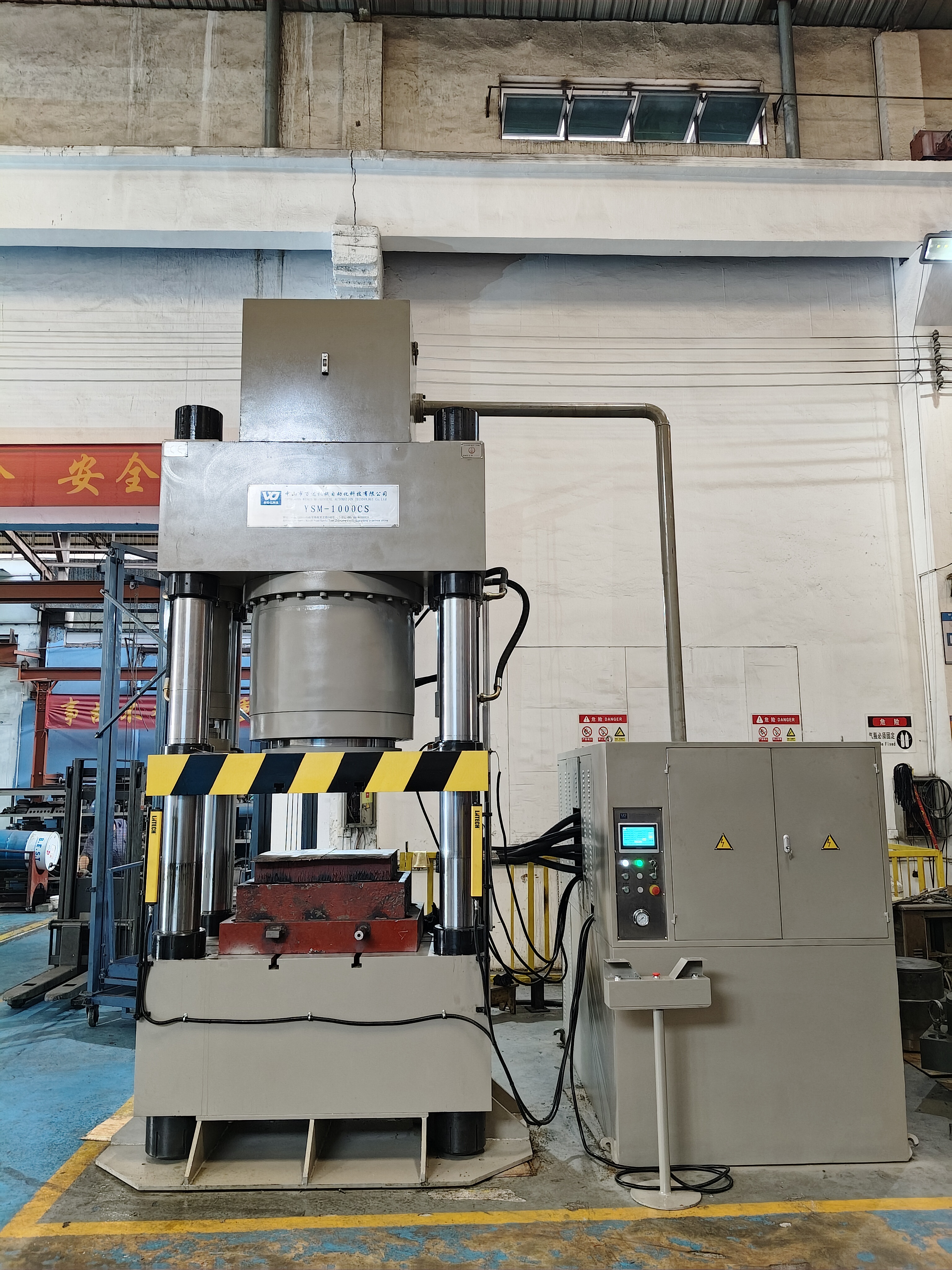

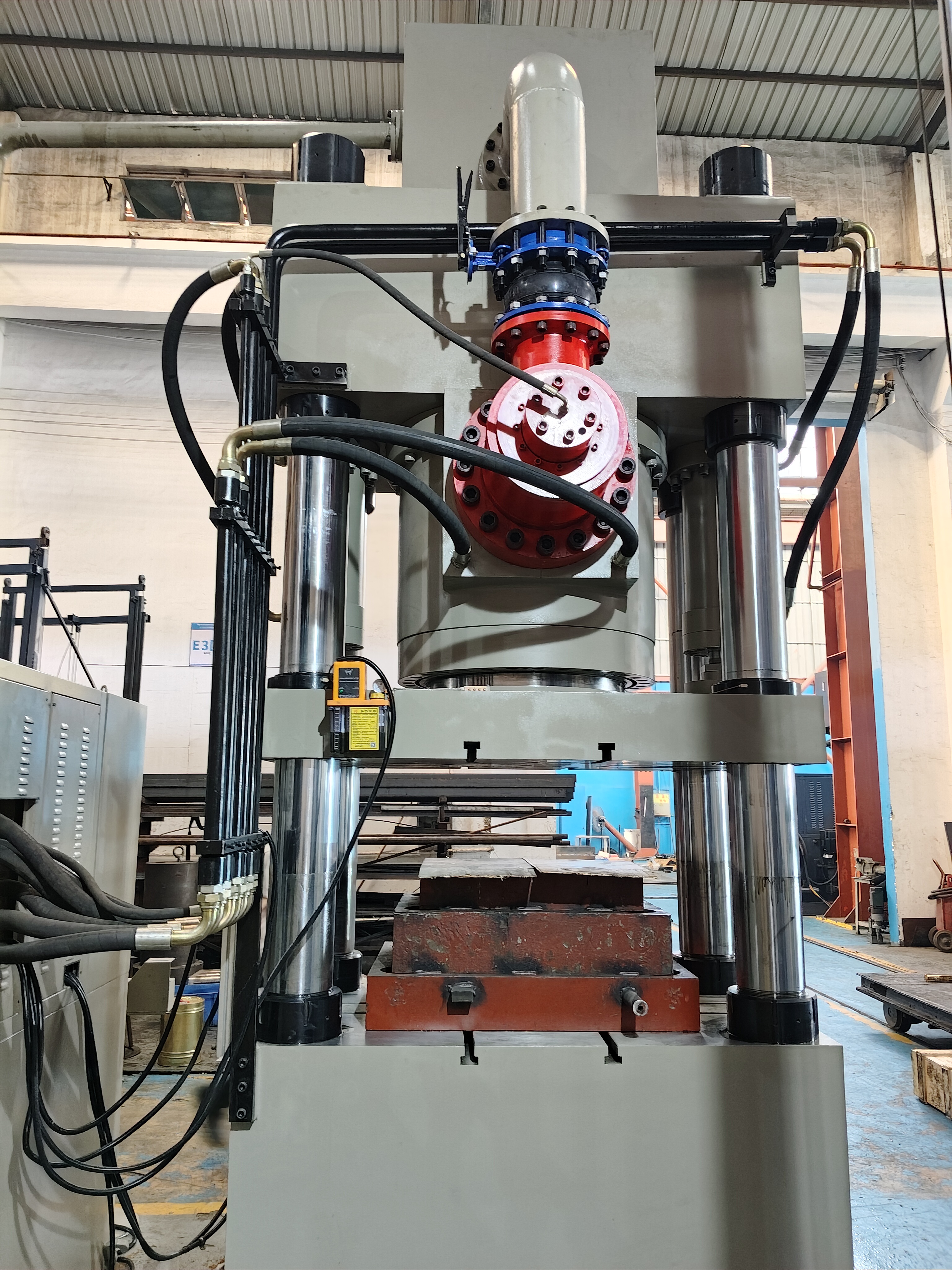

YSM-1000CS
万达
Product Description
Machine usage conditions:
Working environment temperature: 0-55°C
Relative humidity: no more than 85%
Power supply voltage: 380V±5%50HZ
Hydraulic oil temperature 5 to 50°C
Altitude: no more than 1000m
Hydraulic system medium: 46# anti-wear hydraulic oil
Machine operating conditions:
Operating temperature: 0-55°C;
Relative humidity: not exceeding 85%;
Power supply voltage: 380V ± 5% 50HZ;
Hydraulic oil temperature: 5-50°C;
Altitude: not exceeding 1000m;
Hydraulic system medium: 46# anti-wear hydraulic oil.
2. Process actions:
Start the motor, one master moves down quickly, one master red presses slowly, one master cylinder holds pressure (pressure holding time is adjustable from 1 to 60 seconds), one master cylinder returns, and the parts are picked up (to complete a working cycle). Each action can be controlled manually.
II. Process Actions:
Start the motor – main cylinder moves rapidly downwards – main cylinder moves slowly downwards – main cylinder holds pressure (pressure holding time adjustable from 1-60 seconds) – main cylinder retracts, removing the part (completing one work cycle). Each action can be manually controlled individually.
Main technical parameters:
Serial number NO. | project Item | unit Unit | Specification Spec. | |
1 | Nominal force | KN | 10000 (Adjustable) | |
2 | Maximum strokeMaximum stroke | mm | 400 (Adjustable) | |
3 | Maximum opening height | mm | 800 | |
4 | Master cylinder speed Main cylinder speed | fast downward fast downward | mm/s | (Adjustable) |
slow pressing | mm/s | 9-18(adjustable)(Adjustable) | ||
Return | mm/s | 250(adjustable)(Adjustable) | ||
5 | Workbench effective size Effective table size | Left and left (inside the column) LR(inside the column) | mm | 1200 |
Front and back (edge) FB(edge) | mm | 1000 | ||
6 | Maximum working pressure of liquid Maximum working pressure of the liquid | MPa | 26 | |
7 | Oil pump servo motor powerOil pump servo motor power | KW | 78.3 | |
8 | Height of the workbench from the ground Height of the worktable surface from the ground | mm | 700 | |
9 | Slider no-load repeat displacement accuracy Accuracy of the slider's no-load repeatable displacement | mm | ±0.02mm | |
10 | Parallelism between the workbench and the slider Parallelism between the worktable and the slider | mm | Less than 0.30mm Less than 0.30mm | |
