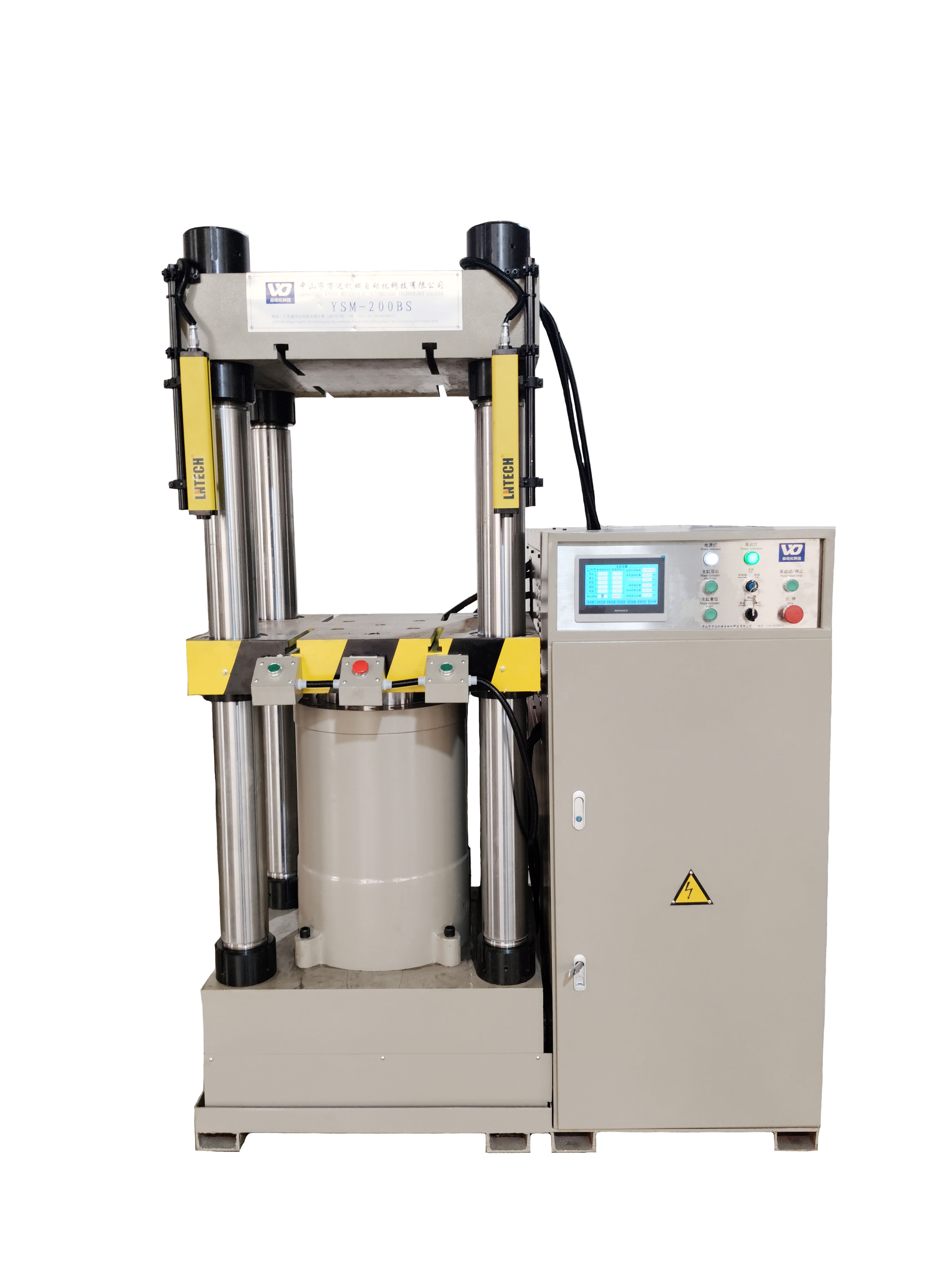

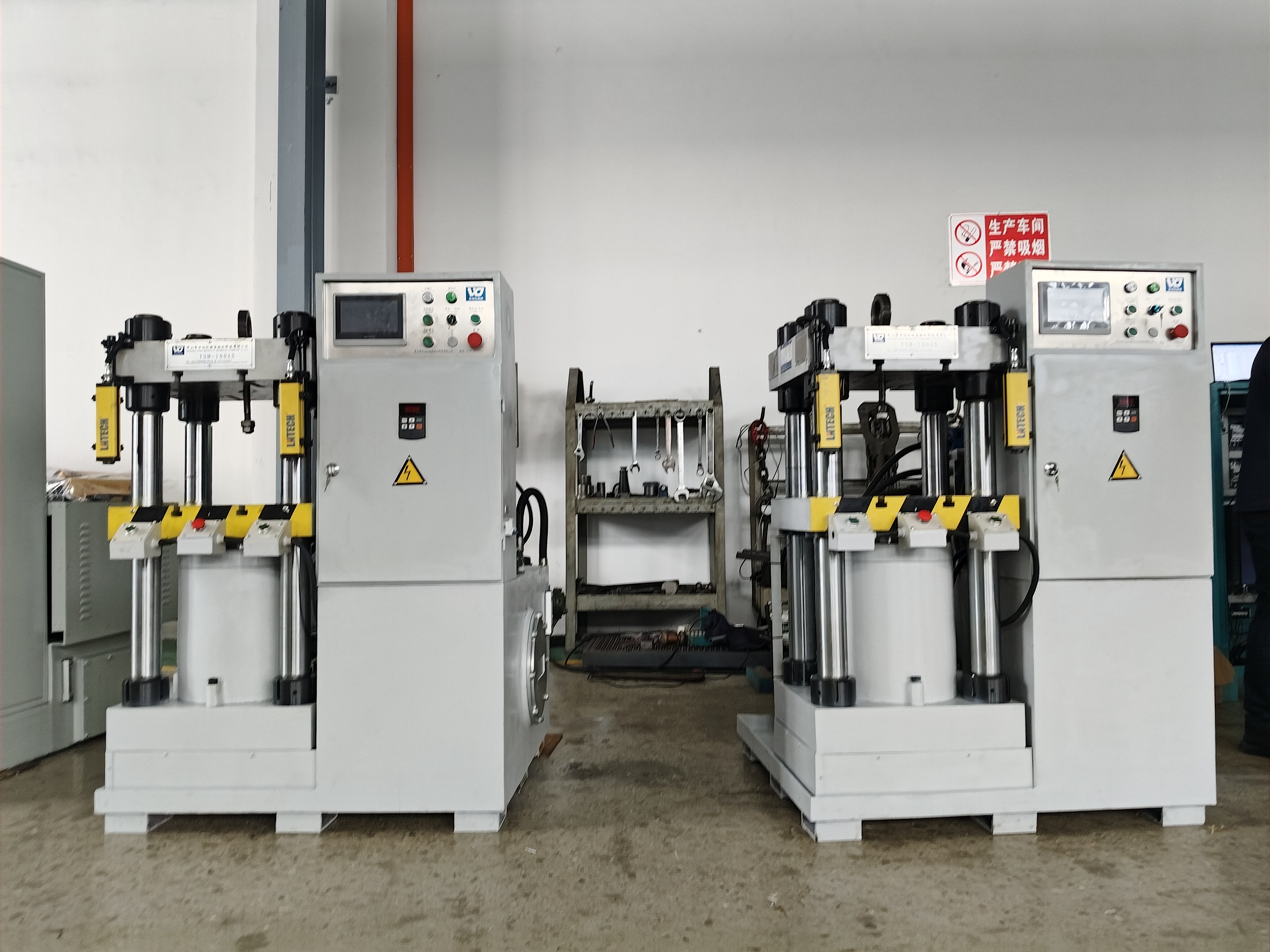

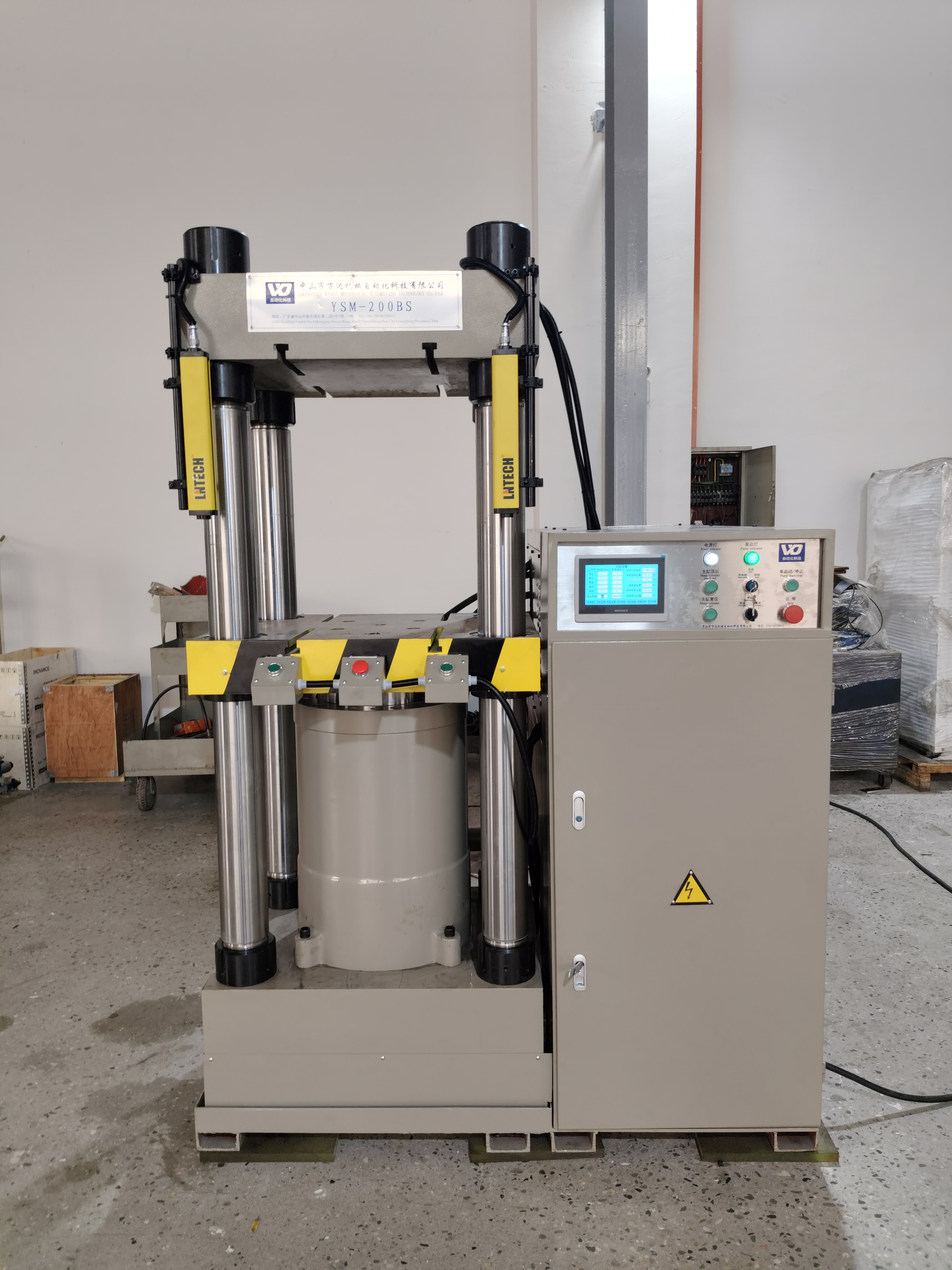

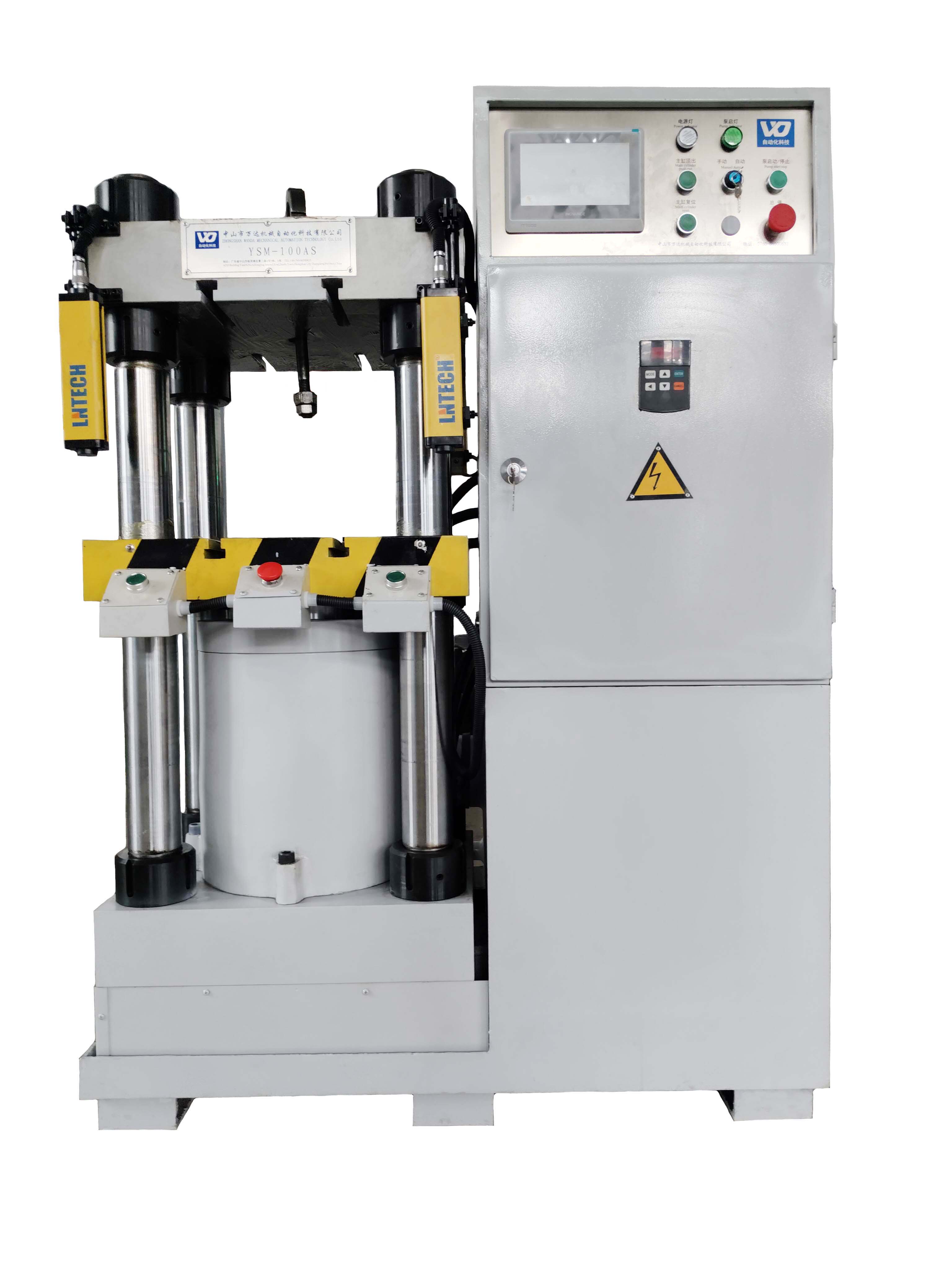

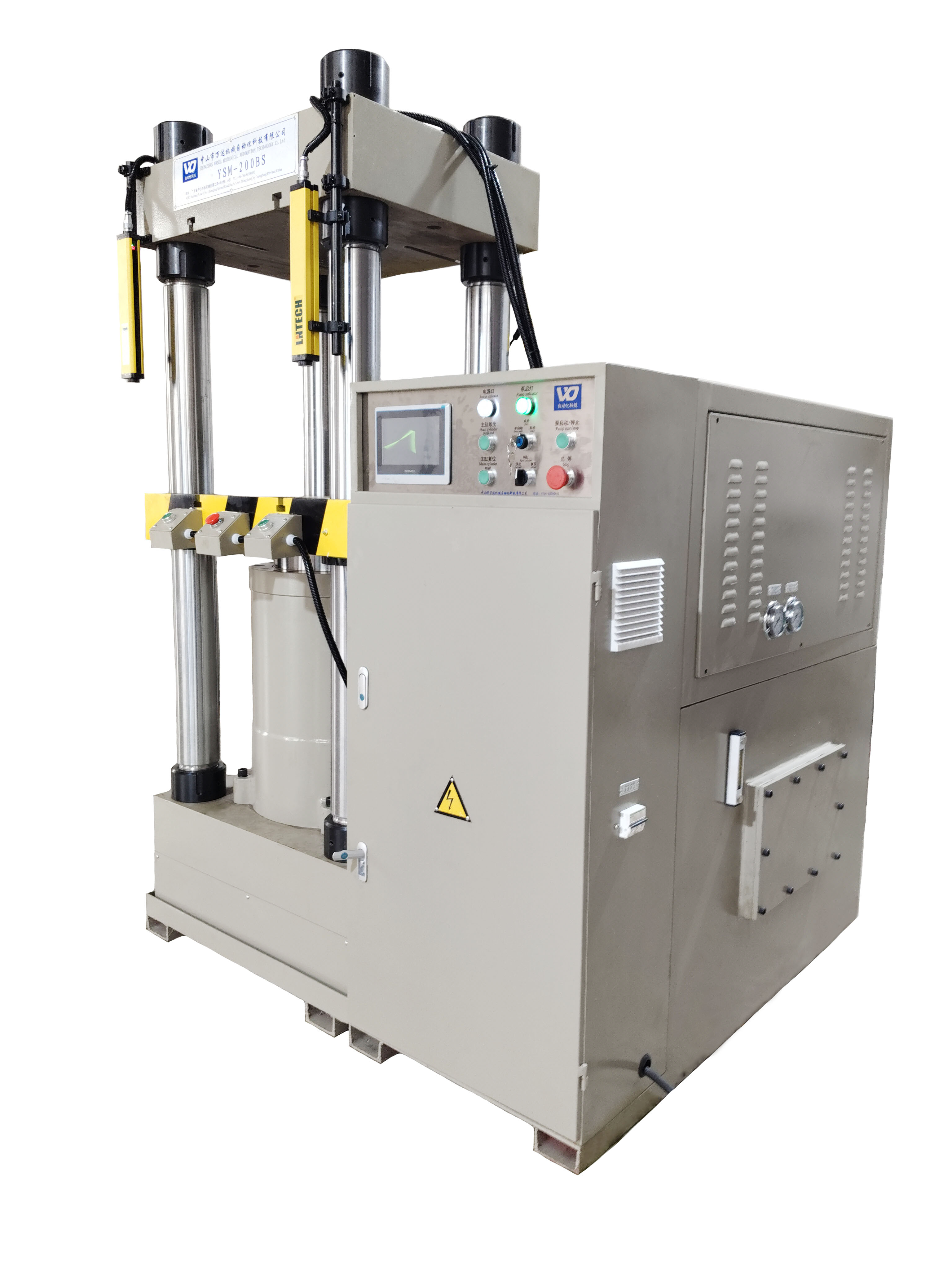

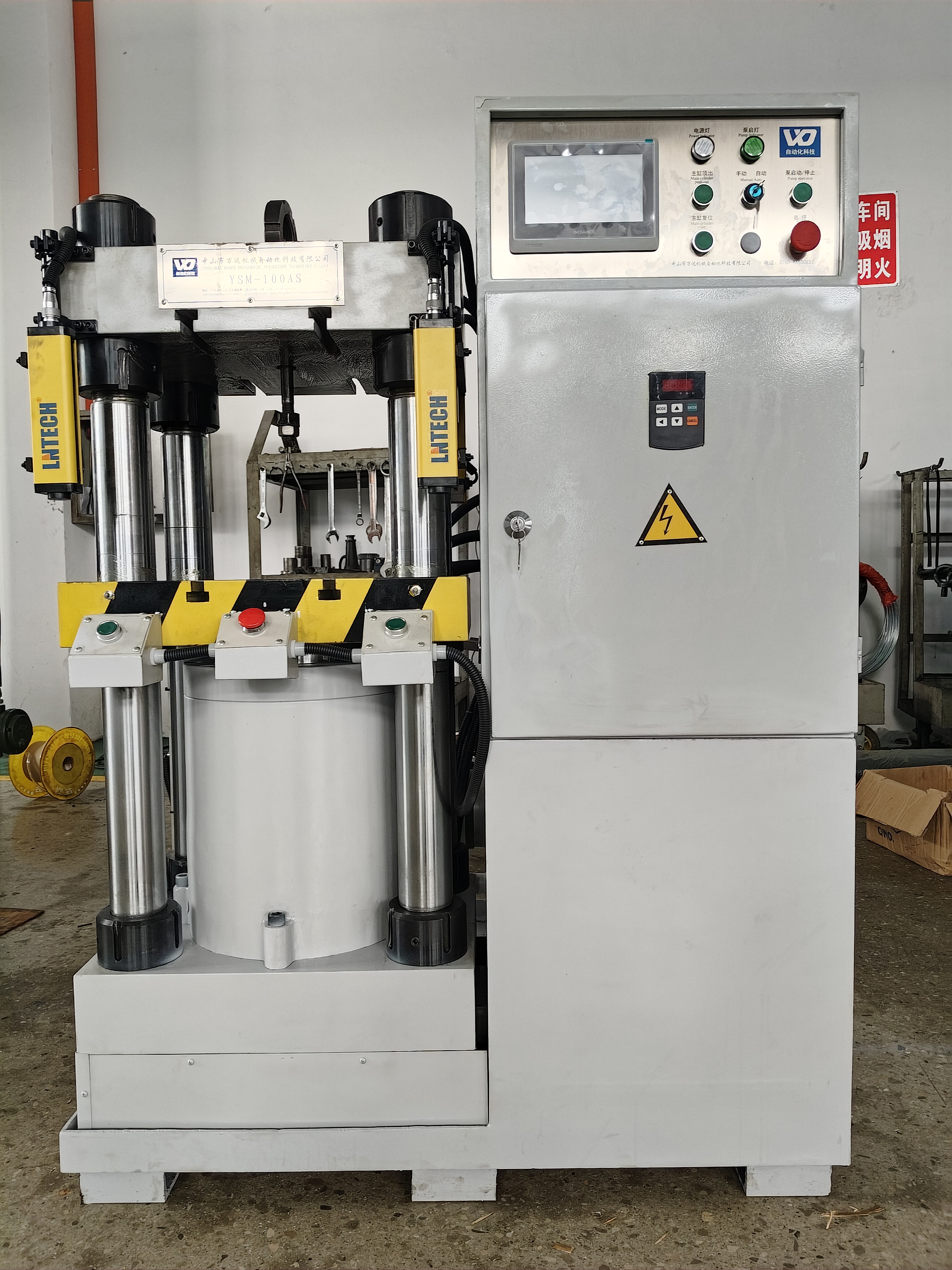

1. Machine usage, characteristics and working conditions 1.1 Machine usage: This machine is suitable for blanking, punching, blanking, trimming, shallow stretching, cold and hot extrusion, calendering, embossing and structural correction processes of various metal materials and plastic materials. 1.2. Machine features: This machine has an independent hydraulic system and electrical system, and uses a touch screen to display displacement and product count. The touch screen + PLC + grating ruler + pressure sensor combination makes it easy to set and control the upper limit of the slider, fast and slow, lower limit, speed, pressure and pressure holding time, etc. It can realize two working modes: adjustment and automatic. Each working state can realize two pressing methods: constant pressure and fixed range. 1.3. Machine usage conditions: Working environment temperature: 0-55°C Relative humidity: no more than 85% Hydraulic oil temperature 5-50°C Power supply voltage: 380V±5% 50HZ Altitude: no more than 1000m Hydraulic system medium: 46# anti-wear hydraulic oil
1.4. Typical process actions: start the motor, quickly move the master cylinder upward, return the master cylinder to pick up parts, and complete a working cycle by releasing the pressure of the master cylinder (pressure holding time > 120 hours, adjustable, with automatic pressure compensation function).
1.5, each designated action can be controlled manually.
