YSM-100CS
万达
Product Description

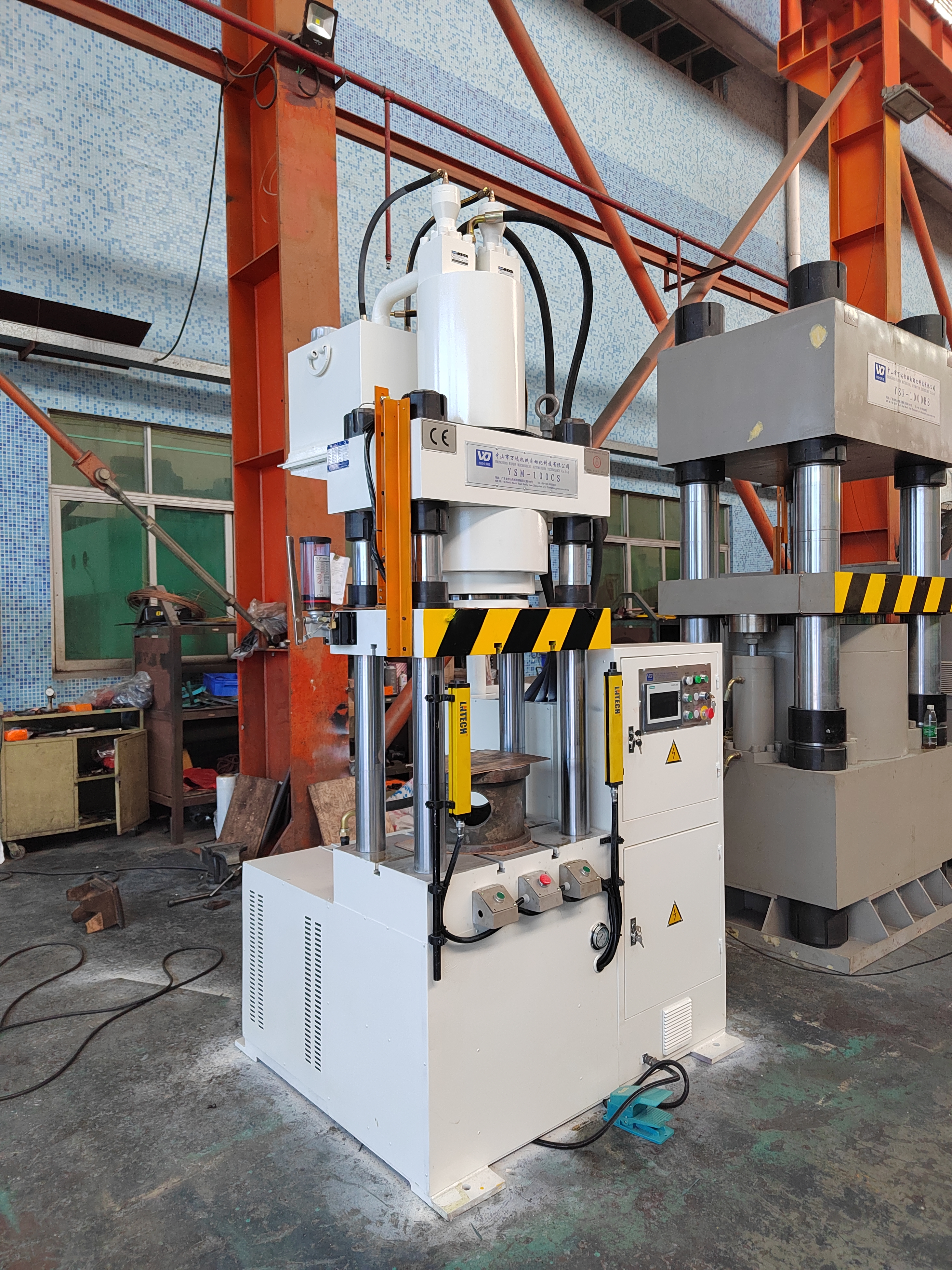

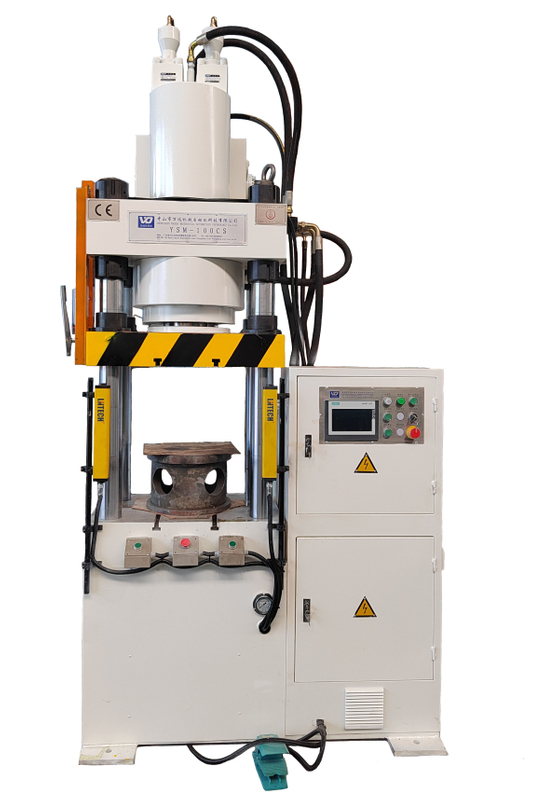

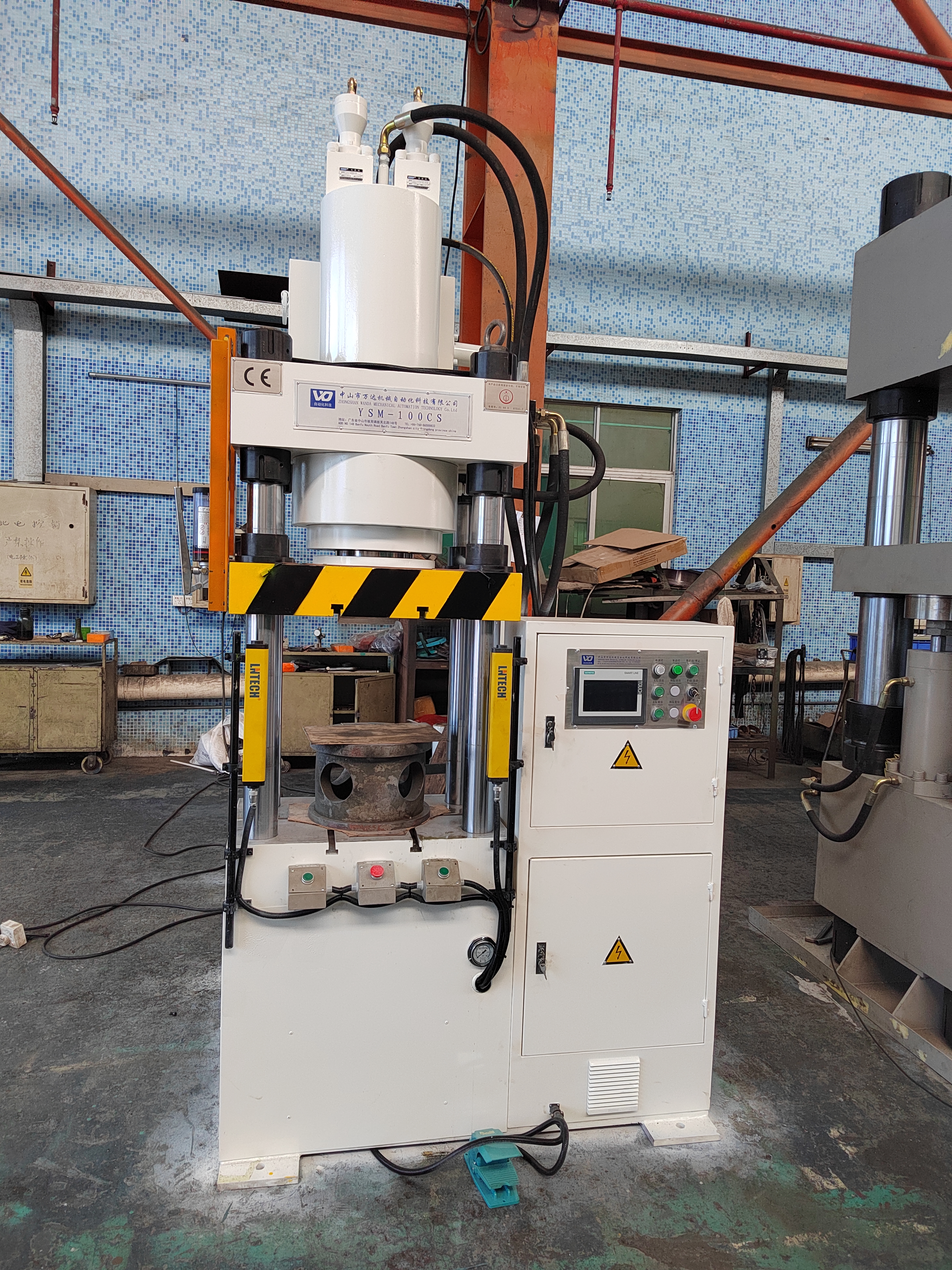

YSM-100CS site map YSM-100CS site map:
YSM-100CS Main Technical ParametersYSM-100CS Main Technical Parameters
Serial numberNO. | project Item | Specifications Specification parameters | unit unit | Remark | |
1 | Nominal force Nominal force | 1000 | KN | Pressure sensor control Pressure sensor control | |
2 | system pressure Maximum system pressure | 24.5 | MPa | ||
3 | Master cylinder stroke Maximum stroke of the main cylinder | 400 | mm | Displacement sensor control Pressure sensor control | |
4 | Opening height open height | 600 | mm | ||
5 | The height of the workbench from the ground The height of the workbench from the ground | 800 | mm | ||
6 | master cylinder speed Master cylinder speed | Downlink speed down speed | 200 | mm/s | Servo controller control Pressure sensor control |
Work progress speed Progress rate | 14 | mm/s | Servo controller control Pressure sensor control | ||
return speed return speed | 200 | mm/s | Servo controller control Pressure sensor control | ||
7 | Workbench size Workbench size | Left and right (within the column) Left-right (inside the column) | 500 | mm | |
Front and back (within the column) Front-back (inside the column) | 200 | mm | |||
8 | Machine dimensions (approx.) Machine dimensions (approximately) | about Left-right | 1510 | mm | |
before and after Front-back | 1220 | mm | |||
high height | 2808 | mm | |||
9 | Servo motor power Servo motor power | 15.7 | KW | ||
10 | Machine weight (approx.) Machine weight (approximately) | 4200 | KG | ||
