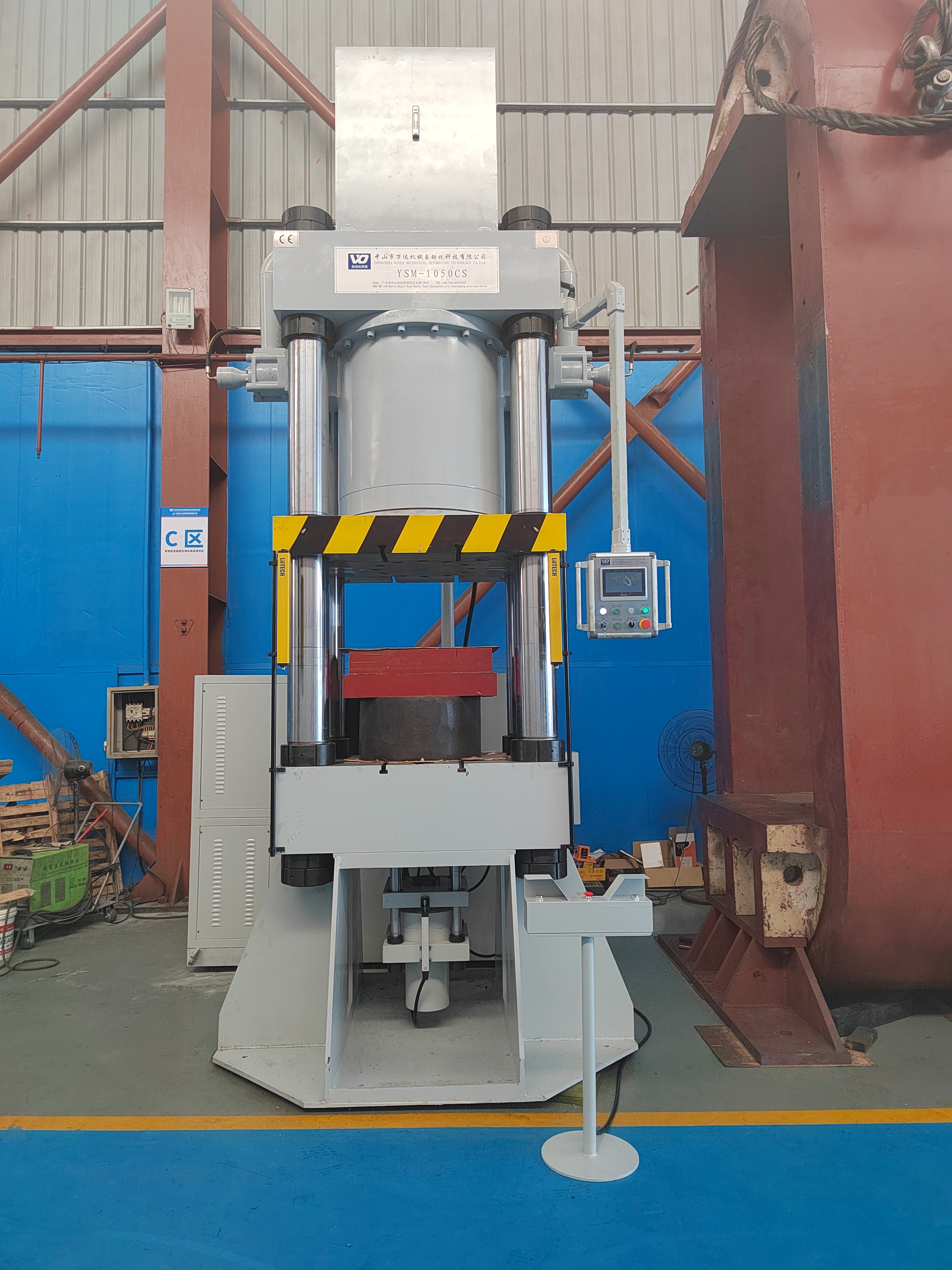

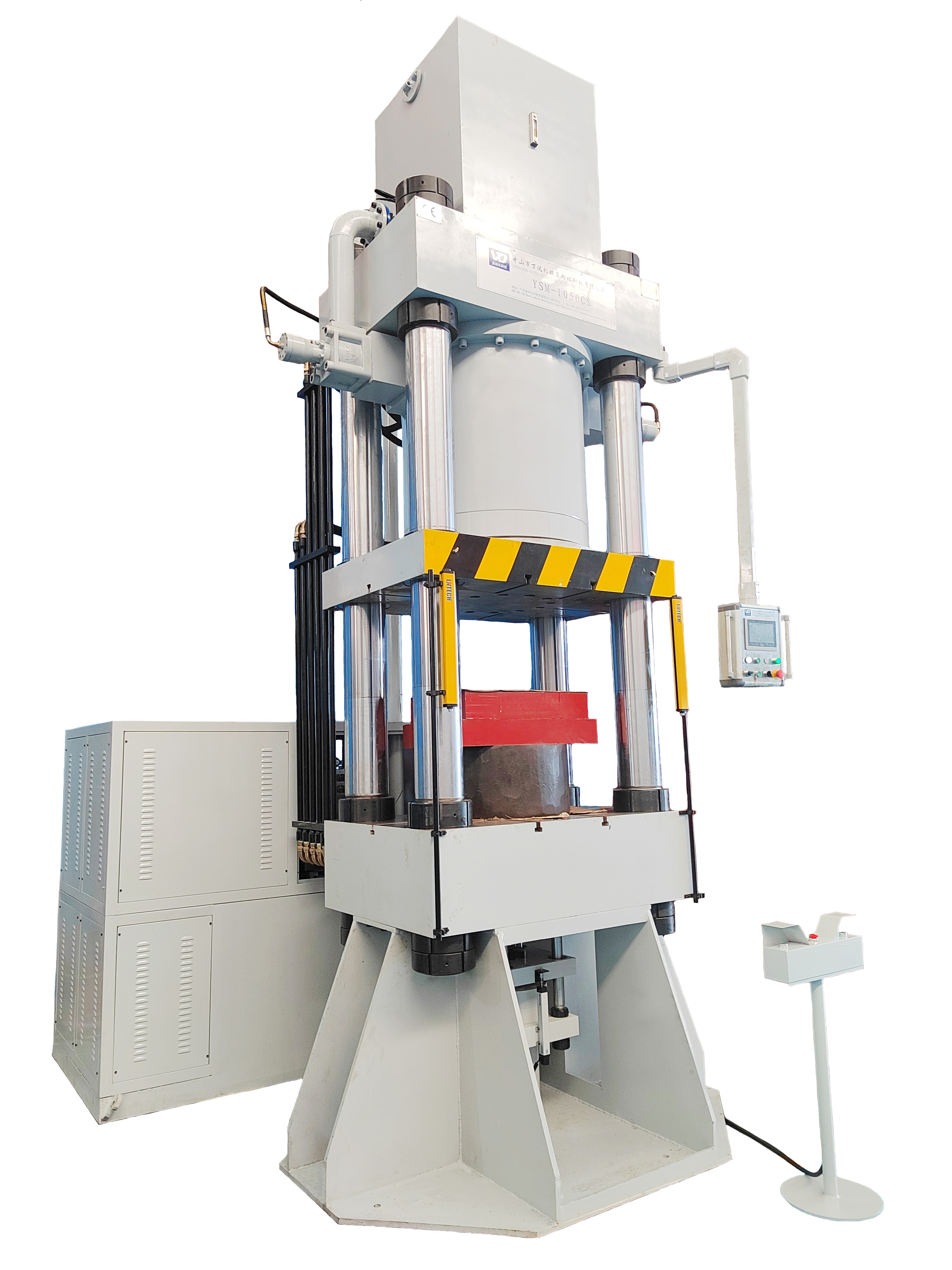

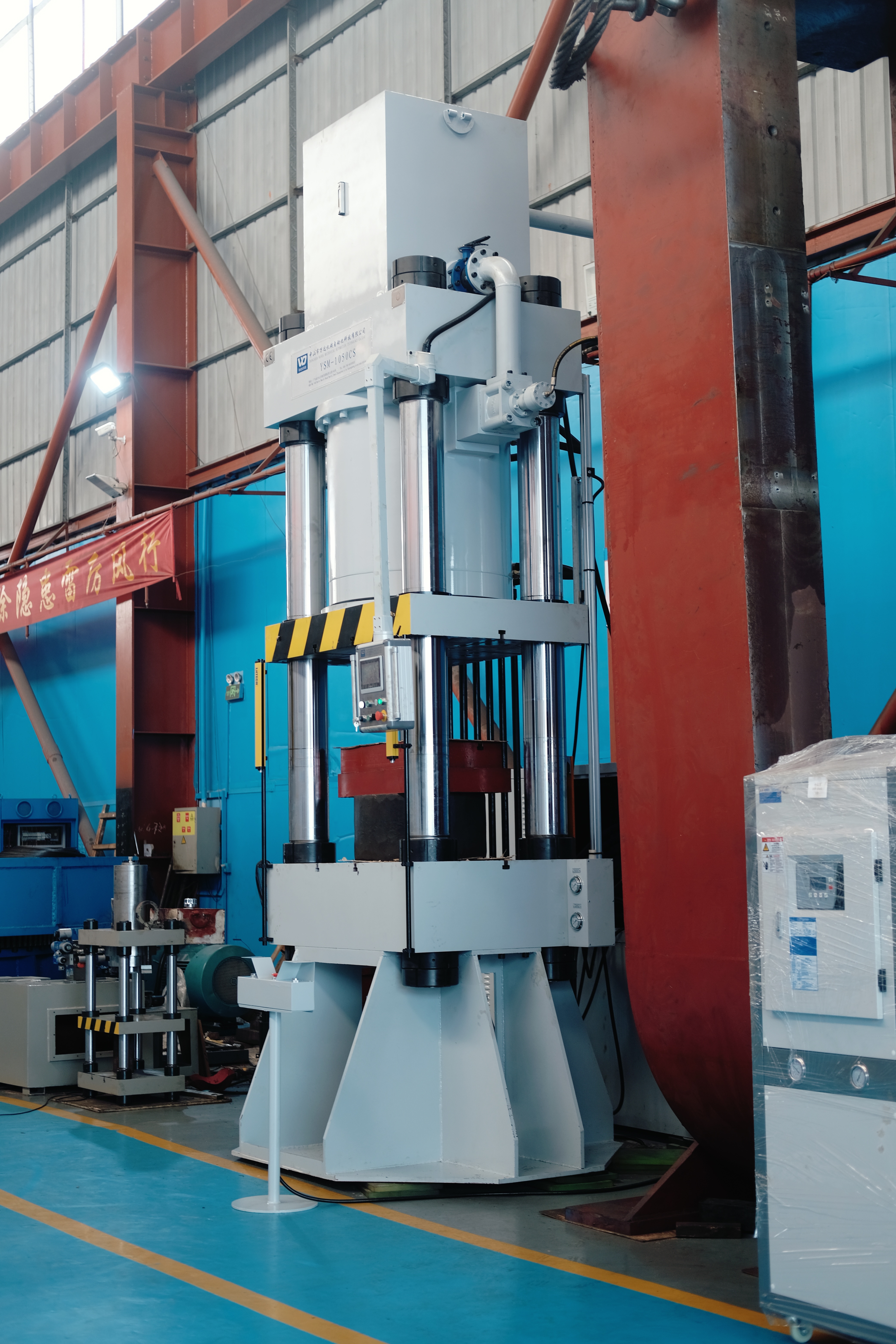

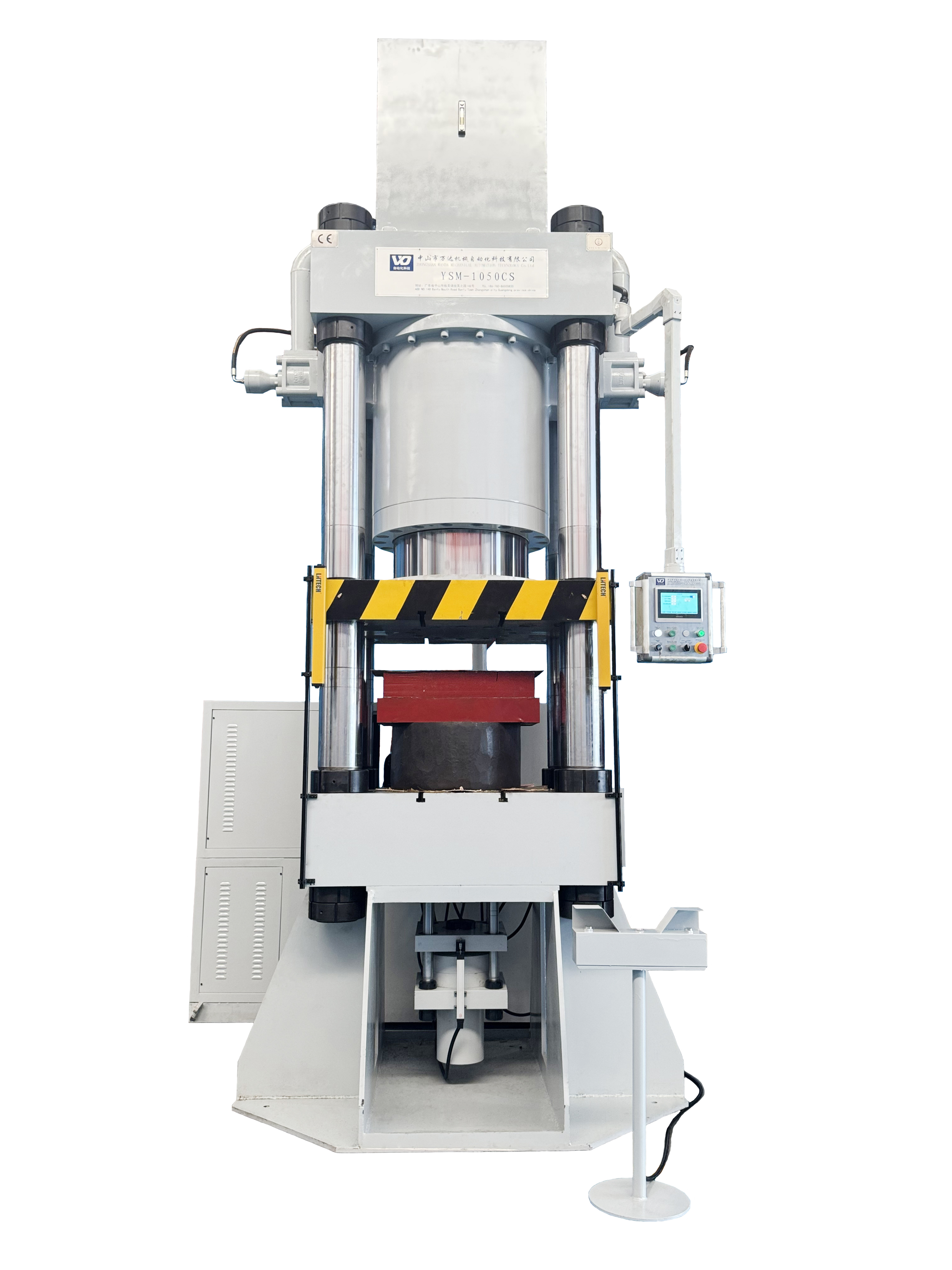

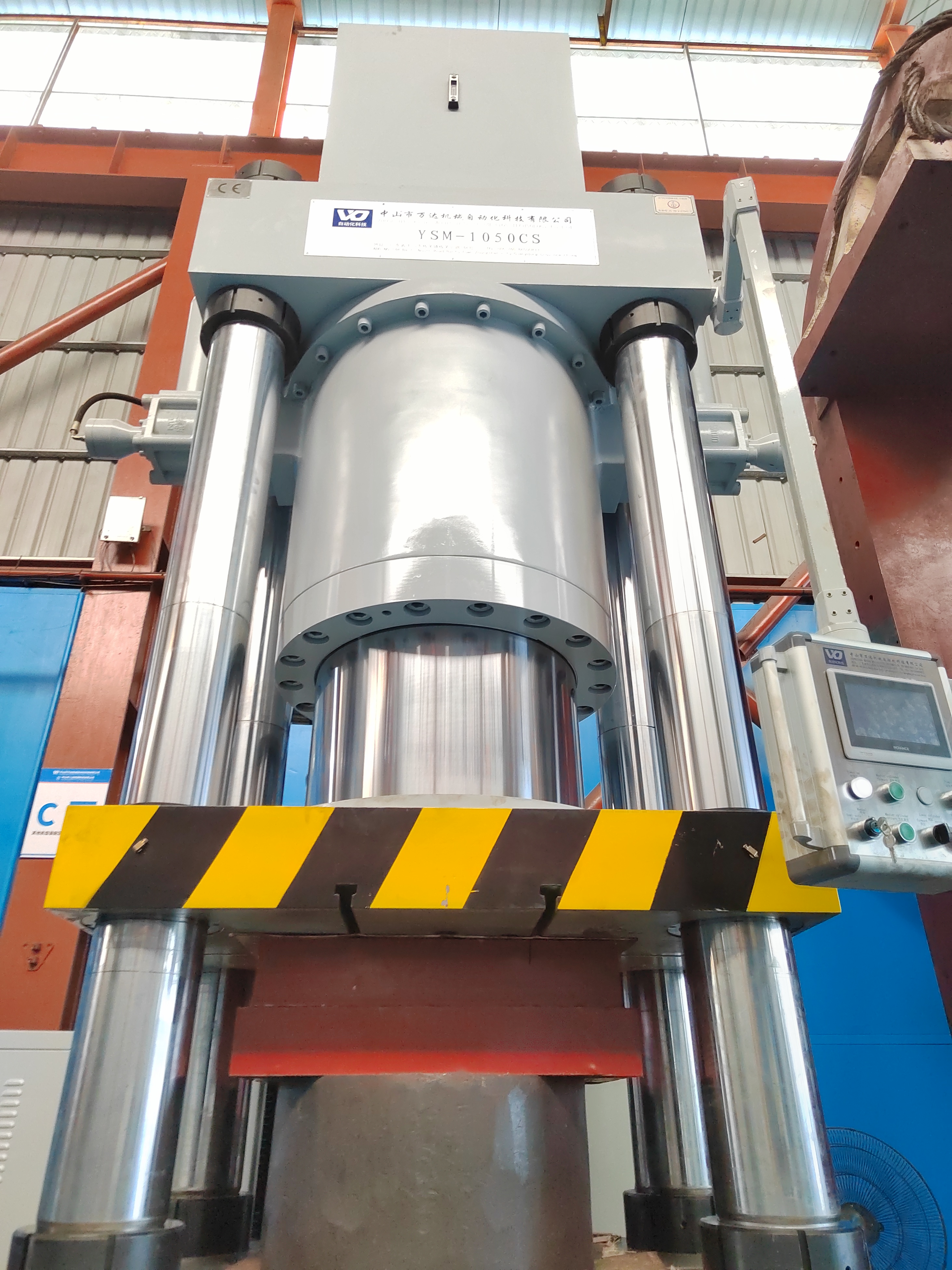

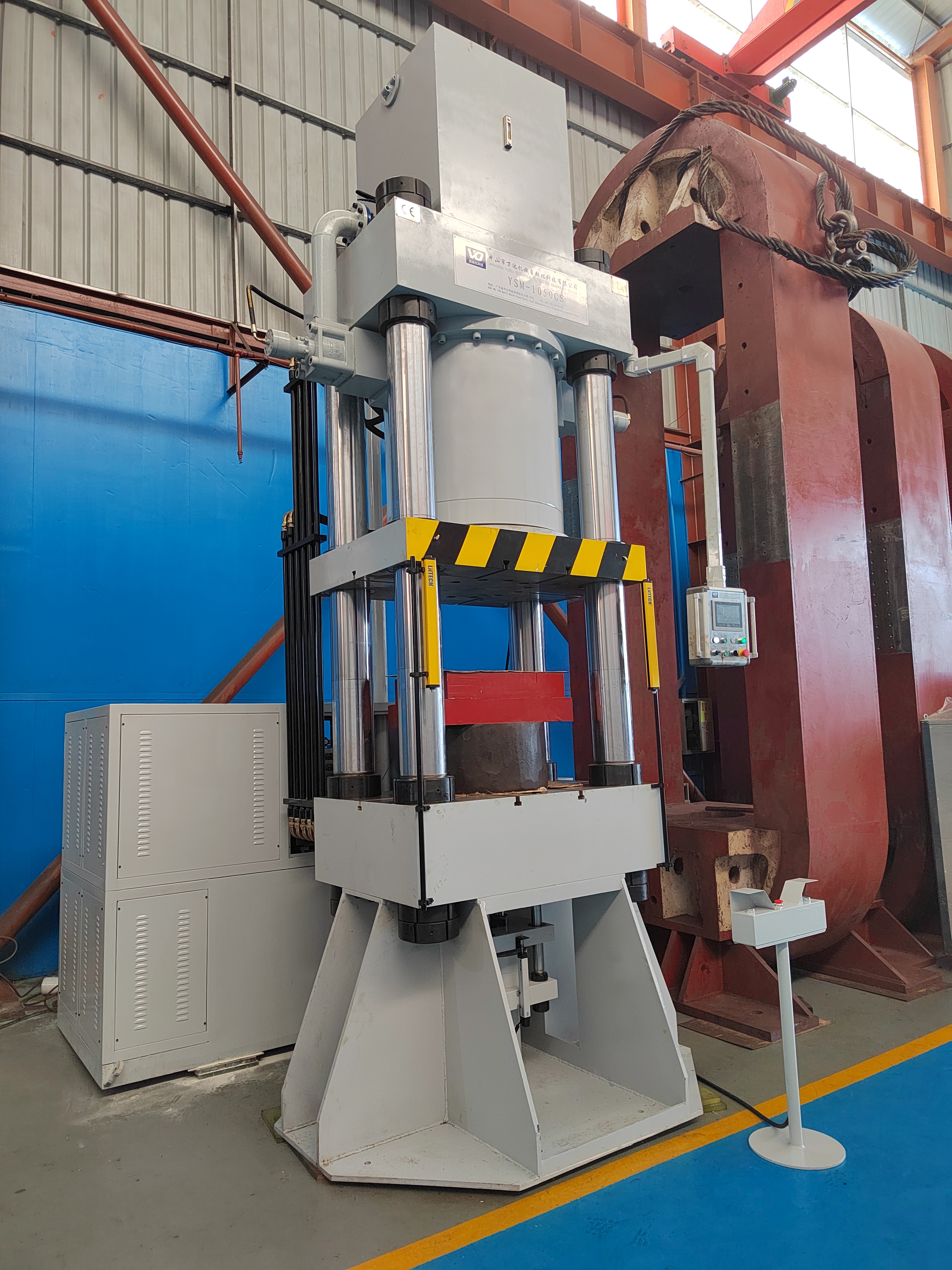

YSM-1050CS servo precision CNC hydraulic press

1. Machine usage and working conditions:

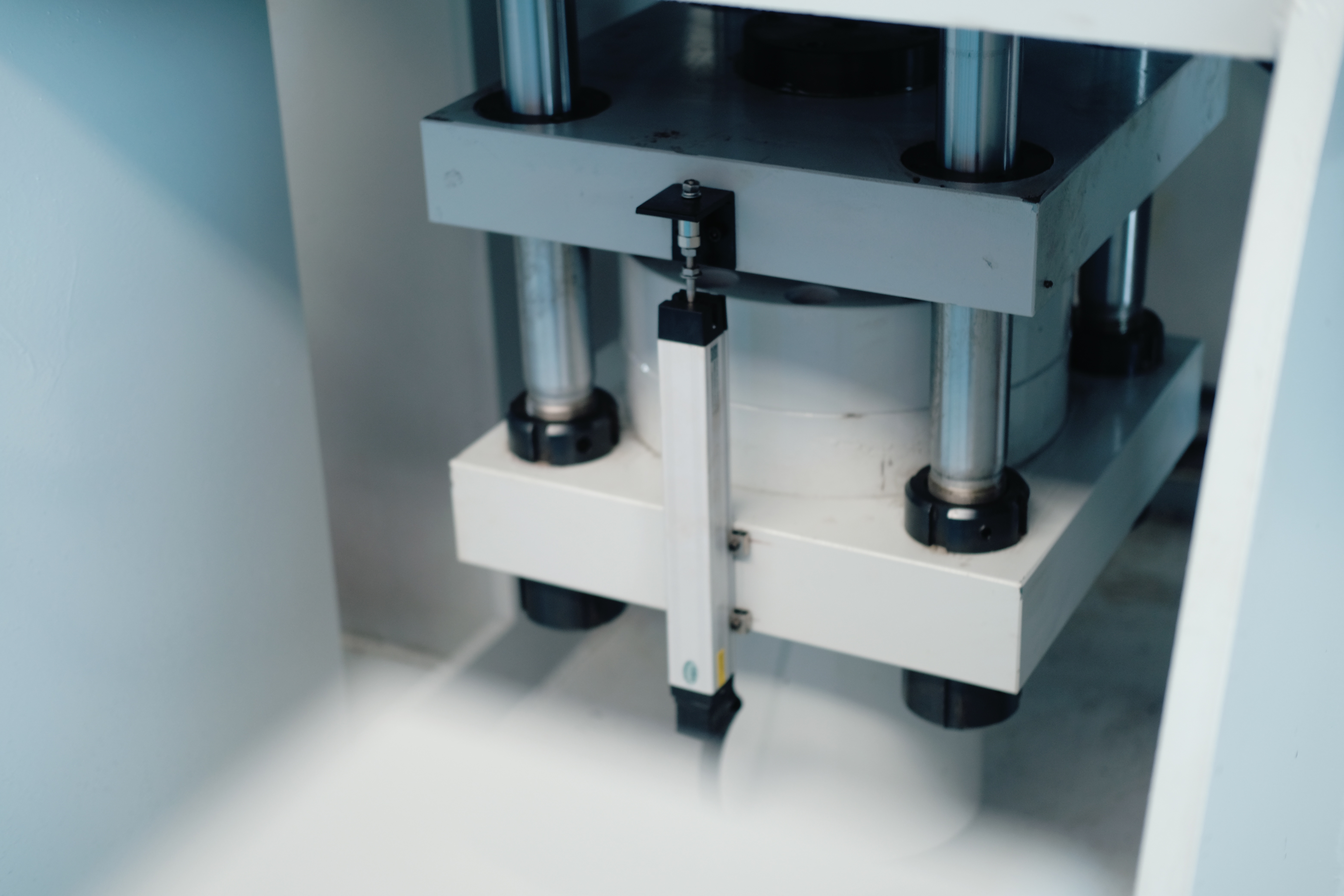

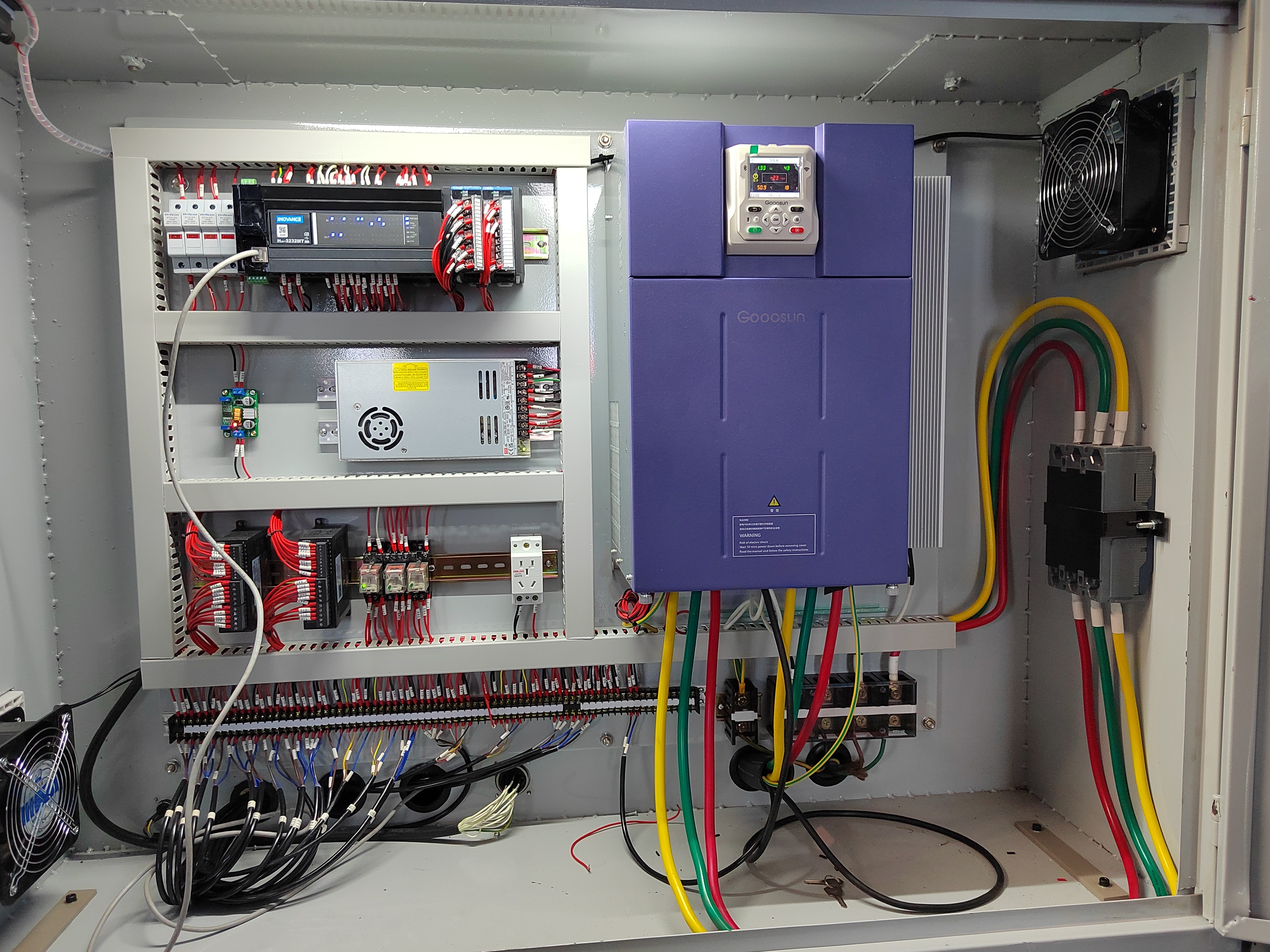

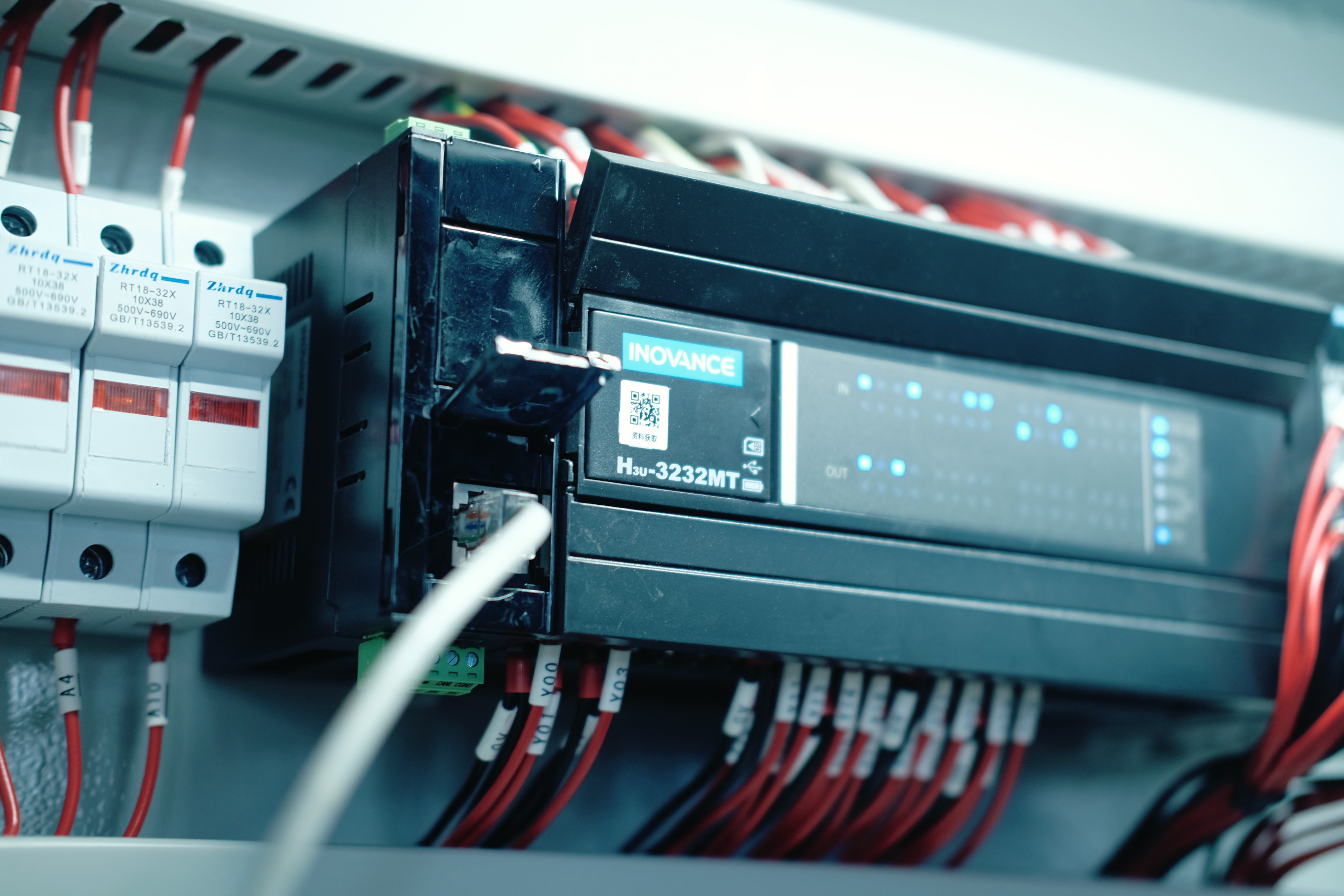

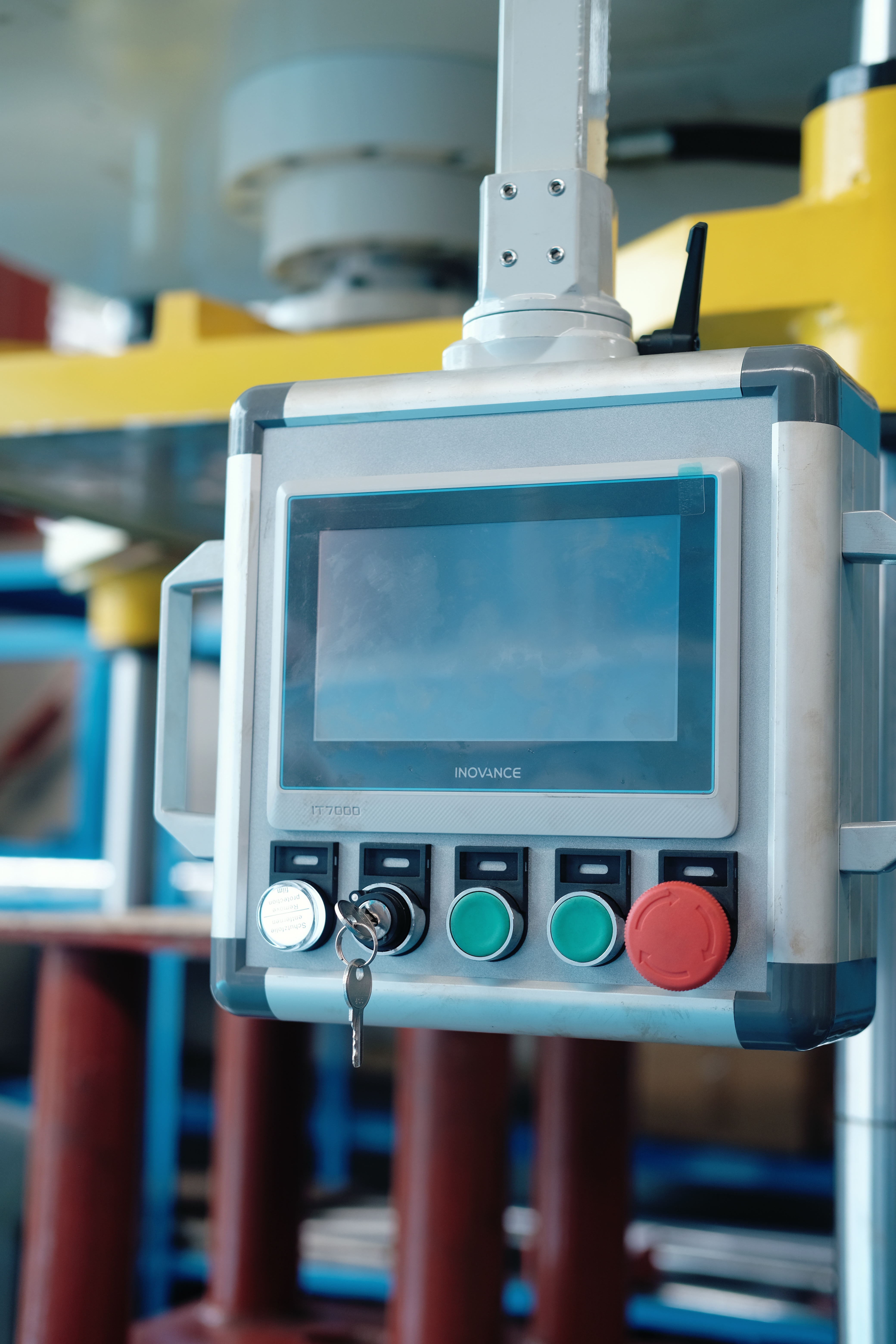

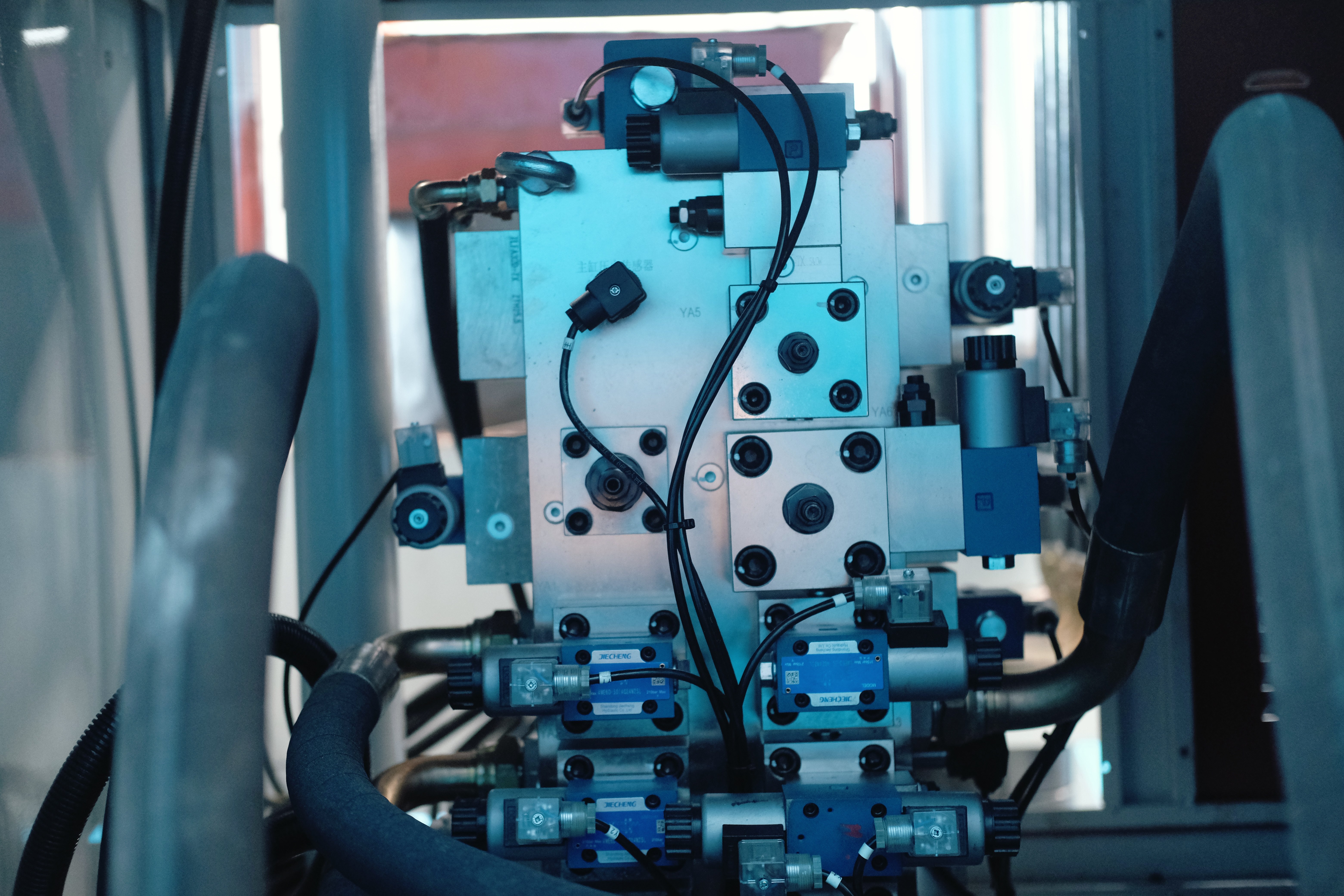

This machine is suitable for the cold extrusion, hot extrusion, punching, blanking, calendering, embossing, forming and structural correction processes of steel and plastic materials. The machine has an independent hydraulic system and electrical system, and uses a touch screen to display displacement and product counting, and a touch screen + PLC + grating ruler combination, which is convenient for setting and controlling the upper limit of the slider, fast rotation, lower limit and pressure holding time. It can realize two working methods: adjustment and automatic. Each working state can realize two types of pressing methods: fixed pressure and fixed stroke.

This machine is suitable for cold extension, hot extension, punching, cutting, rolling, embossing, forming, and structural correction processes of steel and plastic materials. The machine has independent hydroulic and electrical systems, and uses a touch screen to display distribution and product counting. The combination of touch screen, PLC, and grating ruler makes it easy to set and control the upper limit, fast/slow rotation, lower limit, and holding time of the slider. It can achieve two working modes: adjustment and automatic. Each working state can achieve two pressing methods: constant pressure and constant stroke.

Machine usage conditions:
Working ambient temperature: 0-55℃ Relative humidity: not more than 85%
Hydraulic oil temperature 5-50℃ Power supply voltage: 380V±5% 50HZ
Altitude: No more than 1000m Hydraulic system media: 46# anti-wear hydraulic oil

Machine usage conditions:
Working environment temperature: 0-55 ℃ Relative humidity: not exceeding 85%
Hydraulic oil temperature 5-50 ℃ Power supply voltage: 380V ± 5% 50HZ
Altitude: not exceeding 1000m. Hydraulic system medium: 46 # anti-wear hydroulic oil

Availability:

Quantity:



Inquire Add to Basket

Model:
YSM-1050CS
Brand:
万达

Product Description

Product Description

2. Machine parameters and process actions:

2.1 Main technical parameters:

Serial number NO.	Project Item		Unit	Parameter value
1	Master cylinder nominal force		KN	10000 (Adjustable)
2	Liquid working pressure Maximum working pressure of liquid		MPa	25
3	Work slider stroke		mm	500 (Adjustable)
4	Maximum opening height		mm	1000
5	Slider speed Slider speed	No load down no load down	mm/s	125 (Adjustable)
		Suppressing pressing	mm/s	5-10 (Adjustable)
		Return	mm/s	125 (Adjustable)
6	Workbench size Workbench size	Left and right LR	mm	900 (inside the column) (Inside the column
6	Workbench size Workbench size	Front and rear FB	mm	960 (Edge)
7	Bottom cylinder force		KN	500 (Adjustable)
8	Bottom cylinder stroke		mm	200 (Electronic ruler control)
9	Bottom cylinder speed Bottom cylinder speed	Eject eject	mm/s	100 (Adjustable)
9	Bottom cylinder speed Bottom cylinder speed	Return	mm/s	120 (Adjustable)
10	Servo motor power		KW	40.9

2.2 Typical process actions: Start the motor, one master cylinder, one master cylinder, one master cylinder, one master cylinder, one master cylinder, one return, one ejector cylinder, one material cylinder, one material cylinder, one material cylinder, one material cylinder, one material cylinder is returned (electronic ruler control), completing a working cycle.

2.2 Typical process actions: Start the motor—quickly descend the main cylinder—slowly press the main cylinder—return the main cylinder—push out the top material cylinder—and then retract the material cylinder (controlled by an electronic ruler)—completed a work cycle.

2.3. Each action can be controlled separately manually.

2.3Manual can be controlled separately.
