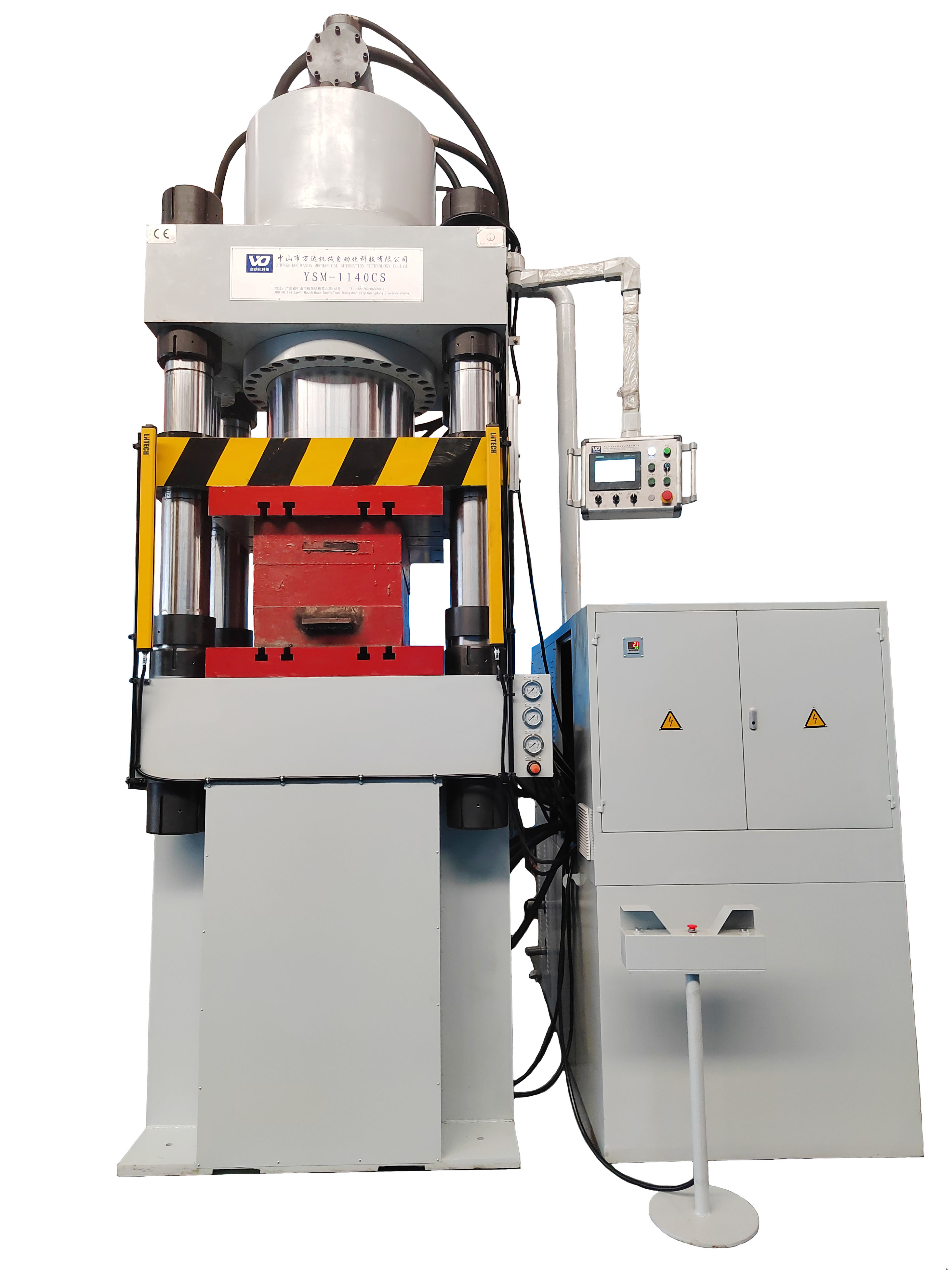

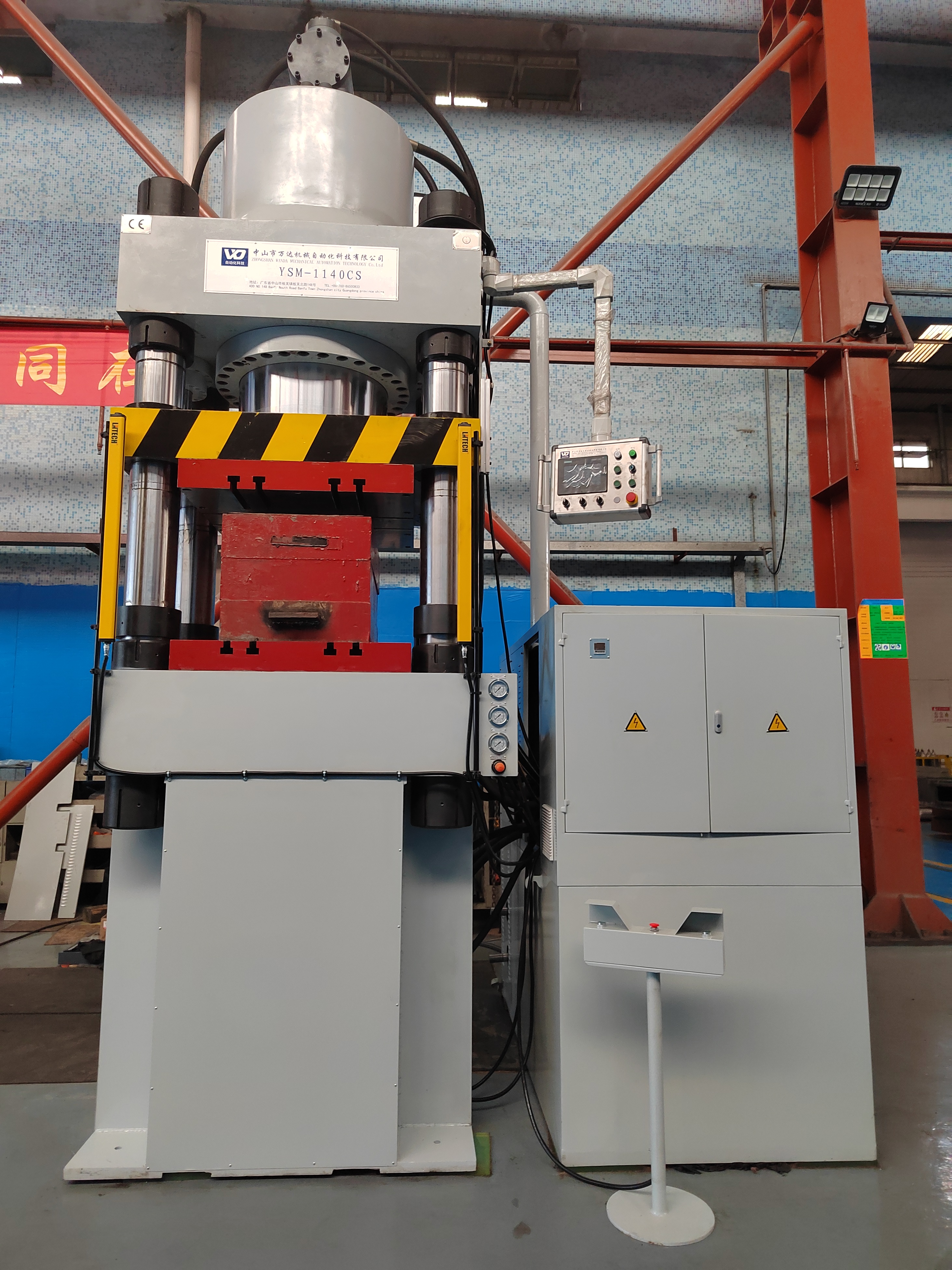

YSM-1140CS

1. This equipment is suitable for precision cold, hot forging, back-extrusion stretching, punching, punching, bending, flanging, forming, correction of large structural parts, cold and hot extrusion molding processes of automobile and motorcycle accessories.
2. The machine has an independent hydraulic system and electrical system, and uses a touch screen to display displacement and product counting, touch screen + PLC + grating displacement ruler to facilitate setting and controlling the upper limit of the slider, fast rotation, lower limit and pressure holding time. The machine has an independent hydraulic system and an electrical system, which can realize three working methods: manual adjustment and semi-automatic and automatic. Each working state can achieve two types of pressing methods: accurate displacement schedule and fixed pressure.
3. Machine usage conditions:
Working environment temperature: 0℃-55℃ Relative humidity: not more than 85% Power supply voltage: 380V±5% 50Hz
Altitude: no more than 1500m
Hydraulic system media: 68# anti-wear hydraulic oil

1. This equipment is suitable for precision cold and hot forgetting, reverse extension stretching, punching, punching, bending, flanging, forming of various metal materials and plastic materials, as well as calibration of large structural components and cold and hot extension forming processes for automated and motorcycle parts.
2. The machine has independent hydroulic and electrical systems, and adopts a touch screen display for distribution and product counting, as well as a combination of touch screen+PLC+grating distribution ruler, making it easy to set and control the upper limit, fast/slow rotation, lower limit, and holding time of the slider. The machine has independent hydroulic and electrical systems, which can achieve manual adjustment and three working modes: semi-automatic and automatic. Each working state can achieve two pressing methods: precise displacement and constant pressure.
3. Machine usage conditions:
Working environment temperature: 0 ℃ -55 ℃ Relative humidity: not greater than 85% Power supply voltage: 380V ± 5% 50Hz
Altitude: not exceeding 1500m
Hydraulic system medium: 68 # anti-wear hydroulic oil

Availability:

Quantity:



Inquire Add to Basket

Model:
YSM-1140CS
Brand:
万达

Product Description

Product Description

Main technical parameters::

Serial number NO.	Project Item		Unit	Specification spec.
1	Master cylinder nominal force		KN	1000 (Adjustable)
2	Slide stroke		mm	300 (Adjustable)
3	Liquid working pressure		MPa	25
4	Nominal force of edge pressing cylinder Nominal force of edge pressing cylinder		KN	1000 (Adjustable)
5	Edge cylinder stroke		mm	200 (Adjustable)
6	Lower ejector cylinder force		KN	200 (Adjustable)
7	Lower ejector cylinder stroke		mm	300 (Adjustable)
8	upper ejector cylinder force		KN	200 (Adjustable)
9	upper ejector cylinder stroke		mm	100 (Time relay control)
10	Height of workspace opening		mm	800 (excluding padding)
11	Distance between the surface of the workbench and the ground		mm	2250
12	Slider running speed Slider speed	No-load downlink	Mm/s	220 (Adjustable)
		Slow down pressing	Mm/s	7-14 (Adjustable)
		Return	Mm/s	220 (Adjustable)
13	Bottom cylinder running speed Bottom cylinder operating speed	Ejection	Mm/s	80 (Adjustable)
13		Return	Mm/s	Passive return
14	Table size	Left and left (inside the column) LR(inside the column)	mm	1000
14	Table size	Front and back (edges) FB(edges)	mm	1000
15	Workbench pad size Dimensions of bench plate	Left and right LR	mm	940
15	Workbench pad size Dimensions of bench plate	Front and rear FB	mm	1000
16	Servo motor power		KW	60.5
17	Cooling method		Hydraulic press	15000Kcal/h

1 (19)
