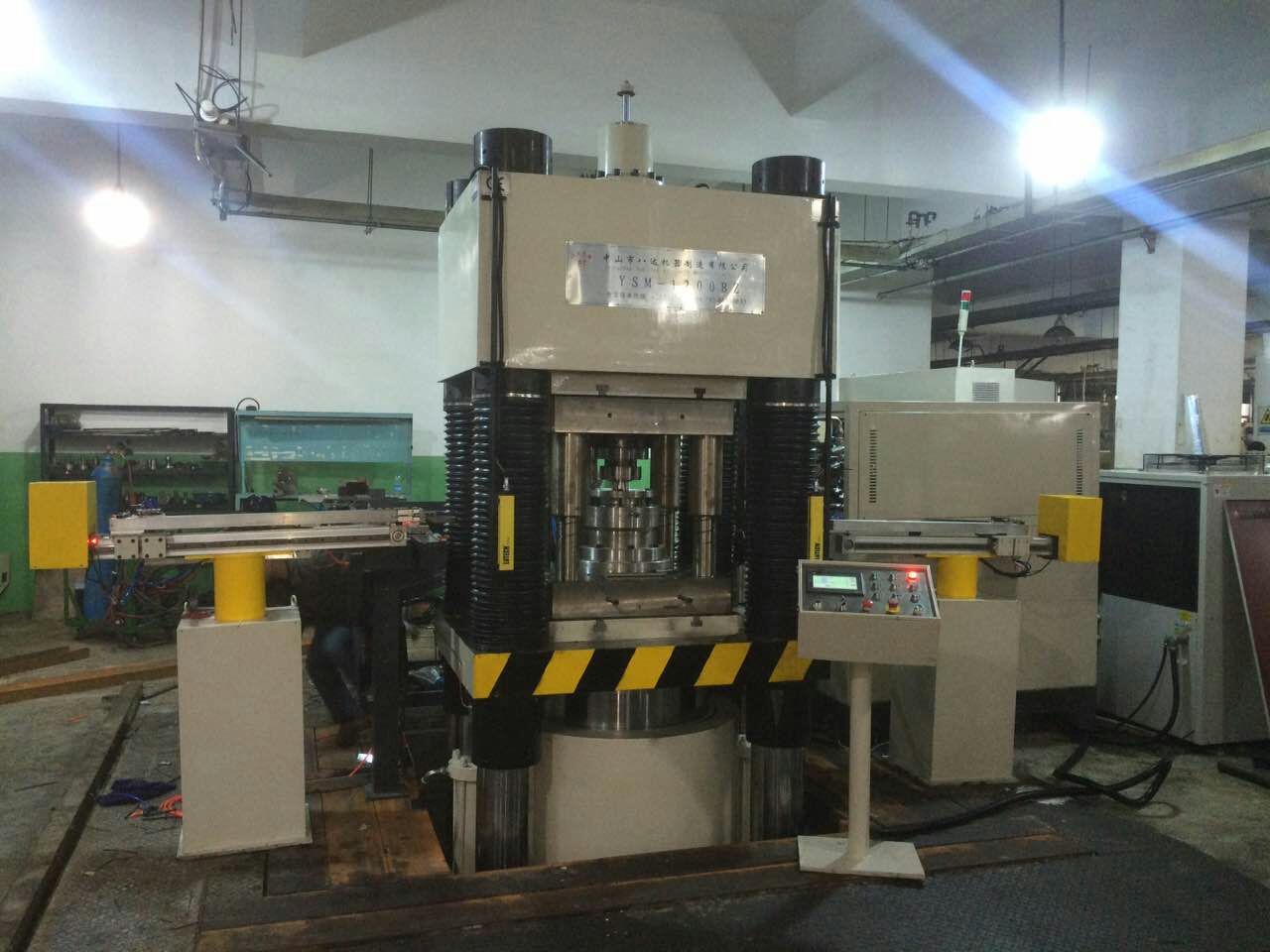

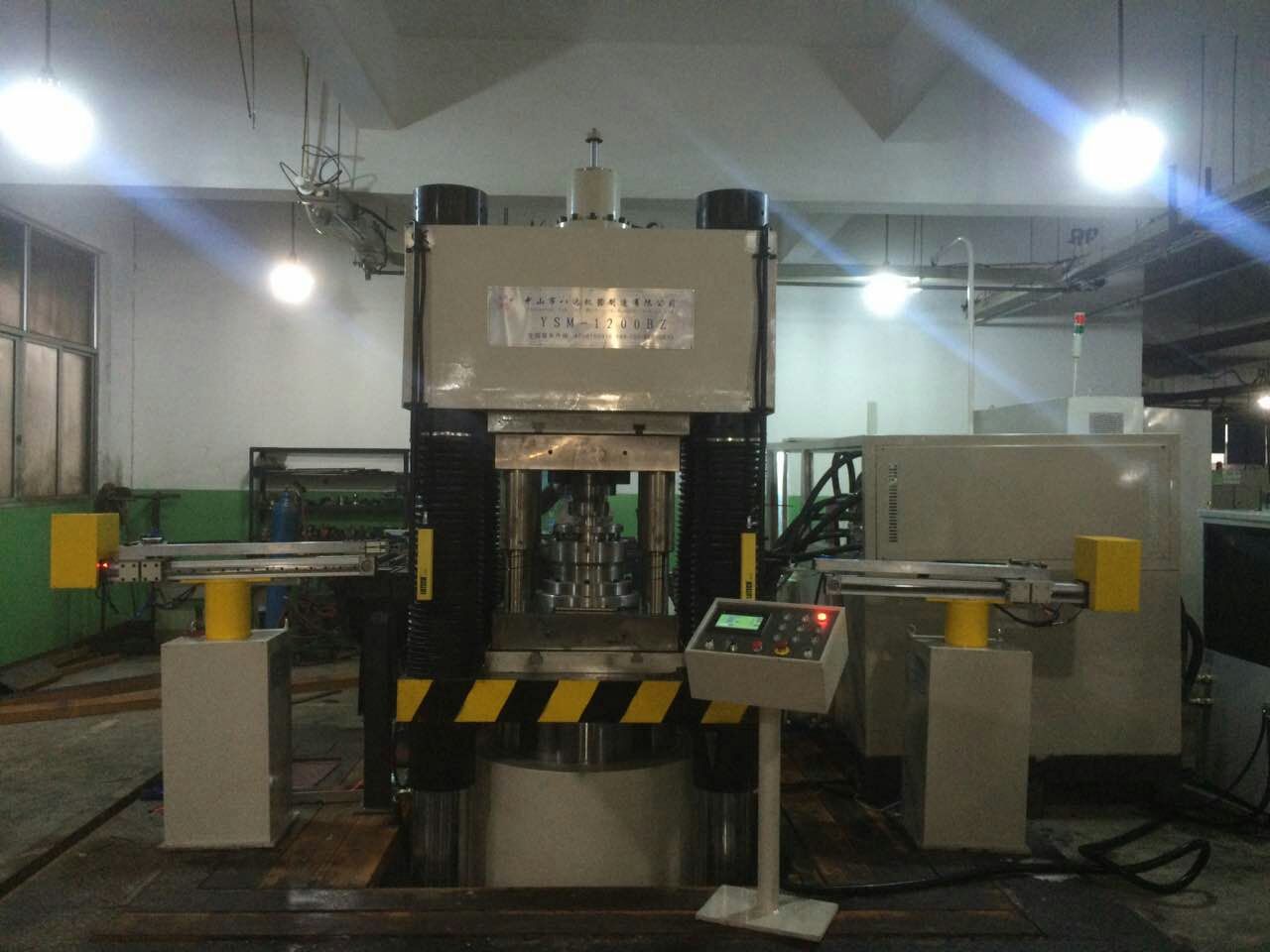

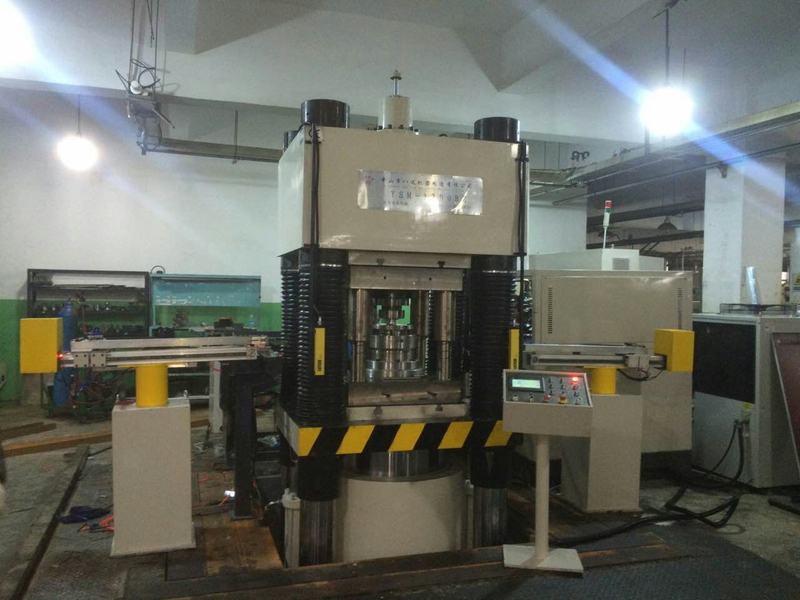

YSM-1200BZ drive disk fully automatic production line

1. Purpose: This production line is suitable for bending, punching, blanking, rolling, embossing, forming and structural correction processes of steel and plastic materials.
2. Features: This production line has an independent central control system. The system can communicate with the office computer to achieve remote control. It uses a touch screen to display displacement and product counting. The combination of touch screen + PLC + electronic displacement ruler makes it easy to set and control the upper limit of the slider and fast rotation. Slow, lower limit and holding time, etc.Both manual adjustment and fully automatic working modes can be realized.Each working state can realize two pressing methods: constant pressure and fixed range.This line is equipped with fully automated loading and unloading devices to realize automatic clamping and unloading of raw materials.
1. Independent central control system, remote control.
2. Touch screen display displacement and count.
3. Easy to set and control with touch screen, PLC and electronic ruler.
4. Two modes available: manual and automatic.
5. Each working condition can realize setting pressure pressing mode or stroke pressing mode.
6. Equip with automatic feeding device and discharge device.
Availability:
Quantity:
YSM-1200BZ drive disk fully automatic production line
  • YSM-1200BZ drive disk fully automatic production line

  • Wanda

Product Details

YSM-1200BZ drive plate fully automatic production line pressed product picture:

Suppression Figure 1


Suppression Figure 2


This line contains the following devices

No.

Item

Qty

1

YSK-1200BZ Servo CNC Four Column Hydraulic Press

1 set

2

PT Intelligent Two-Axis Robot

2 units

3

Raw Material Rotary and Lifting Device

1 set

4

Feeding and Discharge Device

1 set

5

Material Trimming and Taking Device

1 set


Main Technical SpecificationMain Technical Specification

No.

 Specification

Unit

YSM-1200BZ

1

Nominal Force

Main Cylinder

KN

12000

Upper and Lower Ejector (Adjustable)

KN

500 (adjustable)

2

Max Stroke

Main Cylinder (Adjustable)

mm

350 (adjustable)

Upper and Lower Ejector

mm

50

3

Max Daylight Opening (Adjustable)

mm

1000-1200 (adjustable)

4

Main Cylinder Speed

(Adjustable)

Fast Upward

mm/s

245 (adjustable)

Slow Pressing

mm/s

0-10 (adjustable)

Returning

mm/s

250 (adjustable)

5

Effective size of worktable

Left-right (inside post)

mm

900

Front-back(rim)

mm

1120

6

Bolster Size

Left-right

mm

800

Front-back

mm

800

7

Pump Servo Motor Power

KW

22+22+22

8

Loading and unloading machine translation servo motor power

KW

0.75+0.75

9

Feeding Max. Translation Stroke of loader and unloader

mm

800

10

Translation Speed

Translation in (Adjustable)

mm/s

600 (adjustable)

Translation out (Adjustable)

mm/s

600 (adjustable)

11

Lifting Servo Motor Power for loading and unloading machine

KW

0.75+0.75

12

Feeding Max. Lifting Stroke

mm

200

13

Lifting Speed

Lifting (Adjustable)

mm/s

650 (adjustable)

Decline (Adjustable)

mm/s

450 (adjustable)

14

Diameter of the Product

mm

¢30-¢50
