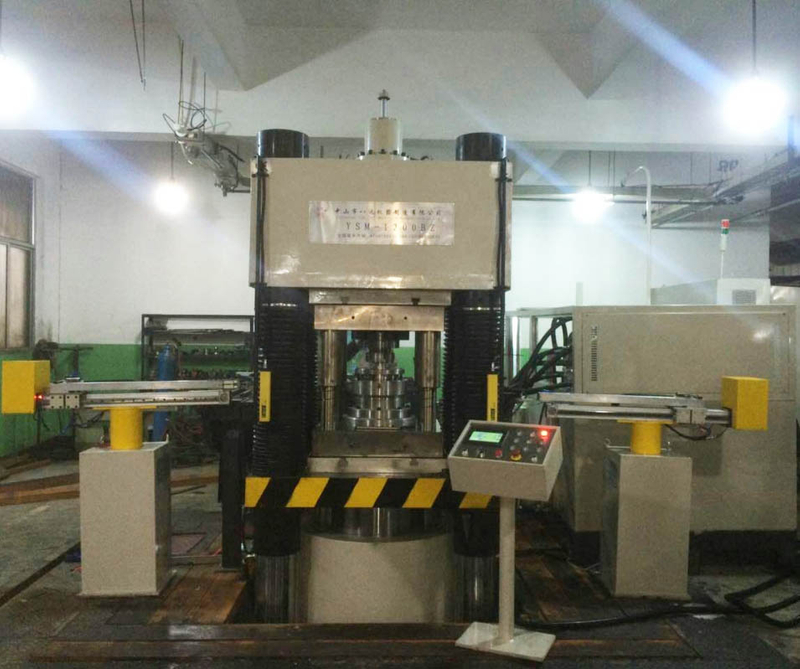

YSK-1200BZ
八达
Product Description
This production line is suitable for the bending, punching, blanking, calendering, stamping, forming and structural correction processes of steel and plastic materials.
This production line has an independent central control system, which can communicate with office computers to achieve remote control, and uses a touch screen to display displacement and product counting, and a touch screen + PLC + electronic displacement ruler combination, which is convenient for setting and controlling the upper limit of the slider, fast rotation, lower limit and pressure holding time. It can realize two working methods: manual adjustment and fully automatic. Each working state can realize two types of pressing methods: fixed pressure and fixed stroke. This line is equipped with fully automatic loading and unloading devices to realize automatic clamping and unloading of raw materials.
This line contains the following equipment
Serial number | name | quantity |
1 | YSM-1200BZ servo CNC precision four-column hydraulic press | 1台 |
2 | PT intelligent two-axis manipulator | 2台 |
3 | Browser material flip and lifting mechanism | 1套 |
4 | Feeding and discharging mechanism | 1套 |
5 | Browser material correction and mechanism to be taken | 1套 |
Main technical parameters
Parameter Specification | Unit | YSM-1200BZ | ||
1 | Nominal power | Master cylinder | Ton | 1200 |
Up and down material withdrawal tank | Ton | 50(Adjustable) | ||
2 | Maximum itinerary | Master cylinder | mm | 350(Adjustable) |
Up and down material withdrawal tank | mm | 50 | ||
3 | Maximum opening height | mm | 1000-1200 (adjustable) | |
4 | Master cylinder speed | Go up quickly | mm/s | 245(Adjustable) |
Slow pressing | mm/s | 0-10 (Adjustable) | ||
Return | mm/s | 250(Adjustable) | ||
5 | Workbench effective size | Left and right (inside the column) | mm | 900 |
Front and back (edge) | mm | 1120 | ||
6 | Backing plate size | about | mm | 800 |
Before and after | mm | 800 | ||
7 | Oil pump servo motor power | KW | 22+22+22 | |
8 | Power of the conveyor servo motor | KW | 0.75+0.75 | |
9 | Maximum translation stroke of loading and unloading machine | mm | 800 | |
10 | Pan speed | Move in | mm/s | 600(Adjustable) |
Move out | mm/s | 600(Adjustable) | ||
11 | Power of loading and unloading machine lifting servo motor | KW | 0.75+0.75 | |
12 | Maximum lifting stroke of loading and unloading machine | mm | 200 | |
13 | Pushing speed | rise | mm/s | 650(Adjustable) |
decline | mm/s | 450(Adjustable) | ||
14 | Raw material diameter | mm | ￠ 30- ￠50 | |
