YSM-1500BS

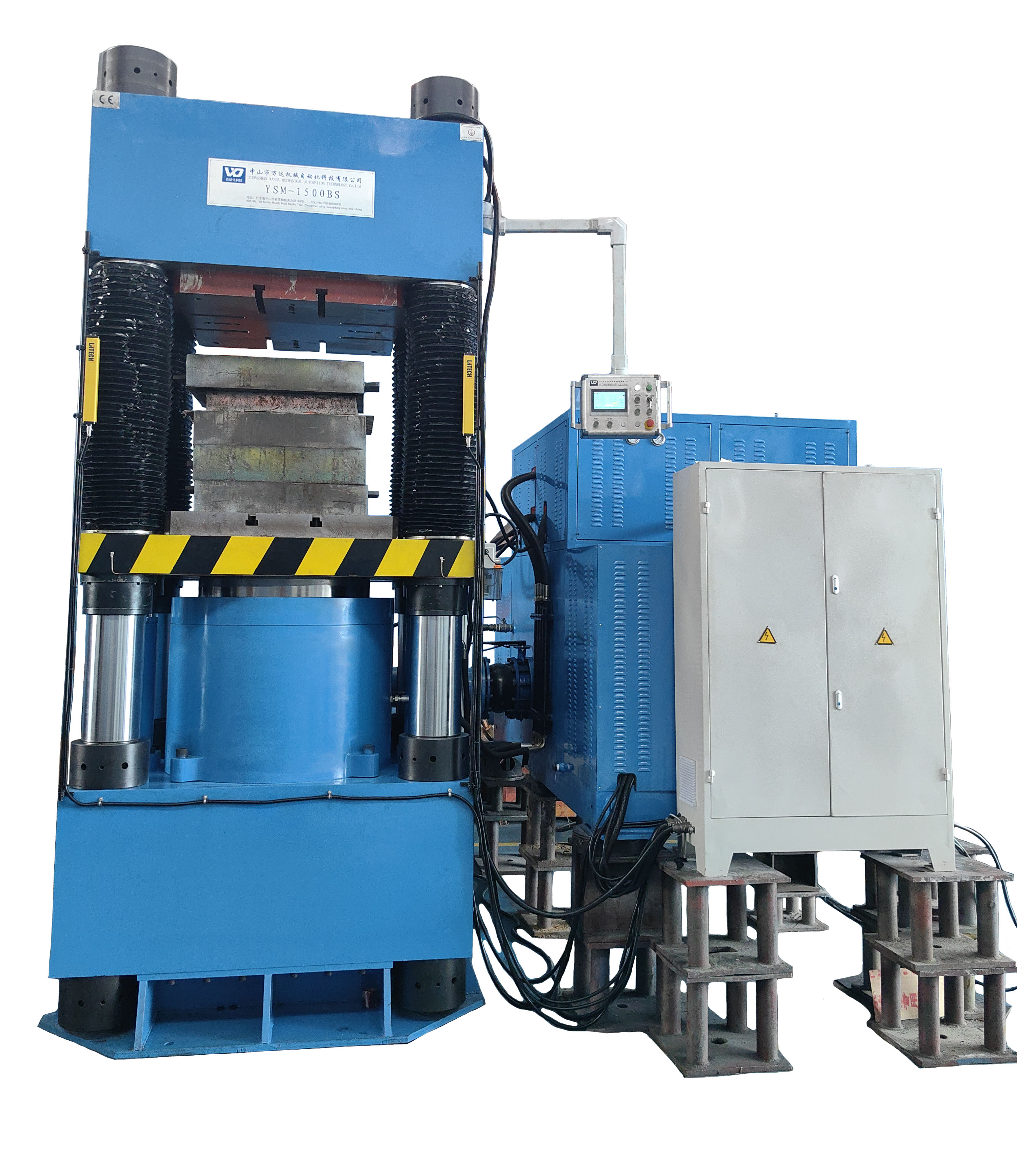

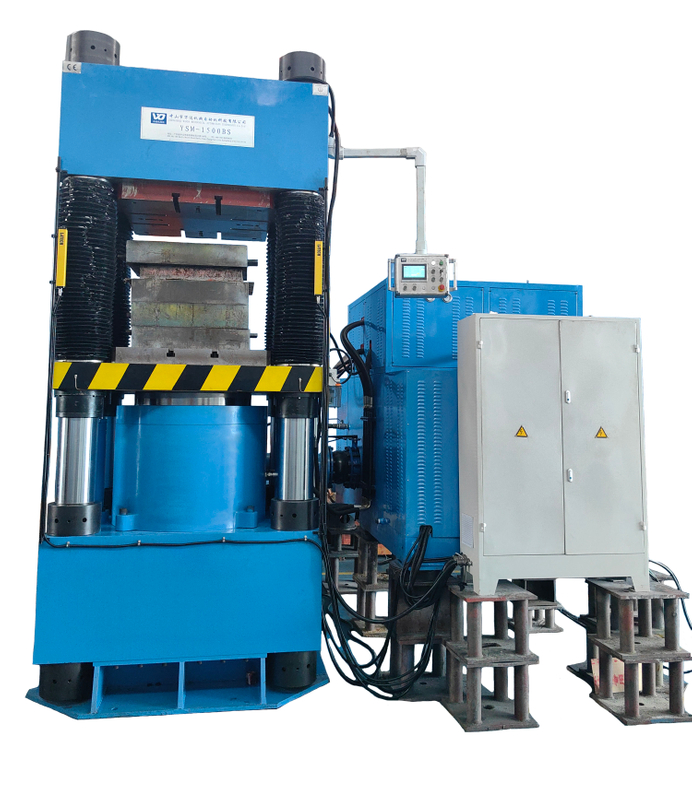

1500 tons servo precision CNC four-column hydraulic press
Availability:
Quantity:
YSM-1500BS
YSM-1500BS
YSM-1500BS
YSM-1500BS
  • YSM-1500BS

  • 万达

Product Description

35

Main technical parameters:

serial number

project

unit

YSM-1500BS

1

Master cylinder pressure

KN

15000(adjustable)

2

Working slide stroke

mm

350(adjustable)

3

Opening height (excluding backing plate)

mm

1050

4

Slider speed

fast forward

mm/S

200(adjustable)

Apply pressure slowly

mm/S

12(adjustable)

Return trip

mm/S

200(adjustable)

5

Workbench size

Left and right (within the column)

mm

1250

Front and back (edge)

mm

1300

6

Pad thickness

about

mm

1100

before and after

mm

1100

Pad thickness

mm

120

7

Lower jacking cylinder force

KN

1500(adjustable)

8

Lower top cylinder stroke

mm

60 (ejector time relay control, return pressure sensor control)

9

Liquid working pressure

MPa

24.7

10

Servo motor power

KW

101.4

11

Cooling method

Oil cooler 15000Kcal/h

YSM series servo four-column hydraulic press

Features:

  • High repeatability positioning accuracy, up to ±0.01mm;

  • Compared with traditional similar models, energy saving reaches 30%;

  • In fully automatic production mode, the traditional production cycle can be shortened by about 20%;

  • Using servo hydraulic system control, it can meet the changing requirements of speed and pressure in different processes, and the movement is smooth;

  • The main hydraulic components use well-known brand products to ensure the stability of the hydraulic system performance.

Standard configuration:

  • Omron computer control system

  • Semi-closed guard

  • pressure sensor

  • grating ruler

  • Servo motor oil pump set

Specifications
YSM-A/B series four-column hydraulic press (lower cylinder type)
YSM-C series four-column hydraulic press (upper cylinder type)
project
unit
YSM-200A/B
YSM-300A/B YSM-500A/B YSM-1000A/B YSM-200C YSM-300C YSM-500C YSM-1000C
Nominal force
KN
2000
3000
5000
10000
2000

3000

5000
10000
system pressure
MPa
24
24.5
25
25
25
25
25
25
Movable workbench travel (adjustable)
mm
150
150
150
150
200
250
250
250
Workbench height from ground
mm
890
960
1115
1357
800
800
1000
1000
Opening height
mm
400
400
450
600
500
525
700
800
Travel speed of movable workbench
Come on quickly
mm/s 180
180
160
140
190
180
170
135
Work progresses
mm/s 5
3.4
3.4
1.7
1.5-6
1-5
1-4
0.5-3
Return trip
mm/s 240
240
200
200
180
170
160
135
Effective area of ​​work surface
Left and right (within the column)
mm
455
550
650
900
500
550
650
900
Front and back (edge)
mm
550
650
750
950
600
650
750
950
Machine dimensions
about
mm
940
1070
1380
1780
1880
1930
2200
2950
before and after
mm
1415
1535
1640
1600
1450
1450
1450
1750
high
mm
1610
1715
2080
2720
2600
2685
3220
3520
Motor power
KW
12
12
16
16
12
12
16
22
Machine weight
KG
2200
3120
5520
13000
3200
3800
9000
18000
Ejection cylinder nominal force
KN
50
50
100
100
50
50
100
100
Ejection cylinder stroke
mm
30
30
30
30
30
30
30

30


Remark:

1. If the above technical parameters are subject to change, actual conditions or mutual agreement shall prevail without prior notice.

2. YSK-A does not have a material return device, and YSK-B does.
