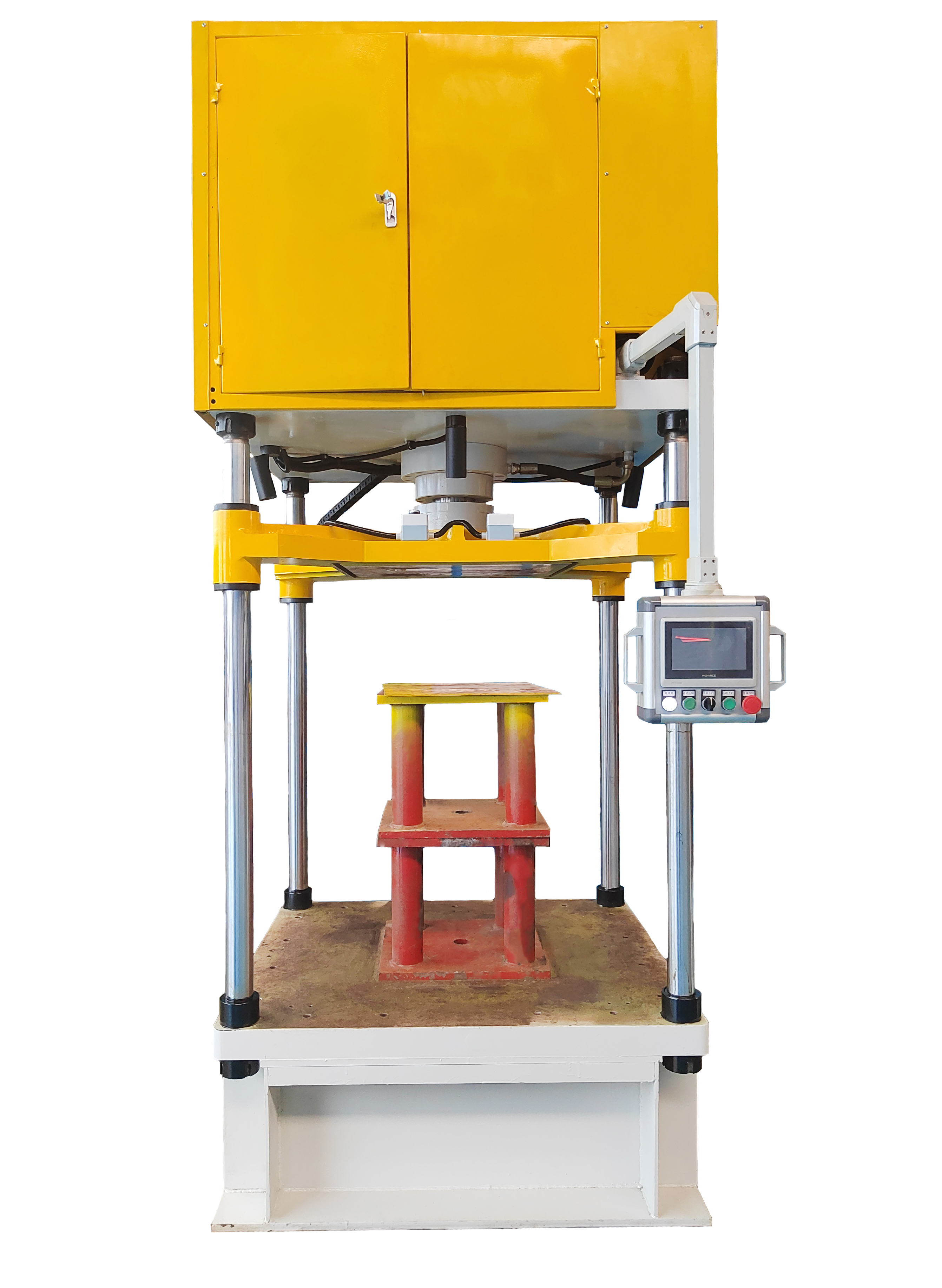

YSM-15CS servo precision CNC hydraulic press

1. Machine usage and working conditions:
1. This machine is suitable for cold extrusion, hot extrusion, punching, blanking, rolling, embossing, forming and structural correction processes of steel and plastic materials. The machine has an independent hydraulic system and electrical system, and uses a touch screen to display displacement and product count. The touch screen + PLC + grating ruler combination makes it easy to set and control the upper limit, fast and slow speed, lower limit and holding time of the slider. Two working modes, adjustment and automatic, can be realized. Each working state can realize two pressing methods: constant pressure and fixed range.

This machine is suitable for cold extension, hot extension, punching, cutting, rolling, embossing, forming, and structural correction processes of steel and plastic materials. The machine has independent hydroulic and electrical systems, and uses a touch screen to display distribution and product counting. The combination of touch screen, PLC, and grating ruler makes it easy to set and control the upper limit, fast/slow rotation, lower limit, and holding time of the slider. It can achieve two working modes: adjustment and automatic. Each working state can achieve two pressing methods: constant pressure and constant stroke.

2.Machine usage conditions:
Working ambient temperature: 0-55℃ Relative humidity: not more than 85%
Hydraulic oil temperature 5-50℃ Power supply voltage: 380V±5% 50HZ
Altitude: no more than 1000m Hydraulic system medium: 68# anti-wear hydraulic oil

Machine usage conditions:
Working environment temperature: 0-55 ℃ Relative humidity: not exceeding 85%
Hydraulic oil temperature 5-50 ℃ Power supply voltage: 380V ± 5% 50HZ
Altitude: not exceeding 1000m. Hydraulic system medium: 68 # anti-wear hydraulic oil


Availability:
Quantity:

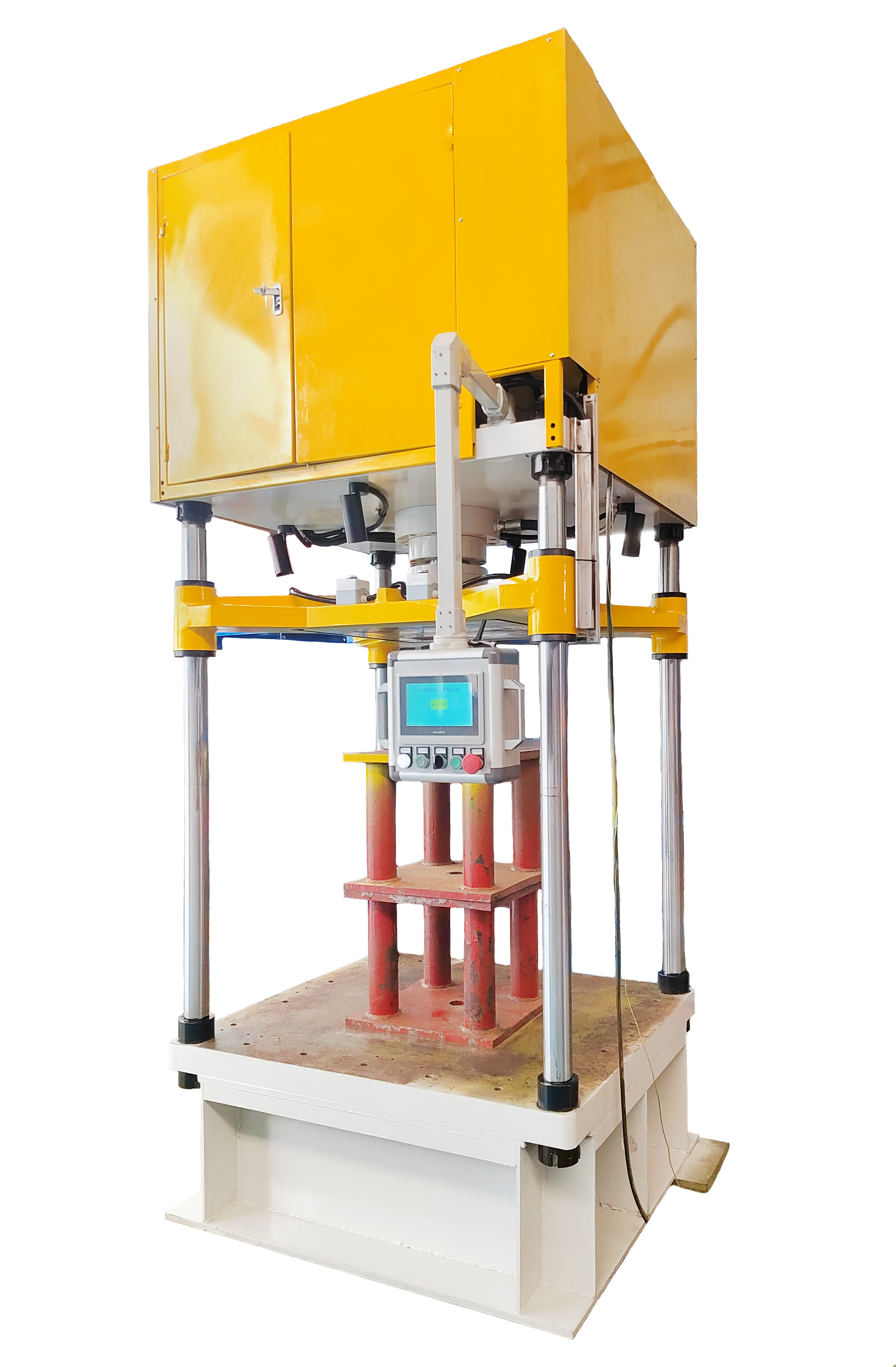

YSM-15CS servo precision CNC hydraulic press

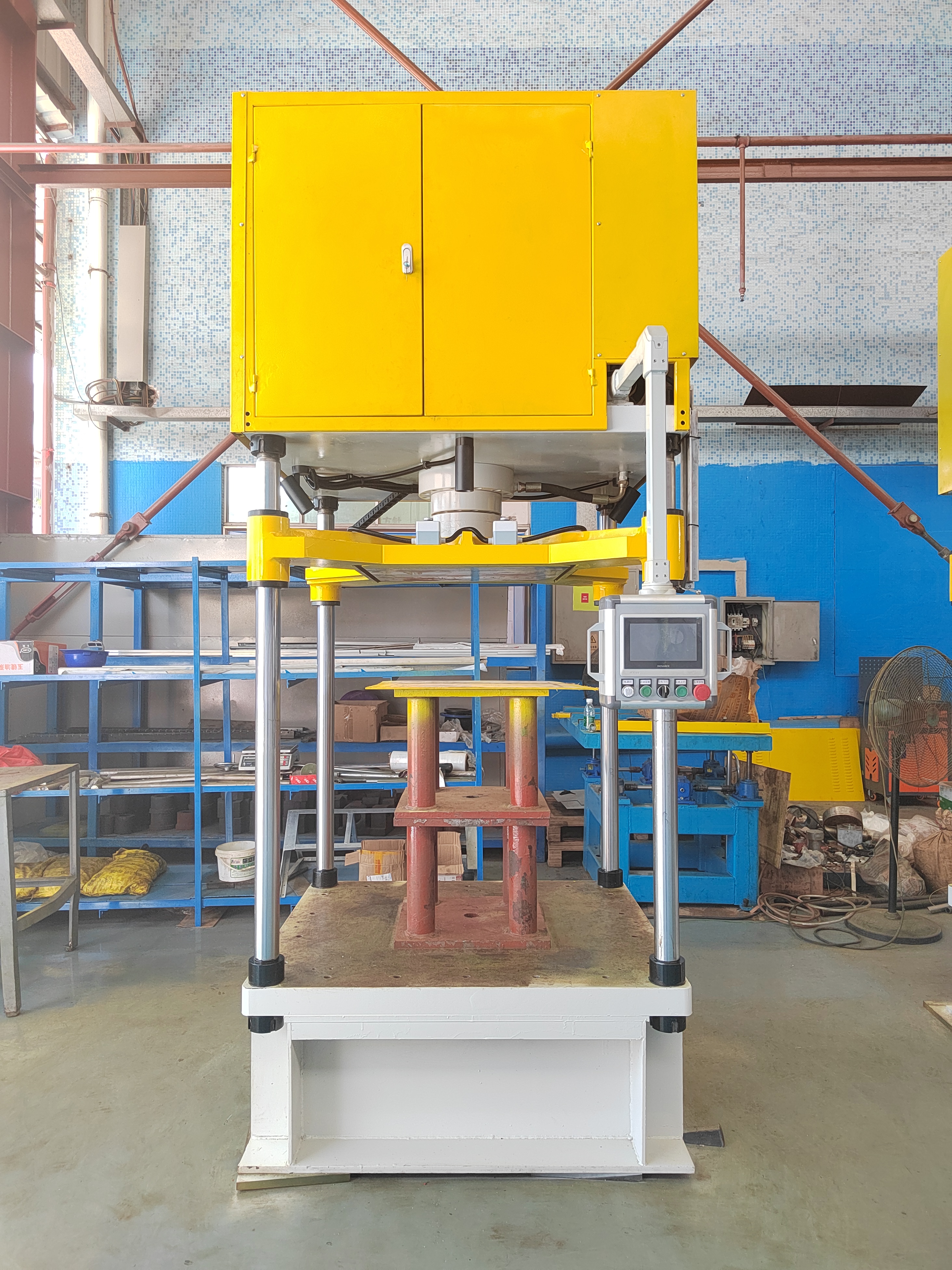

YSM-15CS servo precision CNC hydraulic press

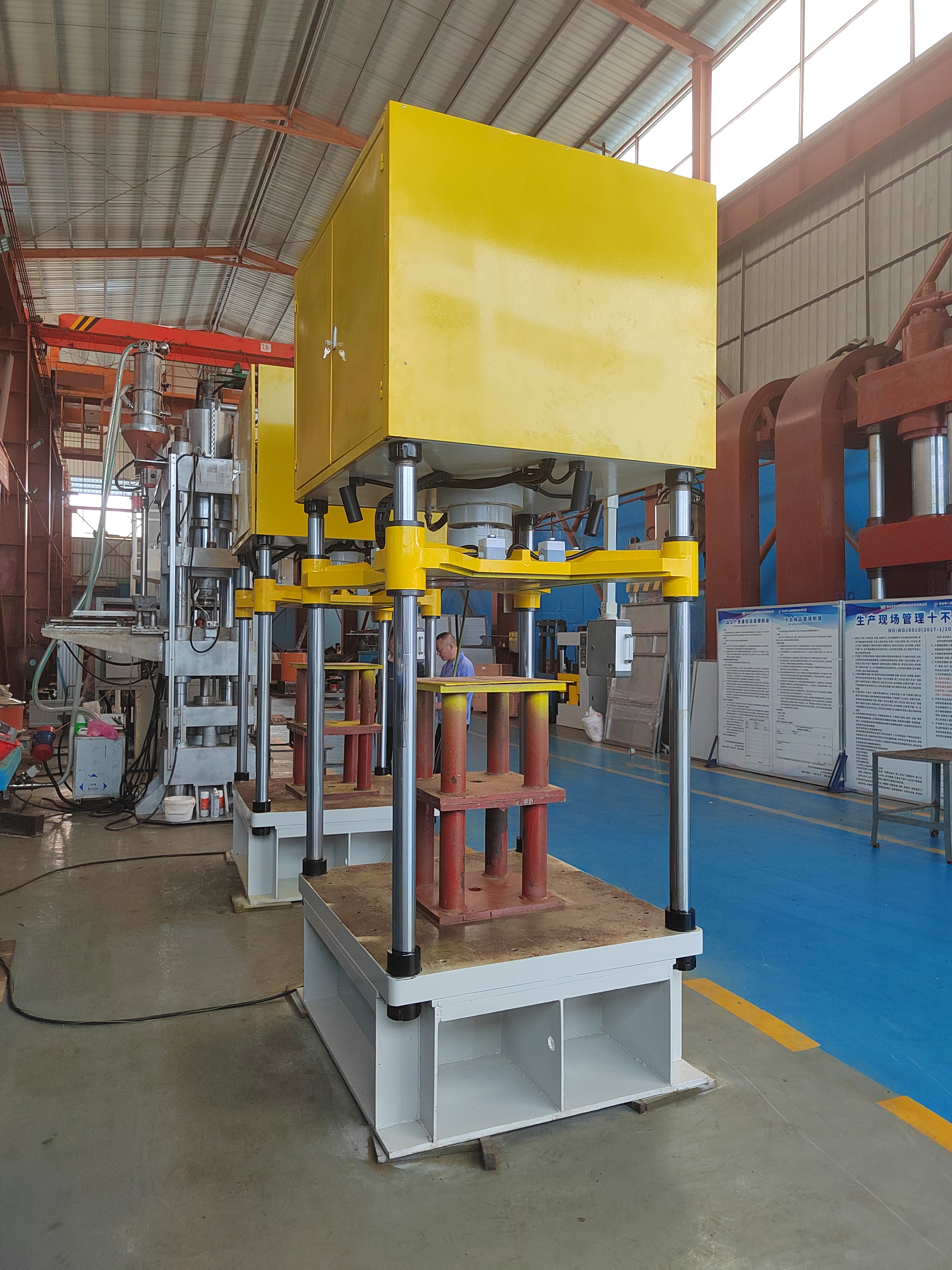

YSM-15CS servo precision CNC hydraulic press

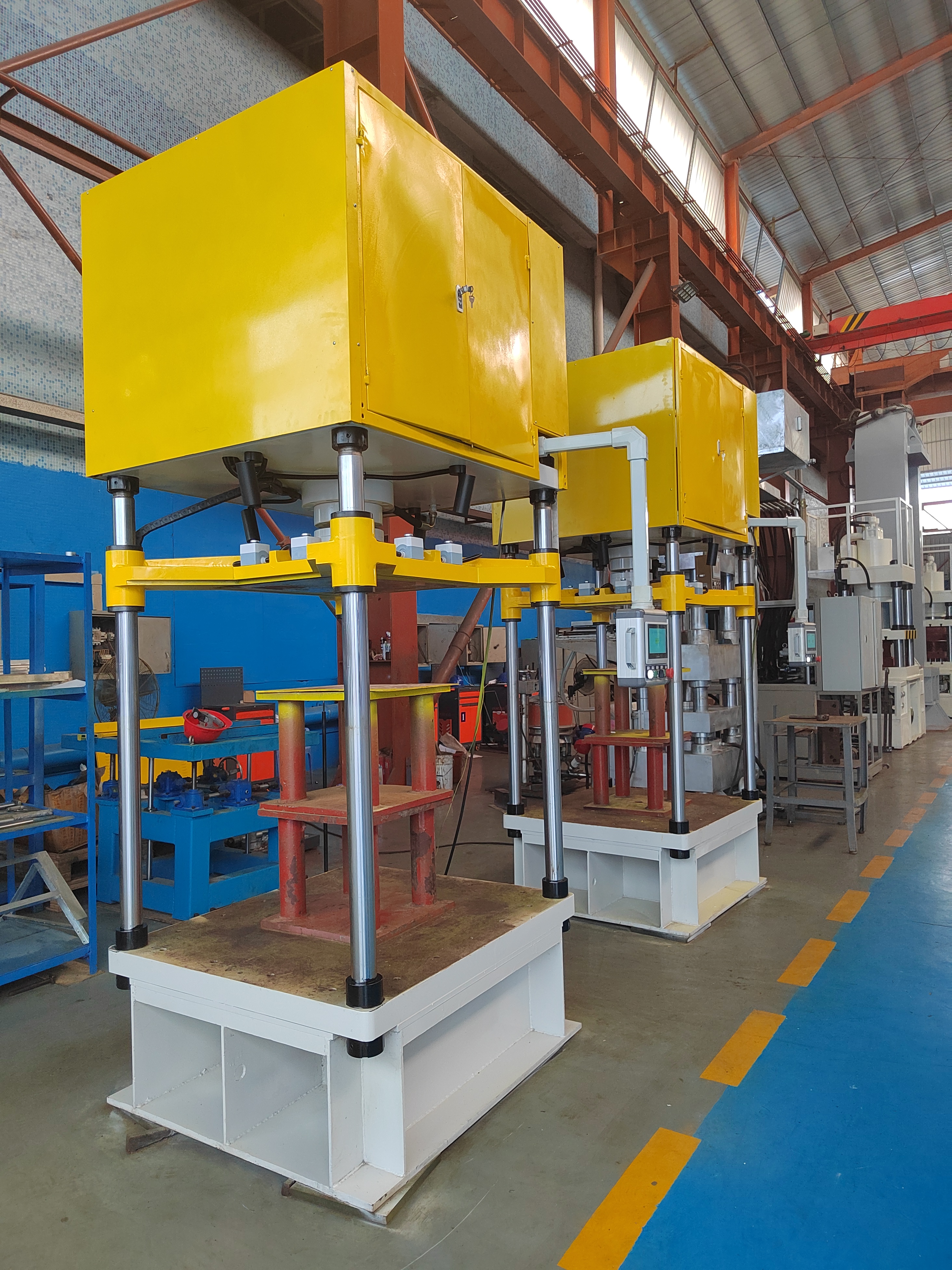

YSM-15CS servo precision CNC hydraulic press
YSM-15CS servo precision CNC hydraulic press

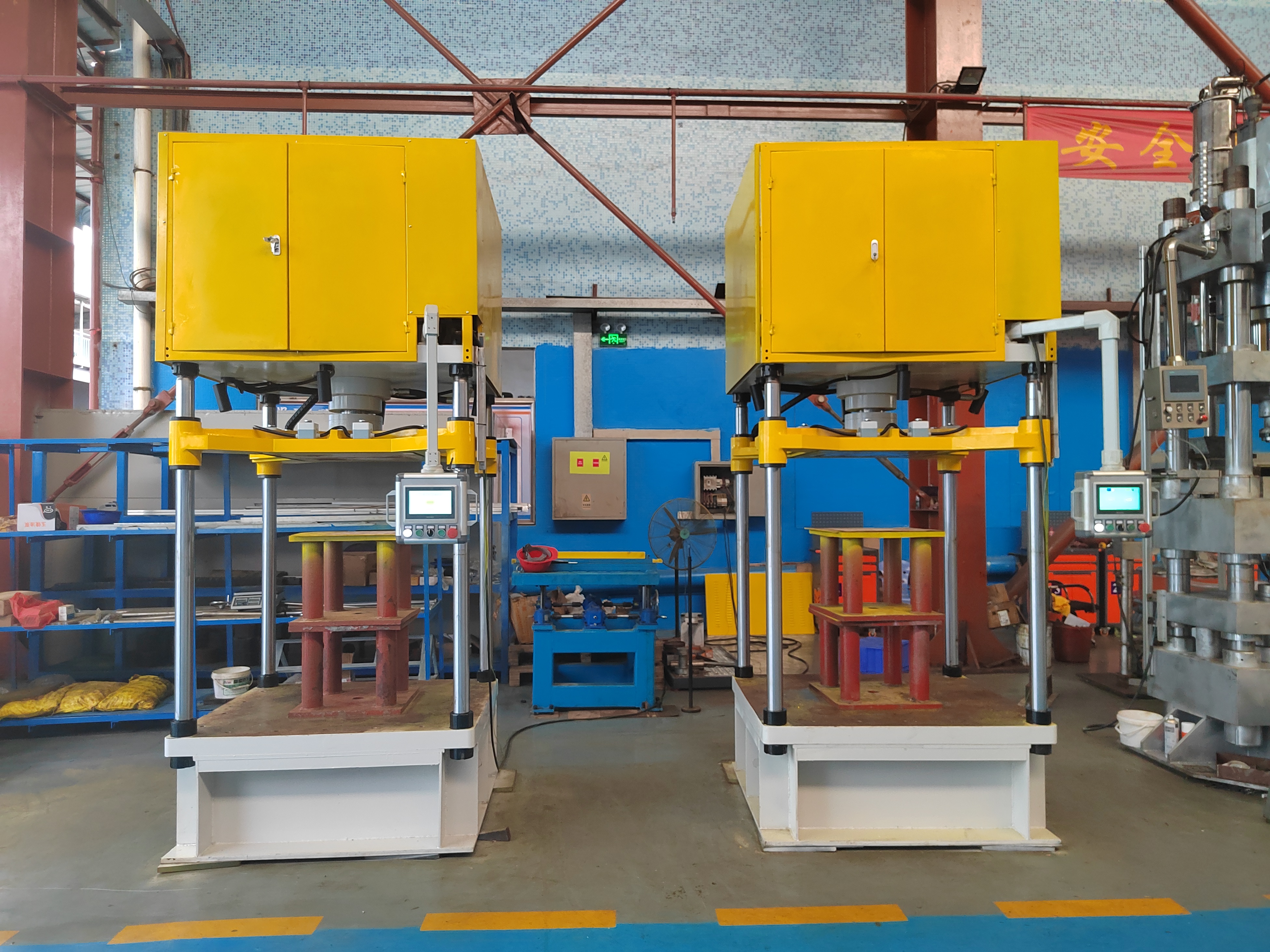

YSM-15CS servo precision CNC hydraulic press
  • YSM-15CS

  • 万达

Product Description

3. Work flow:
3.1. Enter product information and set the pressing parameters (pressure, stroke, holding time)
3.2. Peeling (pressure return to zero)
3.3. Empty mold 0-layer pressing (record 0-layer reference data)
3.4. N times of discharging and pressing (pressure or position control)
3.5 Data recording


3. Workflow:
3.1. Enter product information and set compression parameters (pressure, stroke, holding time)
3.2. Peeling (pressure zeroing)
3.3. Empty mold 0-layer compression (record 0-layer reference data)
3.4. N-time feeding and pressing (pressure or position control)
3.5 Data Recording

Position numberPosition number

Product BatchProduct Batch

Serial number No.

Starting to maintain pressure

End of pressure maintenanceEnd of pressure maintenance




time time

pressurepressure

Displacement

displacement

Single layer thin

Single layer thin

time time

pressurepressure

Displacement

displacement

Single layer thin























Main technical parameters: Main technical parameters

Serial number NO.

Project Item

unit

Unit

YSM-15CS Spec.

1

Master cylinder nominal force

KN

150 (pressure sensor control)

(Pressure sensor control)

2

Liquid working pressure

Maximum working pressure of liquid

MPa

9

3

Slider stroke

mm

500 (displacement sensor control)

(Displacement sensor control)

4

Open height

mm

1200

5

Slider speed

Slider speed

No load down

no load down

mm/s

0-100 (servo drive control)

(Servo drive control)

Suppressing pressing

mm/s

0-10 (servo drive control)

(Servo drive control)

Return

mm/s

0-60 (servo drive control)

(Servo drive control)

6

Workbench size

Workbench size

Left and right (inside the column)

LR(inside the column)

mm

890

Front and back (edge)

FB (edge)

mm

1040

7

Machine size

Machine dimensions

long

mm

About 1110              About 1110

wide

mm

About 1260             About 1260

high height

mm

About 2718             About 2718

8

Servo motor power

KW

About 3.7                 About 3.7

01
