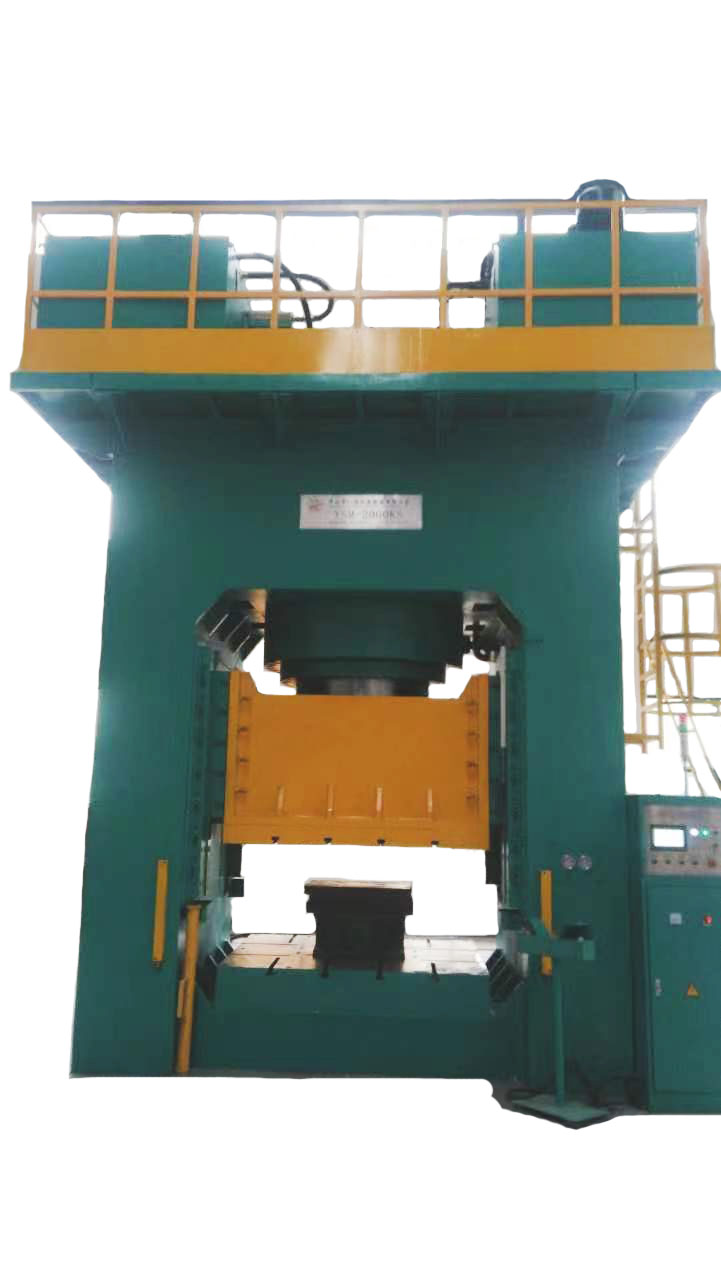

YSM-2000KS frame type precision servo CNC hydraulic press

Usage: 2000 tons frame servo CNC hydraulic press, used for plate heat exchanger tensile forming
Use: 2000 tons frame type servo CNC hydroulic press, used for plate heat exchanger stretch forming
Availability:
Quantity:
YSM-2000KS frame type precision servo CNC hydraulic press
YSM-2000KS frame type precision servo CNC hydraulic press
YSM-2000KS frame type precision servo CNC hydraulic press
YSM-2000KS frame type precision servo CNC hydraulic press
YSM-2000KS frame type precision servo CNC hydraulic press
YSM-2000KS frame type precision servo CNC hydraulic press
  • YSM-2000KS frame type precision servo CNC hydraulic press

  • 万达

Product Description

YSM-2000KS frame type precision servo CNC hydraulic press site diagram

YSM-2000KS frame type precision servo CNC hydroulic press field diagram:

YSM-2000KS Pictures (3)


YSM-2000KS Pictures (2)


YSM-2000KS Picture(1)


Picture 2

Suppress product picture

Picture 1

Suppress product picture


Technical parameters of YSM-2000KS frame type precision servo CNC hydraulic press

YSM-2000KS frame type precision servo CNC hydraulic press technical parameters:

Serial number NO.

Project Item

Unit

YSM-2000KS

1

Master cylinder force

KN

20000(adjustable)

2

Liquid working pressure

Maximum working pressure of liquid

MPa

25

3

Slider return force

KN

1150 (adjustable)

4

Ejecting force

KN

500 (adjustable)

5

Top travel itinerary

Maximum ejection travel

mm

50 (adjustable)

6

Center distance of the pin

Maximum center distance of ejector rod

Left-right

mm

900

Front-back

mm

500

7

Center spacing of pin

Center distance of ejector rod

Left-right

mm

100

Front-back

mm

100

8

Ejector diameter

mm

40

9

Opening height

mm

1000

10

Maximum stroke of the slider

mm

500 (adjustable)

11

Slider speed

Slider speed

The empty journey down

Short downlink

mm/s

200 (adjustable)

Suppressing pressing

mm/s

20(adjustable)

Returning

mm/s

215(adjustable)

12

Effective size of workbench pad

Effective dimensions of bench plate

Left-right

mm

1700

Front-back

mm

1500

13

Slide plate thickness

mm

120

14

Workbench pad thickness

Thickness of table backing plate

mm

250

15

Total power of main motor

Total power of main motor

KW

135

16

T-slot specifications and sizes

T-slot specification dimensions

mm

36

17

Height of the workbench from the ground

Height between the workbench plane and the ground

mm

550
