Purpose: This series of machines is mainly used for press-fitting and riveting processes of various types of electric heating tubes.
| Quantity: | |
|---|---|

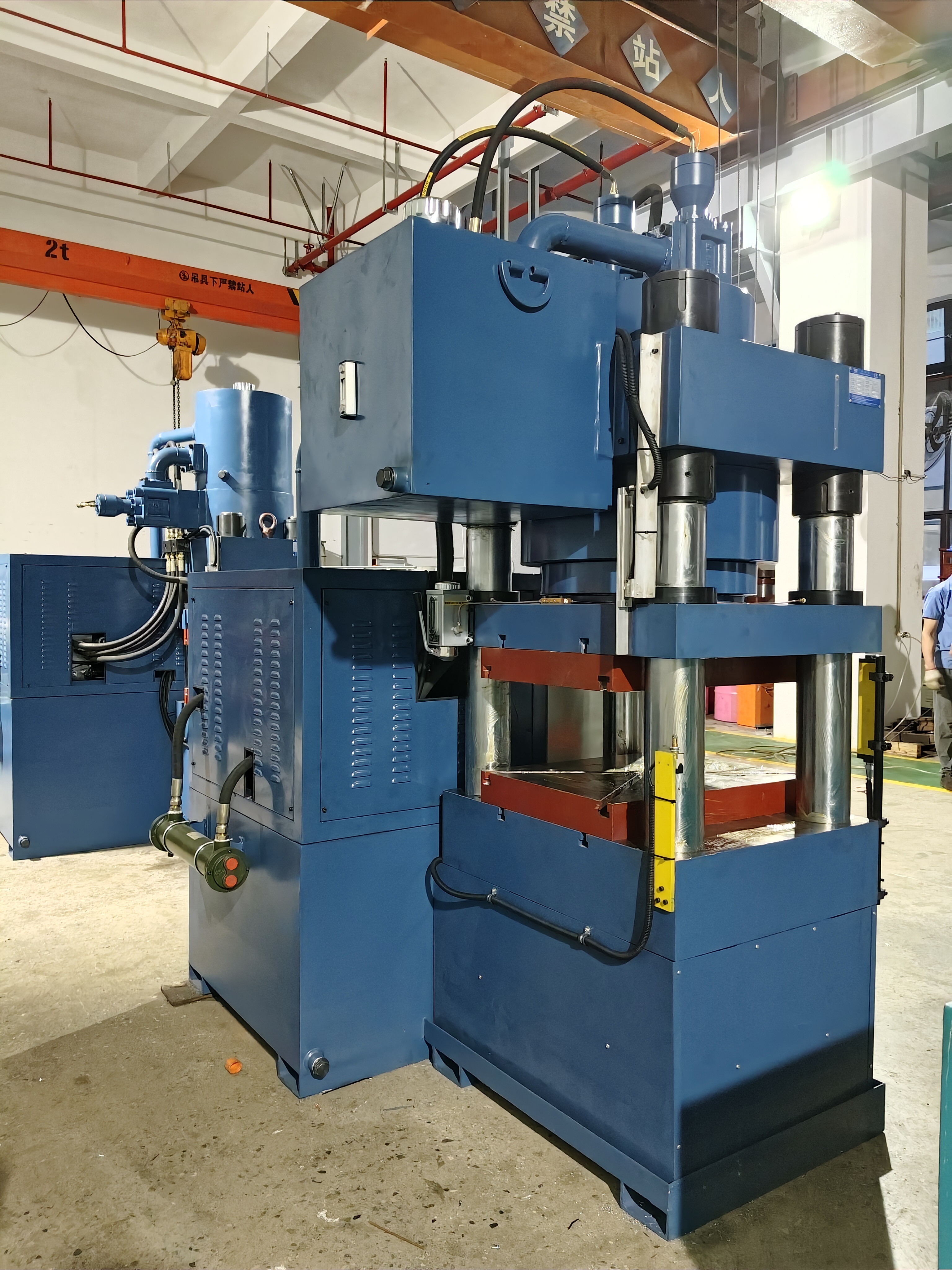

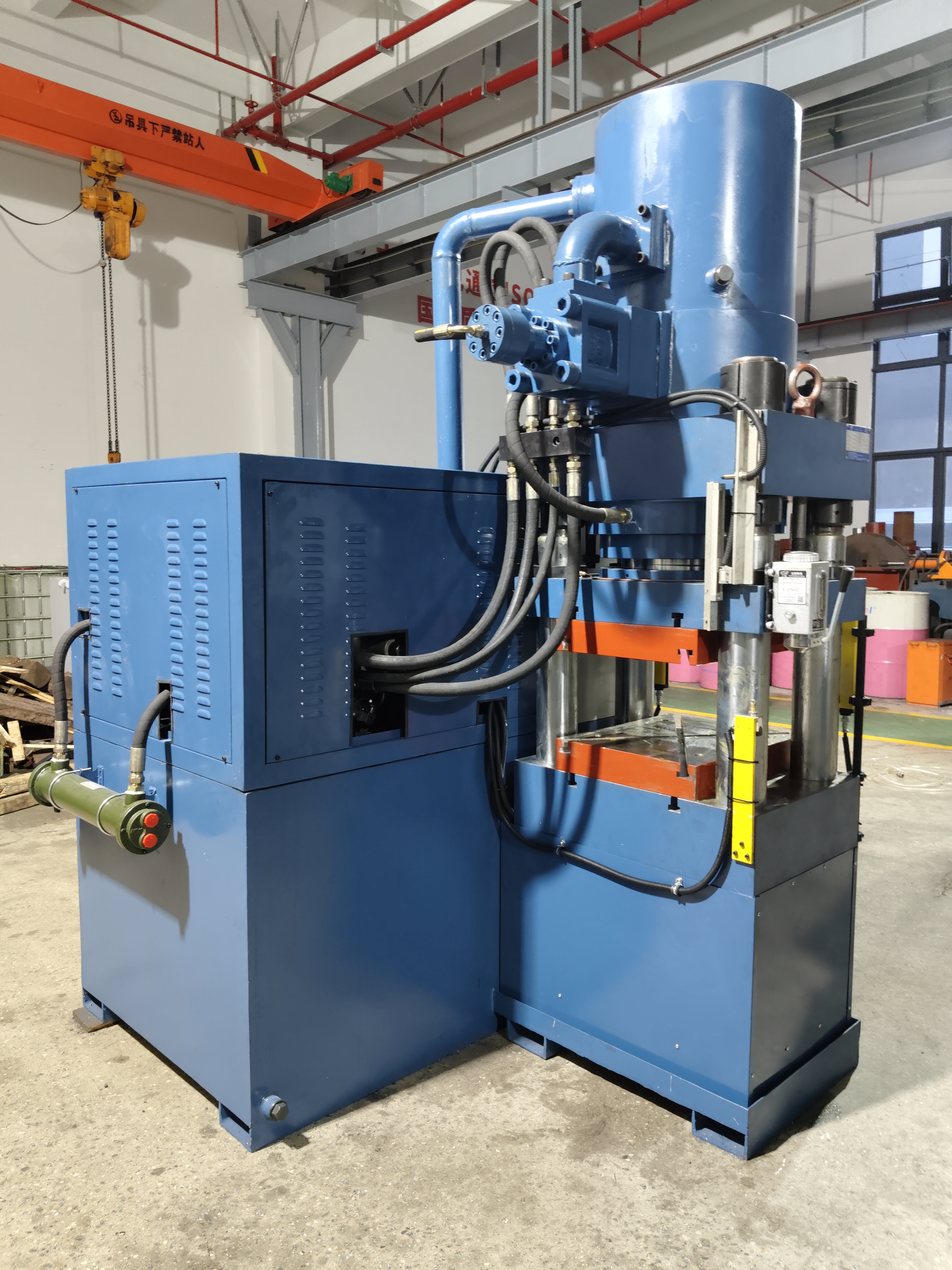

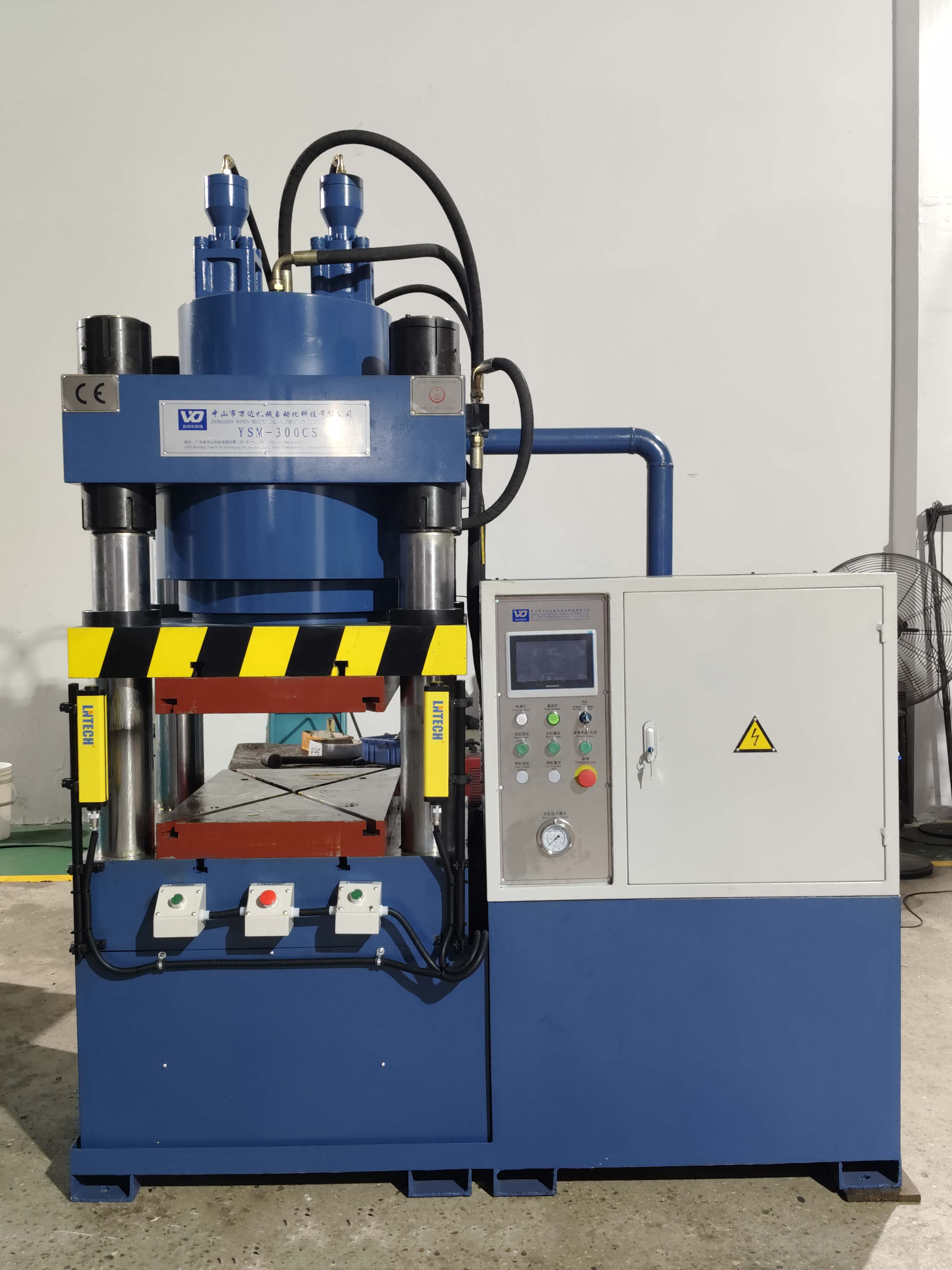

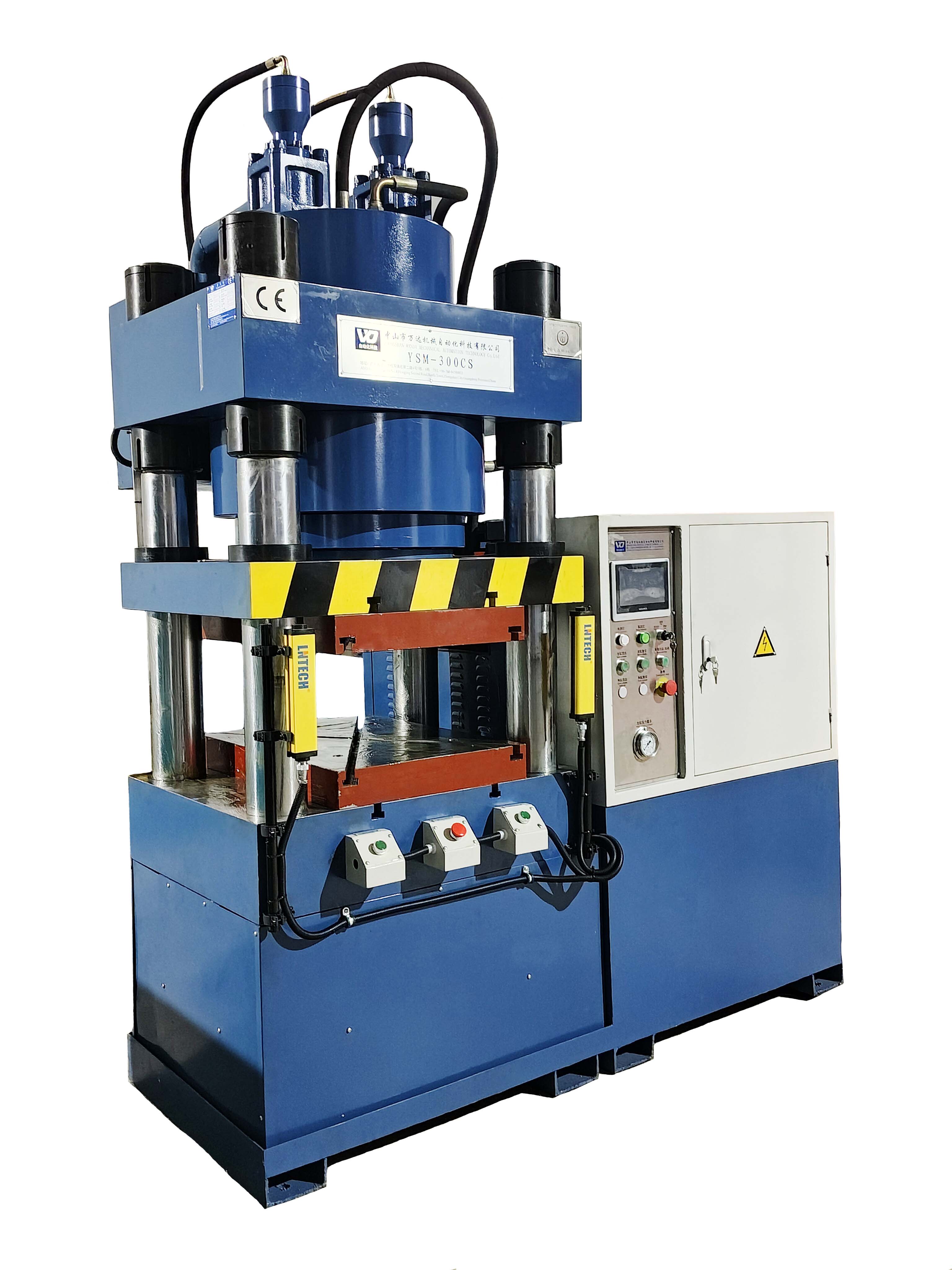

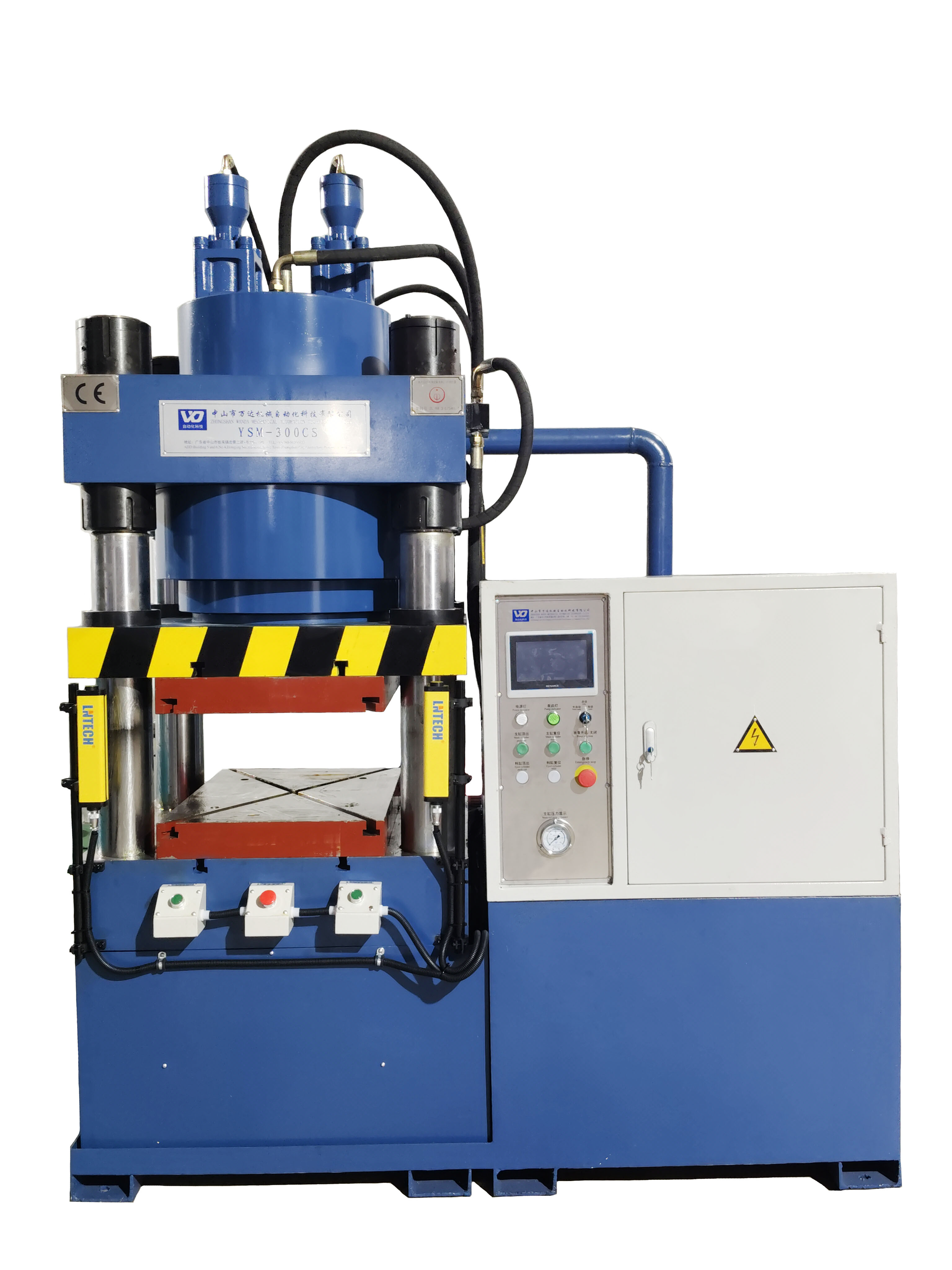

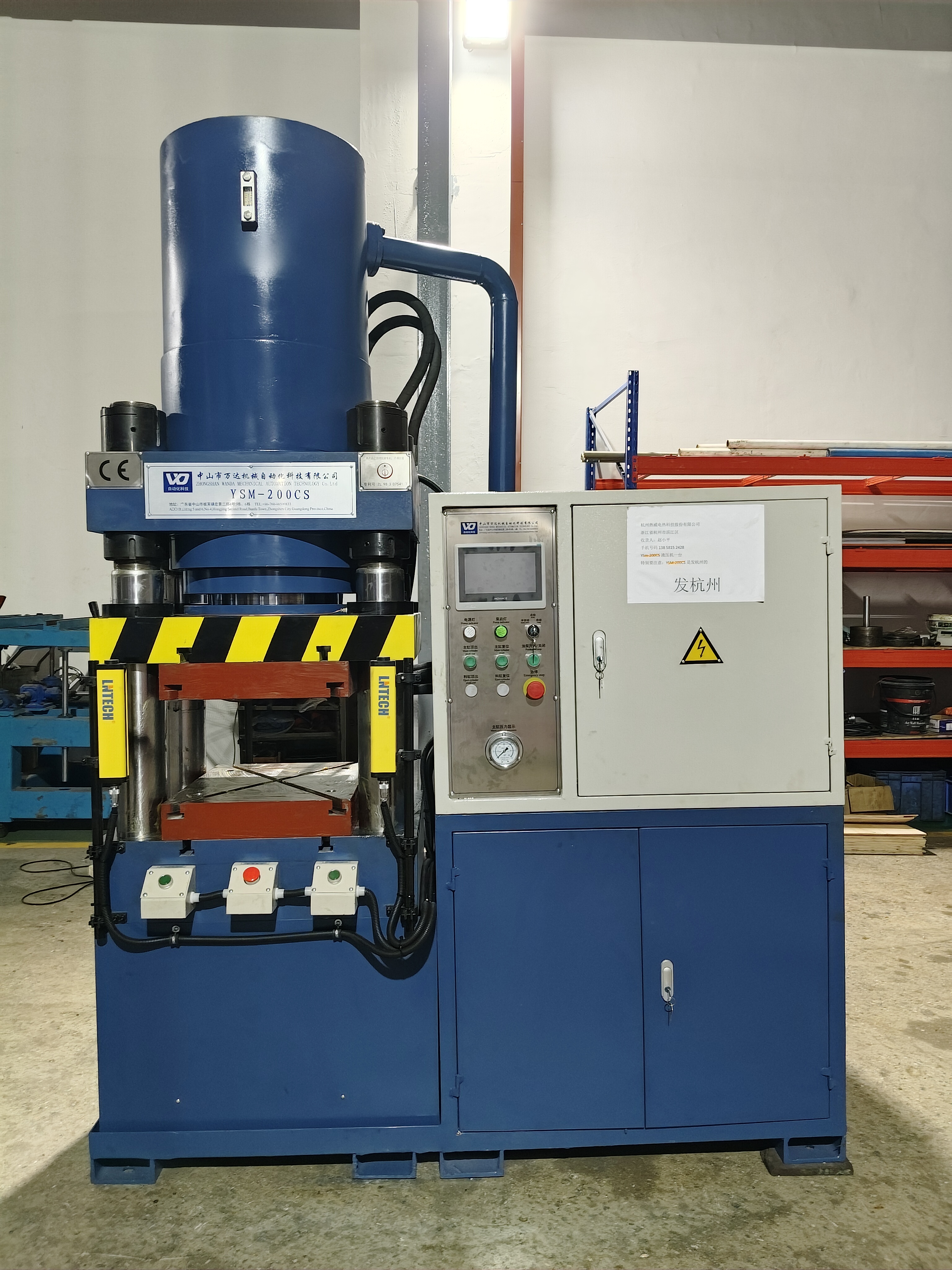

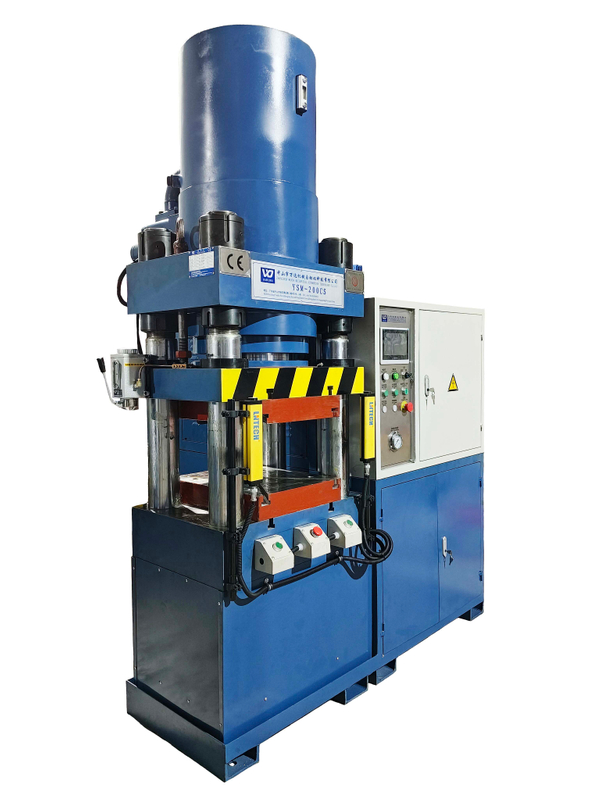

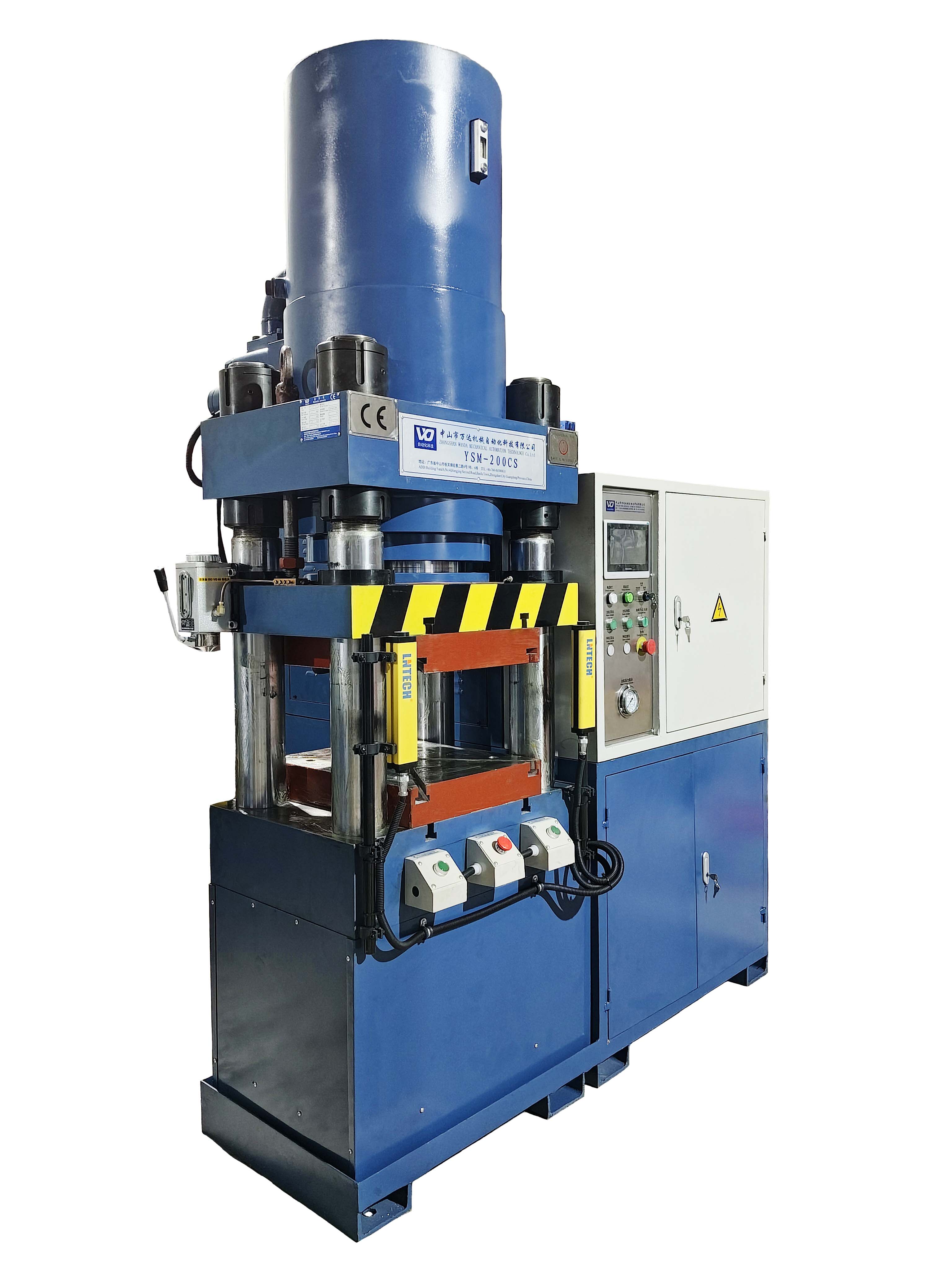

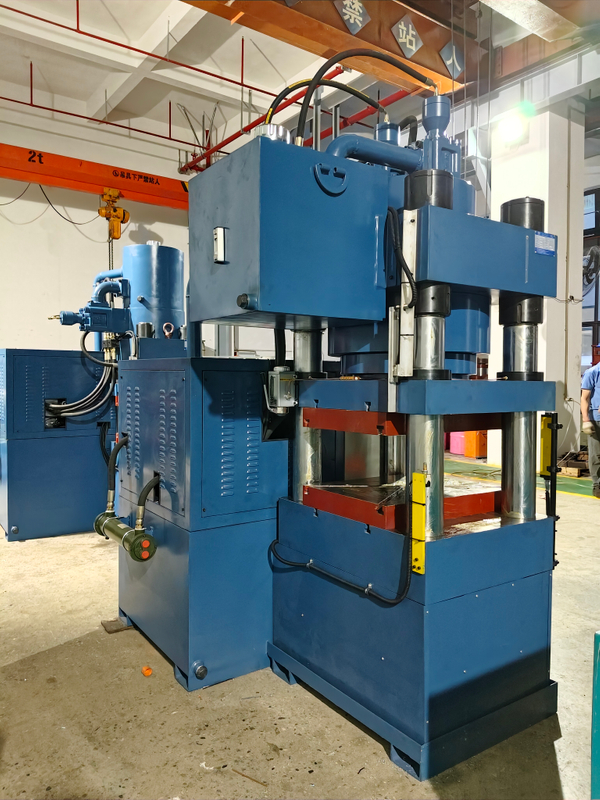

YSM-200CS-300CS
万达
Product Description
Purpose: This series of machines is mainly used for press-fitting and riveting processes of various types of electric heating tubes.
Main technical parameters:
Serial number | project | unit | YSM-200CS | YAM-300CS | |
1 | Master cylinder force | KN | 2000 (servo controller control) | 3000 (pressure sensor control) | |
2 | Maximum working pressure of liquid | MPa | 23.5 | 25.2 | |
3 | Maximum stroke of master cylinder | mm | 150 (position sensor control) | 150 (displacement sensor control) | |
4 | Workbench pad size | about | mm | 410 | 500 |
Before and after | mm | 500 | 680 | ||
5 | Maximum opening height of the work area | mm | 400 | 400 | |
6 | Master cylinder speed | fast forward | Mm/s | 150 (servo controller control) | 150 (servo controller control) |
Working in | Mm/s | 8(servo controller control) | 6(servo controller control) | ||
Return | Mm/s | 150 (servo controller control) | 125 (servo controller control) | ||
7 | Servo motor power | KW | 13.4 | 13.4 | |
 |  |
