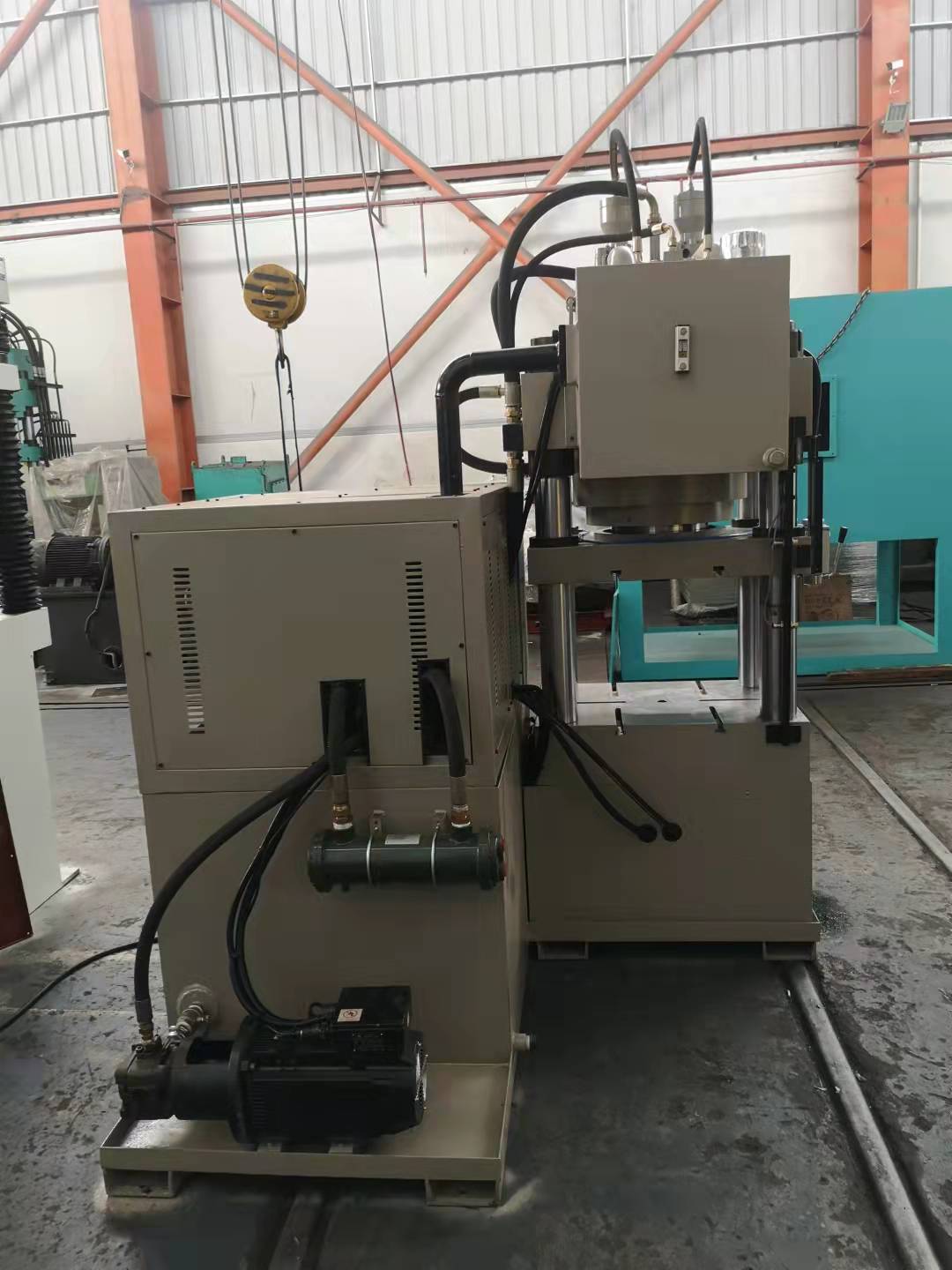

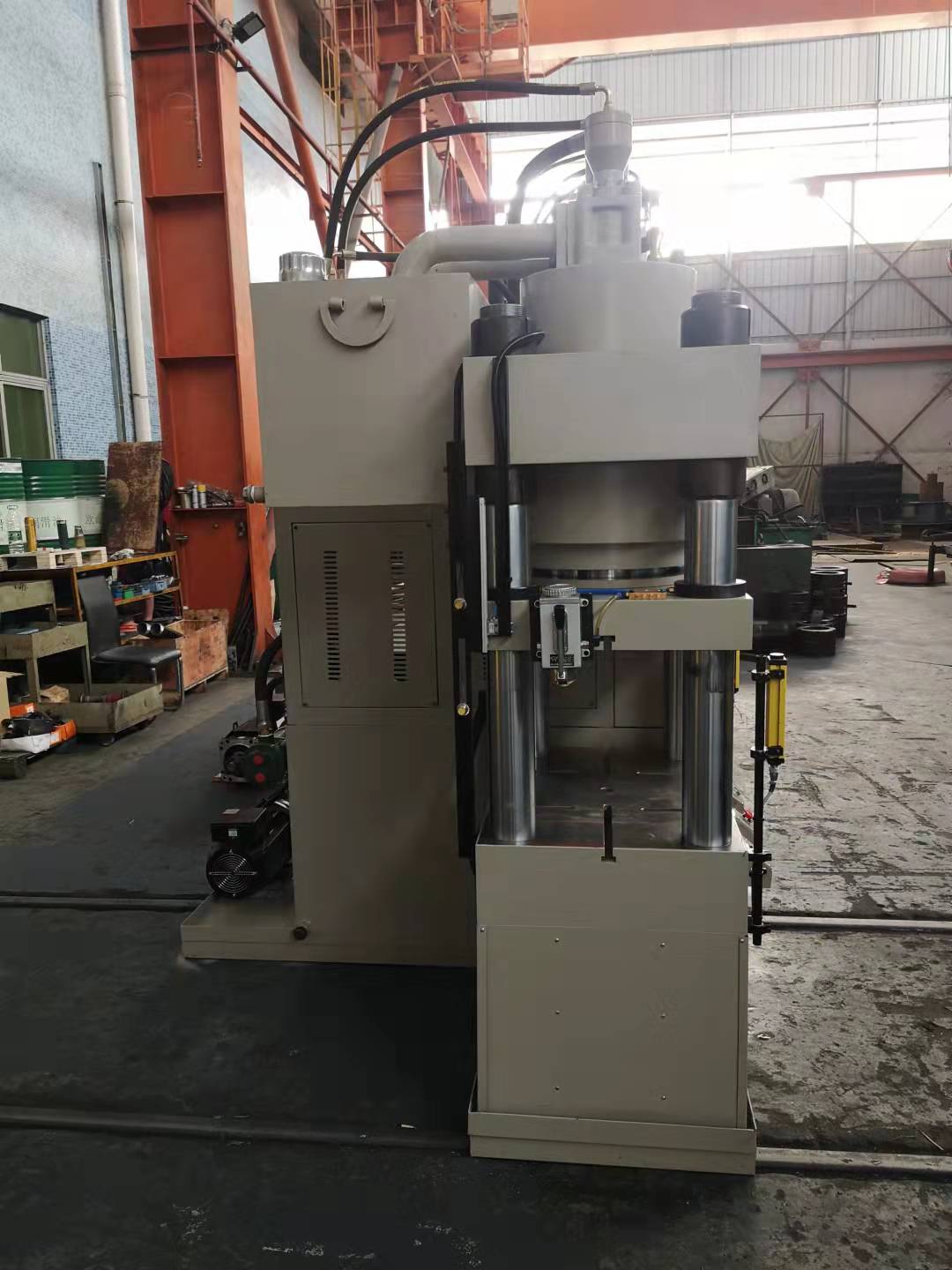

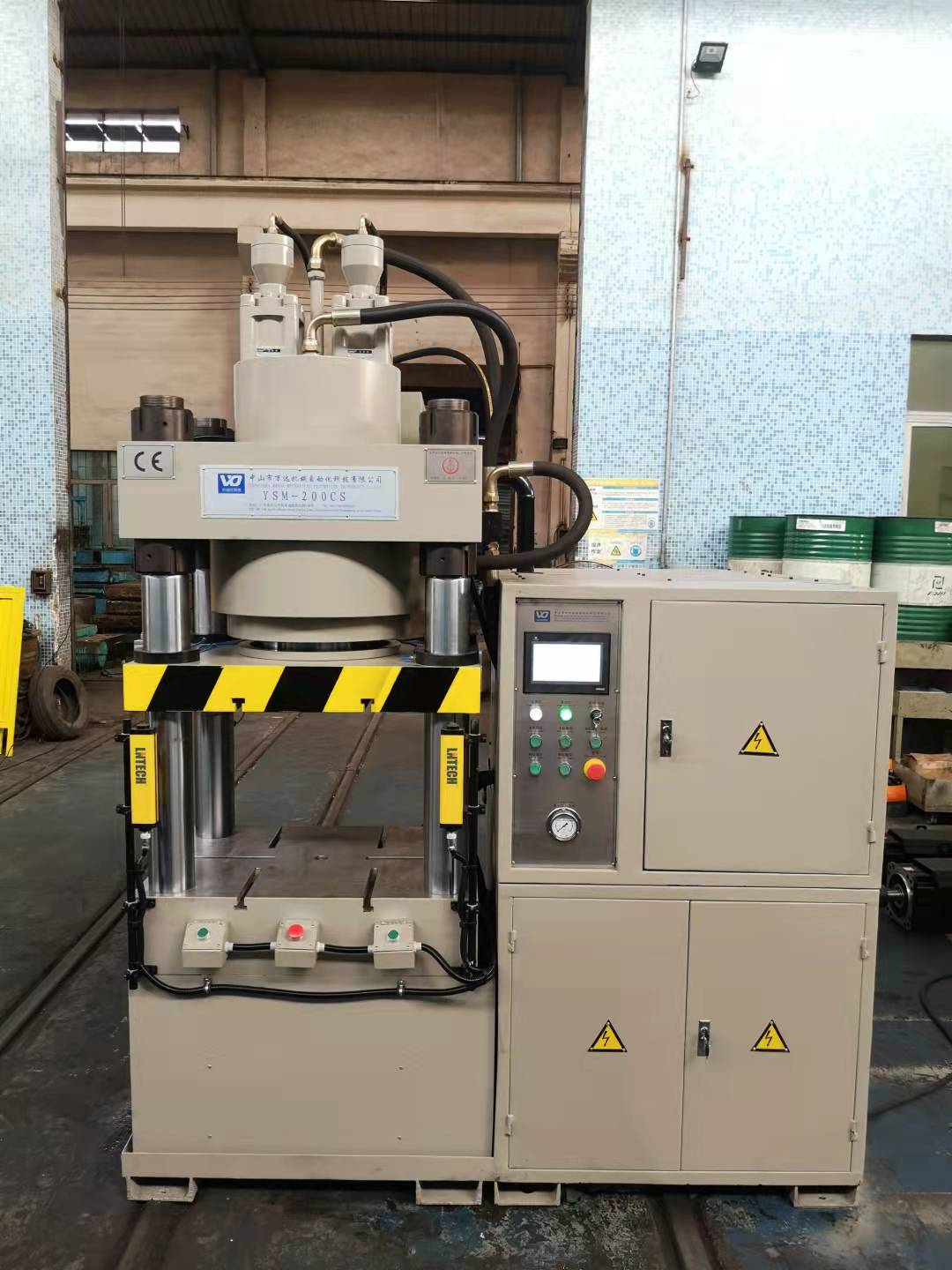

YSM-200CS precision servo CNC hydraulic press

YSM-CS series models are suitable for the rolling, embossing, forming of metal sheets and the shallow stretching process of plastic sheets, such as: watch cases, watch bottom covers, watch straps, various gold and silver jewelry, badges and commemorative coins. , also suitable for the molding of various tableware and lighting and the correction and pressing of parts.
This series of products is professionally designed. The main hydraulic components and electrical components are made of famous brands and imported products. They are precisely crafted, small in size, high in power, fast, high in precision, power saving, and easy to operate. They are ideal for the watch, jewelry, stainless steel tableware and hardware industries. ideal equipment.


Availability:
Quantity:
YSM-200CS precision servo CNC hydraulic press
YSM-200CS precision servo CNC hydraulic press
YSM-200CS precision servo CNC hydraulic press
  • YSM-200CS

  • Wanda

Product Description

 YSM-200CS precision servo CNC hydraulic press Technical parameters:

NO.

Item

Unit

YSM-200CS

1

Master cylinder force

KN

2000 (pressure sensor control)

2

Maximum working pressure of liquid

MPa

25

3

Maximum stroke of master cylinder

mm

150 (electronic ruler control)

4

Effective area of workbench


left-right

mm

560

front-back

mm

600

5

Maximum opening height of working area

mm

450

6

master cylinder speed

Fast forward

mm/S

150 (Servo controller control)

Work progresses

mm/S

8 (Servo controller control)

returning

mm/S

150 (Servo controller control)

7

Servo motor power

KW

11.9

8

Cylinder force

KN

100 (Pressure sensor control)

9

Cylinder stroke

mm

20 (time relay control)
