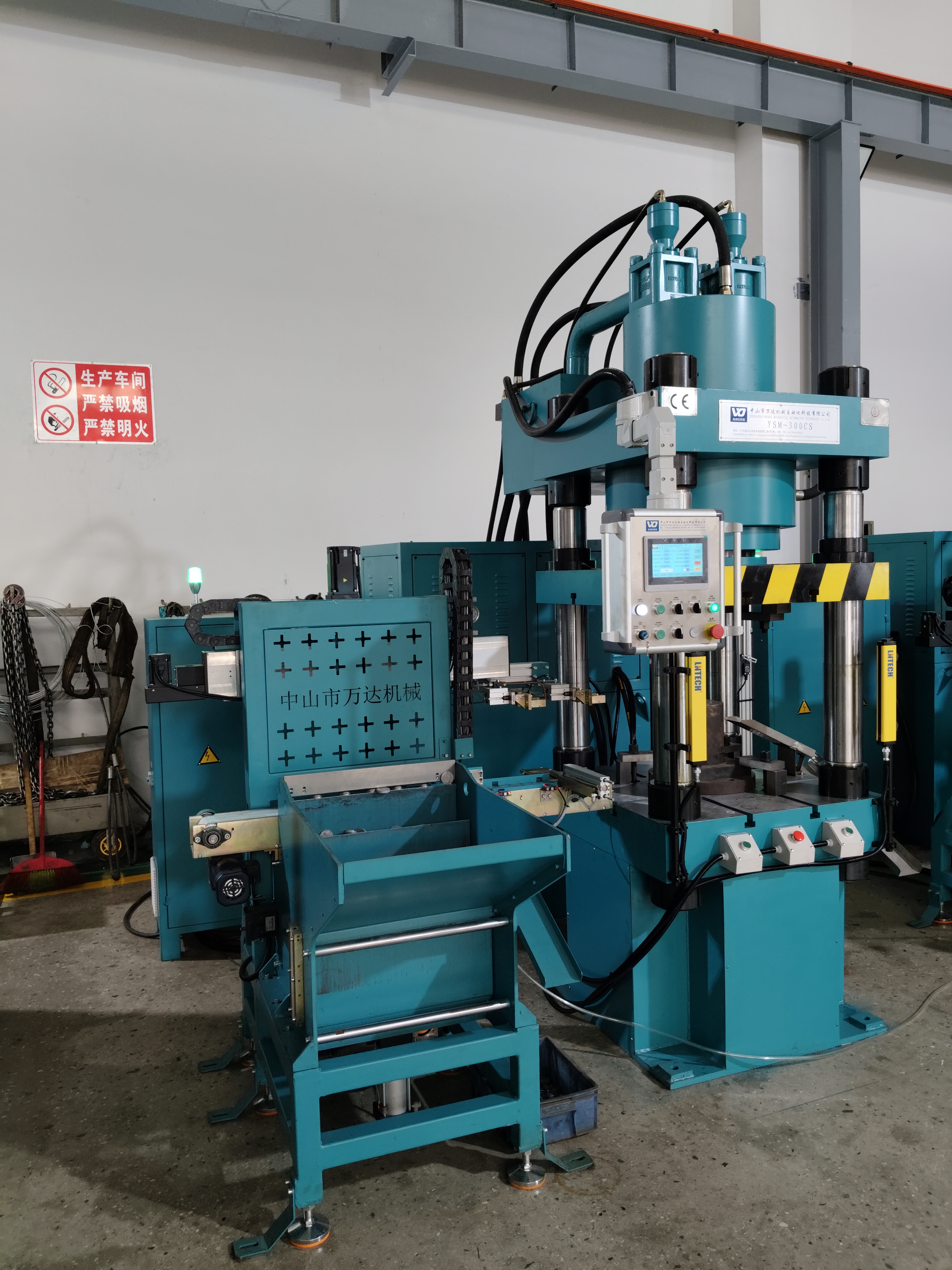

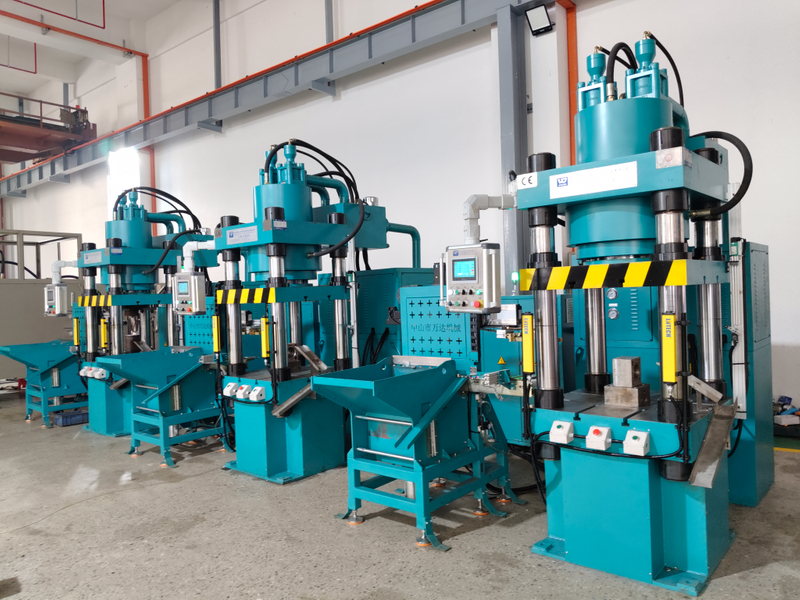

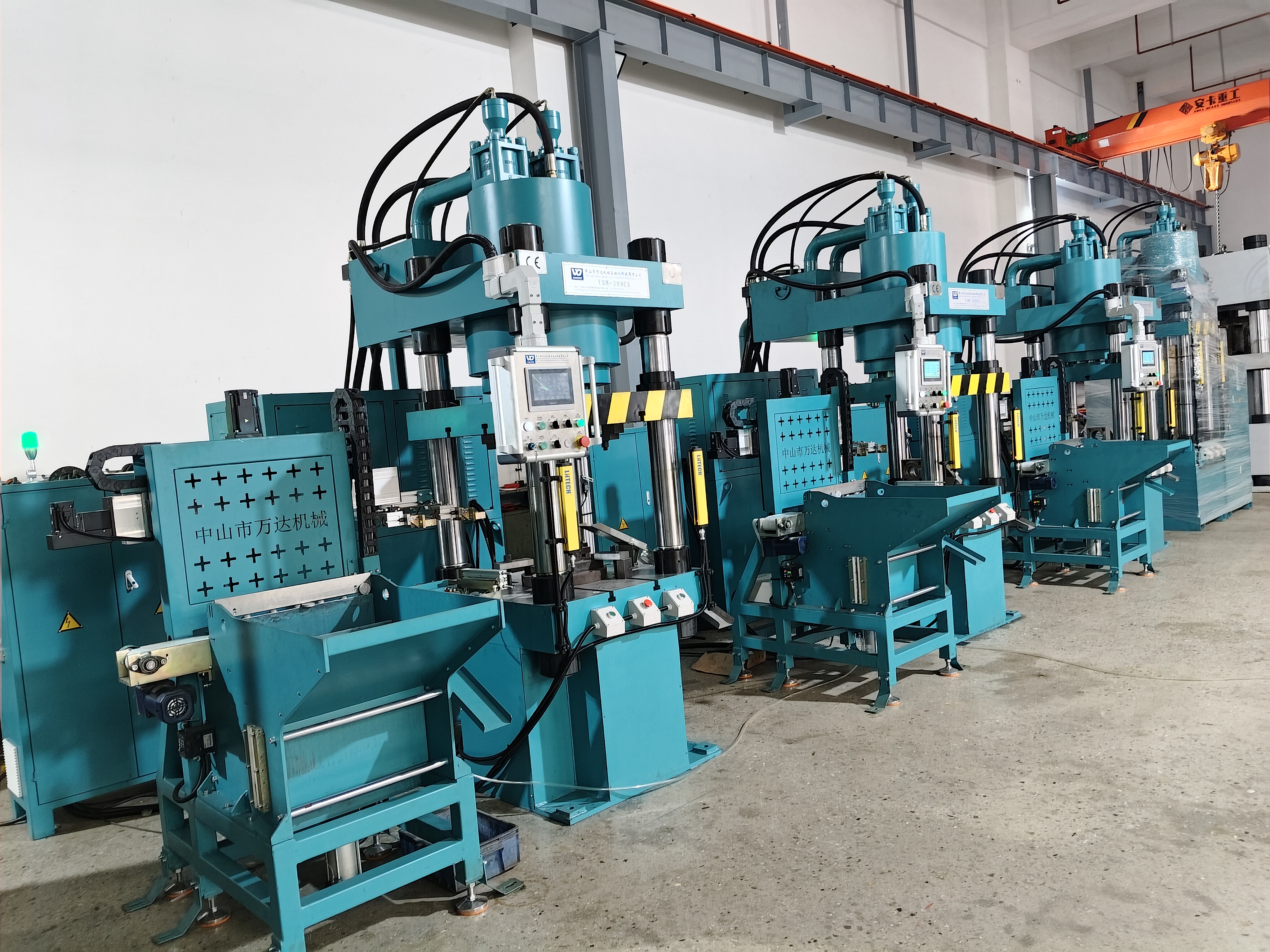

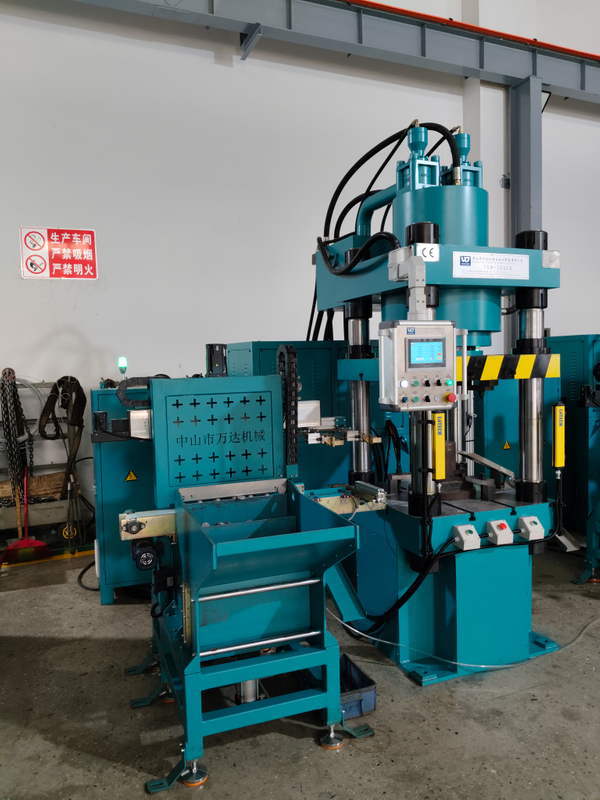

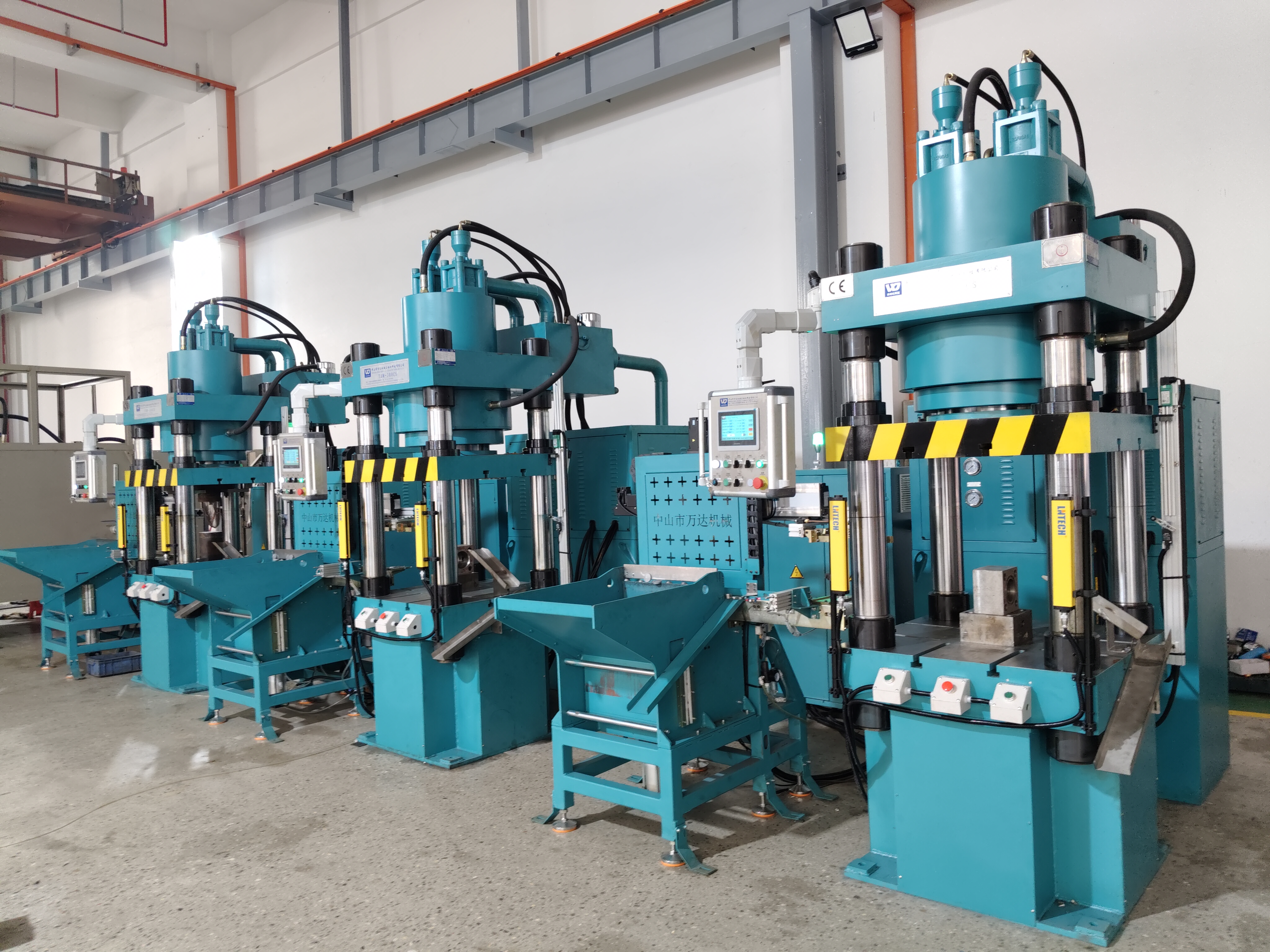

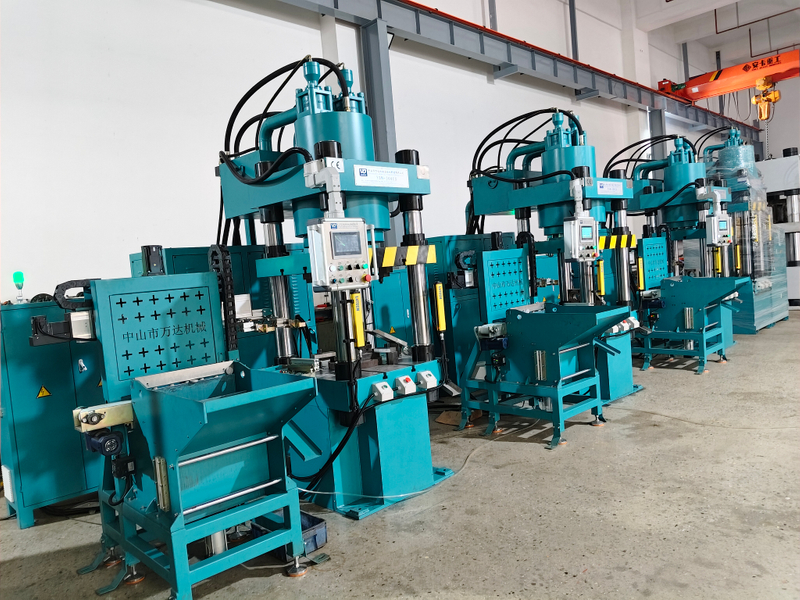

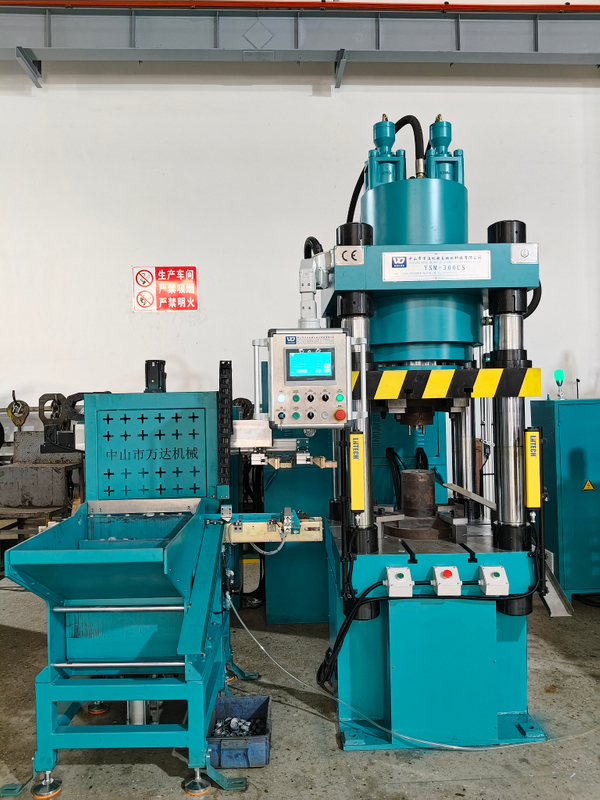

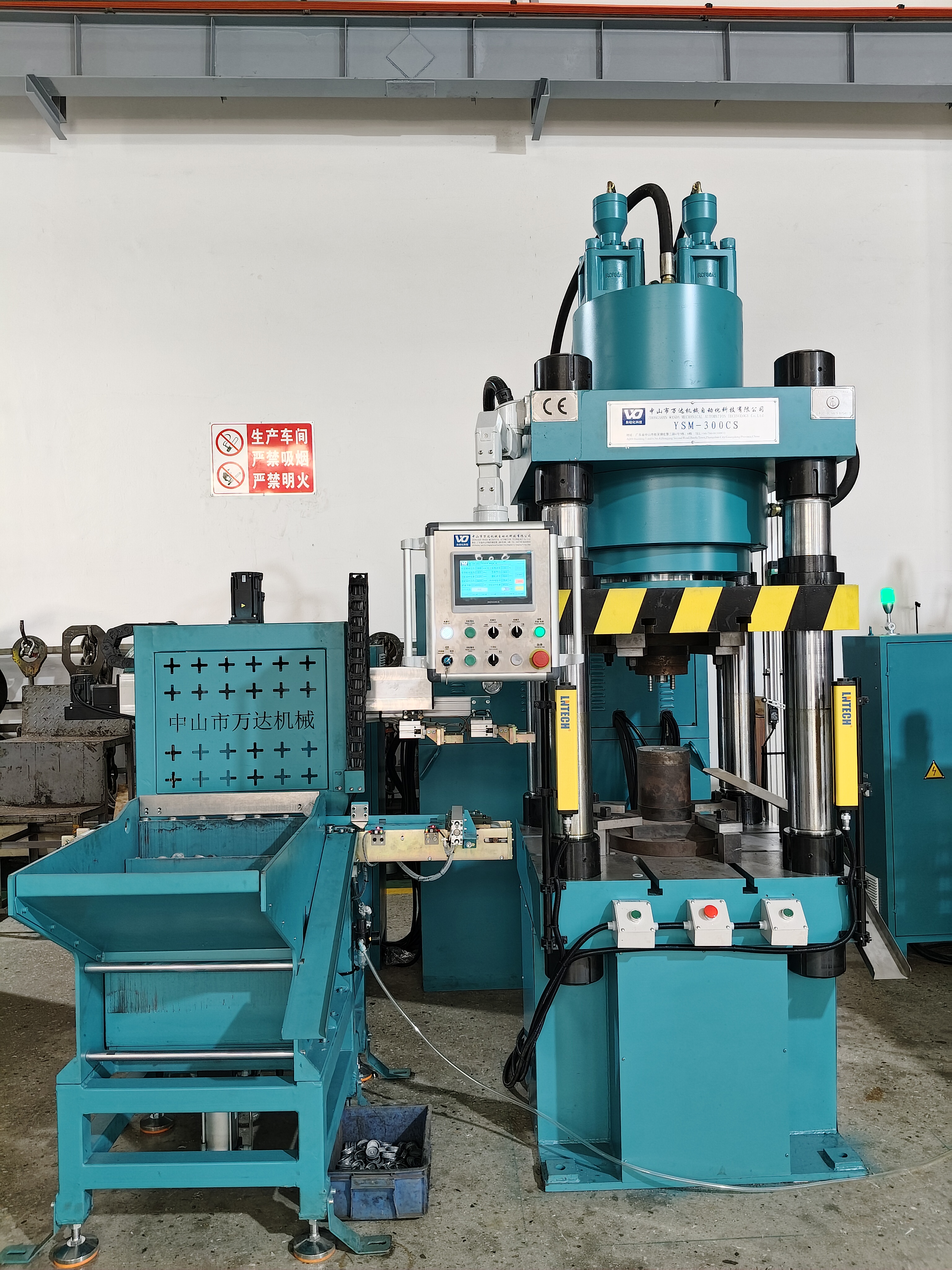

YSM-3000CS aluminum cold forging fully automated production line

Serial number

project

unit

parameter

1

Nominal force of the master cylinder

KN

3000(adjustable)

2

Maximum working pressure of liquid

MPa

25.2

3

Slider stroke

mm

250(adjustable)

4

Opening height

mm

650

5

Lower withdrawal cylinder force

KN

100(adjustable)

6

Stroke of the material withdrawal cylinder

mm

80(adjustable)

7

Slider speed

No load down

mm/s

250(adjustable)

Working in

mm/s

12(adjustable)

Return

mm/s

250(adjustable)

8

Lower withdrawal cylinder speed

Eject

mm/s

200(adjustable)

return

mm/s

200(adjustable)

9

Workbench size

Left and right (inside the nut)

mm

500

Front and rear (inside the nut)

mm

500

10

Servo motor power

KW

26.7
