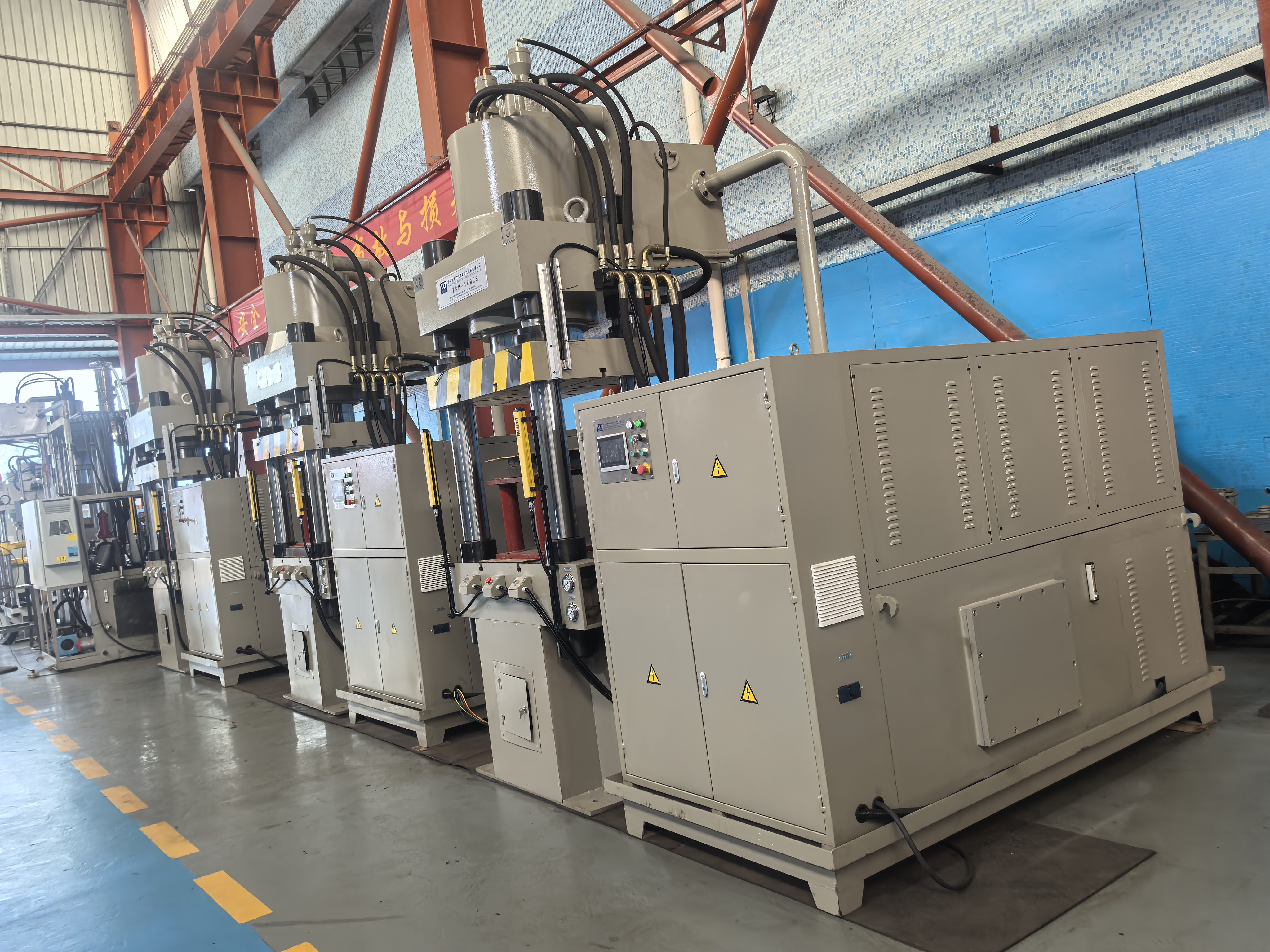

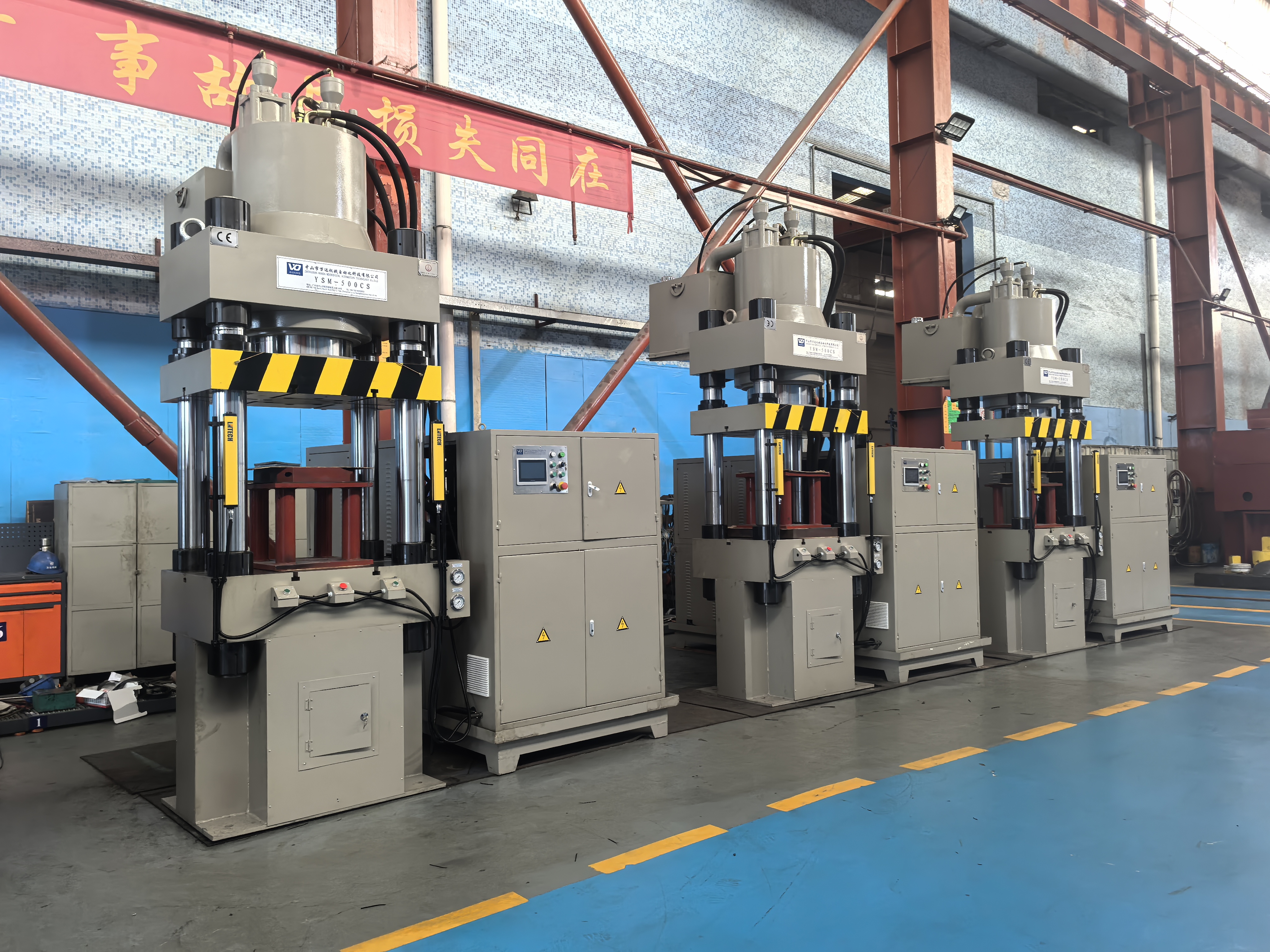

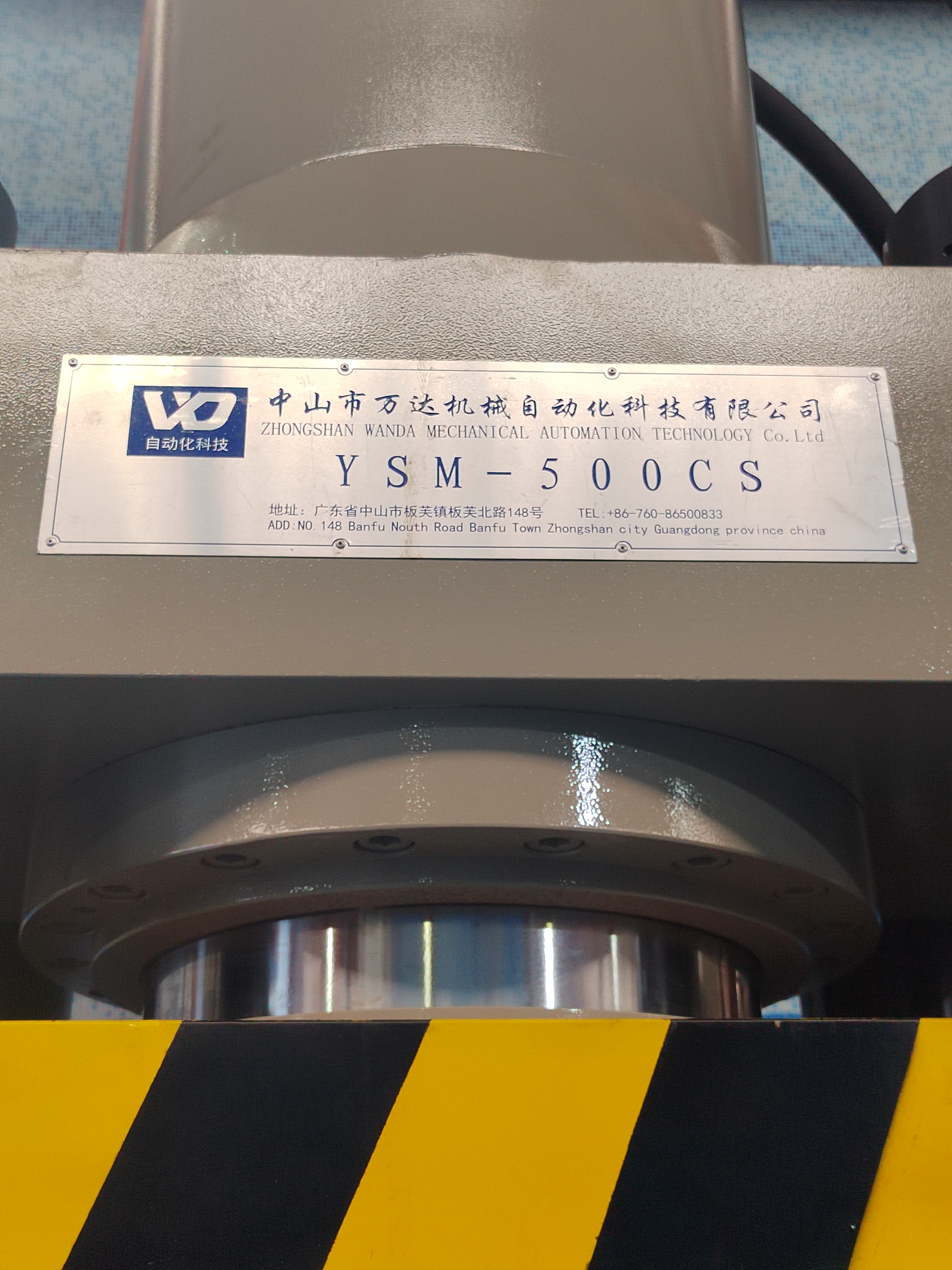

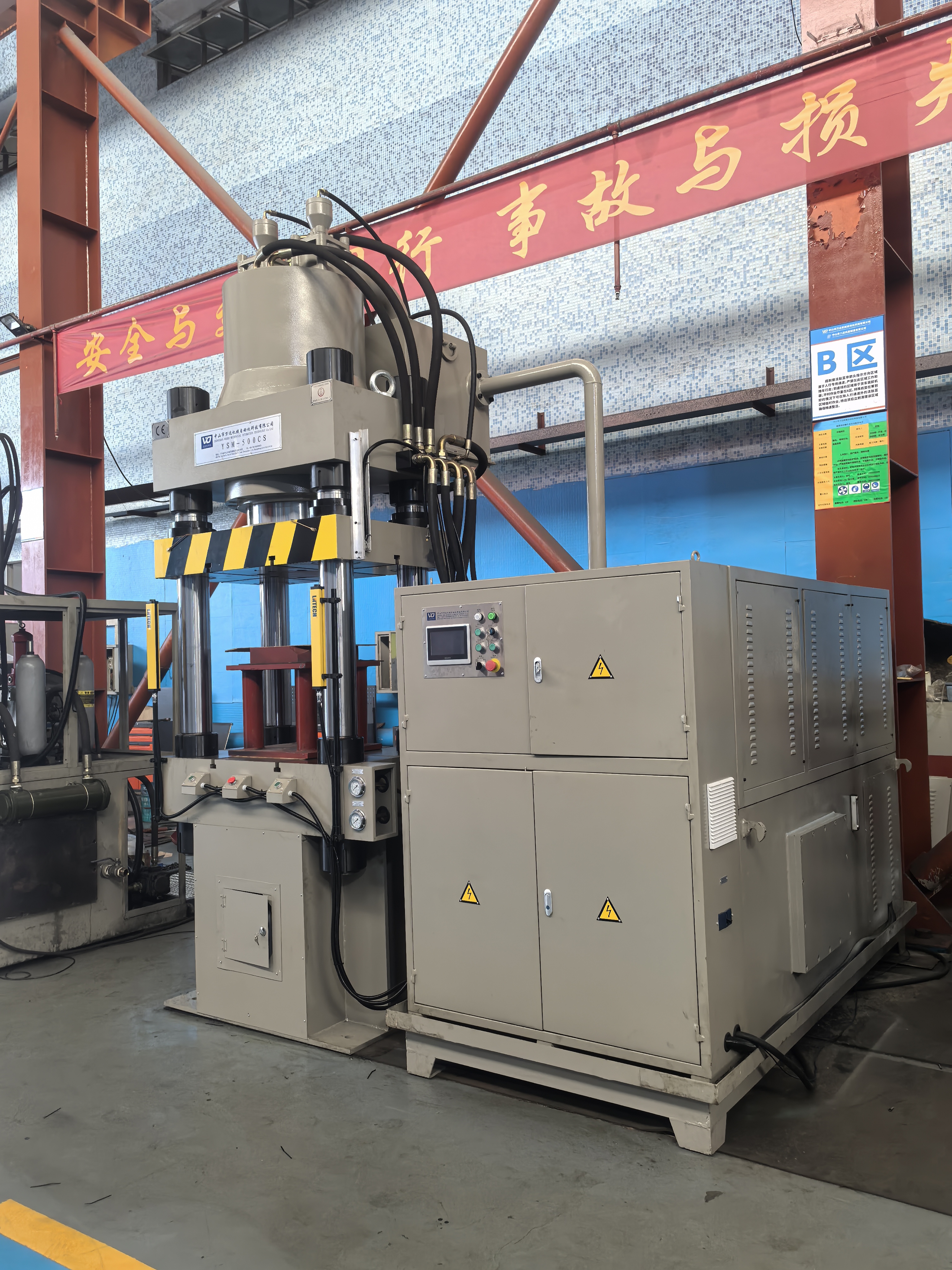

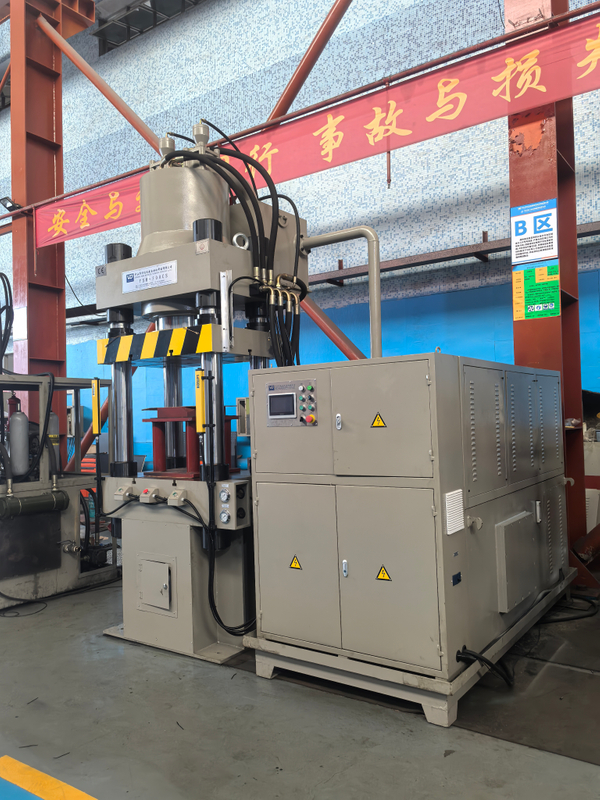

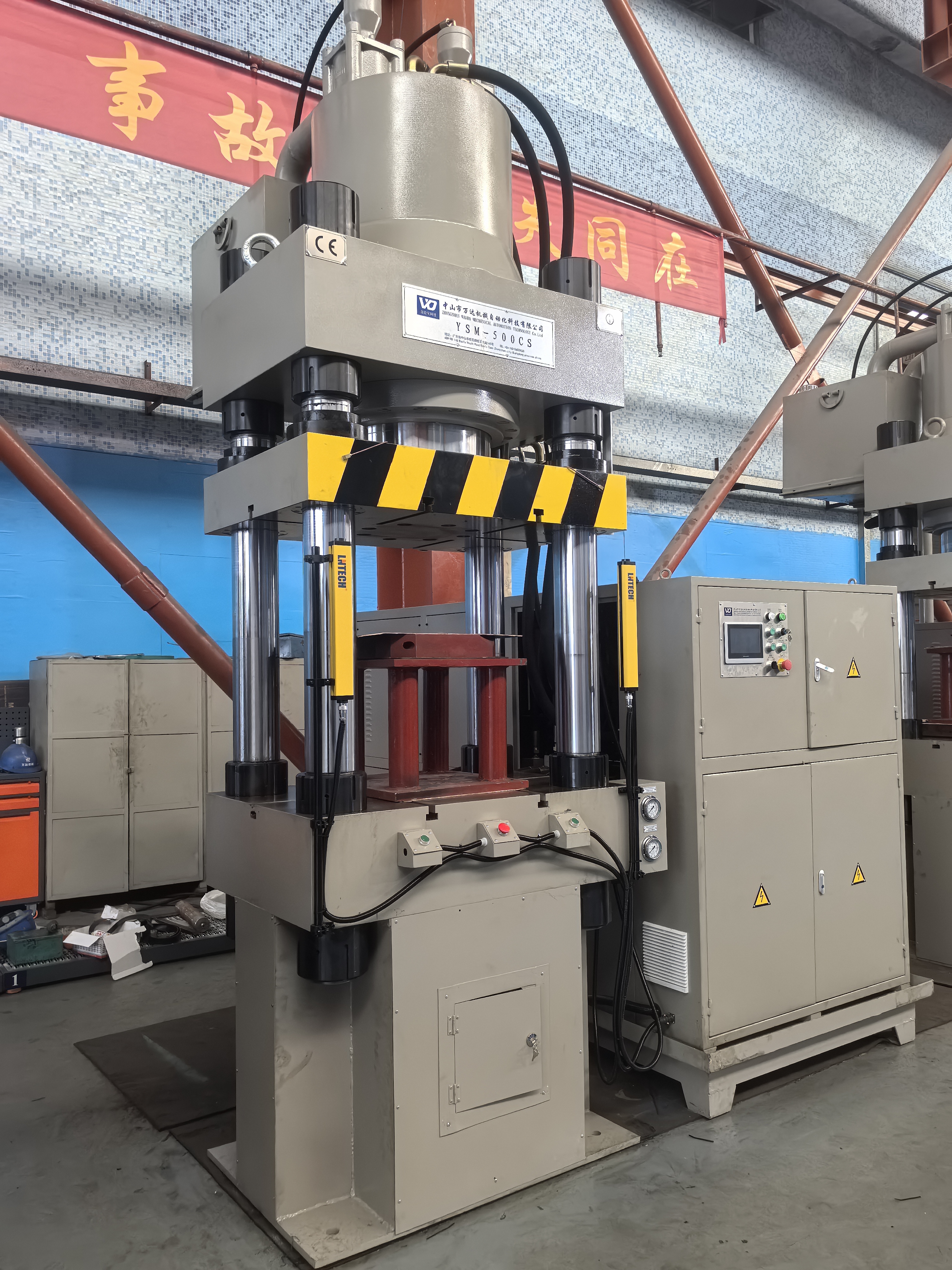

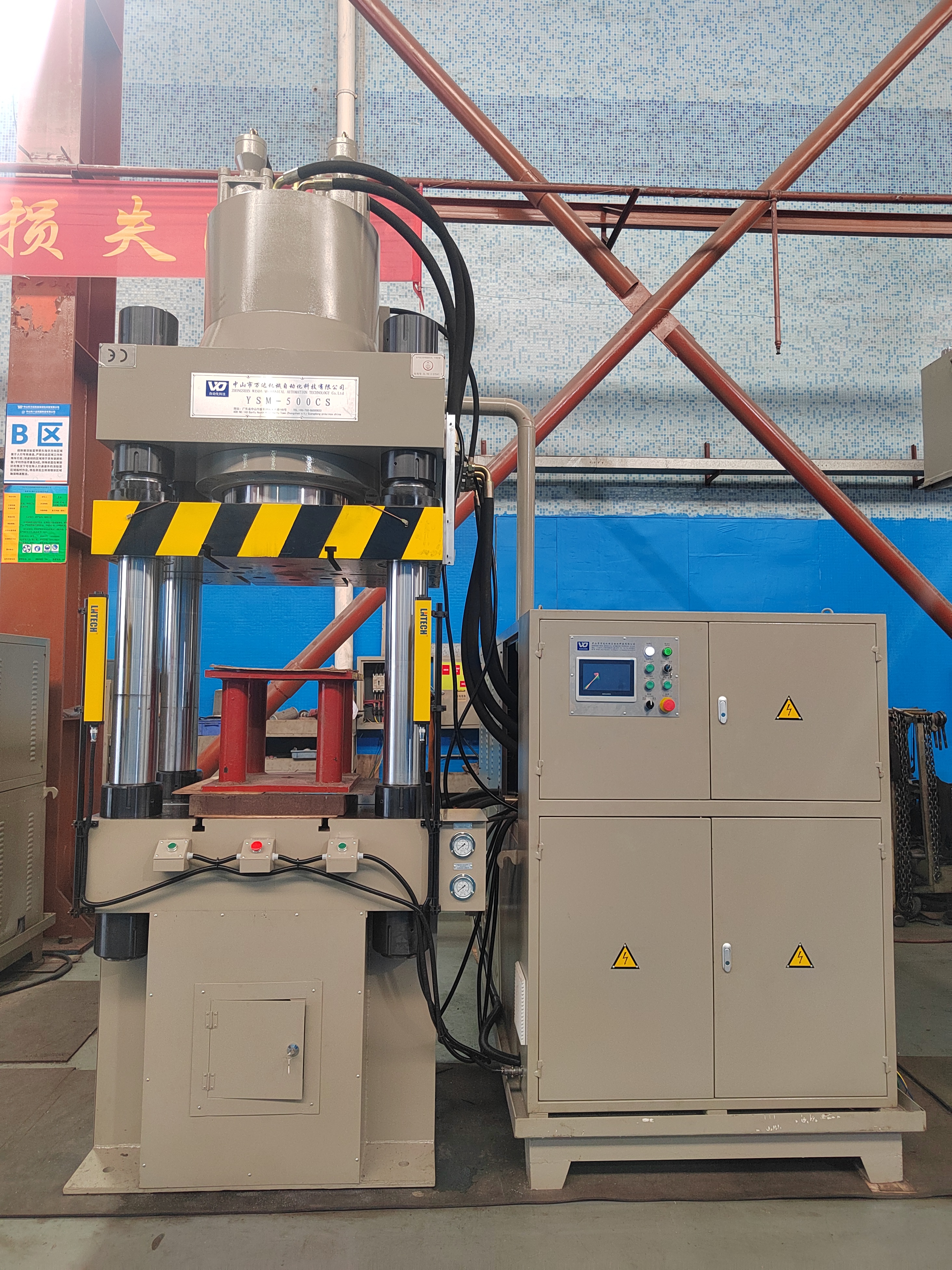

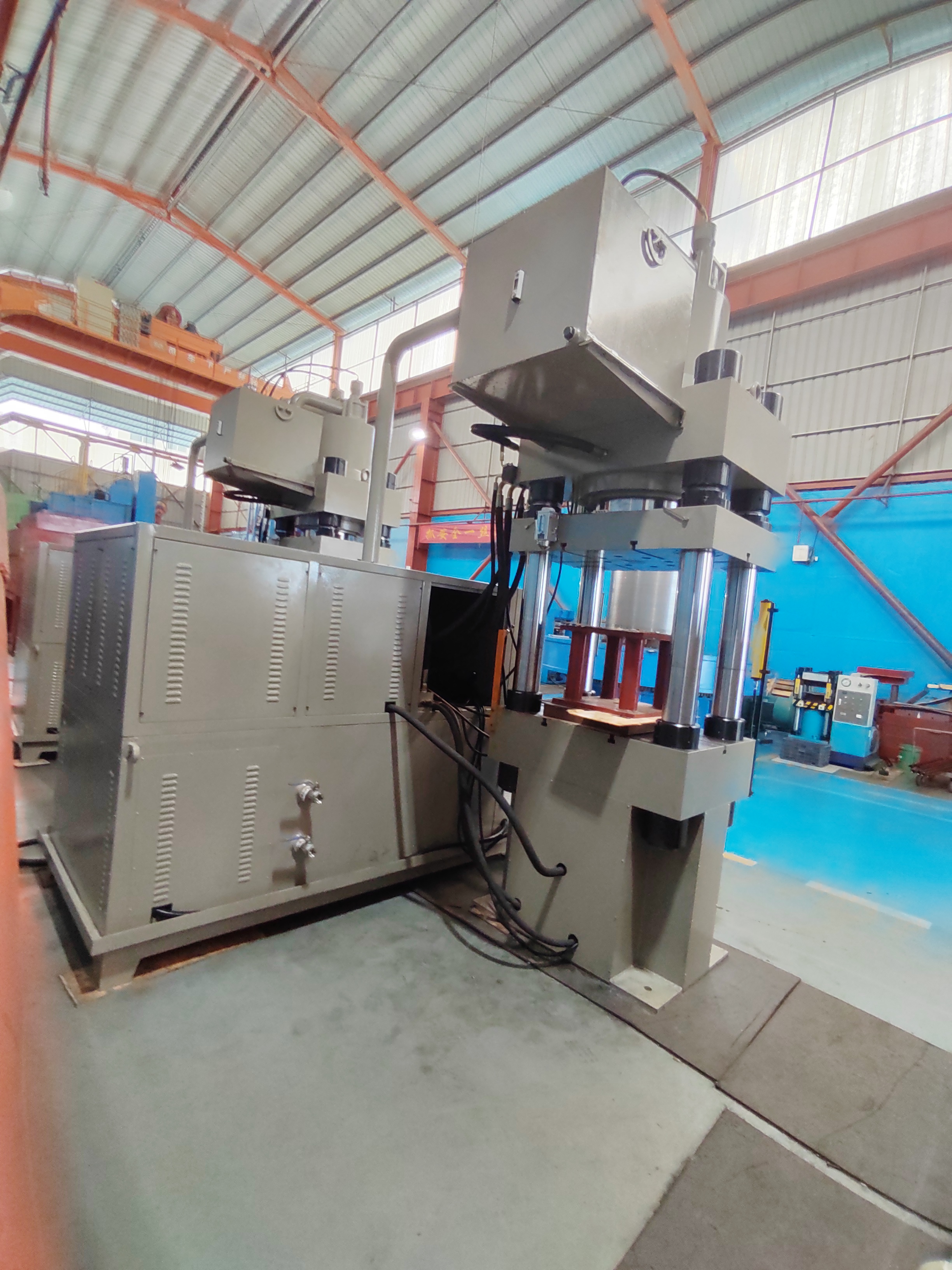

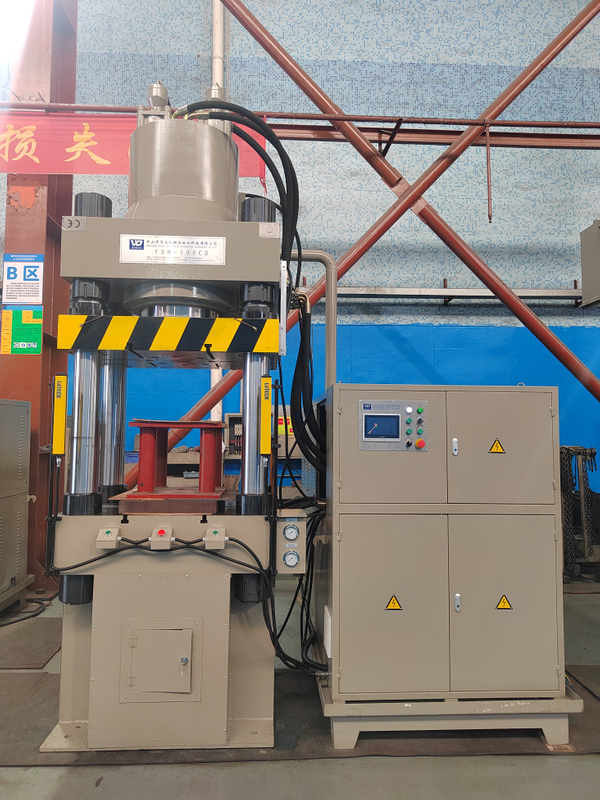

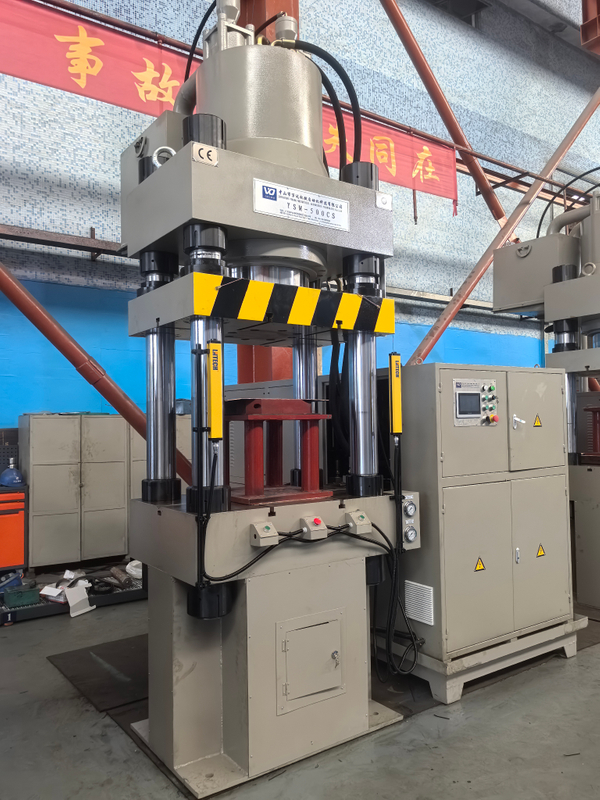

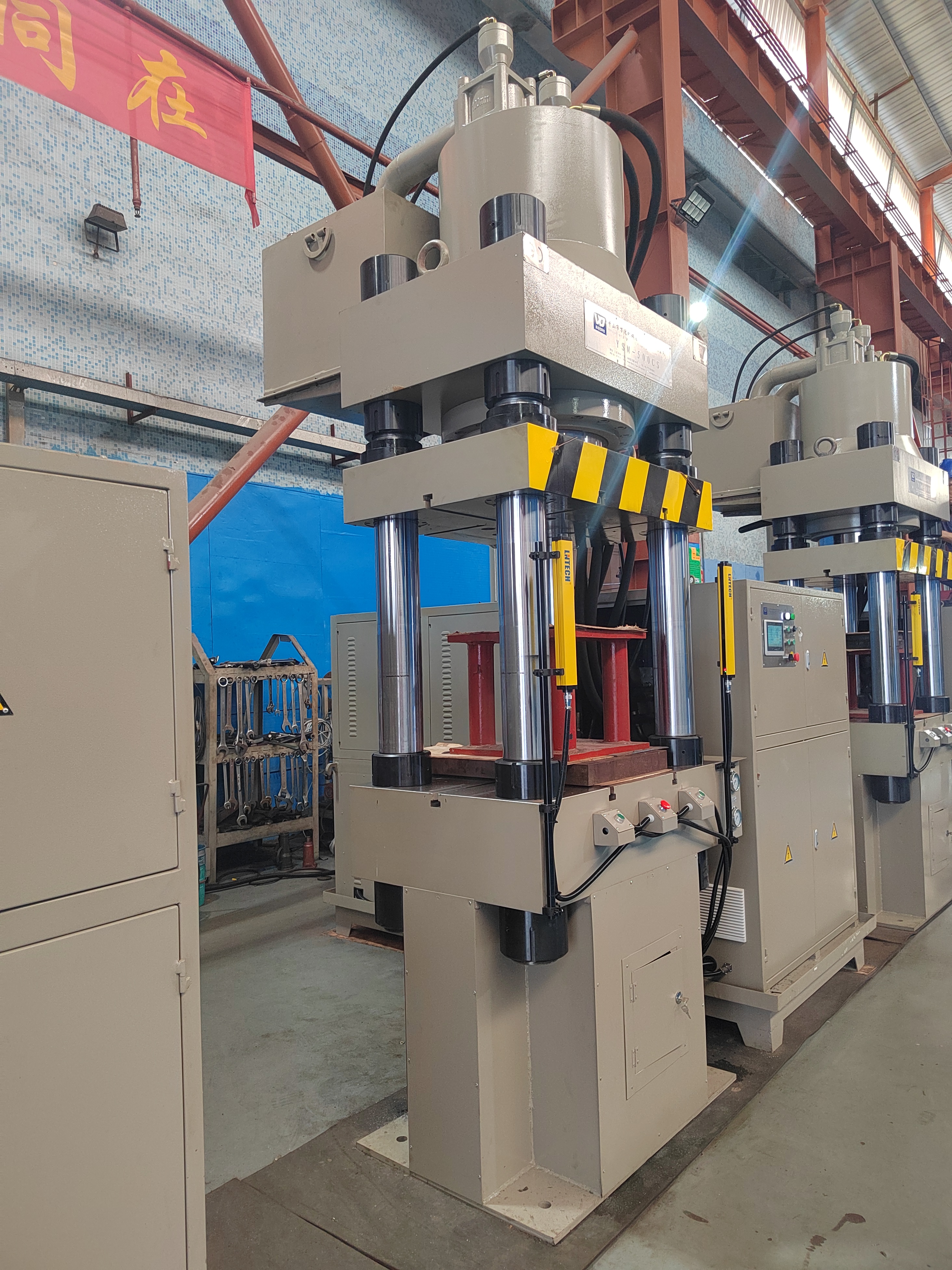

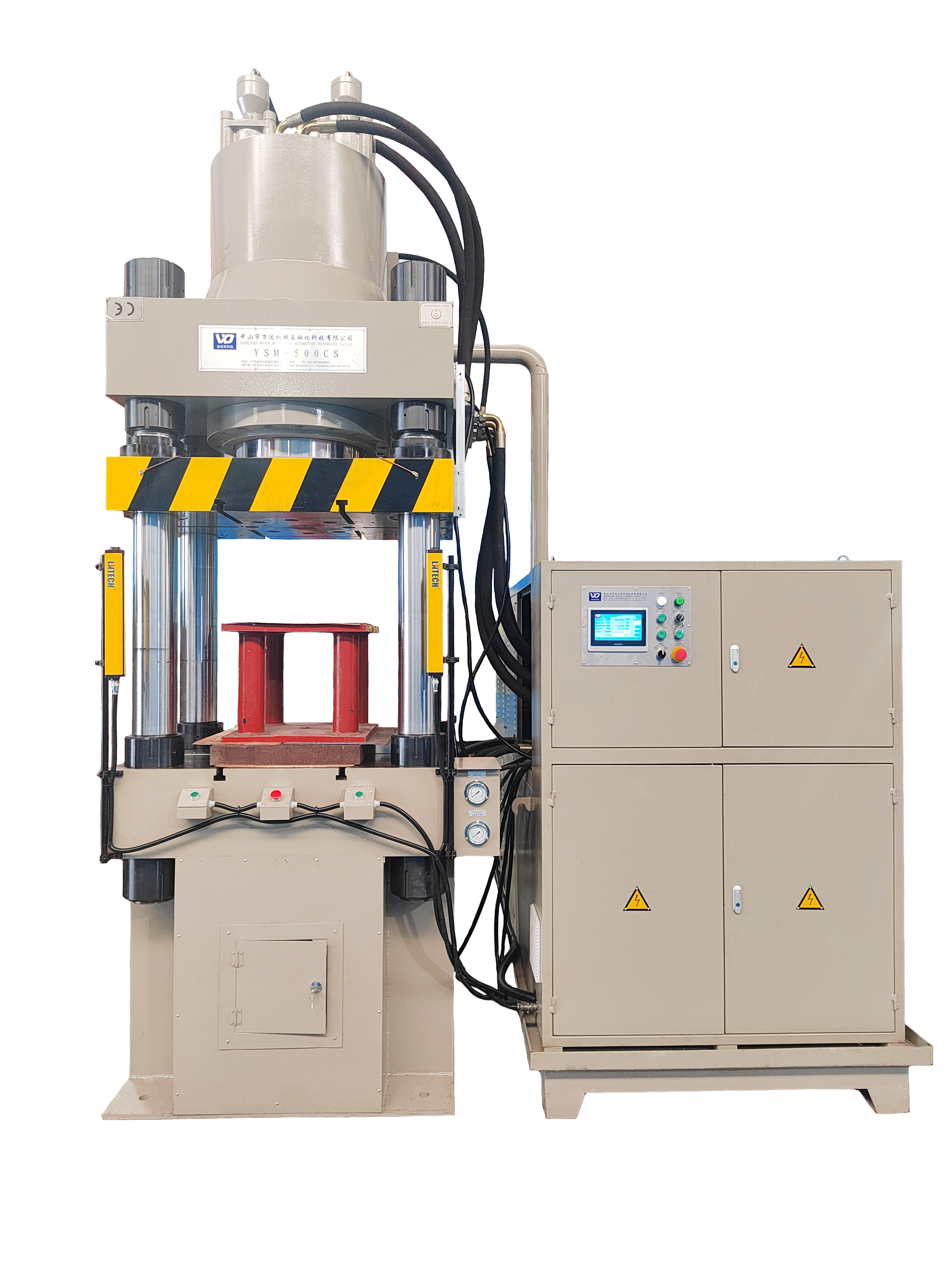

YSM-500CS
万达
Product Description
Typical process actions: start the motor - master cylinder downwards quickly - master cylinder slow pressing - master cylinder holding pressure (holding time can be adjusted in 1-60 seconds) - lower feeding cylinder ejection - unloading cylinder return (electronic ruler control), completing a working cycle.

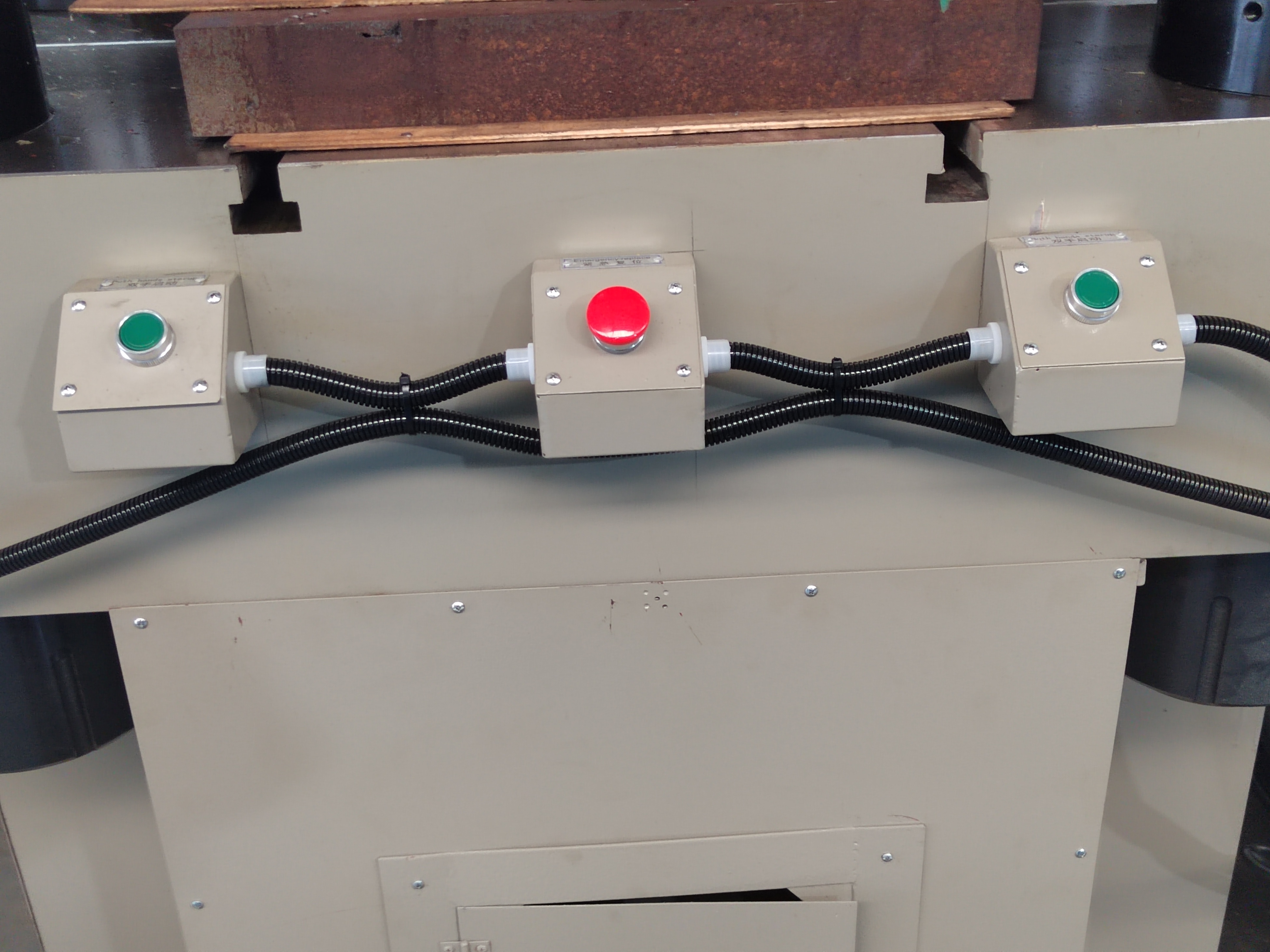

Manually control it individually.
Typical process actions: Start the motor - fast descent of the main cylinder - slow pressing of the main cylinder - pressure holding of the main cylinder (pressure holding time adjustable from 1-60 seconds) - ejection of the lower top material cylinder - retraction of the lower material cylinder (controlled by an electronic ruler), completing a work cycle.
Manual can be controlled separately.
2. Machine parameters and process actions
Serial number NO. | Project Item | Unit | YSM-500CS parameters Spec. | |
1 | Nominal power Nominal force | Master cylinder | KN | 5000 (Adjustable) |
Bottom cylinder | KN | 500 (Adjustable) | ||
2 | journey Max. Stroke | Master cylinder | mm | 400 (Adjustable) |
Bottom cylinder | mm | 200 (Adjustable) | ||
3 | Maximum opening height | mm | 850 | |
4 | Master cylinder speed | Fast upward movement | mm/s | 220 (Adjustable) |
Slow pressing | mm/s | 16 (Adjustable) | ||
Return | mm/s | 200 (Adjustable) | ||
5 | Workbench effective size Effective size of workbench | Left and right (inside the column) LR(inside the column) | mm | 750 |
Front and back (edge) FB(edge) | mm | 750 | ||
6 | Liquid working pressure Maximum working pressure of liquid | MPa | 25 | |
7 | Oil pump servo motor power Power of oil pump servo motor | KW | 49 | |
8 | The height of the flat surface of the workbench from the ground | mm | 1130 | |
9 | Slider no-load repeat displacement accuracy Sliding block no-load repeated displacement accuracy | ±0.02mm | ||
10 | Parallelism between the workbench and the slider Parallelism between workbench and slider | Less than 0.20mm Less than 0.20mm | ||
