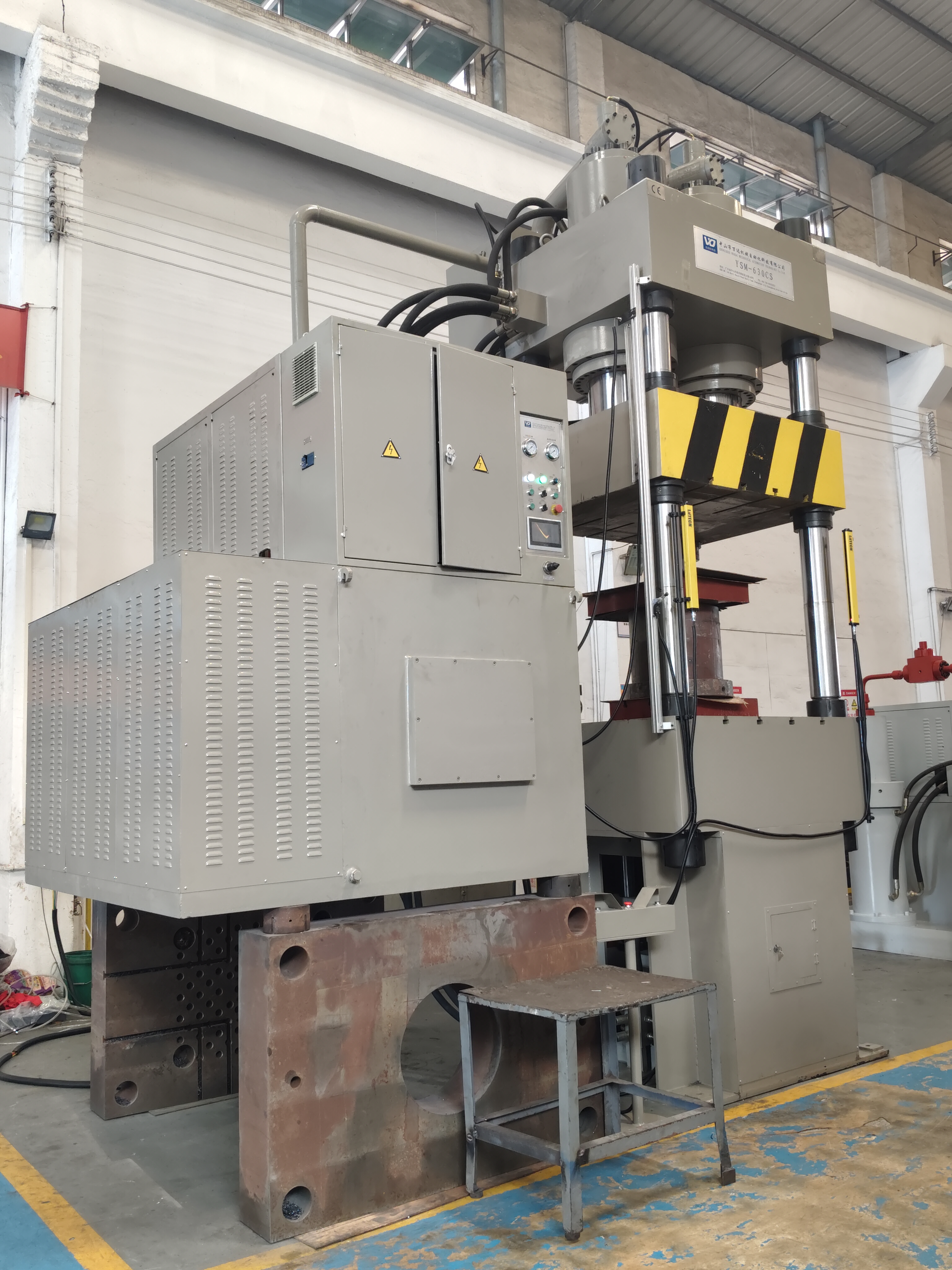

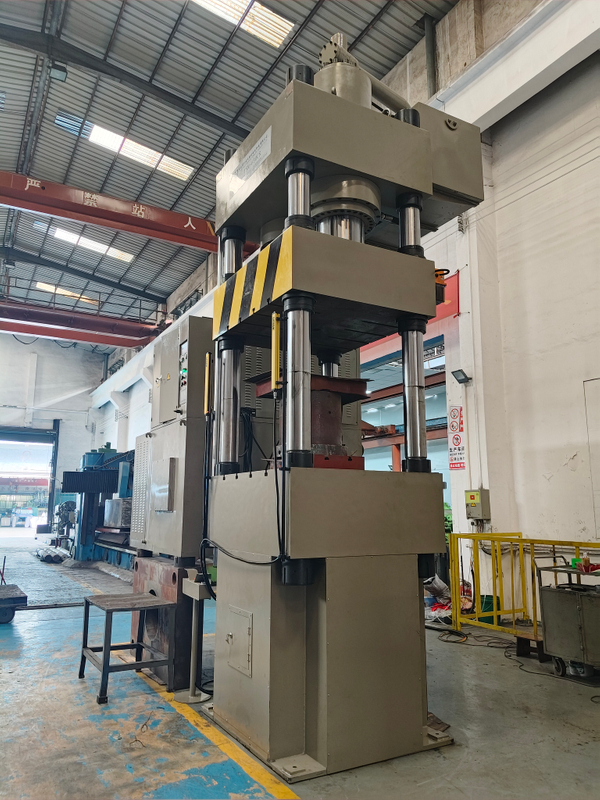

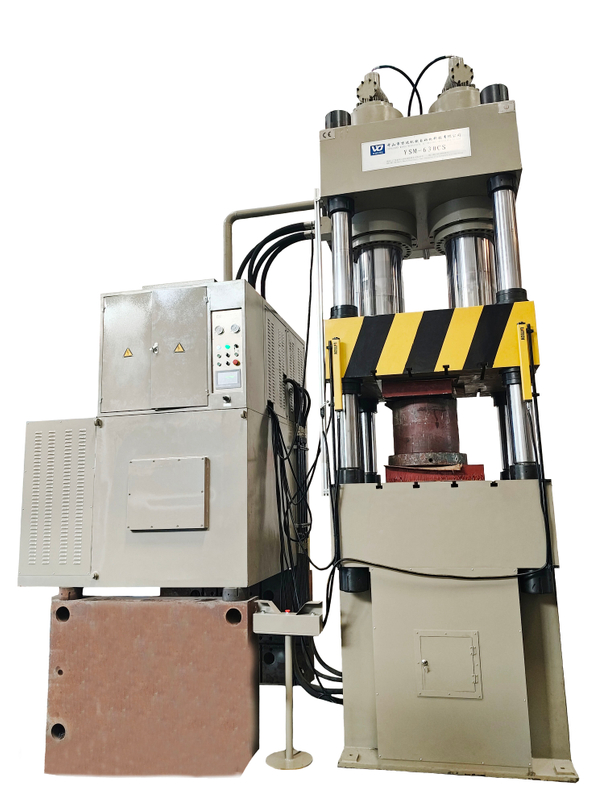

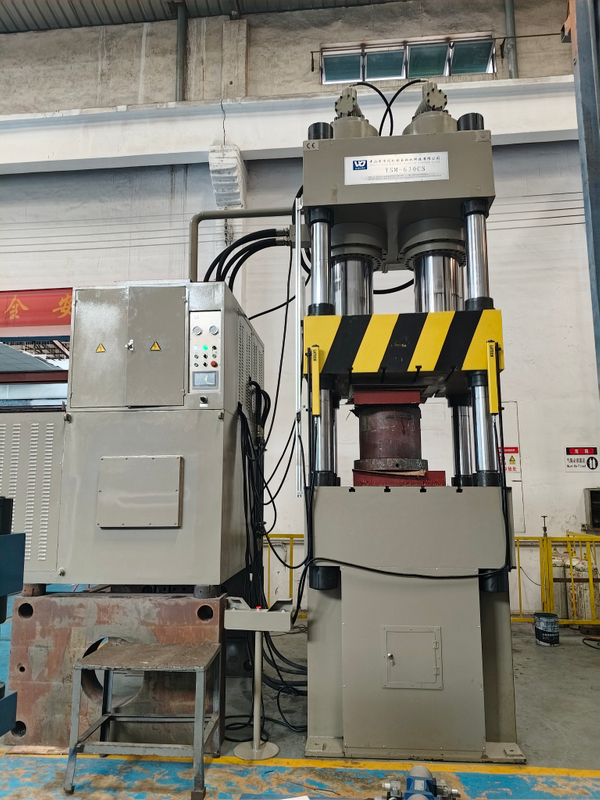

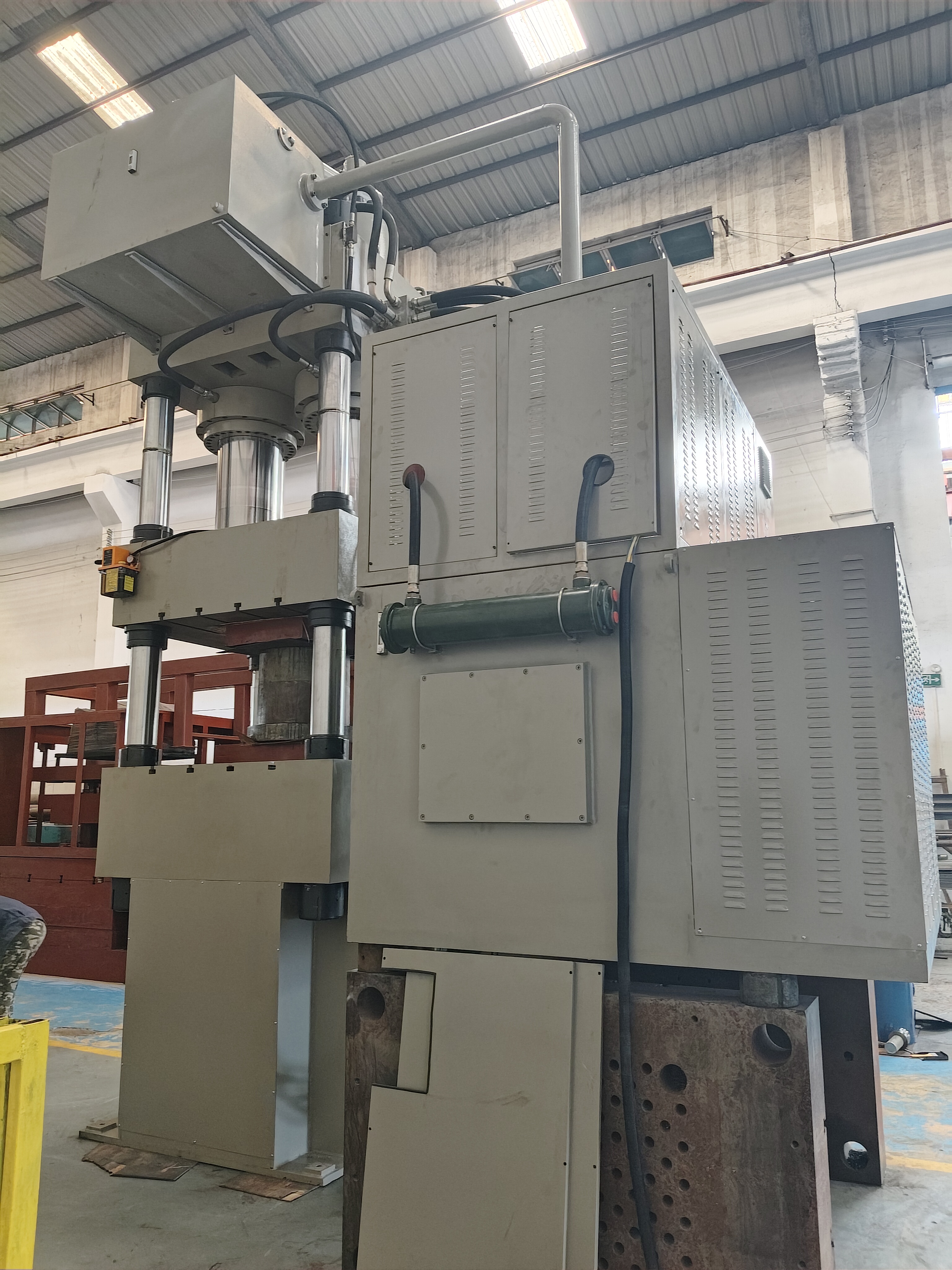

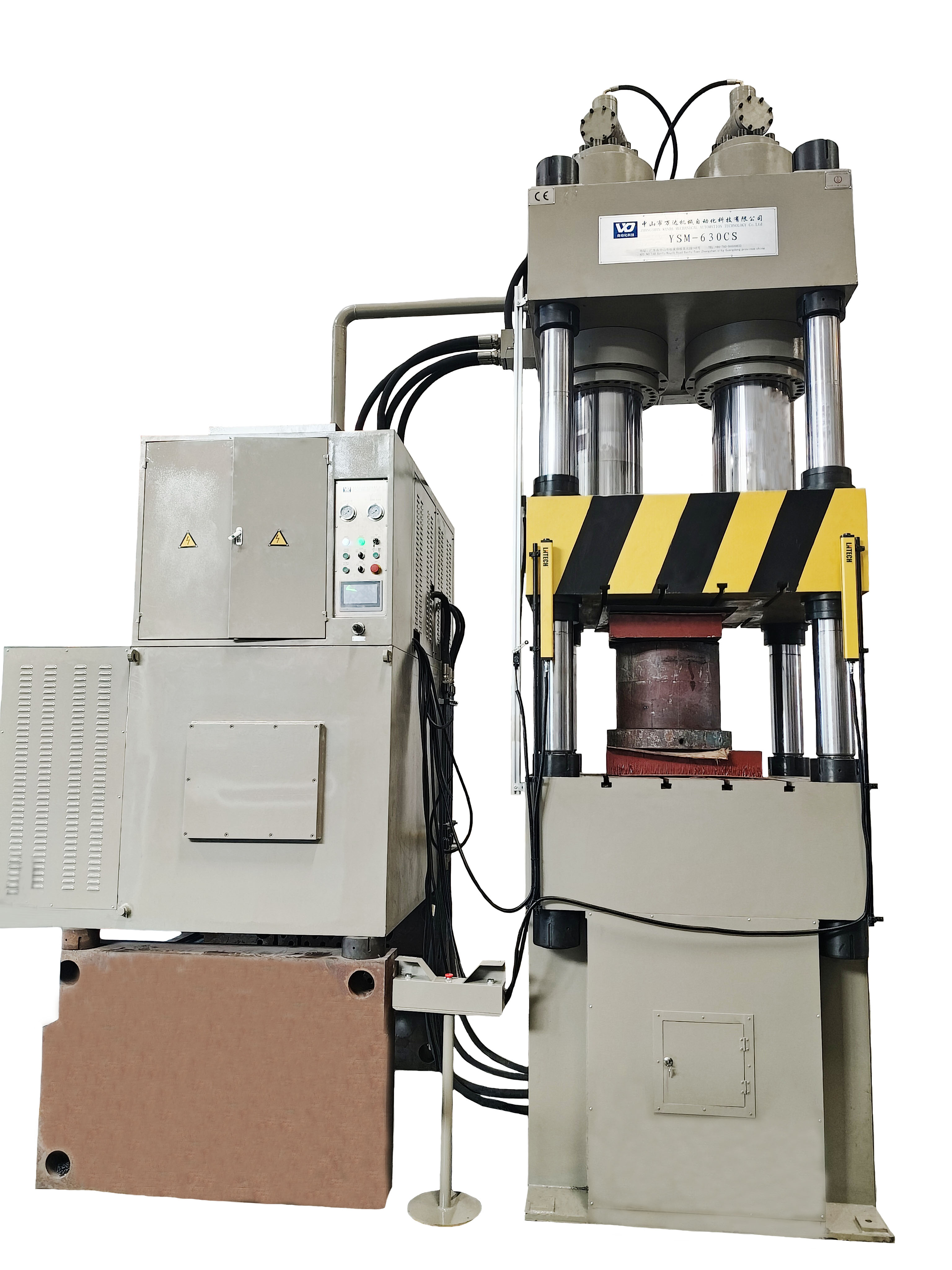

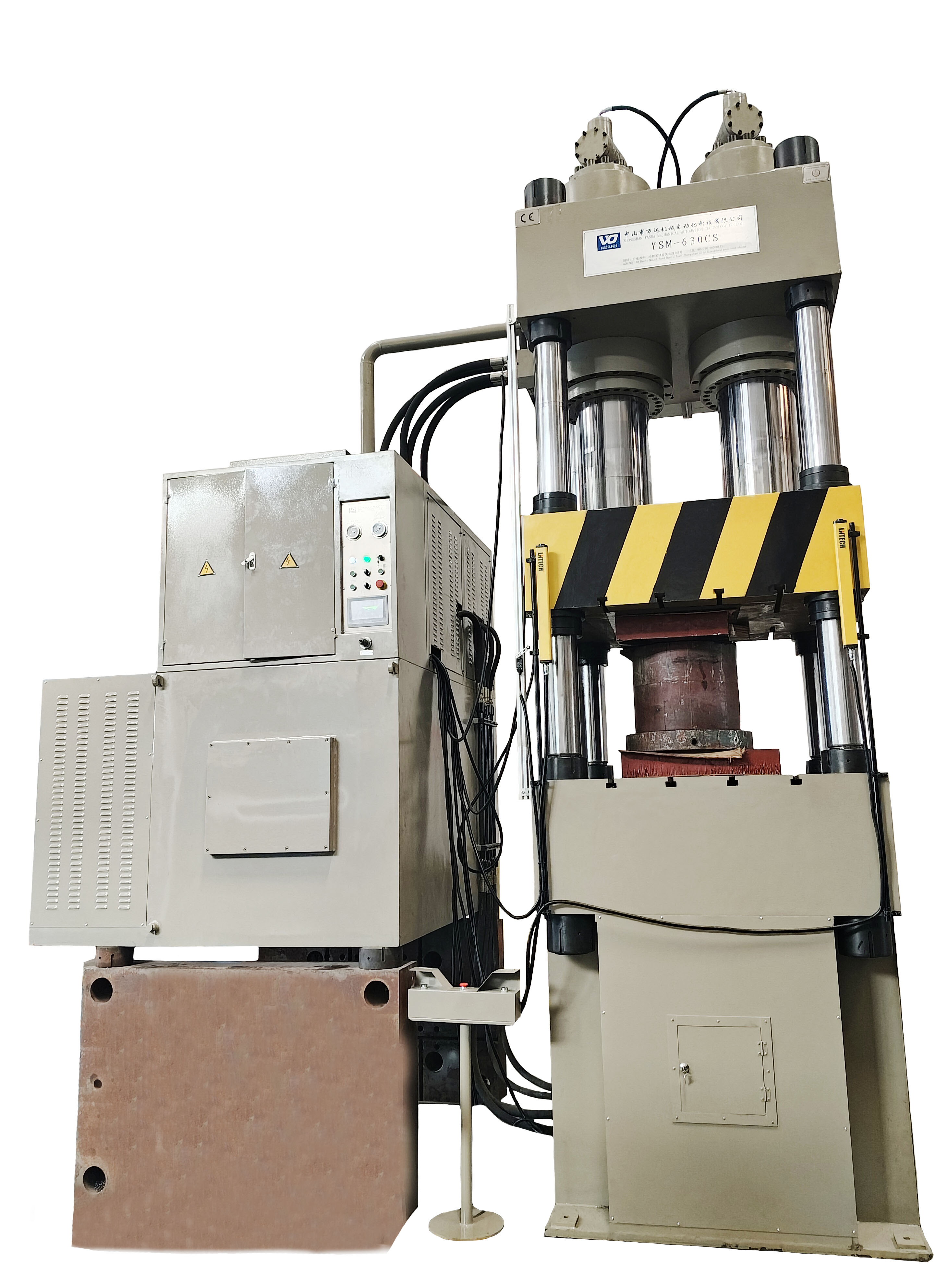

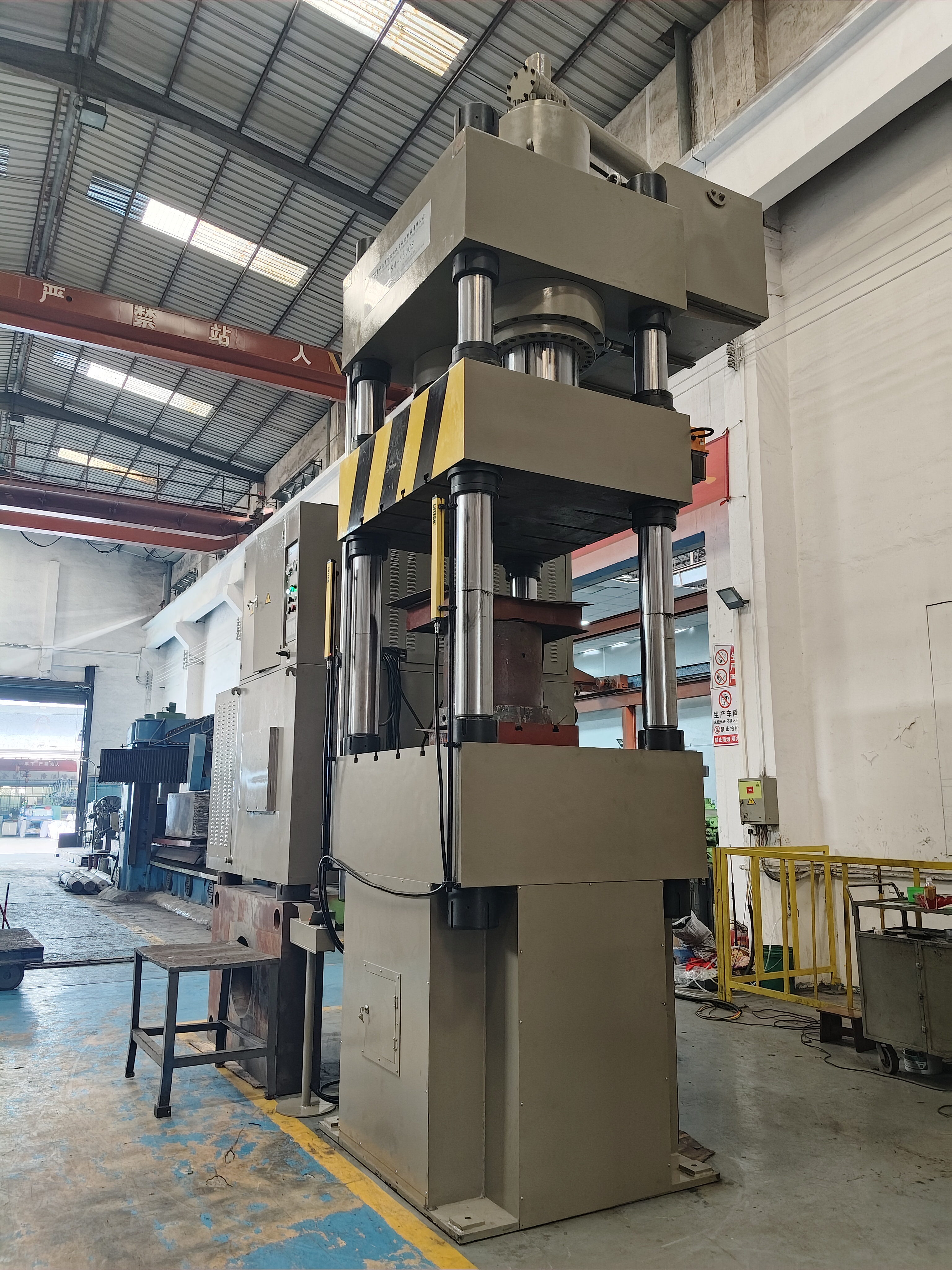

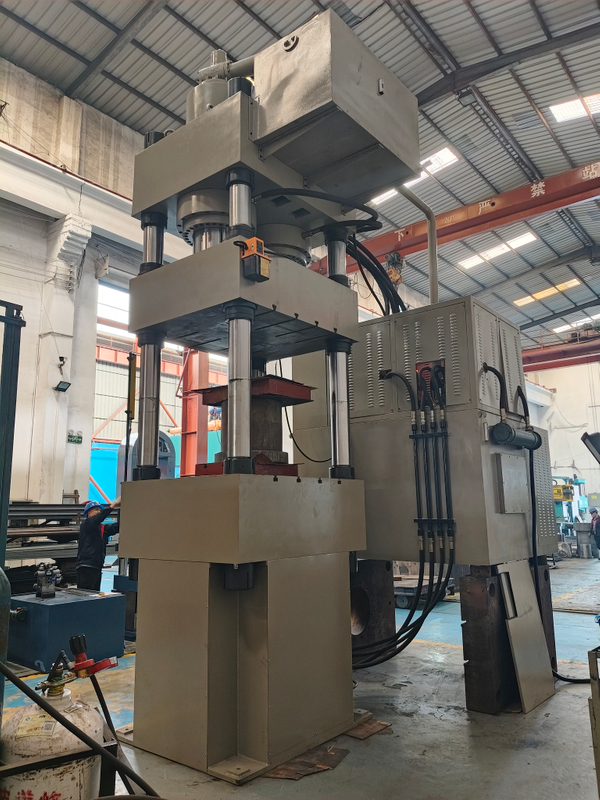

YSM-630CS
万达
Product Description
Main parameters:
Serial number | project | unit | Specification | |
1 | Nominal force of the master cylinder | KN | 6300(adjustable) | |
2 | Slider stroke | mm | 600(adjustable) | |
3 | Liquid working pressure | KN | 25 | |
4 | Nominal force of edge pressing cylinder | KN | 500 (manual remote control adjustment) | |
5 | Stroke of edge cylinder | mm | 100 (adjustable) | |
6 | Lower withdrawal cylinder force | KN | 200 (adjustable) | |
7 | Stroke of the material withdrawal cylinder | mm | 100 (adjustable) | |
8 | Workspace opening height | mm | 1200 | |
9 | The distance between the flat surface on the workbench and the ground | mm | 1780 | |
10 | Slider running speed | No load down | mm/s | 200 |
Slow down and suppress | mm/s | 12-18 | ||
Return | mm/s | 160 | ||
11 | Bottom cylinder running speed | Eject | mm/s | 80(adjustable) |
return | mm/s | Passive return | ||
12 | Workbench size | Left and right (inside the column) | mm | 1030 |
Front and back (edge) | mm | 1250 | ||
13 | Servo motor power | KW | 60.5 | |
