1. Machine use, working conditions and actions

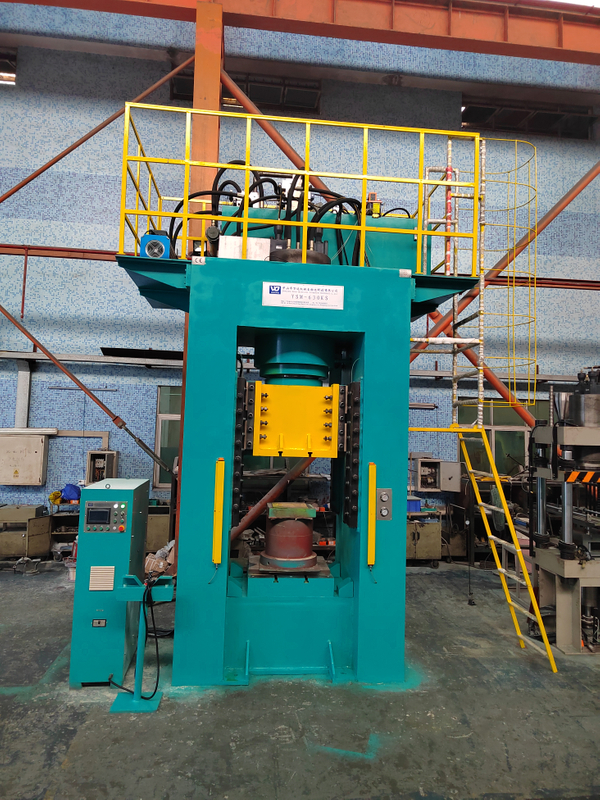

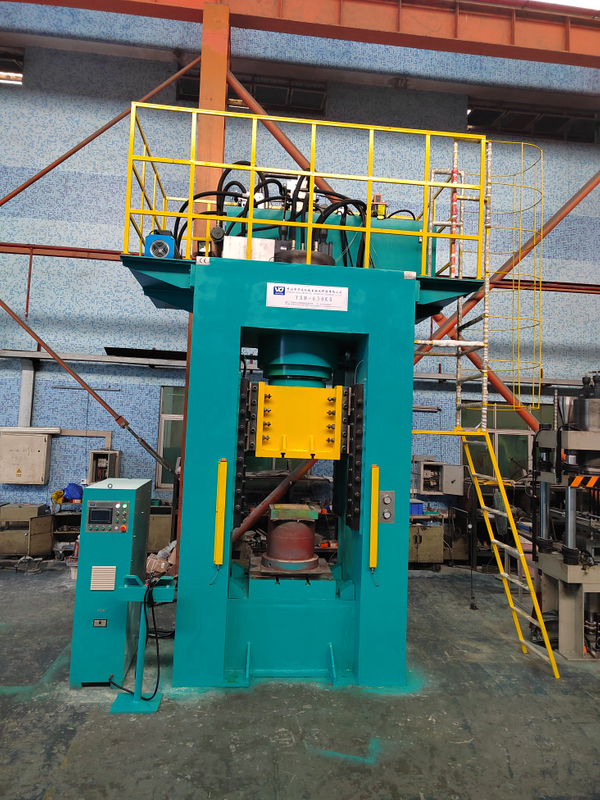

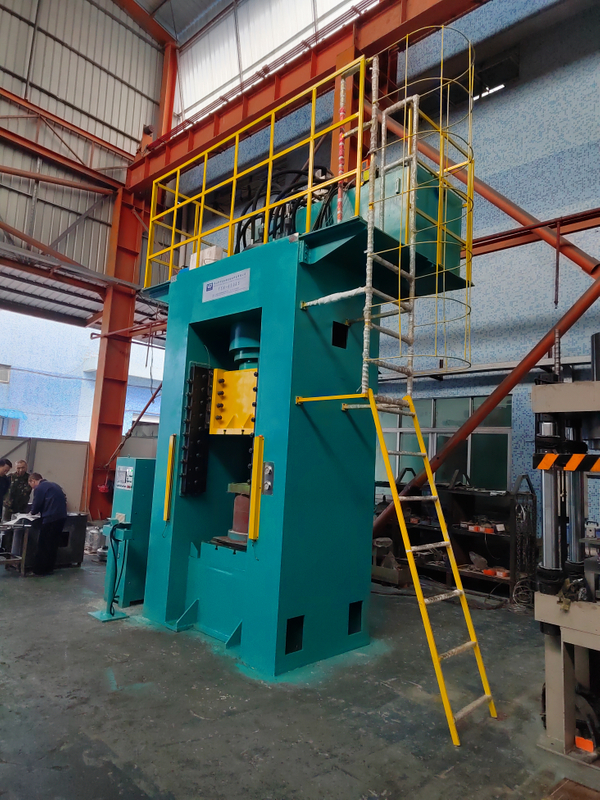

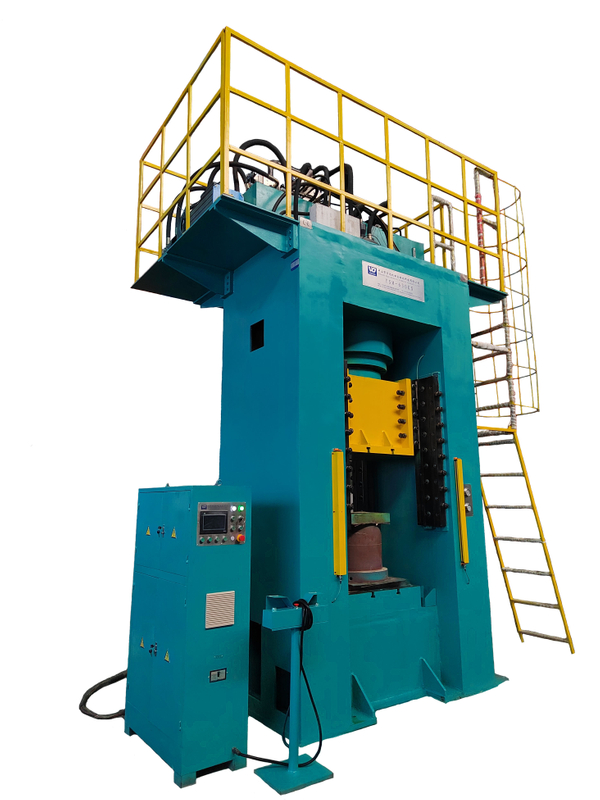

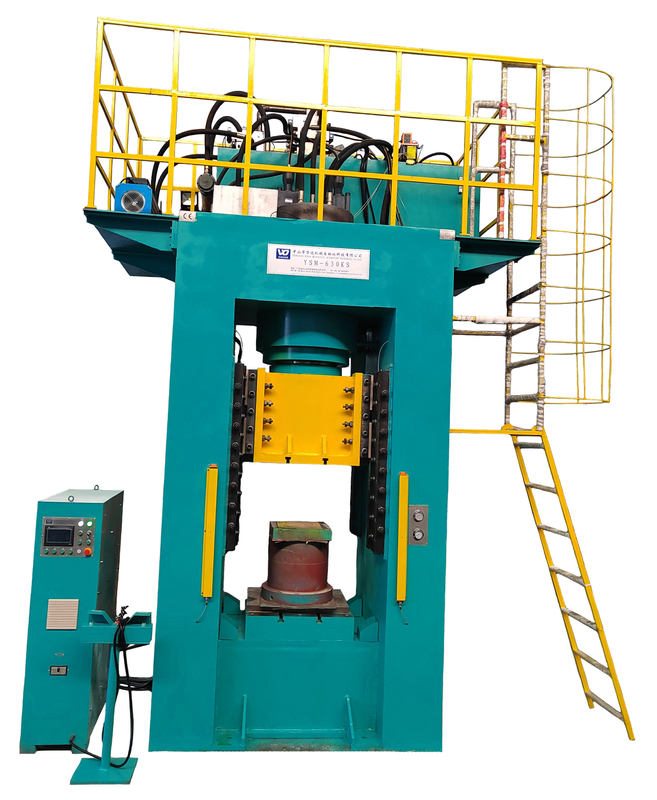

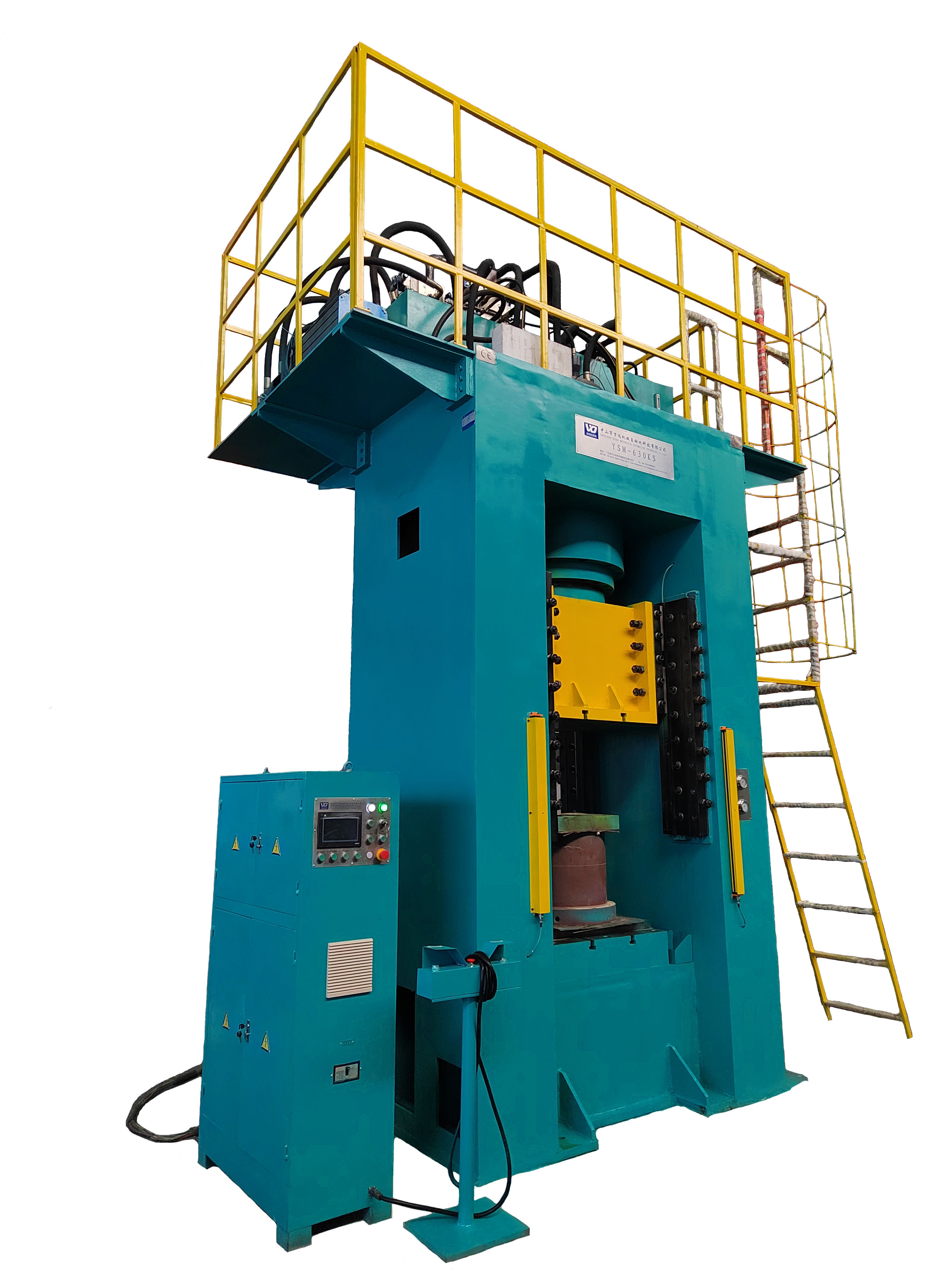

1.1, this machine is suitable for bending, blanking, blanking, calendering, embossing, forming, pressing and correction of structural parts of steel and plastic materials. The machine has an independent hydraulic system and electrical system, and adopts the combination of touch screen display Displacement and product counting, touch screen +PLC+ grating displacement control, which is convenient to set and control the upper limit of the slider, fast turn slow, lower limit and pressure holding time. The machine has independent hydraulic system and electrical system, which can realize manual adjustment and semi-automatic and automatic three working modes. Each working state can achieve accurate displacement and fixed pressure two pressing methods.
1.2, machine use conditions:
-- Working environment temperature: 0-55℃
-- Relative humidity: not more than 85%
-- Supply voltage: 380V± 5%50HZ
-- Altitude: no more than 1500m
-- Hydraulic system using medium: 68# anti-wear hydraulic oil
