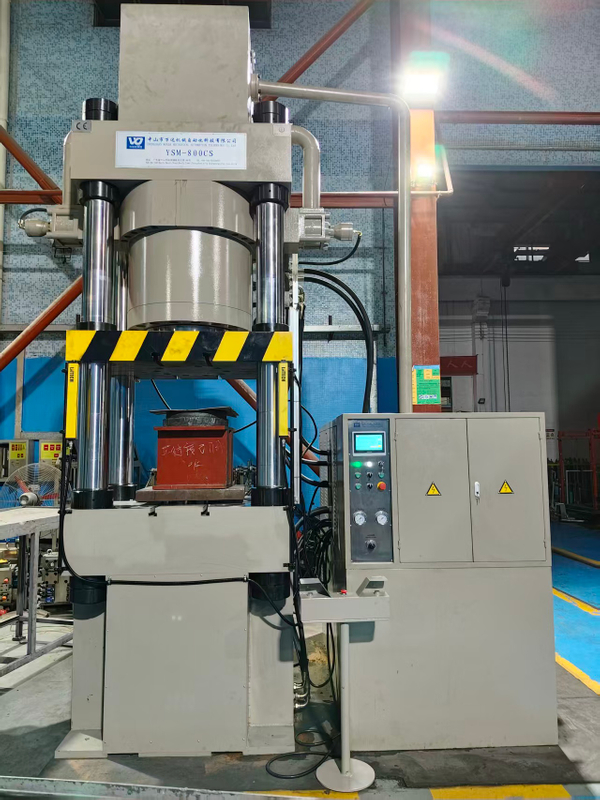

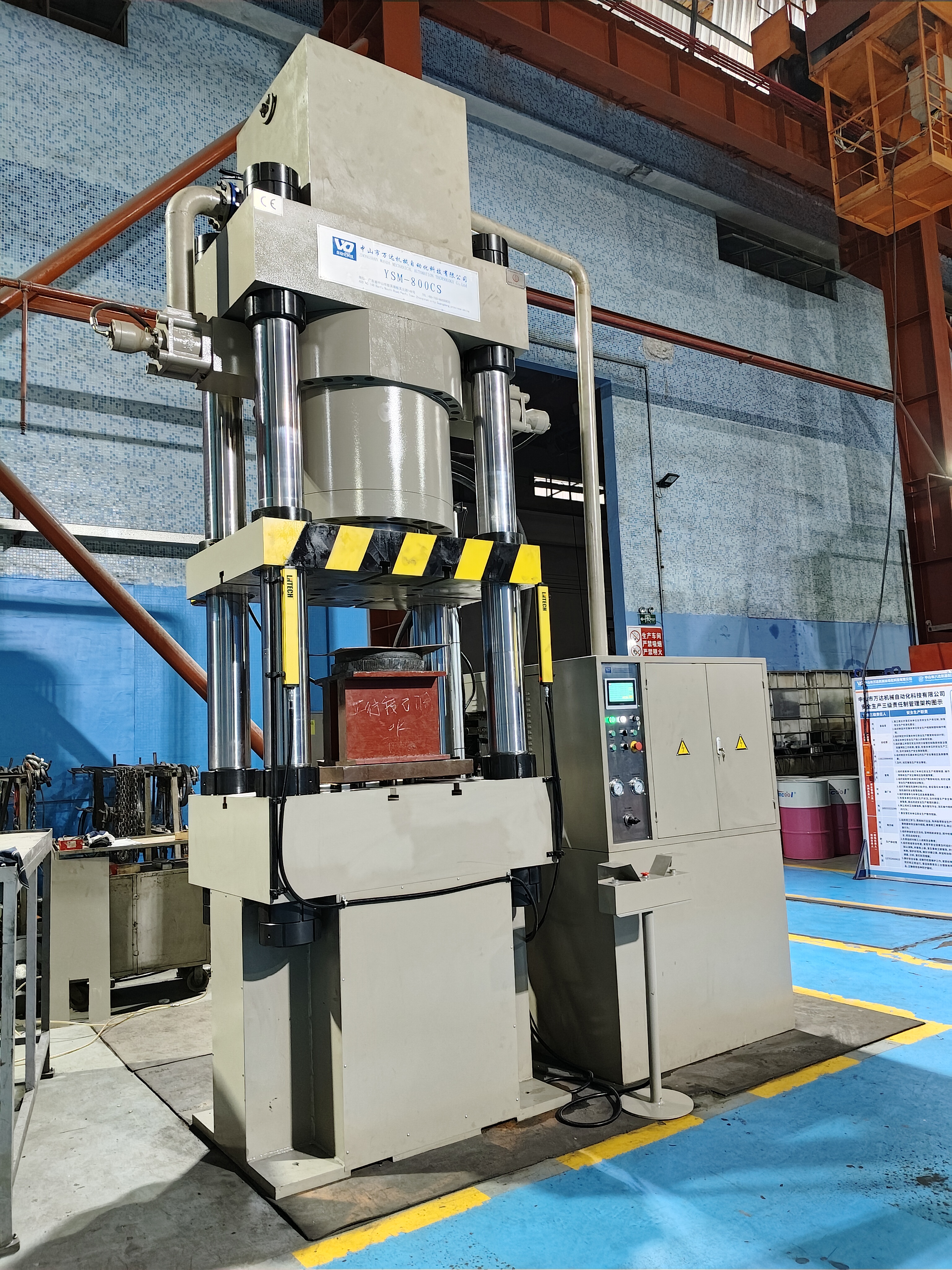

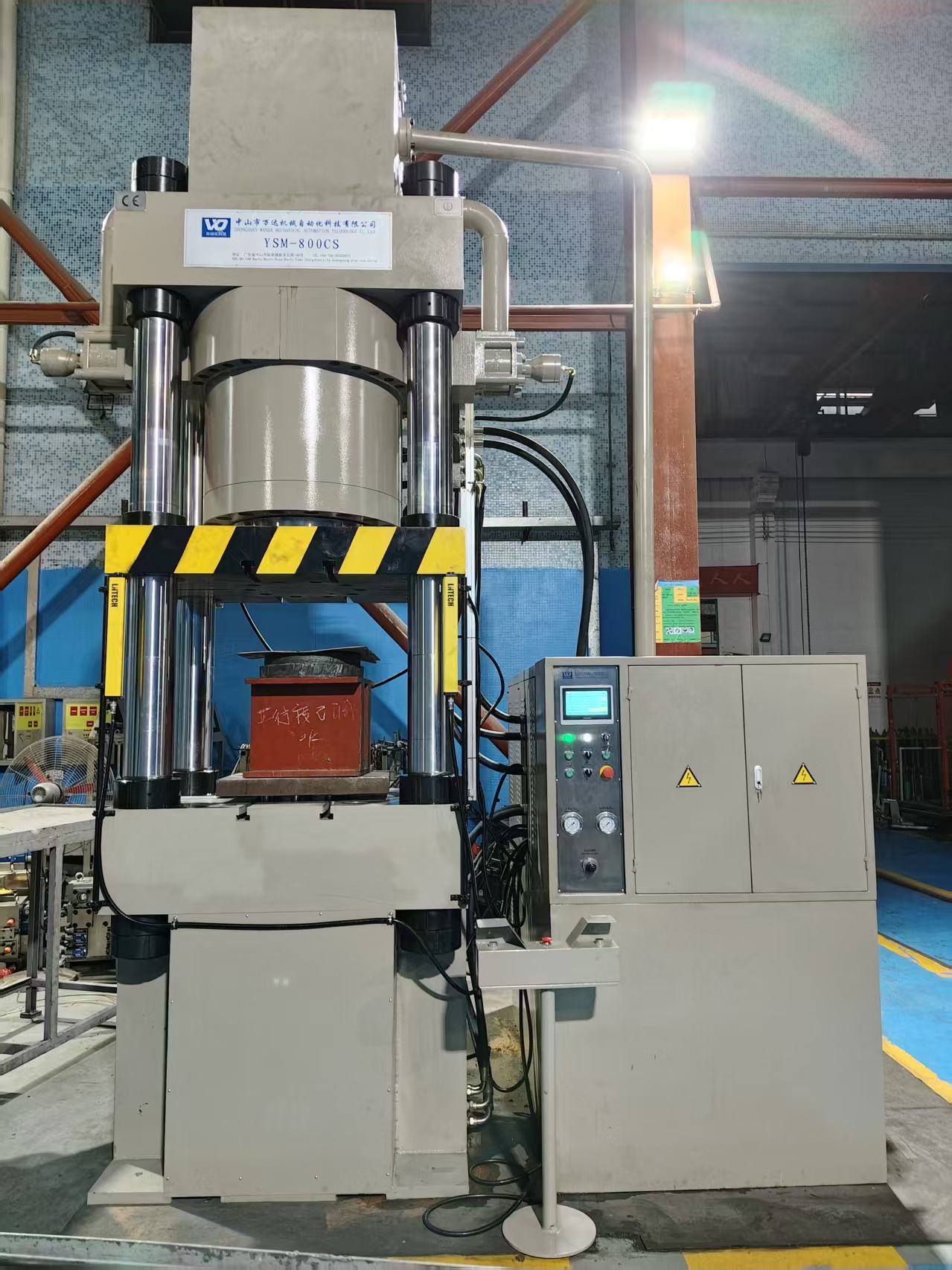

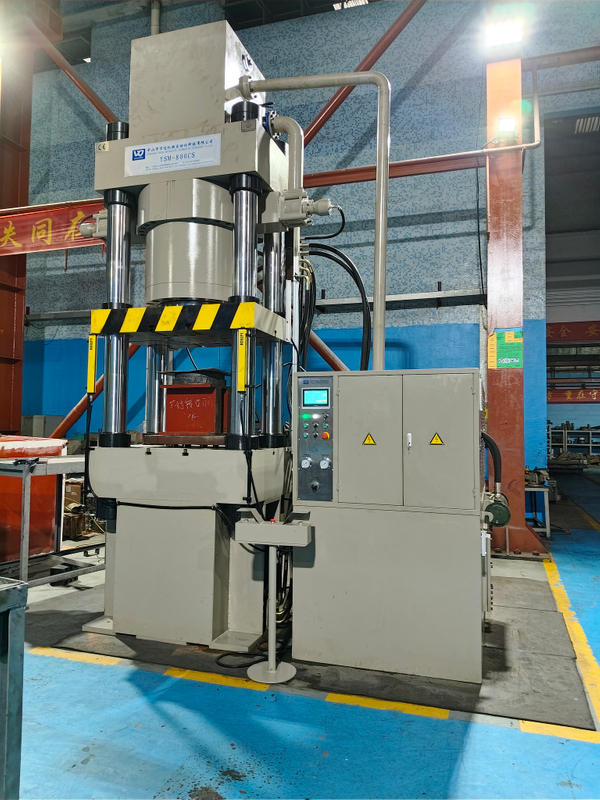

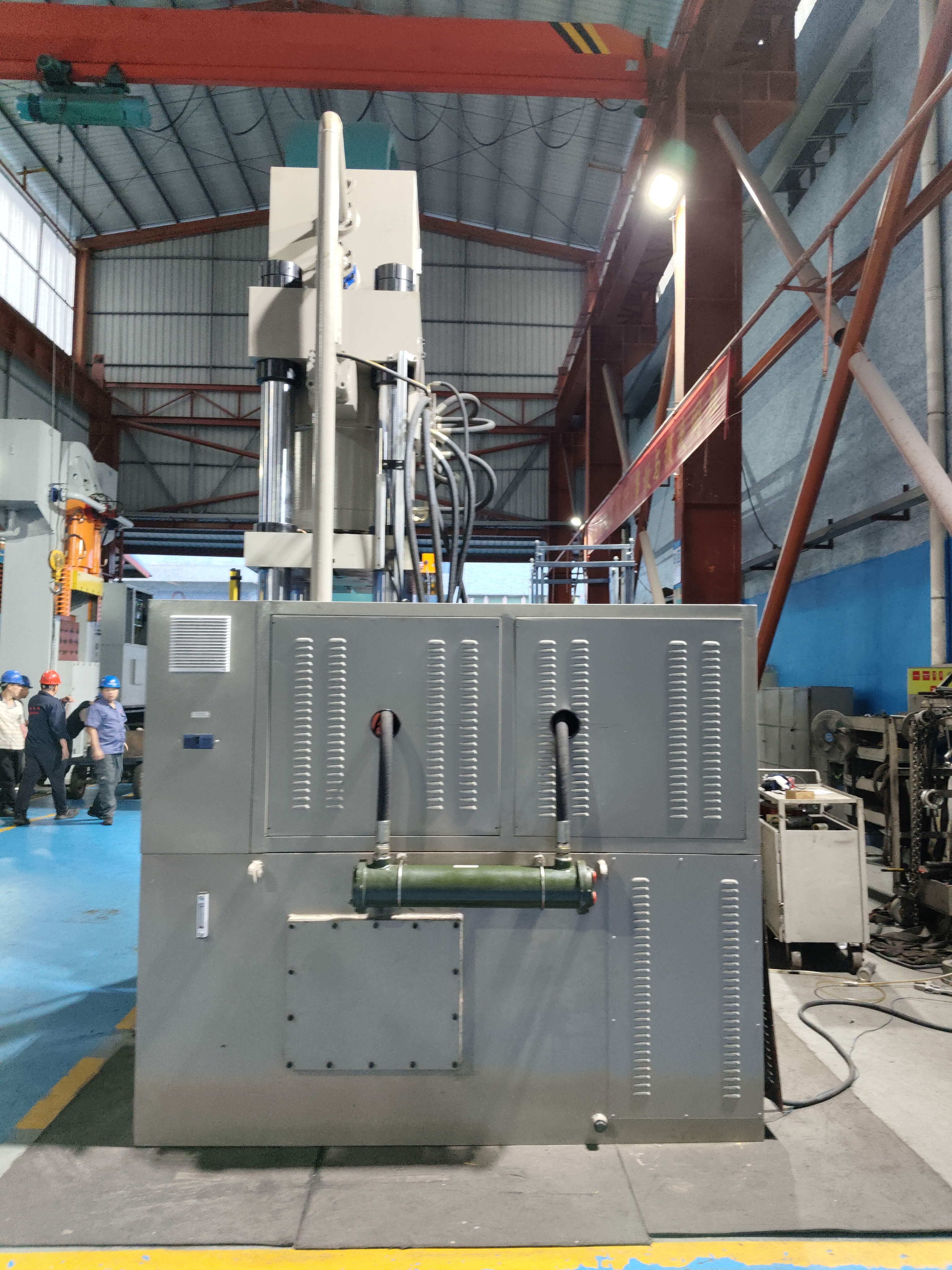

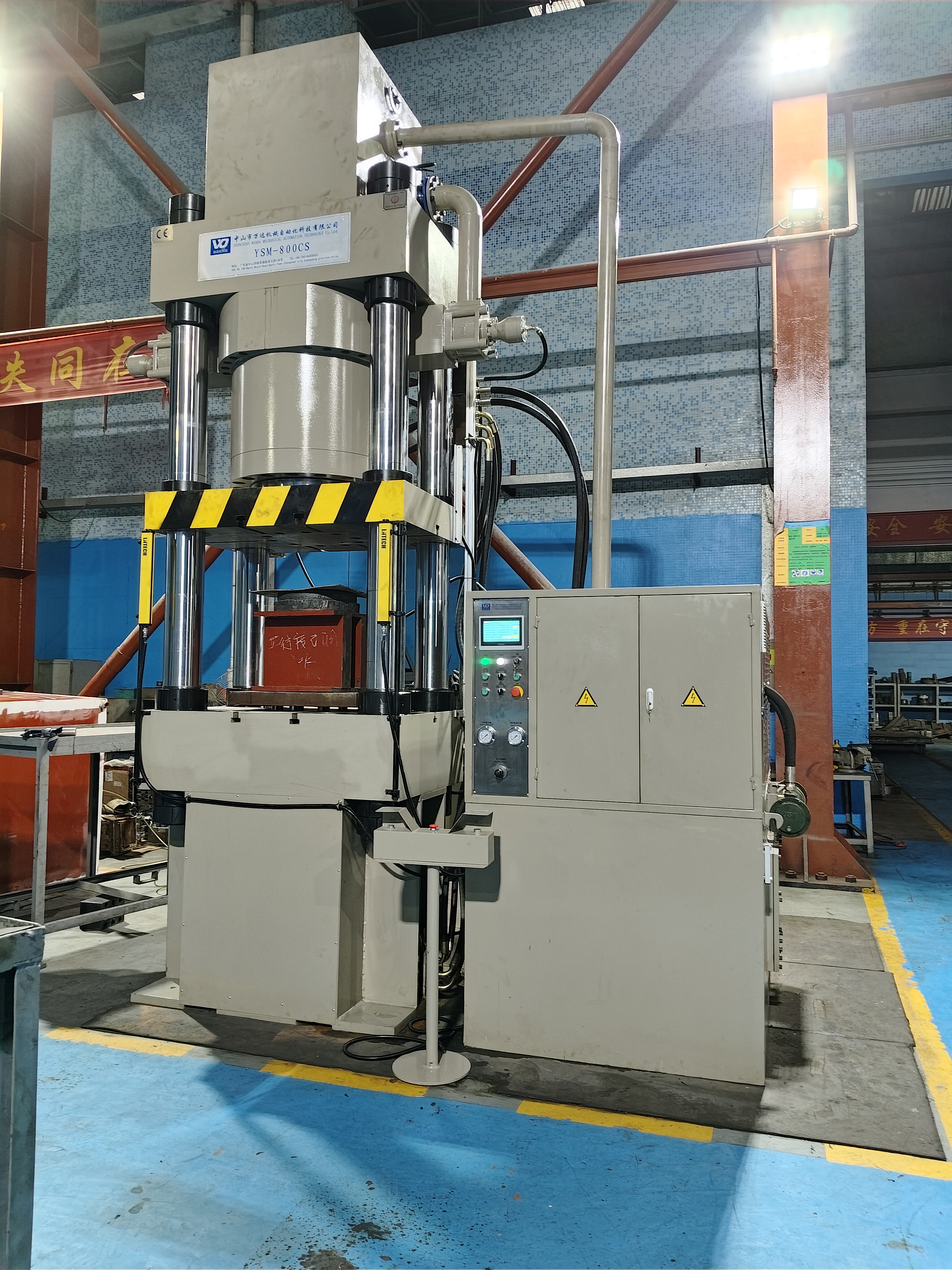

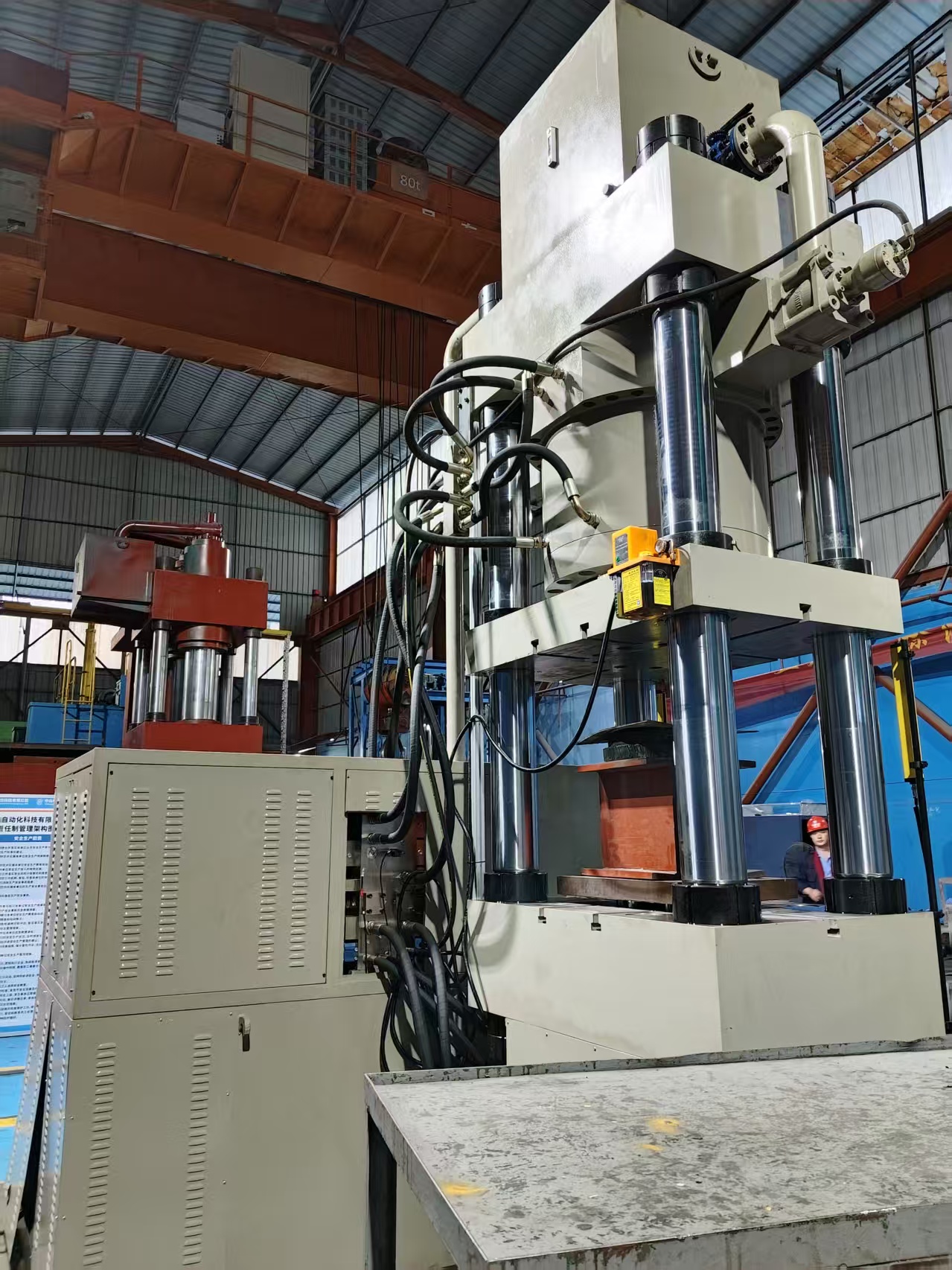

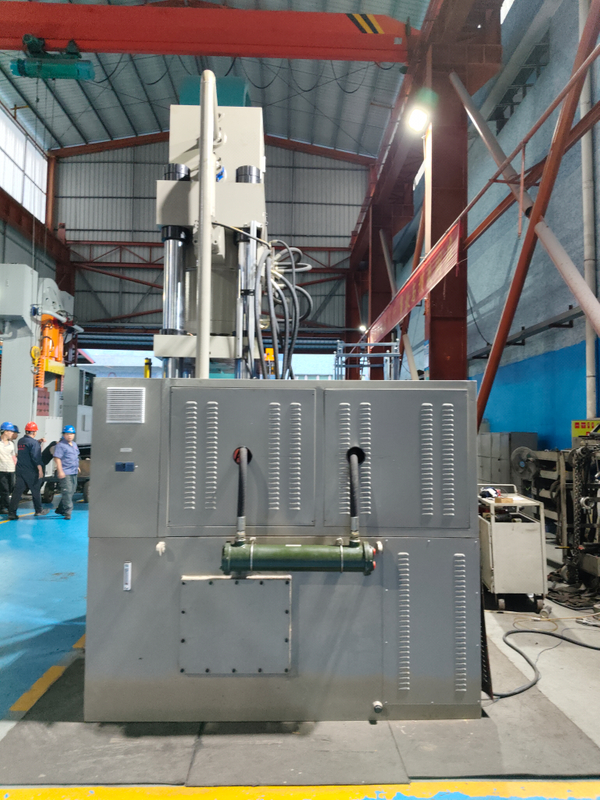

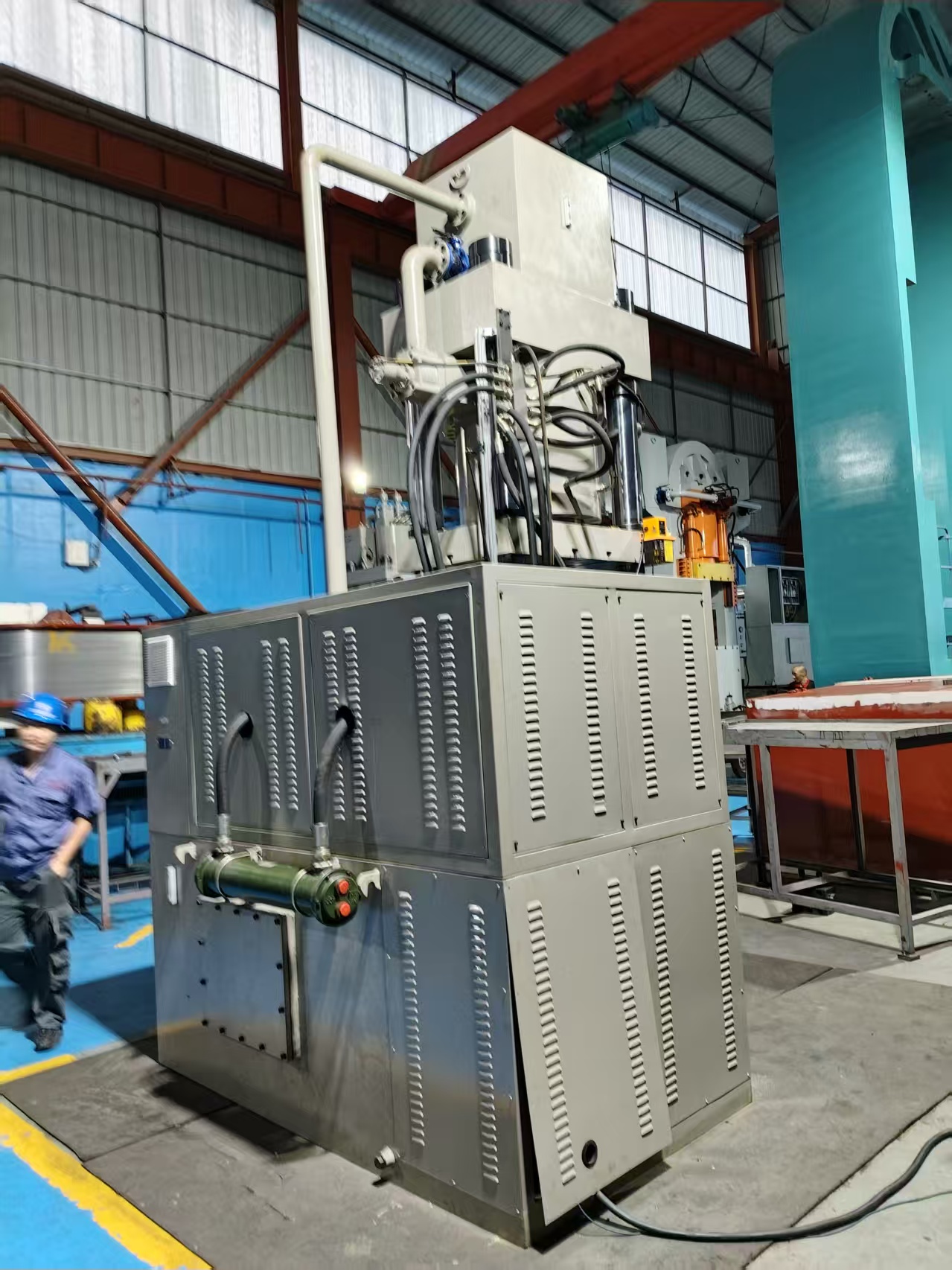

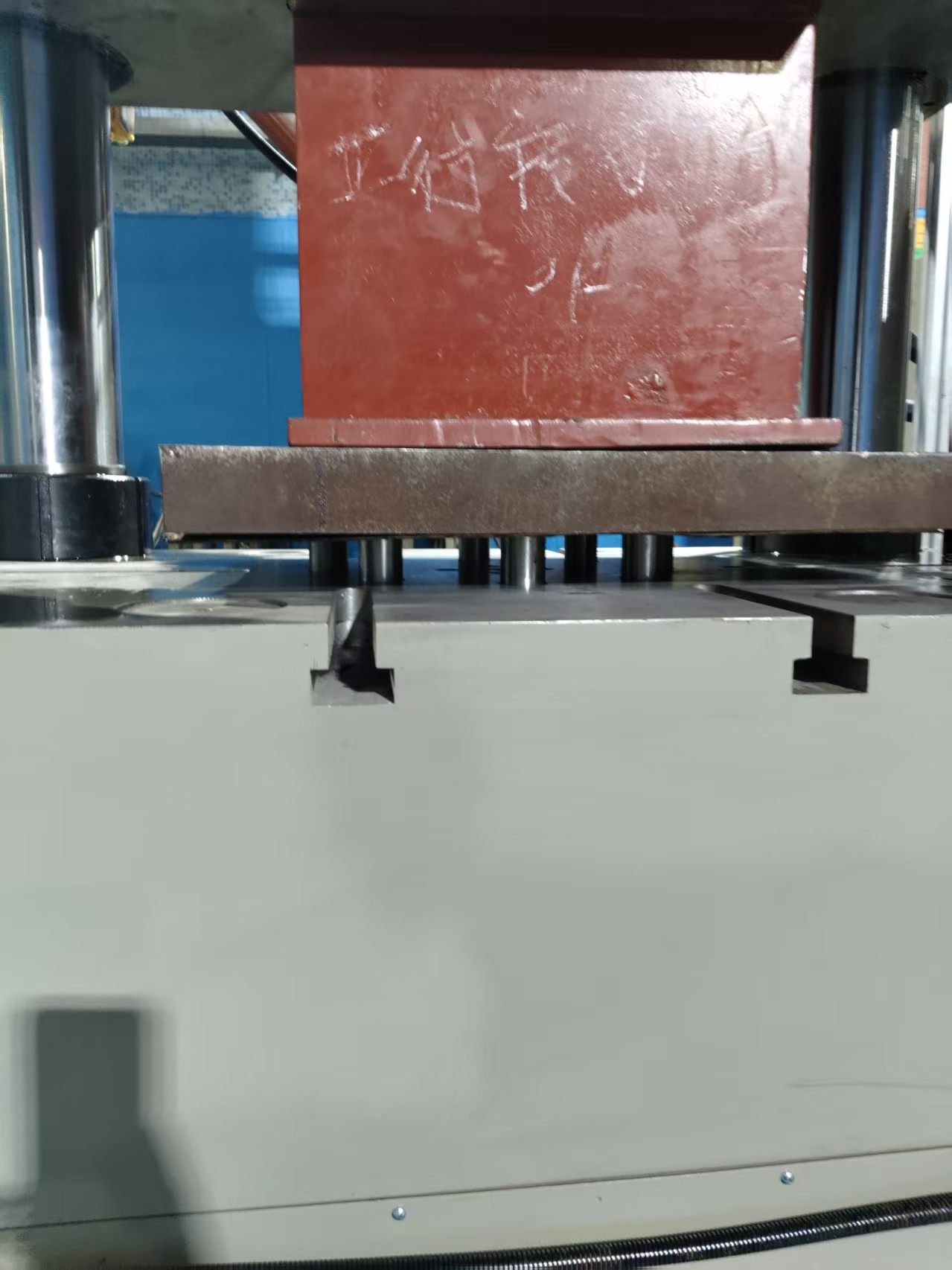

YSM-800CS servo precision CNC four-column hydraulic press

1. Machine usage, performance, working conditions, advantages:
1.1. This machine is suitable for precision cold forging, blanking, blanking, rolling, embossing, forming and structural correction processes of aluminum alloy, IGBT, stainless steel, steel and plastic materials.
1.2. The machine has independent hydraulic and electrical systems, and uses a touch screen to display displacement and product count. The touch screen + PLC + grating ruler combination makes it easy to set and control the upper limit of the slider, fast and slow rotation, lower limit and pressure holding time, etc.
1.3. Two working modes, adjustment and automatic, can be realized. Each working state can realize two pressing methods: constant pressure and fixed range.
1.4. Machine usage conditions:
Working environment temperature: 0-55℃ Relative humidity: no more than 85%
Hydraulic oil temperature 5-50℃ Power supply voltage: 380V±5% 50HZ
Altitude: no more than 1000m Hydraulic system medium: 46# anti-wear hydraulic oil
1.5. This machine supports the recipe function, which can store and call process data (such as pressure, stroke, etc.). When the user changes molds, he can call out the previously stored process data without having to adjust the mold and test the pressure again.
1.6. Energy saving: Compared with traditional similar models, energy saving reaches 15%-35%. Especially under high power and long reactive time conditions, the power saving is more obvious, reaching more than 45%.
1.7. Silent: 5-15Db lower than similar machines. The noise during production is low, which greatly reduces the noise damage to human ears.
1.8. Precise pressure: It adopts servo hydraulic system control, which can meet the changing requirements of different processes for speed and pressure. The movement is more stable under constant temperature, and the pressure accuracy error is within 0.5Mpa.
1.9. Repeated positioning accuracy: no-load repeated displacement accuracy can reach ±0.01mm;
1.10. The machine has digital and information input and output ports to facilitate signal and digital collection, remote monitoring, and fault diagnosis.
1.11. All data of the machine can be set and stored on the touch screen for easy recall.

Availability:

Quantity:



Inquire Add to Basket

Model:
YSM-800CS
Brand:
万达

Product Description

Product Description

2. Machine process actions:

2.1. Typical process actions:

Start the motor, the edge holder cylinder is at the upper limit, and the lower withdrawal cylinder is at the lower limit. The main cylinder moves downward quickly. The main cylinder presses slowly. The edge holder cylinder passively moves downward. The main cylinder releases pressure and returns. The edge holder cylinder returns. The withdrawal cylinder ejects and the material cylinder returns (electronic ruler control) to complete a working cycle.

2.2. Each action can be controlled manually.

Technical parameters:

Serial number	project		unit	Specification
1	Nominal force of the master cylinder		KN	8000 (adjustable)
2	Slider stroke		mm	400 (adjustable)
3	Liquid working pressure		KN	25
4	Nominal force of edge pressing cylinder		KN	500 (manual remote control adjustment)
5	Stroke of edge cylinder		mm	100 (adjustable)
6	Lower withdrawal cylinder force		KN	200 (adjustable)
7	Stroke of the material withdrawal cylinder		mm	80 (adjustable)
8	Workspace opening height		mm	900
9	The distance between the flat surface on the workbench and the ground		mm	1300
10	Slider running speed	No load down	mm/s	200
		Slow down and suppress	mm/s	7-14
		Return	mm/s	200
11	Bottom cylinder running speed	Eject	mm/s	80 (adjustable)
11	Bottom cylinder running speed	return	mm/s	Passive return
12	Workbench size	Left and right (inside the column)	mm	880
12	Workbench size	Front and back (edge)	mm	880
13	Motor power		KW	50.7

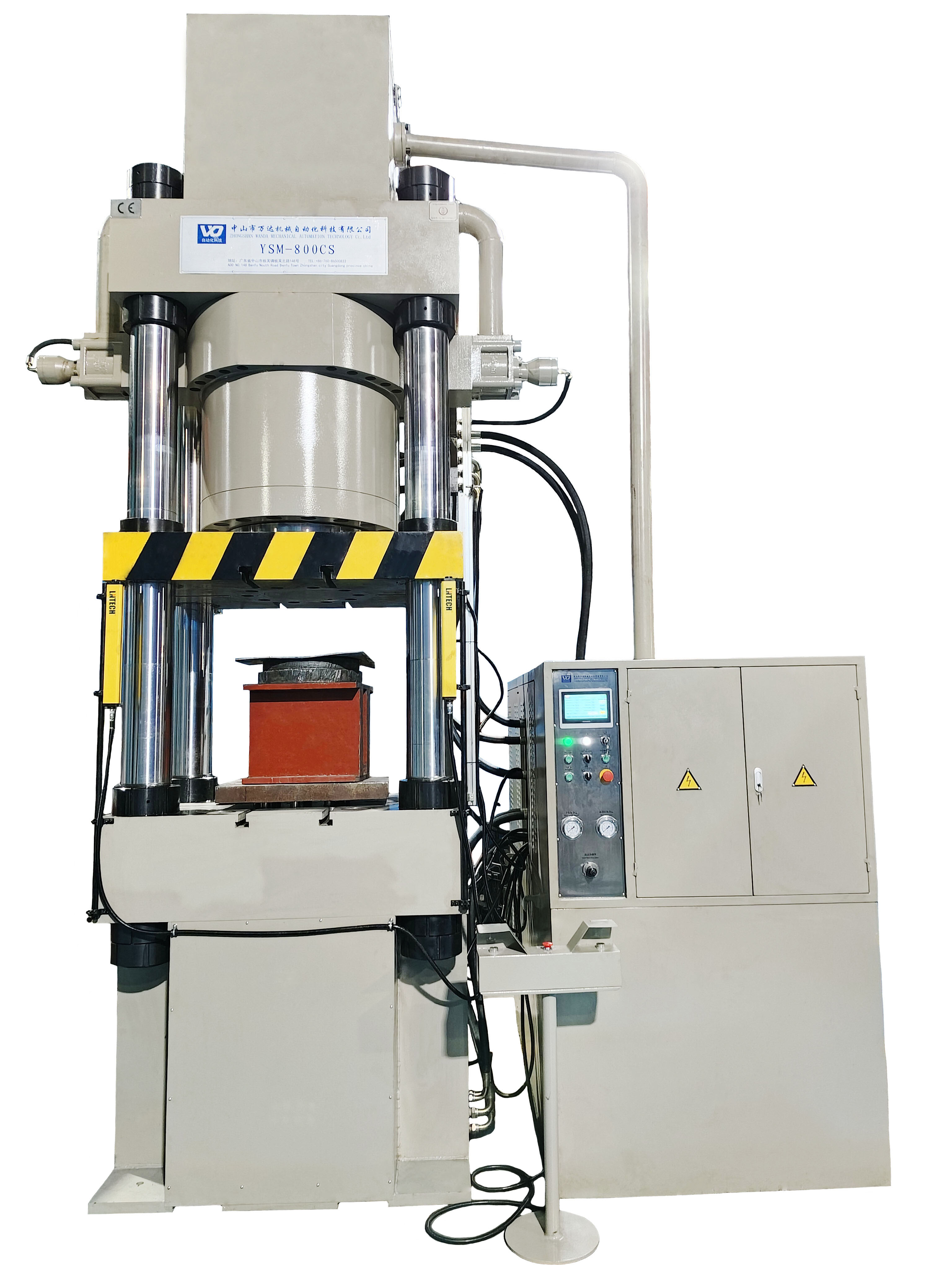

0 - restored
