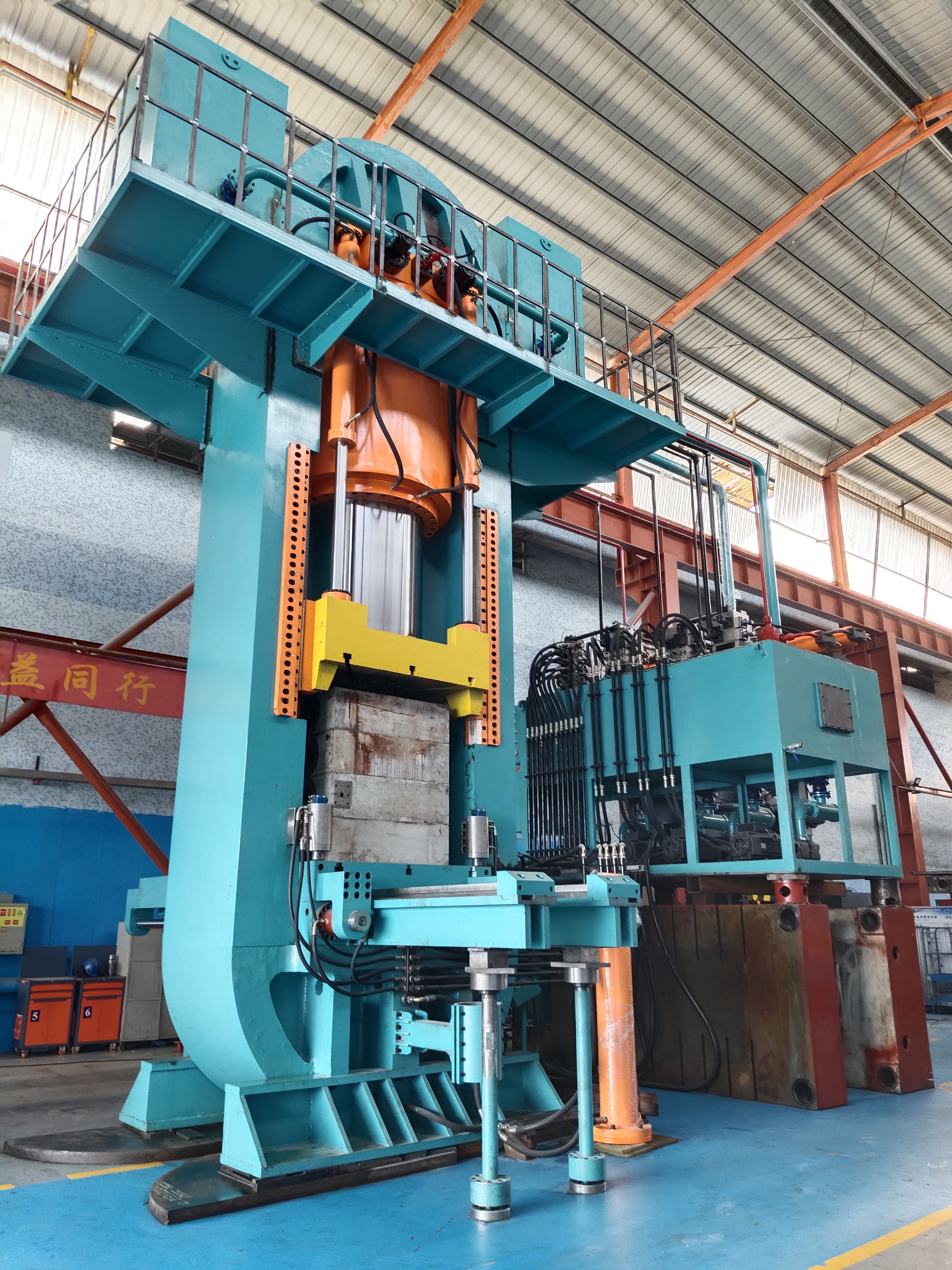

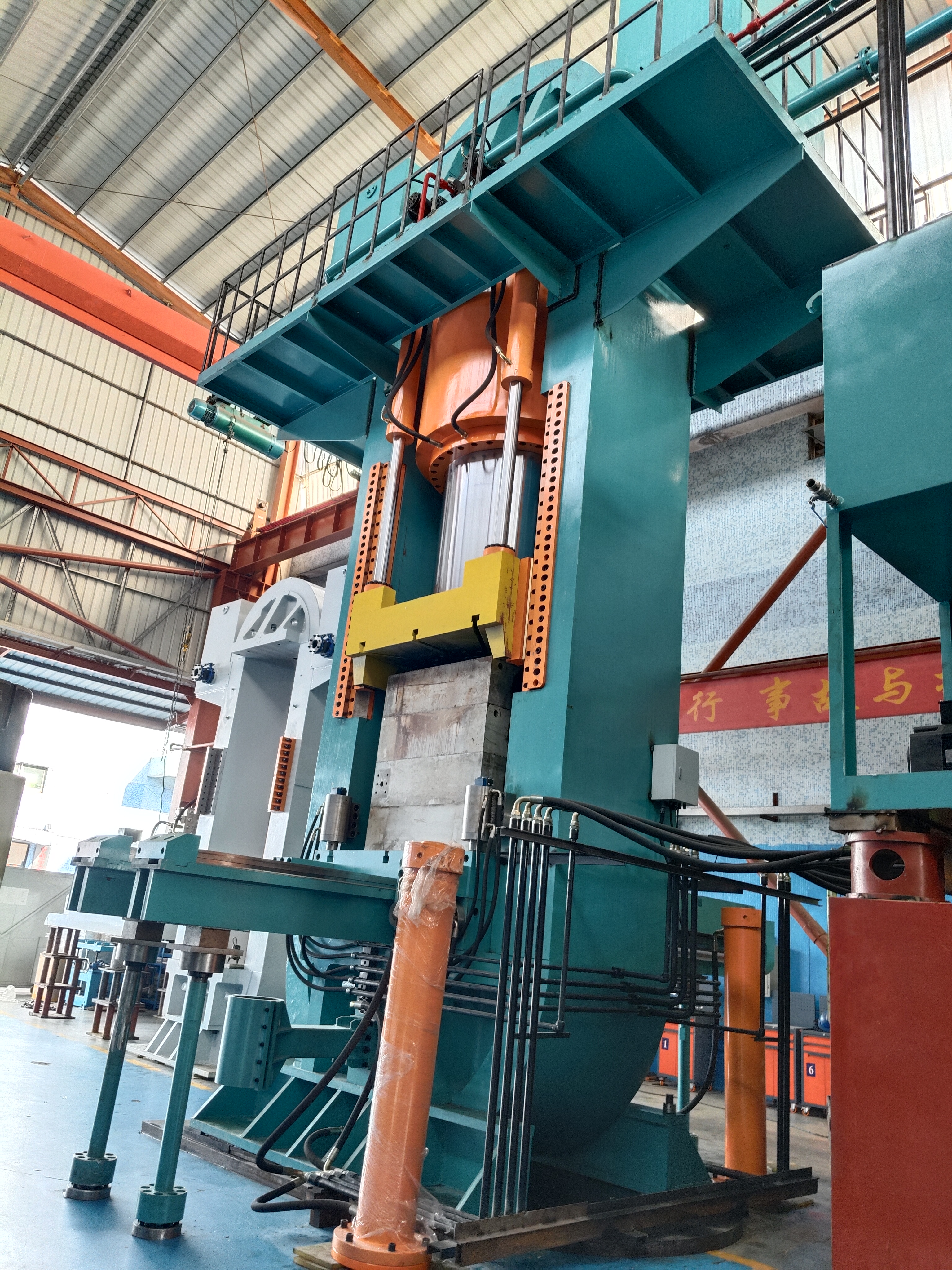

Zhongshan Wanda Machinery’s 10,000-ton ultra-high-pressure steel wire winding hydraulic press makes its grand debut

Our company has launched a 10,000-ton ultra-high-pressure steel wire winding hydraulic press. This high-end equipment, which embodies the company"s more than 30 years of R&D experience, fills the gap in the manufacturing of large-tonnage precision hydraulic presses in the region, injects impetus into the high-quality development of many fields in our country, and demonstrates the company"s hard-core innovation strength.

Having been deeply involved in the industry for more than 30 years, Zhongshan Wanda Machinery has become a benchmark for high-end hydraulic press manufacturing, with a R&D and production capacity of 2-60,000T, possesses nearly 60 valid intellectual property rights, and participated in the formulation of two national standards. The 10,000-ton ultra-high-pressure steel wire winding hydraulic press launched this time is the company"s core achievement based on market demand. It integrates a number of international advanced technologies and breaks the limitations of traditional models.

This equipment has a wide range of uses. It can be used for precision hot forging, cold forging, and extrusion of round bars and plates such as stainless steel, IGBT copper-based, and aluminum materials. It can complete punching, bending, and other processing of metals and plastic materials. It can also correct and level large structural parts. It is widely used in many key industries such as military industry, aerospace, new energy, photovoltaics, and automobile and motorcycle parts to help upgrade downstream industries.

Compared with traditional models, this equipment has significant advantages: In terms of control, it is equipped with independent hydraulic and electrical control systems, supporting three modes of manual, semi-automatic and automatic. The no-load repeated displacement accuracy reaches ±0.02mm, and the constant temperature pressure error is only 0.2%-1%fs; structurally, it adopts ultra-high-pressure steel wire winding technology, which greatly reduces the weight and volume of the equipment, reduces costs and transportation and installation difficulties. The main oil cylinder adopts Internationally advanced sealing technology prolongs service life. The slider and worktable have been quenched and tempered to achieve outstanding strength and rigidity. In terms of energy saving and quietness, it is equipped with a servo control system, which saves 15%-30% of energy compared with traditional models (up to more than 50% under high-power conditions). The noise is 5-15Db lower than similar models. In terms of guiding accuracy, it adopts a four-corner X-shaped four-sided guide rail and an automatic lubrication system to ensure stable and reliable operation.

In order to ensure the stable operation of the equipment, the company has standardized the usage conditions: operating temperature 0-55°C, relative humidity not greater than 85%, power supply 380V±5%, 50HZ, altitude not exceeding 1500m, and the hydraulic system recommends the use of 68# anti-wear hydraulic oil.

The launch of this equipment is an important achievement of our company"s technological innovation. In the future, our company will continue to focus on industry needs, promote product upgrades, launch more competitive high-end hydraulic equipment, and help the development of new quality productivity in my country"s equipment manufacturing.
